Yamaha KLW-M711S-A2 Precision Mechanical SMT Nozzle Head Rod for YSM20R with Controlled Nozzle Movement

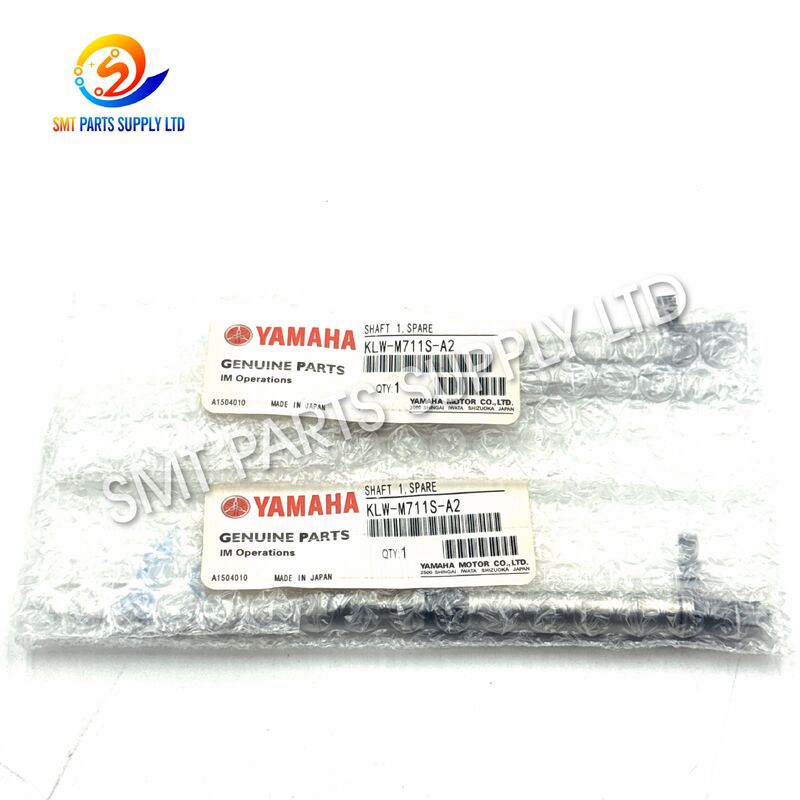

Yamaha KLW-M711S-A2 Shaft 1 Nozzle Head Rod for YSM20R

The Yamaha KLW-M711S-A2 Shaft 1 Nozzle Head Rod is a precision mechanical spare part developed for compatible YSM20R placement-head maintenance applications. Installed within the nozzle movement mechanism, the shaft helps guide controlled vertical motion during electronic component pickup, transfer, recognition, and placement.

Long-term production, nozzle collisions, surface contamination, insufficient maintenance, bearing wear, or incorrect installation may cause the original shaft to become scratched, bent, worn, or difficult to move. These conditions may contribute to unstable nozzle travel, repeated pickup errors, abnormal vibration, inconsistent placement height, and unnecessary machine downtime.

KLW-M711S-A2 is suitable for SMT factories, electronics manufacturing service providers, maintenance departments, machine-repair companies, and international spare-parts distributors. Because head structures and part revisions may differ, buyers should confirm the complete part number, Shaft 1 position, machine configuration, removed-part photographs, and required supply condition before placing an order.

The nozzle shaft performs repeated mechanical movement during every placement cycle. In high-volume production, the part may complete thousands of movements during each operating shift. Its working condition can gradually be affected by friction, contamination, impact, surrounding-component wear, or incorrect maintenance.

A shaft that no longer moves freely may influence the entire pickup and placement sequence. However, similar symptoms may also be caused by a damaged nozzle, worn bearing, weak spring, contaminated holder, vacuum leakage, valve failure, incorrect calibration, or feeder instability. A complete inspection is recommended before replacement.

The nozzle-head mechanism should be inspected when one or more of the following conditions occur:

• The nozzle shaft does not move smoothly during manual inspection.
• The nozzle returns slowly after downward movement.
• Repeated pickup errors occur on several feeder positions.
• Placement height becomes inconsistent.
• The head produces unusual mechanical noise or vibration.
• Visible scratches or wear marks appear on the shaft.
• The nozzle shows excessive side clearance.
• Vacuum pickup performance changes after head movement.
• The machine experiences repeated nozzle-related alarms.
• Placement performance temporarily improves after cleaning.
• A nozzle collision or component crash has occurred.
• The head mechanism feels tighter than other positions.

These symptoms do not automatically confirm shaft failure. The complete mechanical and vacuum system should be evaluated before ordering replacement parts.

Replacing a worn, bent, scratched, or contaminated KLW-M711S-A2 shaft can help restore the mechanical movement of a compatible placement-head assembly.

A correctly selected replacement may help:

• Restore smoother nozzle movement.
• Reduce abnormal mechanical resistance.
• Improve nozzle return consistency.
• Reduce vibration caused by damaged shaft surfaces.
• Support stable component pickup.
• Improve maintenance efficiency.
• Reduce unplanned equipment downtime.
• Prevent continued operation with a bent shaft.
• Protect related bearings and holders from secondary damage.
• Build reliable emergency spare-parts inventory.

Exact shaft dimensions, tolerances, material grade, surface treatment, and revision differences should be verified using approved technical documentation or the removed component. Unconfirmed dimensional values should not be used as purchasing or installation standards.

Similar appearance does not confirm interchangeability. A different suffix may indicate a design revision, shaft position, groove arrangement, surface treatment, holder structure, or compatible head configuration.

Before replacing one code with another, confirm:

• The complete part number.
• Shaft 1 or Shaft 2 position.
• Machine model.
• Machine serial number.
• Placement-head model.
• Groove and slot structure.
• Upper and lower shaft ends.
• Bearing and collar positions.
• Removed-part dimensions.
• Machine parts-list information.
• Product photographs from several angles.
• Previous machine modifications.

The KLW-M711S-A2 Shaft 1 Nozzle Head Rod is used for maintenance and repair of compatible SMT placement-head mechanisms.

• SMT production factories.
• Electronics manufacturing service providers.
• PCB assembly companies.
• Automotive electronics manufacturers.
• Consumer electronics factories.
• LED lighting manufacturers.
• Industrial control equipment producers.
• Medical electronics manufacturers.
• Machine maintenance departments.
• SMT equipment repair companies.
• Used-equipment refurbishment businesses.
• International SMT spare-parts distributors.
• Regional technical service centers.

The shaft forms part of the mechanical guidance system within the placement head. It supports controlled nozzle movement as the machine picks components from feeders and places them onto the PCB.

A correctly installed shaft helps support:

• Smooth nozzle descent.
• Consistent nozzle return.
• Controlled contact with the component.
• Stable mechanical alignment.
• Reduced side movement.
• Lower abnormal vibration.
• Repeatable placement-head operation.
• Easier machine troubleshooting.

The shaft works together with the nozzle, holder, bearing, collar, spring, seal, vacuum channel, valve, sensor, camera, and calibration system. Replacing only the shaft may not solve the problem when other related components are damaged.

Every order should be supplied according to the confirmed part number, condition, quantity, included components, and packaging method.

For inspected-used or refurbished products, the quotation should identify:

• Actual cosmetic condition.
• Visible usage marks.
• Inspection or testing status.
• Included accessories.
• Warranty terms.
• Available product photographs.
• Packaging method.

Check every letter, number, and suffix on the installed component. KLW-M711S-A2 should not be selected only because it looks similar to A0, B0, or B2 versions.

Provide the complete machine model and serial number. Machine model information helps narrow the application but may not be sufficient by itself.

The same machine series may use different head configurations. Provide the head label, assembly code, or clear installation photographs.

Verify that the required part is Shaft 1. Shaft 2 or other positions may use a different structure.

Determine whether the repair requires:

• Shaft only.
• Shaft and bearing.
• Shaft and holder.
• Shaft with spring and collar.
• Complete head-shaft assembly.
• Complete placement-head repair set.

Provide clear photographs showing:

• The complete shaft.
• Both shaft ends.
• Grooves and slots.
• Collar position.
• Bearing contact area.
• Identification marks.
• Installation direction.
• Related holder.
• Damaged area.
• Placement-head location.

Inspect the nozzle, bearing, holder, spring, collar, seal, vacuum passage, and valve. Reusing damaged related parts may cause the new shaft to fail prematurely.

Specify the required condition clearly:

For urgent inquiries, provide:

• Destination country.
• Postal code.
• Required quantity.
• Expected delivery date.
• Preferred courier or shipping method.
• Import-document requirements.

Factories operating multiple YSM machines should keep confirmed critical head parts in stock. Verified emergency inventory helps reduce downtime when international transportation is required.

Professional installation by a trained SMT maintenance technician is recommended.

1. Stop the machine according to the approved shutdown procedure.
2. Isolate electrical and pneumatic energy where required.
3. Move the head to a safe maintenance position.
4. Record the original shaft orientation and assembly sequence.
5. Use clean tools suitable for precision head components.
6. Remove the nozzle and related components carefully.
7. Inspect the old shaft for wear, bending, and scratches.
8. Check bearings, holders, collars, springs, and seals.
9. Clean the installation area using an approved method.
10. Compare the new part with the removed shaft.
11. Confirm the complete part number and Shaft 1 position.
12. Install the replacement without striking the shaft.
13. Reassemble all related components in the correct order.
14. Check smooth manual movement before operation.
15. Restore machine power and air safely.
16. Complete initialization or calibration when required.
17. Test nozzle pickup and vacuum performance.
18. Run trial placement at a controlled speed.
19. Inspect pickup, recognition, height, and placement results.
20. Return the machine to production only after stable operation.

• Do not install a visibly bent shaft.
• Do not strike precision surfaces with metal tools.
• Do not mix Shaft 1 and Shaft 2 components.
• Do not use unapproved lubricant.
• Do not reuse damaged bearings or holders.
• Do not force a mismatched shaft into the assembly.
• Do not bypass machine safety protection.
• Do not continue production when abnormal resistance remains.
• Do not assume similar suffixes are interchangeable.
• Follow the equipment maintenance documentation.

The shaft can be protected using:

1. Individual clean inner packaging.
2. Moisture-resistant protection where required.
3. Soft cushioning around precision surfaces.
4. A clearly labeled individual box.
5. Reinforced outer export carton.
6. Additional support for consolidated shipments.

• Prevent bending during transportation.
• Avoid surface scratches.
• Reduce collision damage.
• Protect against dust and moisture.
• Keep different models separated.
• Preserve part-number labels.
• Simplify receiving inspection.
• Support international express delivery.

No. KLW-M711S-A2 is normally described as a Shaft 1 spare. Bearings, holders, springs, collars, seals, and other head components are included only when clearly stated in the quotation.

Provide the complete machine model, serial number, placement-head type, installed part number, Shaft 1 position, and clear photographs. Comparing the removed component is the safest confirmation method.

Direct replacement should not be assumed. Different suffixes may indicate another revision, shaft position, groove structure, or head configuration. Confirm all structural details before substitution.

Possible symptoms include restricted movement, slow return, abnormal vibration, excessive clearance, visible scratches, repeated pickup errors, inconsistent placement height, or mechanical problems after a nozzle collision.

Check manual movement, nozzle locking, bearing condition, spring installation, vacuum pickup, head calibration, recognition performance, placement height, and trial-production results before returning the machine to full operation.

SMT PARTS SUPPLY LTD.

Please send the following information for a fast and accurate quotation:

• Product name and complete part number.
• Machine model and serial number.
• Placement-head type.
• Required quantity.
• Shaft position.
• Required product condition.
• Clear photographs of the removed component.
• Photographs of the installation location.
• Related damaged parts.
• Destination country and postal code.
• Standard or urgent delivery requirement.

Our sales team will review the application and provide available condition, compatibility guidance, quotation, lead time, packaging details, warranty information, and shipping options.

For urgent machine breakdowns, please clearly indicate the required delivery date and attach photographs of the part label, shaft structure, placement head, and damaged area.

Yamaha, YSM20R, and all referenced product numbers are trademarks or identifiers belonging to their respective owners. They are used only to describe compatibility and maintenance applications.

Unless expressly stated in the quotation, this listing does not imply authorization, affiliation, or endorsement by the equipment manufacturer. Buyers should verify compatibility using machine documentation, the installed component, complete part number, shaft position, and head configuration before purchasing.
