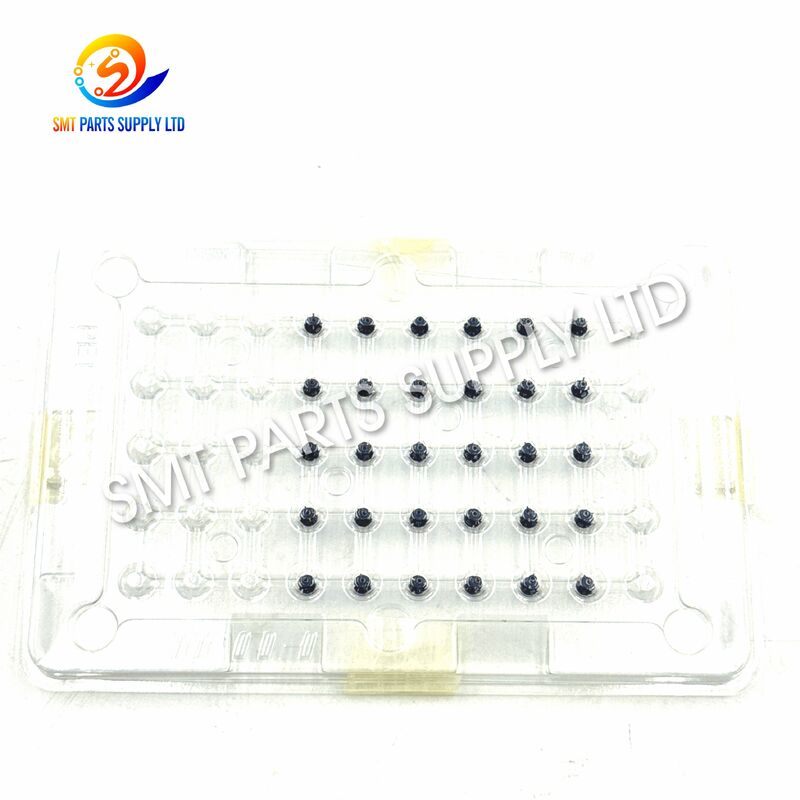

FUJI 2AGKNX007700 R047-018WRL-035 H24-L Nozzle for NXT H24 Head

The FUJI 2AGKNX007700 R047-018WRL-035 H24-L Nozzle is a 1.8mm large wide-range SMT pickup nozzle developed for use with the NXT H24 placement head. As the contact component between the placement head vacuum system and electronic components, the nozzle performs the essential tasks of component pickup, holding, transfer, positioning, and release during the SMT mounting cycle.

The H24-L wide-range configuration is intended for compatible components requiring a larger pickup interface than the H24-S and H24-M wide-range nozzle versions. Correct nozzle selection is important because the nozzle directly influences pickup stability, vacuum efficiency, component handling, placement consistency, and machine operating continuity.

Part number 2AGKNX007700 corresponds to specification R047-018WRL-035, with a nominal 1.8mm wide-range L designation. This nozzle is suitable for replacement of worn, contaminated, damaged, or incorrectly matched H24 nozzles during routine SMT machine maintenance.

SMT nozzles operate through thousands or millions of repetitive pickup and placement cycles. Because the nozzle repeatedly contacts components and is exposed to dust, adhesive residue, solder-paste contamination, carrier-tape particles, and mechanical loading, its condition can gradually affect machine performance.

Common causes of nozzle-related pickup problems include:

A nozzle may still look usable while producing intermittent pickup errors. For this reason, nozzle condition should be considered when repeated missing-component alarms, unstable pickup, abnormal component movement, or inconsistent placement occurs.

Nozzle inspection is especially important on high-speed placement heads such as the H24 because a small pickup inconsistency repeated across many cycles can reduce overall line efficiency.

Using the correct nozzle specification is one of the simplest ways to restore reliable component handling.

The 2AGKNX007700 H24-L nozzle provides the correct R047-018WRL-035 / 1.8mm wide-range L configuration for applications requiring this specific H24 nozzle type.

When replacing a nozzle, operators should confirm:

• Placement head type is H24
• Required part number is 2AGKNX007700
• Required specification is R047-018WRL-035
• Nozzle type is Wide Range L
• Nominal nozzle size is 1.8mm
• Component dimensions are suitable for the L-type pickup interface
• Vacuum passage is clean before installation
• Nozzle mounting position is free from contamination

Replacing worn or damaged nozzles with the correctly matched specification can help restore reliable vacuum pickup, reduce component drops, improve handling repeatability, and lower unnecessary machine interruptions.

For maintenance departments, keeping commonly used H24 nozzle sizes in stock also reduces downtime when a nozzle unexpectedly requires replacement.

The H24 wide-range nozzle family includes different pickup sizes. Selecting the correct model according to the machine program and component dimensions is important for reliable production.

The 2AGKNX007700 should not automatically be substituted with another 1.8mm nozzle solely because the nominal diameter is identical. The nozzle structure and intended component handling application should also correspond with the machine setup.

The 2AGKNX007700 H24-L nozzle is primarily used in automated SMT production environments equipped with a compatible NXT H24 placement head.

Consumer Electronics

Suitable for PCB assembly lines manufacturing controllers, communication devices, household electronics, smart products, and other high-volume electronic assemblies.

Automotive Electronics

Can be used in SMT production environments producing control boards, sensor modules, lighting electronics, power-control assemblies, and related automotive PCB products.

Industrial Electronics

Applicable to manufacturing lines producing industrial control boards, automation modules, power electronics, instrumentation, and embedded electronic assemblies.

Communication Equipment

Suitable for high-density PCB assembly where reliable repetitive component pickup is necessary to maintain placement efficiency.

SMT Machine Maintenance

Frequently required by equipment maintenance departments when an installed H24-L nozzle becomes worn, contaminated, damaged, or no longer provides stable vacuum pickup.

Spare Parts Inventory

Useful as a maintenance spare for factories operating multiple NXT machines, helping reduce production waiting time when nozzle replacement becomes necessary.

The H24-L nozzle works together with the placement head vacuum system during the component mounting cycle.

The placement head moves the nozzle toward the component pickup position at the feeder or component supply station.

Vacuum is applied through the internal nozzle passage. The nozzle tip contacts the appropriate pickup surface of the electronic component and creates sufficient suction to hold it.

After pickup, the placement head raises and transports the component toward its programmed PCB placement location.

A correctly matched nozzle helps keep the component stable during this high-speed movement.

The head moves to the programmed board position and lowers the component toward the placement surface.

The vacuum holding force is released so the component separates from the nozzle and remains at the intended PCB location.

The head then continues to the next placement cycle.

Because these actions are performed repeatedly at high speed, nozzle cleanliness, dimensional condition, and correct model selection are critical to consistent production.

A pickup nozzle is a relatively small SMT machine component, but its effect on production can be significant.

An incorrectly selected nozzle may cause:

• Insufficient pickup surface contact
• Vacuum leakage
• Component movement during acceleration
• Pickup failures
• Component drops
• Increased machine alarms
• Placement interruptions
• Higher maintenance workload

The correct nozzle should provide sufficient pickup contact without interfering with the component body, leads, surrounding tape pocket, or adjacent mechanical structures.

For this reason, 2AGKNX007700 should be selected when the machine configuration specifically requires the H24-L R047-018WRL-035 wide-range nozzle.

Before ordering a replacement H24 nozzle, confirm the following information.

Verify whether the existing nozzle or spare-parts documentation specifies:

2AGKNX007700

This is the most direct identification method.

Check whether the nozzle is identified as:

R047-018WRL-035

This helps prevent confusion with standard 1.8mm and MELF-type 1.8mm H24 nozzles.

The nozzle described on this page is intended for the:

H24 Placement Head

Do not select a nozzle only according to outside appearance because other placement heads may use different mounting structures.

The required configuration is:

H24-L / Wide Range L

Within the wide-range family, S, M, and L versions are different nozzle selections.

This model is the:

1.8mm Wide-Range L version

For other component ranges, H24-S 0.6mm or H24-M 1.1mm versions may be required.

When possible, provide a clear photo of the original nozzle together with the machine model, head type, existing part number, and nozzle specification.

This additional information helps avoid ordering the wrong variant when different H24 nozzles have similar appearances.

Correct maintenance can extend nozzle service life and reduce unexpected pickup problems.

Do not use sharp objects that may damage the internal suction passage or precision pickup surface during cleaning.

Nozzles removed from the machine should be organized by part number to prevent accidental mixing between H24-S, H24-M, H24-L, standard, G-type, and MELF nozzle configurations.

Machine parameters, feeders, components, vacuum systems, and other head parts should also be checked when troubleshooting, because not every pickup problem is caused by the nozzle itself.

The 2AGKNX007700 is a 1.8mm H24-L wide-range SMT pickup nozzle used on compatible NXT H24 placement heads. It creates the vacuum contact required to pick electronic components from the supply position, hold them during head movement, and release them at the programmed PCB placement position.

The 2AGKNX007700 is the H24-L 1.8mm wide-range nozzle, specified as R047-018WRL-035. The 2AGKNX007600 is the smaller H24-M 1.1mm wide-range nozzle, specified as R047-011WRM-035. Selection should follow the component and machine setup.

No. The 2AGKNX007700 is identified as a 1.8mm Wide Range L nozzle. The H24 family also includes a standard 1.8mm nozzle and a 1.8mm MELF nozzle. Confirm the complete part number and R047 specification before ordering.

Replacement should be considered when the nozzle is bent, damaged, excessively worn, blocked, or repeatedly produces unstable component pickup after proper cleaning and inspection. Using a known-good replacement nozzle can also help determine whether recurring pickup problems are nozzle-related.

Please provide the part number 2AGKNX007700, specification R047-018WRL-035, required quantity, machine or head information, and preferred condition or supply requirement. A photo of the existing nozzle is also useful when additional compatibility confirmation is required.
