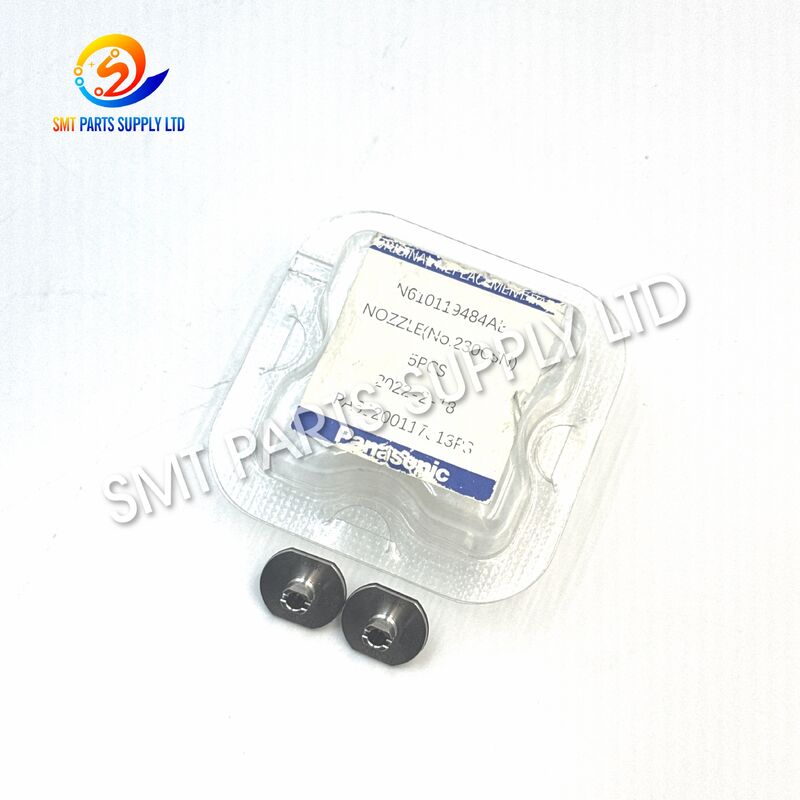

Panasonic N610119484AB 230CSN Nozzle for CM402 CM602 NPM SMT Machine

The Panasonic N610119484AB 230CSN nozzle is a precision replacement component used in compatible Panasonic CM402, CM602, and NPM SMT placement systems. Installed on the placement head, the nozzle works with the machine vacuum system to pick electronic components from feeders, transport them accurately, and release them onto the PCB at the programmed mounting position.

A nozzle directly affects pickup stability, placement accuracy, component handling, and production continuity. When the nozzle tip becomes worn, contaminated, damaged, or blocked, the machine may experience pickup errors, component drops, unstable vacuum, or placement defects.

The N610119484AB 230CSN is suitable for routine maintenance and replacement applications where the specified nozzle type matches the machine configuration and component requirements.

Complete Product Description

230CSN SMT Placement Nozzle N610119484AB for Panasonic CM402 CM602 NPM

Product Overview

The Panasonic N610119484AB 230CSN nozzle is an SMT machine spare part developed for compatible Panasonic CM402, CM602, and NPM placement equipment. As an important component of the placement head, the nozzle provides the physical interface between the machine vacuum system and the electronic component being handled.

During an SMT placement cycle, the nozzle approaches the feeder pickup position, uses vacuum pressure to hold the component, transfers it through the recognition and positioning process, and releases it accurately onto the PCB. Consistent nozzle condition is therefore essential for stable machine performance.

The 230CSN nozzle is commonly selected for replacement when an existing nozzle shows wear, deformation, contamination, vacuum instability, or pickup inconsistency. It can also be stocked as a preventive-maintenance spare for production lines using compatible CM and NPM equipment.

Before ordering, users should confirm the part number N610119484AB, nozzle type 230CSN, machine model, placement head configuration, and application requirements.

Cause

SMT placement nozzles operate continuously under repeated mechanical movement and vacuum cycling. After extended production, several conditions can reduce nozzle performance.

Because the nozzle directly contacts or holds the electronic component, even minor surface damage or contamination can affect production stability.

A worn nozzle may not always stop the machine completely. In many cases, the first symptoms appear as gradually increasing pickup errors, repeated retries, dropped components, or inconsistent placement results.

Solution

Replacing a worn or damaged nozzle with the correct specification can help restore normal component handling performance.

The N610119484AB 230CSN nozzle is intended for compatible Panasonic placement equipment requiring this nozzle specification. When properly selected and installed, it supports:

• Stable vacuum pickup
• Consistent component handling
• Accurate placement movement
• Smooth component release
• Reduced pickup-related production interruptions
• Reliable nozzle replacement during preventive maintenance

For best results, nozzle replacement should be combined with inspection of the vacuum system, nozzle holder, shaft, filters, related head components, and feeder pickup position.

If repeated pickup errors continue after nozzle replacement, technicians should also check vacuum pressure, head calibration, feeder condition, component packaging, and vision-recognition settings.

Specifications

Compatible Machine Reference

Compatibility should be determined by part number and machine configuration, rather than machine-series name alone.

Different placement heads may use different nozzle types even within the same machine family.

Application

The N610119484AB 230CSN nozzle can be used in different SMT manufacturing environments where compatible Panasonic placement machines are installed.

PCB Assembly Production

Suitable for production lines assembling electronic components onto printed circuit boards. The nozzle supports the pickup and placement process between feeder and PCB.

SMT Machine Maintenance

A worn nozzle can be replaced during scheduled machine maintenance to reduce the risk of unexpected pickup failures.

Replacement After Nozzle Damage

If the nozzle is damaged by collision, abnormal component contact, incorrect setup, or long-term use, replacement can help restore stable handling performance.

Preventive Spare Parts Inventory

Factories operating multiple CM402, CM602, or NPM machines often keep frequently used nozzle types in stock to reduce maintenance waiting time.

Electronics Manufacturing

Typical applications can include SMT assembly lines serving:

How It Works

The SMT nozzle operates as part of the machine's placement-head vacuum system.

1. Nozzle Positioning

The machine moves the placement head toward the programmed feeder pickup position.

2. Component Pickup

The nozzle contacts or approaches the component according to machine settings. Vacuum pressure is applied through the nozzle.

The vacuum force holds the component securely to the nozzle tip.

3. Component Transfer

The placement head moves the component away from the feeder and toward the inspection or placement area.

4. Recognition and Correction

Depending on machine configuration and component type, the machine vision system identifies component position and orientation. Required positional corrections are calculated automatically.

5. PCB Placement

The nozzle moves to the programmed PCB mounting coordinates.

The machine controls X, Y, Z, and rotational positioning according to the placement program.

6. Component Release

Vacuum is released or changed according to the machine's operating sequence, allowing the component to be placed on the solder paste at the required location.

This process may repeat thousands of times during production, which makes nozzle condition especially important for stable SMT operation.

Why Nozzle Condition Matters

The nozzle is relatively small compared with other SMT machine components, but it has a direct influence on production quality.

Replacing a problematic nozzle early can help avoid unnecessary machine stops and repeated placement errors.

Product Advantages

Precision SMT Application

Designed for accurate component pickup and placement in compatible SMT production equipment.

Part Number Identification

The N610119484AB number allows maintenance personnel to identify and match the required spare part more accurately.

230CSN Specification

The nozzle type can be checked directly against maintenance records, nozzle lists, or the existing machine nozzle.

Compatible with Multiple Machine Series

Applicable to selected configurations of CM402, CM602, and NPM machines when the correct nozzle specification is required.

Suitable for Maintenance Inventory

The nozzle is compact and practical for spare-parts storage, helping maintenance teams prepare for scheduled or unexpected replacement requirements.

Easy Replacement

Experienced SMT technicians can replace the nozzle during routine maintenance according to standard machine service procedures.

How To Choose

Correct nozzle selection is important because different components and placement heads may require different nozzle specifications.

Before ordering, check the following information.

Recommended Selection Method

First check the nozzle currently installed on the machine.

Confirm whether the marking or maintenance record shows:

N610119484AB / 230CSN

Then confirm that the machine belongs to the applicable CM402, CM602, or NPM configuration.

For purchasing departments that do not have full technical information, providing a clear photo of the original nozzle, machine model, head information, and part number can help reduce ordering mistakes.

Replacement Recommendations

The nozzle should be inspected regularly as part of SMT equipment maintenance.

Replacement may be considered when:

• Pickup failures become more frequent
• Components fall during transfer
• Vacuum values become unstable
• Nozzle cleaning does not restore performance
• The tip is visibly damaged
• The nozzle has been involved in a head collision
• Placement accuracy becomes inconsistent
• The machine reports repeated nozzle-related errors

Do not automatically assume every pickup error is caused by the nozzle. Feeder condition, vacuum pressure, component packaging, machine calibration, and head parts should also be checked.

Maintenance Guidelines

Regular cleaning can help extend nozzle service life.

Use suitable nozzle-maintenance procedures and avoid damaging the precision contact surfaces.

Recommended maintenance points include:

• Remove dust and flux contamination
• Keep the vacuum passage clear
• Inspect the nozzle tip for wear
• Check for deformation after abnormal machine events
• Store spare nozzles in clean protective packaging
• Avoid mixing different nozzle specifications
• Record nozzle replacement during preventive maintenance

Do not use aggressive cleaning methods that may damage precision surfaces or alter nozzle geometry.

Ordering Information

For faster quotation and compatibility checking, provide the following details:

Providing complete information helps reduce model-selection errors and speeds up quotation processing.

FAQ

1. What is Panasonic N610119484AB 230CSN used for?

N610119484AB 230CSN is an SMT placement nozzle used on compatible Panasonic placement machines. It works with the vacuum system to pick electronic components from feeders, transport them through the placement cycle, and release them onto the programmed PCB position.

2. Is N610119484AB compatible with CM402, CM602, and NPM machines?

It is used with compatible configurations of CM402, CM602, and NPM equipment. Because different heads and machine configurations may require different nozzle types, buyers should confirm the part number, 230CSN specification, and head configuration before purchasing.

3. When should an SMT nozzle be replaced?

Replacement should be considered when the nozzle is worn, damaged, blocked, deformed, or unable to maintain stable component pickup. Frequent pickup errors, component drops, and unstable vacuum performance can also indicate that nozzle inspection is required.

4. How can I confirm the correct nozzle before ordering?

Check the original nozzle marking, machine model, placement head, maintenance manual, and spare-parts record. For more accurate confirmation, provide the part number N610119484AB, nozzle type 230CSN, machine model, quantity, and clear photos of the existing part.

5. Can this nozzle be stocked as a maintenance spare?

Yes. Frequently used SMT nozzles are commonly stored as preventive-maintenance spare parts. Keeping compatible replacement nozzles available can reduce downtime when a nozzle becomes damaged or reaches the end of its service life.
