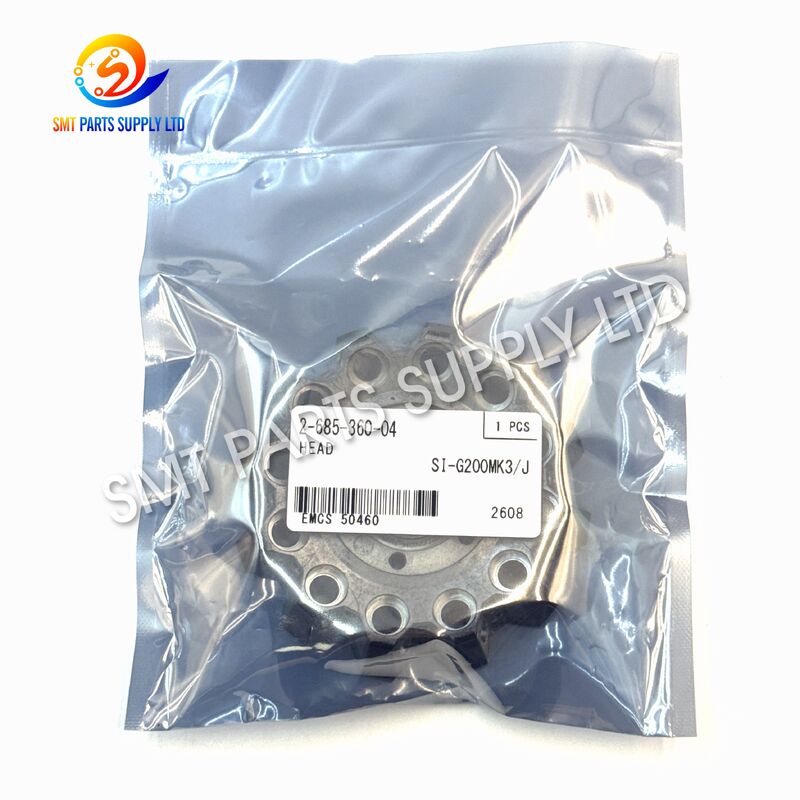

SONY SI-G200MK3J 2-685-360-04 Placement Head for SMT Mounter

The SONY SI-G200MK3J 2-685-360-04 Placement Head is a precision mechanical assembly designed for compatible SMT pick-and-place machines. It performs essential component-handling operations including pickup, transfer, positioning, rotation, and placement during automated PCB assembly.

The placement head operates continuously during production and is therefore one of the key functional assemblies affecting machine stability. Wear, contamination, collision damage, or mechanical deterioration may lead to unstable pickup, repeated alarms, component drops, abnormal head movement, or placement inconsistency.

This SI-G200MK3J placement head can be used for machine maintenance, replacement, refurbishment, or spare-parts preparation. For reliable selection, buyers should confirm part number 2-685-360-04, head model, machine model, connector configuration, and original assembly appearance before ordering.

Cause

Why Does an SMT Placement Head Require Replacement?

A placement head works at high frequency during SMT production. Repeated mechanical movement and continuous component handling can gradually affect its operating condition.

Common causes include:

Repeated Pickup Errors

If the machine frequently reports pickup failures, the placement head should be inspected together with the nozzle, vacuum system, feeder, sensors, and component supply condition.

A pickup problem does not always mean that the complete head is defective. However, if other related systems are operating normally and the head has obvious mechanical wear, replacement may be necessary.

Abnormal Head Movement

Irregular vertical movement, excessive mechanical play, vibration, or abnormal noise may indicate wear in moving head components.

Continuing production under these conditions may increase:

• Pickup errors.
• Component loss.
• Placement deviation.
• Machine alarms.
• Maintenance frequency.
• Production interruption.

Mechanical Collision

Unexpected contact between the placement head and feeder, PCB, fixture, nozzle, or foreign object may cause physical damage.

After a serious collision, technicians should inspect the complete head mechanism before restarting normal production.

Solution

Replacement Placement Head for SMT Machine Maintenance

Replacing the SI-G200MK3J placement head can provide a practical maintenance solution when the original unit becomes damaged or mechanically unstable.

A complete replacement head may be considered when:

• Repairing individual internal components is inefficient.
• Multiple internal parts show wear.
• The original head has suffered collision damage.
• Repeated maintenance does not restore stable operation.
• Production downtime needs to be shortened.
• A backup head is required for preventive maintenance.

Keeping a replacement head in stock can also help SMT factories reduce waiting time during urgent machine maintenance.

Recommended Inspection Before Replacement

Before replacing the complete head, check the following items:

This procedure helps identify whether the problem is related to the placement head or another part of the SMT system.

Specifications

Related Part Number Comparison

Different placement-head revisions may exist for related machine configurations. Similar part numbers should not automatically be considered interchangeable.

Important: Similar revision numbers may differ in mechanical structure, installation interface, internal configuration, or equipment compatibility. Always confirm the original part number before substitution.

Key Product Features

Precision Component Handling

The placement head is responsible for carrying SMT components from the feeding position to the programmed PCB placement coordinate.

Stable movement supports consistent component handling throughout automated assembly.

Replacement for Machine Maintenance

The head can be prepared as a replacement unit for compatible SMT machines undergoing corrective maintenance or equipment refurbishment.

Suitable for Spare-Part Inventory

For factories using mature SMT equipment, critical spare parts can help reduce unexpected production downtime.

Complete Head Assembly

A complete placement head can be more convenient than replacing multiple worn mechanical parts individually when extensive maintenance is required.

Professional SMT Application

Designed for electronics manufacturing environments requiring continuous automated PCB component placement.

Application

The SI-G200MK3J 2-685-360-04 placement head is suitable for SMT production and machine maintenance applications.

Electronics Manufacturing

Typical industries include:

• Consumer electronics.
• Automotive electronics.
• Industrial control systems.
• Communication equipment.
• Power electronics.
• LED products.
• Computer hardware.
• Medical electronics.
• Household appliance electronics.
• Contract electronics manufacturing.

SMT Production-Line Maintenance

This product can be used when maintaining compatible pick-and-place machines in factories operating:

• High-volume PCB production.
• Multi-shift production.
• Mixed-product SMT lines.
• Electronics contract manufacturing.
• Equipment refurbishment workshops.
• SMT spare-parts service centers.

Emergency Spare-Part Preparation

Production downtime can affect multiple stages of an SMT line.

A stopped mounter may influence:

Preparing critical machine parts in advance can help reduce procurement delays.

How It Works

Step 1: Component Supply

Components are supplied to the machine through feeders, trays, or other compatible feeding systems.

The machine program identifies the required component and pickup location.

Step 2: Head Positioning

The machine motion system moves the placement head toward the programmed pickup position.

Precise positioning helps align the nozzle with the component.

Step 3: Component Pickup

The nozzle collects the component, typically using vacuum suction.

The placement head works together with the nozzle and vacuum system to maintain stable component retention.

Step 4: Component Transfer

After pickup, the head moves the component from the feeding area toward the PCB placement position.

Stable mechanical operation helps prevent component dropping during movement.

Step 5: Recognition and Adjustment

The machine's recognition system may inspect the component and calculate positional or rotational correction.

The head then moves according to the corrected placement data.

Step 6: Placement

The component is lowered to the programmed PCB position and released.

The head then prepares for the next placement cycle.

Placement Head System Relationship

The placement head does not operate independently. It works together with several machine systems.

For this reason, troubleshooting should evaluate the complete system before replacing the head.

How To Choose

1. Check the Original Part Number

Confirm that the existing assembly carries the correct part reference:

2-685-360-04

Part number verification should be the first step when sourcing a replacement.

2. Confirm the Head Model

Confirm:

SI-G200MK3J

The head model should match the original machine configuration.

3. Provide the Machine Model

Different machine revisions may use different head configurations.

Please provide the complete machine model whenever possible.

4. Provide Clear Product Photos

Recommended photos include:

• Front view.
• Rear view.
• Top view.
• Bottom view.
• Part-number label.
• Connector area.
• Installation interface.

Photos are particularly useful when older equipment documentation is unavailable.

5. Check the Connector and Installation Interface

Two heads with similar external appearance may use different:

• Connectors.
• Mounting positions.
• Mechanical interfaces.
• Internal structures.
• Revision specifications.

Do not choose a placement head based only on appearance.

6. Confirm Machine Serial Information

If available, provide the machine serial number or production information.

This can be helpful when checking equipment revisions.

Recommended Buyer Information

Providing complete information helps shorten technical confirmation and quotation time.

Maintenance Recommendations

Keep the Head Clean

Component debris, dust, and production contamination may accumulate around moving mechanisms.

Regular inspection can help maintain stable operation.

Inspect Mechanical Movement

Check for:

• Unusual vibration.
• Excessive mechanical play.
• Abnormal noise.
• Irregular movement.
• Visible physical damage.

Check Vacuum Components

Pickup instability may also be related to:

• Blocked nozzles.
• Vacuum tubing.
• Seals.
• Filters.
• Valves.
• Insufficient suction.

These items should be checked before deciding to replace the complete head.

Calibration After Replacement

After installing another placement head, machine calibration or verification is recommended.

Technicians may need to check:

• Head position.
• Nozzle center.
• Pickup position.
• Placement position.
• Height.
• Rotation.
• Vision alignment.
• Machine home position.

The machine should return to production only after operating conditions and placement quality have been verified.

FAQ

Q1: What is the function of the SI-G200MK3J 2-685-360-04 placement head?

The placement head performs component pickup, transfer, positioning, and placement during automatic SMT PCB assembly. It works together with the nozzle, vacuum system, motion system, and machine vision system.

Q2: Is 2-685-360-04 suitable for every SI-G200MK3 machine?

Compatibility should be checked using the original part number, head model, machine configuration, connector interface, and existing head photos. Different machine or head revisions may use different configurations.

Q3: When should the placement head be replaced?

Replacement may be considered when there is significant mechanical wear, collision damage, abnormal movement, repeated head-related alarms, or unstable operation that cannot be corrected through normal maintenance.

Q4: Are 2-685-360-04, 2-685-360-05 and 2-685-360-06 interchangeable?

Do not assume direct interchangeability based only on similar part numbers. Different revisions may have mechanical or configuration differences. Technical confirmation is recommended before replacing one revision with another.

Q5: What information should I provide for a quotation?

Please send the machine model, head model, original part number, required quantity, product condition requirement, and clear photos of the existing placement head for faster confirmation.

Contact Us

Looking for a SONY SI-G200MK3J 2-685-360-04 Placement Head for SMT machine maintenance, replacement, or spare-parts inventory?

Please send us:

• Machine model.
• Head model.
• Original part number.
• Required quantity.
• Photos of the existing head.
• Connector and installation photos if available.
• Required product condition.
• Delivery destination.

We can assist with product identification and compatibility checking before quotation.

We also supply a wide range of SMT machine parts, including placement heads, feeders, nozzles, motors, servo components, sensors, cylinders, belts, control boards, vacuum parts, mechanical assemblies, and other replacement parts for SMT production-line maintenance.

Send your machine model and part number for quotation and availability confirmation.
