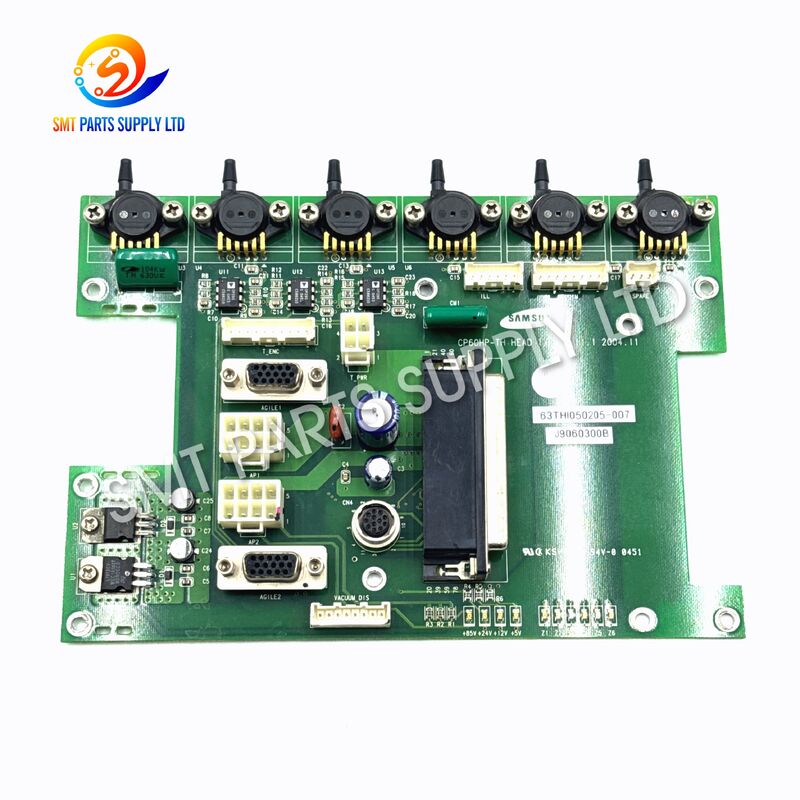

SAMSUNG SM310 J9060300B Head Interface Board for Placement Machine

The SAMSUNG SM310 J9060300B Head Interface Board is an electronic PCB assembly used within the placement head system of the SM310 SMT placement machine. It provides an important interface between head-related electrical components and the machine control system, helping transmit operating signals required during automated component placement.

As placement equipment operates continuously at high speed, electronic boards inside the head system are exposed to vibration, repeated electrical switching, temperature variation, dust, and long operating hours. A damaged or unstable interface board may cause communication errors, abnormal head operation, intermittent machine alarms, or production interruptions.

J9060300B is suitable for maintenance, repair, and replacement of the corresponding SM310 head interface board. Correct part-number verification before ordering is strongly recommended because SMT machines may contain different PCB versions depending on machine configuration and production period.

Cause

Why Does a Head Interface Board Need Replacement?

Electronic control boards used in SMT placement machines normally operate for long periods under demanding industrial conditions. Although they contain no major mechanical wear components, electrical and environmental factors can gradually affect their reliability.

A placement machine showing head-related alarms does not automatically mean that the interface board is defective. Technicians should also inspect cables, connectors, sensors, power supply conditions, related control boards, and head assemblies before replacing the PCB.

Solution

When the original head interface board is confirmed to be defective, replacing it with the correct J9060300B board for the SM310 platform can help restore communication between related head components and the machine control system.

Before replacement, maintenance personnel should record machine alarms and inspect all associated wiring. The machine should be powered down according to standard maintenance procedures before removing electronic components.

For more reliable replacement, the following points should be checked:

Replacing a board without checking the cause of the original failure may result in repeated faults. Therefore, surrounding circuits and power conditions should be inspected before a replacement board is installed.

Specifications

Key Identification Information

For procurement and maintenance teams, the most important information to confirm is:

Part Number: J9060300B
Machine Platform: SM310
Product Category: Head Interface Board
Application: SMT Placement Equipment

If the original PCB label is available, buyers are advised to provide a clear photograph before ordering. This can reduce the possibility of selecting an incompatible PCB revision.

Application

The J9060300B Head Interface Board is primarily intended for SM310 SMT placement machine maintenance and replacement applications.

Typical Applications

This board is especially useful for factories operating mature SMT production lines where maintaining spare electronic boards can significantly reduce maintenance response time.

Keeping critical PCB assemblies in stock can be valuable when equipment is used continuously and replacement lead times may otherwise affect production schedules.

How It Works

The placement head of an SMT machine includes multiple electrical and mechanical subsystems that must operate in coordination. The head interface board provides part of the electrical interface required for communication between head-related devices and the machine control system.

During normal operation, the placement machine performs a repeated sequence:

Component pickup → component recognition → positioning → placement → head reset

Throughout this cycle, signals must be exchanged accurately between different machine systems.

The interface board supports this process by providing electrical connection paths for associated head functions. When the PCB operates correctly, control signals can be transmitted reliably so the machine can perform its programmed placement operations.

If an interface circuit becomes unstable, communication may become intermittent. This can result in symptoms such as:

• Head-related alarms
• Intermittent machine stops
• Communication faults
• Abnormal initialization
• Unstable head operation
• Repeated production interruptions
• Failure to complete machine startup
• Errors associated with connected head devices

Because similar symptoms may also be caused by cables, sensors, connectors, power supplies, or other control boards, complete troubleshooting is recommended before determining that J9060300B requires replacement.

How To Choose

Selecting an SMT machine PCB should be based primarily on the part number, machine model, board revision, connector arrangement, and original machine configuration.

1. Check the Part Number

The first identification point should be J9060300B.

Do not select a board based only on appearance. Different boards can have similar PCB layouts but different circuits, firmware requirements, interfaces, or connector configurations.

2. Confirm the Machine Model

Confirm that the machine requiring repair is an SM310 placement machine and that its original board corresponds to J9060300B.

3. Compare the Original PCB

When possible, compare:

4. Provide Photos Before Ordering

A clear photograph of the original PCB is highly recommended when buyers are uncertain about compatibility.

Useful photographs include:

• Full front view of the PCB
• PCB identification label
• Part-number label
• Connector area
• Any revision markings
• Machine model label

These details make verification faster and reduce purchasing mistakes.

5. Consider the Required Condition

Customers may have different requirements depending on their maintenance strategy.

For urgent production recovery, availability and verified functionality may be the priority. For spare-parts inventory, buyers may focus on stable condition, careful packaging, and clear identification.

Always confirm available condition before placing an order.

Advantages for SMT Maintenance

Accurate Part Identification

J9060300B provides a clear reference number for maintenance teams searching for the corresponding SM310 head interface board.

Suitable for Machine Repair

Designed for replacement when the original interface PCB is damaged, unstable, or no longer functioning correctly.

Supports Downtime Reduction

Keeping important SMT control boards available as maintenance spares can shorten repair waiting time.

Easy Procurement Verification

Customers can provide the original board number and PCB photographs for compatibility confirmation before shipment.

Professional Protective Packaging

Electronic PCB assemblies should be packed using anti-static protection to reduce the risk of handling and transportation damage.

Suitable for International SMT Users

The product can support electronics manufacturing factories, SMT maintenance companies, equipment refurbishers, and spare-parts distributors requiring SM310 replacement components.

Recommended Inspection Before Installation

Electronic boards should be handled carefully during installation.

The replacement board should never be forced into a connector. Bent pins, incorrectly positioned cables, or improper installation may damage both the board and related machine electronics.

Storage and Handling

Because J9060300B is an electronic PCB assembly, proper handling is important.

Recommended storage conditions include:

• Store in anti-static packaging.
• Keep away from moisture and corrosive environments.
• Avoid direct contact with PCB components.
• Protect connectors against impact.
• Store in a clean and dry location.
• Avoid stacking heavy items on the board.
• Follow standard ESD handling procedures.

For factories maintaining critical SMT spare parts, clearly labeling each PCB with its part number and machine application can help maintenance teams quickly locate the correct replacement during equipment downtime.

FAQ

1. What machine is the J9060300B Head Interface Board used for?

The J9060300B is intended for the SAMSUNG SM310 SMT placement machine and is used as an electronic interface board associated with the placement head system. Confirm the original board number and machine configuration before ordering.

2. What does the J9060300B Head Interface Board do?

It provides an electrical interface within the placement head system, supporting signal communication between related head components and the machine control system during SMT component pickup and placement operations.

3. Can J9060300B solve all SM310 head alarms?

No. Head alarms may also result from cables, sensors, connectors, power supply problems, mechanical components, or other electronic boards. Proper troubleshooting should be completed before replacing the interface board.

4. What information should I provide before ordering?

Please provide the J9060300B part number, SM310 machine model, original PCB photos, label information, and board revision markings when available. These details help verify compatibility and reduce incorrect ordering.

5. How should this PCB be installed and handled?

Use appropriate anti-static protection, disconnect machine power before installation, inspect cables and connectors carefully, and follow qualified SMT maintenance procedures. After installation, complete initialization and functional testing before returning the machine to production.

Contact Us

Looking for the J9060300B Head Interface Board for your SM310 placement machine?

Send us your required quantity, original board photos, machine model, and part number. Our team can help verify the correct replacement before quotation.

We supply SMT machine parts for production-line maintenance, equipment repair, spare-parts inventory, and machine refurbishment.

For price, availability, condition, lead time, or compatibility confirmation, please send us your inquiry.
