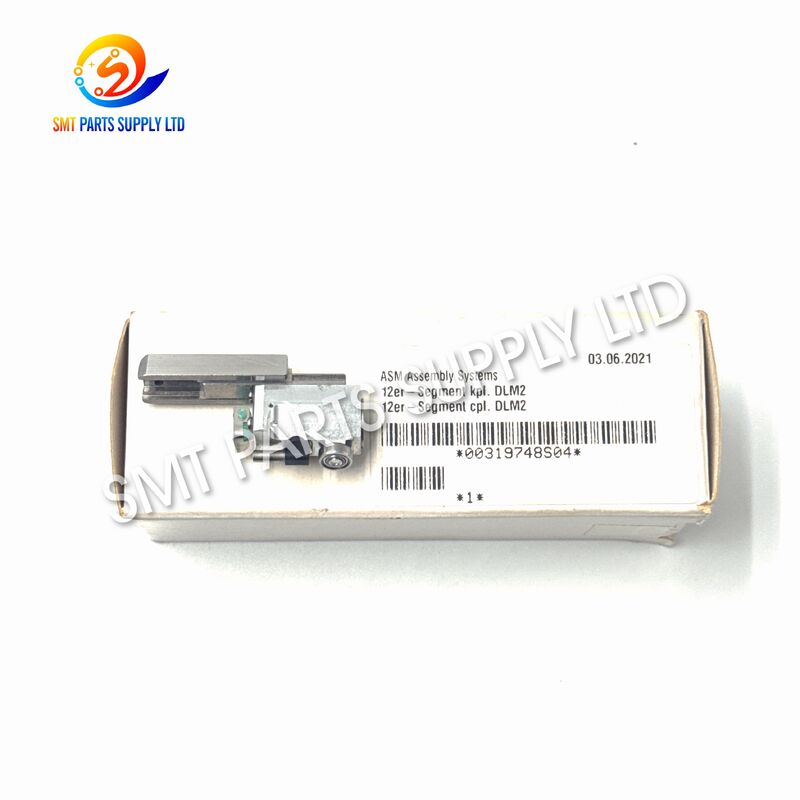

ASM SIPLACE 00319748S04 DLM2 RV12 12-Position Segment for HS50 HS60

ASM SIPLACE 00319748S04 DLM2 RV12 12-Position Segment for HS50 HS60

The ASM SIPLACE 00319748S04 DLM2 RV12 12-Position Segment is a precision placement-head spare part designed for applicable SIPLACE high-speed SMT mounting equipment. The part is commonly identified as a 12ER Segment CPL DLM2 or 12-position segment and is associated with RV12-type placement-head configurations used on equipment including HS50, HS60 and F4 systems. SMT Parts Supply

During SMT production, the placement head performs continuous pickup, component handling, positioning and placement cycles. Mechanical components within the head therefore operate at high repetition rates and require stable dimensional condition, accurate assembly and reliable movement.

Part number 00319748S04 is intended for placement-head maintenance, overhaul and replacement applications when the corresponding installed segment has become worn, damaged or unsuitable for continued production.

For purchasing accuracy, the complete part number, existing head configuration and machine model should always be checked before ordering.

Cause

Why Does a Placement-Head Segment Require Replacement?

The RV12 placement head is designed for repeated high-speed component-placement cycles. Over long production periods, mechanical segment components may gradually experience wear or damage.

Common situations leading to segment replacement include:

A defective mechanical segment may contribute to unstable operation of the placement-head mechanism. Because placement performance can also be affected by nozzles, vacuum components, sensors, valves, motors and other head assemblies, technicians should perform systematic inspection before determining the replacement part.

Replacing the segment should therefore be part of a controlled maintenance process rather than an isolated troubleshooting step.

Solution

Use 00319748S04 for Matching RV12 DLM2 Head Maintenance

When inspection confirms that the installed segment requires replacement, 00319748S04 provides a part-number-specific solution for applicable RV12/DLM2 placement-head systems.

Correct replacement helps restore the mechanical condition required by the head assembly and allows maintenance personnel to service the machine without unnecessarily replacing the complete placement head.

This approach is especially useful for:

• Placement-head repair.
• Preventive maintenance.
• Machine refurbishment.
• Head assembly rebuilding.
• Collision recovery.
• Production-line restoration.
• Spare-parts inventory preparation.

The part number should remain the primary purchasing reference.

For machines with different head generations, revisions or modifications, do not select only according to HS50 or HS60 machine name. The installed head configuration and original part identification should also be confirmed.

Specifications

The identification of 00319748S04 as a 12-segment DLM2 component is also documented in independent HS50 spare-parts inventory records. CAE 在线

Product Features

Application

HS50 Placement Machine Maintenance

The 00319748S04 segment is commonly listed among spare parts for SIPLACE HS50 equipment. It can be used during planned maintenance, head refurbishment and repair of matching RV12/DLM2 configurations. SMT Parts Supply

HS60 Placement Machine Maintenance

For applicable HS60 configurations, technicians can use the part number as a reference when servicing the related placement-head assembly. Because head configuration may vary, confirmation of the original component is recommended.

F4 SMT Equipment

Commercial and aftermarket technical references also associate 00319748S04 with applicable F4 equipment. The actual installed placement-head configuration should be verified before purchasing. SMT Parts Supply

Placement-Head Refurbishment

For repair workshops and machine refurbishment companies, replacing worn mechanical parts individually can make head rebuilding more practical than replacing a complete placement-head assembly.

EMS Production Lines

Electronics manufacturing service providers operating older SIPLACE production platforms may keep critical head components available as maintenance stock to reduce delays when mechanical problems occur.

Spare-Parts Distributors

The clear 00319748S04 identification makes the product suitable for international SMT spare-parts sourcing where buyers usually purchase according to machine model, head type and part number.

Typical Usage Scenarios

How It Works

The placement head is responsible for handling electronic components between feeder pickup positions and PCB placement locations.

Within the head mechanism, multiple precision components operate together during high-frequency production cycles.

The 12-position segment assembly forms part of the mechanical architecture associated with the applicable RV12 placement-head system.

During production, the head repeatedly performs a general sequence such as:

Component Pickup → Head Movement → Component Handling → Positioning → Placement → Return Cycle

The segment assembly must remain mechanically stable throughout these repeated operations.

If wear, collision damage or deformation affects the segment, technicians may inspect the complete head and replace the affected component when necessary.

After replacement, the head should be installed, inspected and tested according to the machine's normal maintenance procedures before returning the equipment to volume production.

Because placement-head performance depends on several interconnected systems, correct troubleshooting should also consider:

• Nozzle condition.
• Vacuum circuit.
• Air supply.
• Sensors.
• Valves.
• Head electronics.
• Mechanical alignment.
• Related head components.

This helps avoid replacing a segment when the actual fault originates elsewhere in the placement system.

How To Choose

1. Confirm the Part Number

The most important reference is:

00319748S04

Compare this number with the original component, maintenance documentation or existing part identification.

2. Confirm the Placement-Head Type

Check whether your machine is fitted with the applicable RV12 / 12-position placement-head configuration.

Do not order only because the machine is described as an HS50 or HS60.

3. Check the DLM Revision

This product is commonly referenced as a 12ER Segment CPL DLM2. Different placement-head generations or revisions may use related parts that appear similar but are not necessarily interchangeable. SMT Parts Supply

4. Compare the Existing Part

Before ordering, compare:

5. Provide Photos When Necessary

If the machine has been refurbished, upgraded or fitted with a different head configuration, photographs of the existing component can significantly improve identification accuracy.

Recommended photos include:

• Complete segment.
• Part-number marking.
• Installation side.
• Connector or mechanical interface.
• Placement-head identification label.

Why Accurate Part Identification Matters

SMT machines often remain in service for many years and may undergo head replacements, repairs or upgrades during their operating life.

For this reason, selecting replacement parts only according to the machine name can create unnecessary compatibility risk.

For 00319748S04, the preferred verification sequence is:

Part Number → Head Type → Revision → Machine Model → Physical Comparison

This method provides a more reliable basis for international purchasing and helps reduce incorrect orders.

Maintenance Recommendations

Before installing the segment:

1. Power down the machine according to standard service procedures.
2. Confirm the correct placement-head assembly.
3. Inspect related mechanical components.
4. Remove contamination from the service area.
5. Check surrounding components for abnormal wear.
6. Install the replacement component using appropriate maintenance procedures.
7. Confirm free and correct mechanical operation.
8. Perform machine or head verification before production.
9. Run trial boards where required.
10. Return the machine to normal production only after stable operation is confirmed.

Installation should be performed by trained SMT maintenance personnel familiar with the relevant equipment.

FAQ

Q1: What is ASM SIPLACE 00319748S04?

00319748S04 is a 12-position placement-head segment assembly, commonly described as a 12ER Segment CPL DLM2, used for maintenance of applicable RV12 placement-head systems. It is associated with HS50, HS60, F4 and related SIPLACE equipment. SMT Parts Supply

Q2: Can 00319748S04 be used on both HS50 and HS60 machines?

The part is commercially and technically referenced for HS50 and HS60 applications, but buyers should confirm the installed head type and original part number because machine configurations and placement-head revisions can differ. SMT Parts Supply

Q3: Is this a complete RV12 placement head?

No. 00319748S04 is a segment assembly used within the applicable placement-head system. It should not be confused with a complete placement-head unit.

Q4: What information should I provide before requesting a quotation?

Please provide 00319748S04, machine model, placement-head type, required quantity, required condition and destination country. Photos of the existing component are recommended when the machine configuration is uncertain.

Q5: Can I select this product only according to the HS50 or HS60 model?

Part-number confirmation is strongly recommended. The safest selection method is to check the existing 00319748S04 identification, RV12 head configuration and DLM revision before ordering.

Contact Us for 00319748S04 RV12 Segment Pricing

Looking for an ASM SIPLACE 00319748S04 DLM2 RV12 12-Position Segment for HS50, HS60, F4 or compatible placement-head maintenance?

Send us the following information for an accurate quotation:

We support SMT factories, EMS manufacturers, maintenance departments, equipment service companies, machine refurbishers and spare-parts distributors.

Send your part number, machine model and required quantity today for price and availability information.
