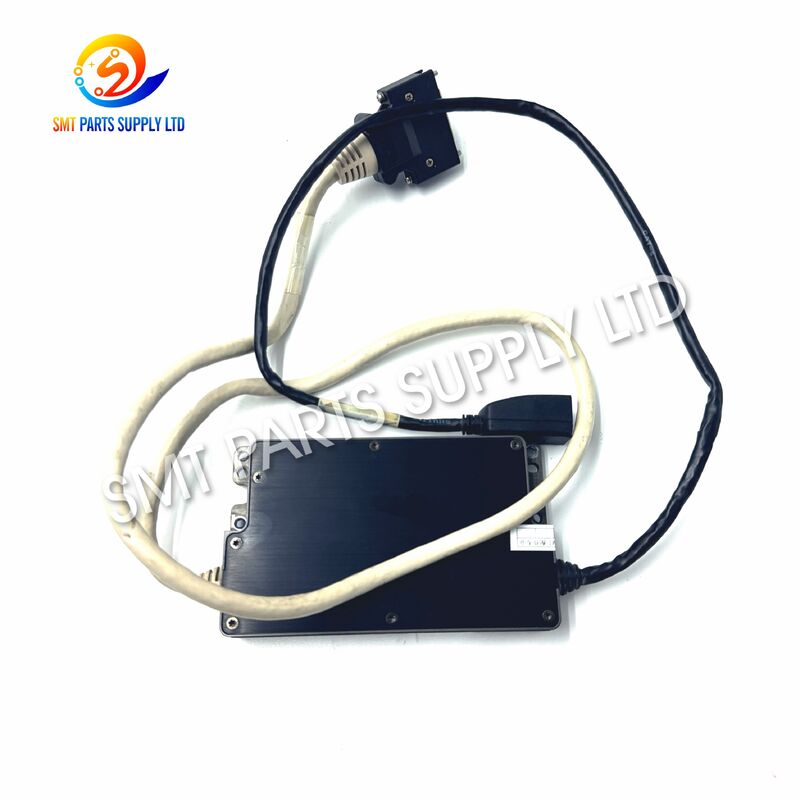

JUKI LNC120 40129658 Laser Sensor for RX-6 SMT Mounter

JUKI LNC120 40129658 Laser Sensor for RX-6 SMT Mounter

The JUKI LNC120 40129658 Laser Sensor is a precision recognition component used in compatible RX-6 SMT placement equipment. Commonly associated with CyberOptics 8017990, the LNC120 supports laser-based component centering during the pick-and-place process.

After a component is picked by the placement nozzle, the laser recognition system measures its position and rotational orientation. The machine can then calculate the required correction before mounting the component onto the PCB.

This on-the-fly recognition method helps maintain fast production cycles because applicable components can be measured while the placement head is moving. For SMT factories operating RX-series equipment, the LNC120 is an important spare part for maintaining reliable recognition, stable component alignment, and consistent placement performance.

Cause — Why Laser Recognition Problems Occur

The laser sensor operates continuously in a demanding SMT production environment. Over time, recognition performance can be affected by contamination, connector problems, mechanical impact, aging electronic components, incorrect calibration, or problems elsewhere in the placement system.

Typical symptoms include:

A laser-related alarm does not always mean the LNC120 itself has failed.

Before replacing the sensor, technicians should also inspect the nozzle, feeder pickup position, vacuum condition, cables, connectors, component parameters, and machine calibration.

Correct diagnosis can reduce unnecessary part replacement and production downtime.

Solution — Correct Replacement for RX-6 Recognition Maintenance

When inspection confirms that the installed laser sensor is defective or unstable, replacing it with the correct LNC120 configuration can help restore normal recognition operation.

For this product, the main identification information is:

For reliable purchasing, buyers should compare the original sensor label, connector arrangement, mounting structure, and machine model before ordering.

Similar-looking laser assemblies can have different electrical specifications or machine applications. The exact part number should always be treated as the primary selection reference.

Specifications

Main Functions

The LNC120 is primarily used to provide component recognition information to the placement system.

Its major functions include:

The sensor is only one part of the complete placement control system. Final positioning performance also depends on machine calibration, nozzle condition, component programming, mechanical accuracy, and feeder stability.

Application

The LNC120 40129658 is suitable for maintenance and replacement applications in professional SMT production environments operating compatible placement equipment.

Typical applications include:

• Consumer electronics PCB assembly

• Automotive electronics manufacturing

• Industrial control board production

• Communication equipment assembly

• LED electronics manufacturing

• Power supply PCB production

• Electronic module assembly

• EMS contract manufacturing

• High-mix SMT production

• High-volume placement lines

It is particularly useful for factories that require reliable spare-parts support to reduce downtime caused by component recognition problems.

Typical Maintenance Scenarios

1. Recognition Error Repair

Repeated recognition errors may indicate a problem in the laser recognition system. After checking nozzles, feeders, vacuum, parameters, cables, and calibration, the LNC120 can be evaluated as a possible replacement item.

2. Preventive Spare Parts Stock

Factories operating several RX-6 machines may keep critical recognition components in stock to reduce production interruption when unexpected hardware failures occur.

3. Used Machine Refurbishment

When an RX-series machine is refurbished for production, the recognition system may require inspection and component replacement before the machine returns to regular operation.

4. Production Line Recovery

A compatible replacement sensor can help maintenance teams restore machine operation when the original unit has been confirmed defective.

5. Recognition Stability Improvement

Replacing a damaged or unstable laser unit can help recover consistent component recognition when the fault originates from the sensor itself.

How It Works

The LNC120 operates during the component handling cycle of the placement head.

Step 1 — Component Pickup

The placement nozzle picks a component from the feeder, tray, or other component supply unit.

Step 2 — Laser Scanning

The component passes through the laser recognition area as the placement head moves.

Step 3 — Measurement

The laser system measures the component profile and determines its relative position.

Step 4 — Rotation Calculation

The recognition system identifies angular deviation from the programmed orientation.

Step 5 — Position Correction

The machine control system calculates the required X, Y, and rotational correction.

Step 6 — Component Placement

After correction, the component is mounted onto the programmed PCB position.

This process supports efficient recognition without requiring unnecessary movement to a separate recognition station for every compatible component.

Why On-the-Fly Recognition Is Important

Modern SMT production requires both speed and accuracy.

The LNC120 supports recognition during head movement, helping the machine combine component measurement with the normal pick-and-place cycle.

This provides several production advantages:

Actual production performance depends on the complete machine configuration and operating condition.

Related Model Comparison

Different JUKI machine generations use different laser recognition assemblies. Similar names or similar housings do not mean the sensors are interchangeable.

For an RX-6 requiring 40129658, buyers should select the LNC120 according to the original part number rather than choosing another sensor only because its appearance seems similar.

LNC120 vs. LNC60

The two products perform related recognition functions but are intended for different equipment configurations.

How To Choose

Correct sensor selection can prevent installation problems and unnecessary machine downtime.

1. Confirm the Machine Model

First confirm the exact placement machine model.

For this product, the primary application is JUKI RX-6.

Do not order a laser sensor only because the equipment uses JUKI placement technology.

2. Confirm the Part Number

Check the label on the existing unit.

The target part number for this product is:

40129658 / 401-29658

3. Confirm the Sensor Model

The sensor model should correspond to:

LNC120

Do not automatically substitute LNC60, LNC120-8, EPV120, or another laser assembly.

4. Compare the Connector Configuration

Check connector quantity, connector position, cable arrangement, and physical interface.

5. Compare the Mounting Structure

The mounting points and housing configuration should match the original assembly.

6. Provide Photos Before Ordering

For faster compatibility confirmation, send clear photographs of:

• Original product label

• Sensor housing

• Connectors

• Mounting side

• Machine nameplate if necessary

Recommended Inquiry Information

Providing complete information helps shorten confirmation time and reduces ordering mistakes.

Installation Recommendations

Because the LNC120 is a precision electronic and optical component, installation should be performed by technicians familiar with SMT placement equipment.

Before installation:

• Disconnect machine power according to maintenance procedures.

• Use appropriate ESD protection.

• Confirm the part number again.

• Check connectors for physical damage.

• Keep the sensor area clean.

• Avoid touching optical surfaces.

• Inspect the mounting area before fitting the sensor.

After replacement, the machine should be checked according to the applicable service procedure.

Testing may include:

• Sensor communication confirmation

• Recognition-function check

• Pickup test

• Component recognition test

• Calibration verification

• Placement test

• Repeated production-cycle verification

Do not change machine parameters without appropriate technical documentation.

Troubleshooting Reference

Replacing the laser sensor should normally be based on systematic troubleshooting rather than only one machine alarm.

FAQ

Q1: What is the main purpose of the LNC120 40129658?

The LNC120 performs laser-based component recognition and centering in compatible placement equipment. It measures component position and rotation so the machine can apply corrections before mounting the part onto the PCB.

Q2: Is 40129658 suitable for the JUKI RX-6?

Yes. Part number 40129658 is associated with the LNC120 laser recognition system used for RX-6 applications. Buyers should still verify the original machine configuration and sensor label before ordering.

Q3: Can LNC120 replace LNC60 directly?

No direct replacement should be assumed. LNC120 and LNC60 are associated with different machine generations and part numbers. Always follow the original equipment specification when selecting a replacement.

Q4: What should I check before purchasing?

Confirm the machine model, sensor model, part number, reference number, connectors, mounting structure, and original label. Providing clear photos is strongly recommended for compatibility verification.

Q5: Does the machine require checking after LNC120 replacement?

Yes. After installation, recognition operation, communication, calibration, pickup performance, and placement results should be checked according to the relevant machine maintenance procedure.

Contact Us

Looking for a JUKI RX-6 LNC120 40129658 Laser Sensor for machine repair, spare-parts inventory, or production-line maintenance?

Please send us the following information:

• Machine model

• Part number

• Sensor model

• CyberOptics reference number

• Required quantity

• Required condition

• Original sensor photos

• Label and connector photos

We can help check the product configuration before quotation and assist you in selecting the correct SMT machine spare part.

Send your part number and required quantity for availability, compatibility confirmation, and quotation.
