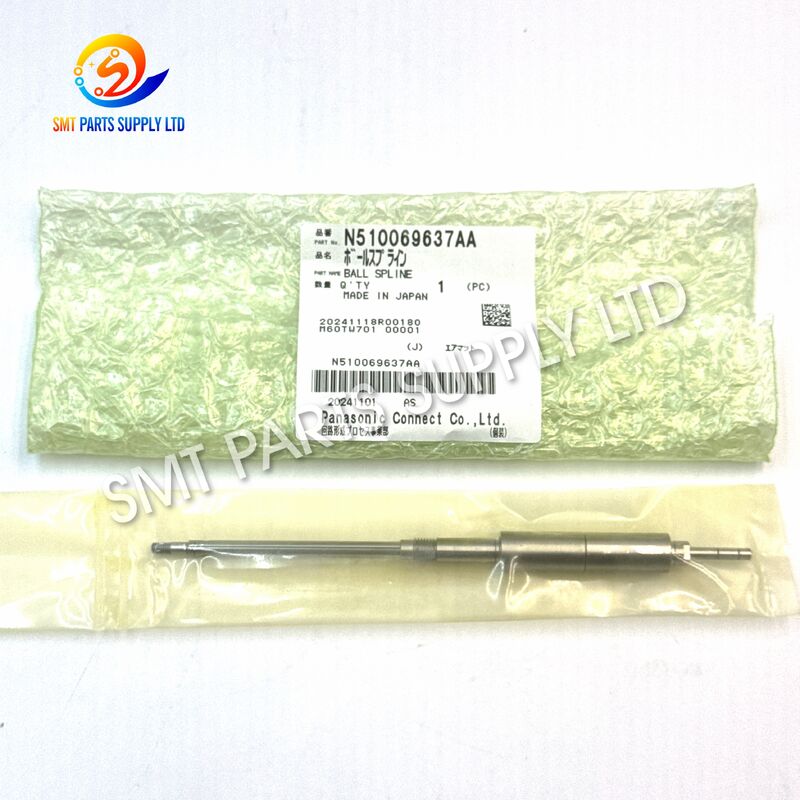

Panasonic N510069637AA 12-Head Nozzle Shaft for CM602 SMT Machine

Panasonic N510069637AA 12-Head Nozzle Shaft for CM602 SMT Machine

The Panasonic N510069637AA nozzle shaft, also commonly described as a ball spline or SMT shaft, is a precision mechanical component used in the CM602 H12 / 12-nozzle placement head. Its primary role is to support controlled linear movement of the nozzle mechanism while maintaining stable alignment during repetitive component pickup and placement operations. Published parts references specifically associate N510069637AA with the CM602 12H/H12 head configuration.

In high-speed SMT production, the condition of head mechanical components directly affects movement stability, placement repeatability, and overall machine performance. A worn, contaminated, bent, or mechanically damaged shaft may increase resistance or looseness in the moving assembly. Replacing the correct shaft helps maintenance teams restore the mechanical condition of the placement head without replacing a complete head assembly.

For correct ordering, users should verify the part number N510069637AA, CM602 machine model, and H12/12-nozzle head configuration before purchase because similar-looking Panasonic shaft and ball-spline parts are used in different head assemblies.

Cause

A nozzle shaft works continuously inside the placement head and performs a large number of repeated mechanical movements during normal SMT production. Long-term operation can gradually affect its surface condition and mechanical accuracy.

Common reasons for inspection or replacement include:

When a placement head begins showing abnormal mechanical movement, the shaft should be inspected together with related bearings, bushings, guides, nozzle holders, springs, and other head components.

The shaft should not automatically be considered the cause of every placement problem. Errors can also originate from nozzles, vacuum systems, motors, sensors, calibration, component recognition, feeders, PCB support, or other head mechanisms.

Solution

Replacing a worn or damaged N510069637AA nozzle shaft / ball spline can help restore the mechanical guidance required by the CM602 H12 placement head.

The replacement process should begin with correct identification rather than visual similarity alone.

Recommended Confirmation Before Replacement

Before installation, maintenance personnel should also inspect the mating parts around the shaft. Replacing only one component without checking the surrounding mechanical assembly may not completely resolve an existing head problem.

After installation, perform the appropriate machine inspection, movement check, and calibration procedure according to the equipment maintenance requirements.

Specifications

N510069637AA is identified by multiple SMT parts references as a CM602 12H/H12 ball spline or shaft rather than a universal shaft for all Panasonic placement heads.

Related Shaft Reference Comparison

Different Panasonic placement heads use different shaft or ball-spline references. Similar appearance does not guarantee interchangeability.

Available parts references distinguish N510069637AA from the NPM H8 ball splines and other CM402 shaft references, so exact part-number verification is important before ordering.

Application

The N510069637AA CM602 nozzle shaft is mainly suitable for placement-head maintenance and mechanical restoration applications.

1. CM602 Head Maintenance

It can be used when servicing the H12 placement head during scheduled preventive maintenance or mechanical inspection.

2. Nozzle Shaft Replacement

When the existing shaft shows visible wear, mechanical damage, abnormal resistance, or unacceptable play, the correct replacement part can be installed after confirming the cause.

3. Placement Head Overhaul

During a complete head rebuild, technicians may inspect shafts, guides, bearings, nozzle holders, springs, vacuum-related components, sensors, and other moving parts together.

4. Production Line Spare-Part Preparation

Factories operating CM602 equipment can keep correctly identified mechanical head parts available to reduce sourcing delays when maintenance is required.

5. Used Machine Refurbishment

The shaft can also be considered during refurbishment of CM602 machines where the mechanical condition of the H12 placement head requires inspection.

How It Works

During component placement, a pick-and-place head performs extremely frequent controlled motion. The nozzle mechanism must move smoothly while maintaining consistent alignment relative to other parts of the head.

The N510069637AA shaft / ball spline forms part of this mechanical guidance system.

Its basic operating sequence can be summarized as:

Machine Command → Head Motion → Shaft-Guided Movement → Nozzle Positioning → Component Pickup → Placement → Return Cycle

The shaft provides a controlled mechanical path for the moving assembly. A ball-spline structure is designed to support precision reciprocating linear movement while controlling rotational relationship within the applicable assembly. N510069637AA is specifically listed for nozzle-shaft linear guidance in the CM602 H12/12NH head.

Stable shaft movement is important because the nozzle performs repeated pickup and placement cycles throughout production. Mechanical resistance, excessive looseness, contamination, or damage can interfere with normal head motion.

Because the shaft is only one element within the complete placement-head mechanism, related parts should always be checked when troubleshooting.

How To Choose

Selecting the correct SMT shaft should be based on identification data rather than appearance alone.

Step 1 – Confirm the Part Number

Check the removed component, machine parts list, maintenance history, or existing identification.

For this product, the required reference should be:

N510069637AA

Do not assume another similar shaft is interchangeable.

Step 2 – Confirm the Machine Model

The primary application for this part is:

Panasonic CM602

Providing only the equipment brand is not enough because different Panasonic machines and head types can use different mechanical components.

Step 3 – Confirm the Head Type

Verify that the machine is equipped with the applicable:

H12 / 12-Nozzle Placement Head

Published parts information identifies N510069637AA with the CM602 12H or H12/12NH head.

Step 4 – Compare the Existing Component

Before purchasing, compare:

Step 5 – Provide Machine Information With Your Inquiry

For faster confirmation, provide:

• Part number
• Machine model
• Head type
• Required quantity
• Photos of the existing part
• Machine serial information when necessary

This information reduces the risk of supplying a mechanically similar but incompatible component.

Why Correct Shaft Selection Matters

The placement head is a precision assembly, so shaft selection should not be based only on approximate size.

Using the correct reference helps with:

For maintenance teams managing several Panasonic SMT platforms, storing spare parts by machine + head type + part number is more reliable than storing them only by general descriptions such as “Panasonic shaft.”

Maintenance Recommendations

Keep precision head components clean and protected during storage and installation.

Recommended handling practices include:

• Keep the shaft surface free from dust and foreign material.
• Avoid dropping or striking the component.
• Do not force the shaft into an incompatible head assembly.
• Inspect related mechanical components during replacement.
• Follow the machine manufacturer's maintenance procedure.
• Complete required head adjustment or calibration after servicing.
• Keep removed components for comparison until the repair is successfully completed.

For high-volume production lines, preventive inspection can help identify mechanical wear before it develops into an unexpected machine stoppage.

FAQ

Q1: What machine uses Panasonic N510069637AA?

N510069637AA is primarily associated with the Panasonic CM602 H12 / 12-nozzle placement head. The machine and head configuration should still be checked before ordering.

Q2: Is N510069637AA a nozzle?

No. It is a nozzle shaft / ball spline component installed within the placement-head mechanism. The actual placement nozzle is a separate consumable component.

Q3: Can N510069637AA be used for every Panasonic SMT machine?

No. Panasonic CM402, CM602, and NPM head configurations can use different shaft or ball-spline references. Always match the original part number and head type before replacement.

Q4: What information should I provide when requesting a quotation?

Please provide N510069637AA, the machine model CM602, head type, quantity, and preferably clear photos of the existing part. This helps confirm compatibility before shipment.

Q5: When should the nozzle shaft be checked?

Inspection is appropriate when there is visible wear, contamination, abnormal movement, excessive mechanical play, physical damage, or when the placement head is undergoing scheduled overhaul.

Contact Us

Looking for the Panasonic N510069637AA H12 Nozzle Shaft for CM602?

Send us your part number, machine model, head type, required quantity, and product photos for compatibility confirmation and quotation.

We supply SMT machine parts for production-line maintenance, head repair, equipment refurbishment, and spare-parts inventory.

Send your inquiry today for price, availability, lead time, and shipping options.
