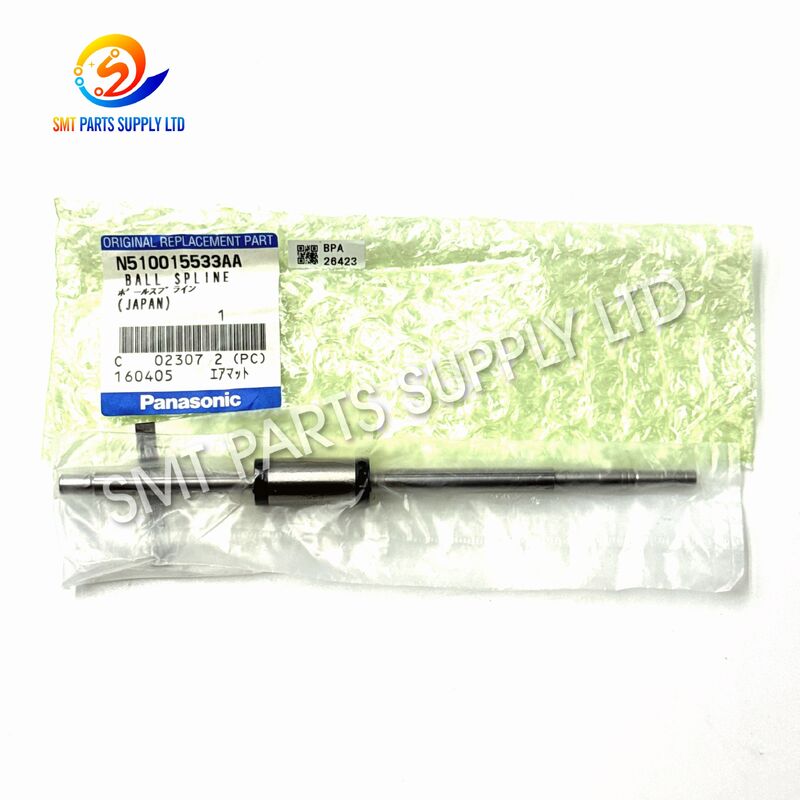

Panasonic N510015533AA Ball Spline for CM402 8 Head Unit

The Panasonic N510015533AA Ball Spline for CM402 8-Head Unit is a precision mechanical spare part used in compatible Panasonic CM402 SMT placement head assemblies. The ball spline supports controlled linear movement while maintaining stable mechanical guidance during repeated head operating cycles.

In SMT production, the placement head performs continuous high-speed movements during component pickup, positioning, and placement. Mechanical components inside the head therefore require good movement stability and controlled clearance. When a ball spline becomes worn, contaminated, loose, or mechanically damaged, head movement may become less smooth and maintenance may be required.

N510015533AA is suitable for professional CM402 maintenance, placement head repair, machine refurbishment, and preventive spare-parts stocking. For accurate ordering, buyers should confirm the N510015533AA part number, CM402 machine model, and 8-head unit configuration before purchase.

Basic Product Information

Cause

Why Does a CM402 Ball Spline Require Replacement?

The ball spline operates as part of a precision movement mechanism. During normal production, it is exposed to repeated motion, mechanical load, lubrication conditions, and environmental contamination.

Several conditions may gradually affect its performance.

Long-Term Mechanical Wear

Continuous production places repeated mechanical stress on moving parts. After extended operation, the contact surfaces and related internal movement components may gradually develop wear.

Excessive wear can increase mechanical clearance and reduce movement stability.

Dust and Contamination

SMT machines operate in controlled production environments, but fine dust, grease residue, and maintenance contamination can still enter moving mechanisms.

Contaminants can increase friction and reduce movement smoothness.

Lubrication Deterioration

Precision mechanical parts require correct lubrication according to machine maintenance procedures. Insufficient, contaminated, or deteriorated lubricant may increase resistance between moving surfaces.

Improper Installation

Incorrect alignment during servicing can place unwanted side load on a precision spline.

Forcing the part into position or installing related components incorrectly may affect smooth movement.

Mechanical Impact

Accidental impact during maintenance, head removal, transportation, or machine servicing may damage the spline or surrounding mechanical structure.

Common Inspection Symptoms

These symptoms may also be related to other head components. Complete inspection of the surrounding mechanism is recommended before replacing an individual part.

Solution

When the installed ball spline is confirmed to be worn or damaged, replacement with the correctly matched component can help restore stable mechanical movement.

The Panasonic N510015533AA Ball Spline provides a replacement solution for compatible CM402 8-head unit maintenance.

A professional maintenance procedure should include more than replacing the spline itself.

Recommended Service Process

Correct identification is especially important because visually similar SMT mechanical parts may be designed for different machine generations or head configurations.

Specifications

Product Specification Table

Purchasing Confirmation

To reduce incorrect ordering, customers are advised to confirm the following information:

Application

The N510015533AA ball spline is mainly used in Panasonic CM402 SMT pick and place machine maintenance.

SMT Production Line Maintenance

Electronics factories operating CM402 placement equipment can keep this component in spare-parts inventory to support planned maintenance and machine repair.

Maintaining commonly required mechanical parts can shorten service response time when wear is identified.

Placement Head Repair

During placement head servicing, technicians may inspect the spline together with shafts, holders, bearings, guides, and other moving components.

If the spline shows abnormal clearance, rough movement, or mechanical damage, replacement may be required.

Preventive Maintenance

Factories operating high-volume SMT lines can inspect precision head components during scheduled maintenance.

Early identification of mechanical wear may help reduce unexpected production interruption.

Machine Refurbishment

Used CM402 equipment undergoing refurbishment should have high-cycle mechanical parts inspected before returning to production.

Replacing damaged or heavily worn components helps restore more consistent mechanical operation.

Typical Industry Uses

How It Works

A ball spline is designed to support precise linear movement while maintaining controlled mechanical orientation.

Inside the CM402 placement head assembly, the spline works together with related mechanical and drive components.

Linear Guidance

The spline guides the moving assembly along a defined axis.

This controlled movement is important for repeated head operations in SMT placement.

Movement Stability

The spline structure helps reduce unwanted mechanical play when operating within the correct condition and installation tolerance.

Stable mechanical guidance supports consistent head motion.

Torque Control

A spline-type mechanism can allow axial movement while controlling rotational relationship between connected components.

This characteristic is useful in precision motion systems where both linear travel and controlled orientation are required.

Repeated Placement Cycles

During SMT production, the head repeatedly performs pickup, movement, positioning, and placement operations.

The ball spline contributes to the mechanical guidance required for these repetitive cycles.

Simplified Operating Sequence

The ball spline is only one component in the complete placement system. Overall machine performance also depends on the condition of motors, bearings, nozzle mechanisms, sensors, shafts, holders, and calibration.

How To Choose

Selecting the correct ball spline is important because SMT machine parts with similar appearances are not necessarily interchangeable.

1. Confirm the Part Number

The first reference should be:

N510015533AA

Compare this number with the existing part, maintenance record, or machine spare-parts documentation.

2. Confirm the Machine Model

This listing is intended for compatible:

Panasonic CM402

Do not select a spline only because it is described as a Panasonic SMT machine part.

3. Confirm the Head Configuration

The main application is:

CM402 8-Head Unit

Different placement head configurations may use different mechanical components.

4. Check the Existing Part

When possible, compare the existing ball spline before ordering.

Useful information includes:

• Existing part number
• Overall appearance
• Mounting structure
• Machine model
• Head configuration
• Installation position

5. Send Photos When Unsure

Clear photos of the existing component can help with identification when the machine contains multiple similar mechanical parts.

Selection Checklist

Maintenance Recommendations

Proper maintenance can help reduce unnecessary mechanical wear.

Keep the Head Mechanism Clean

Remove contamination according to normal maintenance procedures.

Dust and old grease can affect precision movement.

Use Correct Lubrication

Follow the equipment maintenance requirements for lubrication type and interval.

Avoid using unsuitable grease or mixing incompatible lubricants.

Inspect Movement Regularly

Check for unusual resistance, looseness, noise, vibration, or rough movement during preventive maintenance.

Inspect Related Parts Together

The ball spline operates as part of a complete mechanical assembly.

If abnormal movement is found, inspect surrounding holders, shafts, bearings, guides, and mounting components.

Avoid Forced Assembly

Precision components should be installed with correct alignment.

Excessive force may damage both the new spline and related mechanical parts.

FAQ

Q1: What machine is Panasonic N510015533AA used for?

N510015533AA is a ball spline used in compatible Panasonic CM402 placement equipment and is commonly associated with the 8-head unit. Confirm the existing part number and machine configuration before ordering.

Q2: What is the function of this ball spline?

The ball spline provides precision linear guidance and supports stable mechanical movement within the placement head mechanism during repeated component pickup and placement cycles.

Q3: When should the ball spline be replaced?

Replacement should be considered when inspection finds excessive looseness, rough movement, abnormal resistance, unusual mechanical noise, visible damage, or significant wear.

Q4: Can similar Panasonic ball splines be used instead?

Not automatically. Similar-looking parts may have different dimensions, mounting structures, or applicable head configurations. The existing part number should always be verified before selecting a replacement.

Q5: What information is needed for quotation?

Please provide the part number N510015533AA, machine model CM402, head configuration, required quantity, and preferably a clear photo of the existing component.

Contact Us

Need Panasonic N510015533AA Ball Spline for CM402 8-Head Unit or other SMT machine spare parts?

Please send us:

• Part number
• Machine model
• Head configuration
• Required quantity
• Existing part photo
• Required delivery schedule

We can help check the correct spare part according to your machine configuration and purchasing requirements.

For CM402 maintenance projects, related placement head mechanical parts can also be quoted together for easier spare-parts purchasing and shipment arrangement.

Send your inquiry for price, stock availability, compatibility confirmation, and delivery information.
