Panasonic N510042739AA MTNM000237AA P50BA2003BCSPC 25W Motor for NPM CM

Panasonic N510042739AA MTNM000237AA P50BA2003BCSPC 25W Motor for NPM CM

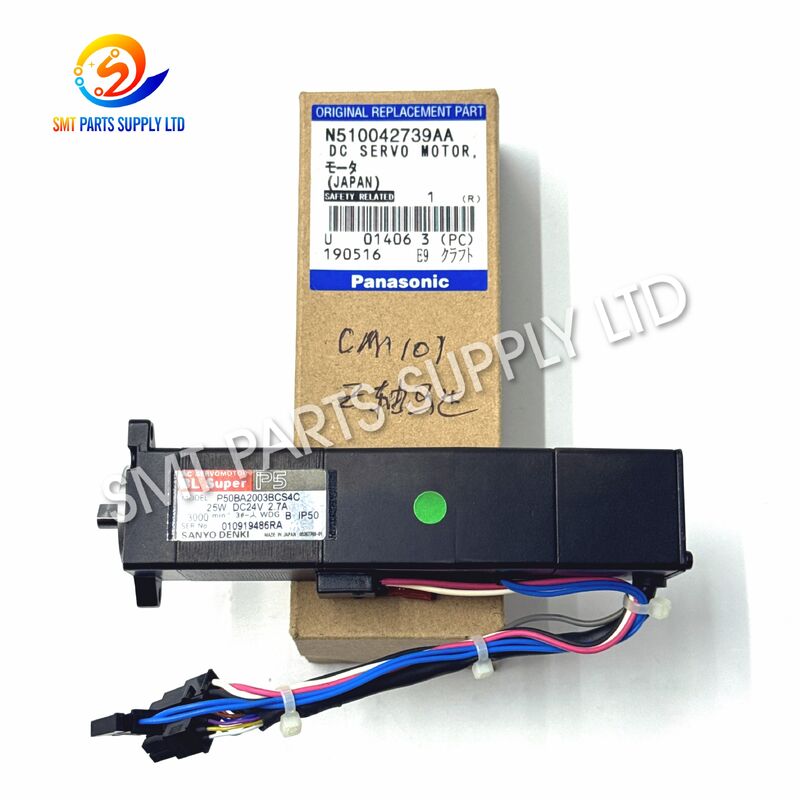

The Panasonic N510042739AA MTNM000237AA P50BA2003BCSPC 25W Motor is a precision motion component designed for compatible Panasonic NPM and CM series SMT equipment configurations. Manufactured under the SANYO Denki P50BA motor series, this unit is used within the machine motion system to provide controlled, repeatable movement during high-frequency SMT placement operations.

For SMT maintenance teams, accurate motor identification is especially important because motors with a similar external appearance may use different power ratings, shaft structures, connectors, feedback specifications, or machine applications. This product can be identified through the Panasonic part numbers N510042739AA and MTNM000237AA, together with motor model P50BA2003BCSPC and a rated output of 25W.

It is suitable for machine maintenance, replacement of a matching installed motor, production-line refurbishment, preventive spare-parts inventory, and repair of compatible Panasonic placement equipment.

Key Product Identification

Cause

Why Does an SMT Machine Motor Need Replacement?

Motors installed in SMT placement equipment operate continuously during production. Depending on the machine configuration, the motor may perform repeated positioning and motion cycles throughout every production shift.

Over long operating periods, the motor and surrounding mechanical system may be affected by normal wear, contamination, cable fatigue, connector problems, mechanical resistance, or other equipment conditions.

Typical symptoms that may lead maintenance technicians to inspect the motor include:

• Irregular machine-head movement
• Axis movement alarms
• Intermittent motion
• Increased operating noise
• Excessive vibration
• Unstable positioning
• Failure to initialize correctly
• Unexpected production stops
• Reduced motion repeatability
• Motor or drive-related machine alarms

A machine alarm does not always mean the motor itself has failed. The entire motion system should be inspected before replacing the component.

Common Areas to Inspect

Accurate diagnosis helps avoid unnecessary replacement and reduces machine downtime.

Solution

Use the Correct Motor Based on Complete Identification

When replacing an SMT motor, selection should be based on the full identification information rather than appearance alone.

For this product, the major identification references are:

Panasonic N510042739AA
Panasonic MTNM000237AA
SANYO Denki P50BA2003BCSPC
25W

Before ordering, compare these numbers with the original motor installed on your machine.

Recommended Confirmation Process

Step 1 – Check the Original Label

Photograph the label on the removed motor and confirm the complete model number.

Do not check only the first several characters of the model because suffix differences can indicate a different configuration.

Step 2 – Check Panasonic Part Numbers

Confirm whether your parts list, original component, or maintenance record references:

• N510042739AA
• MTNM000237AA

Step 3 – Confirm Rated Power

The motor described on this page is rated at 25W.

Different Panasonic SMT motor versions may use different power specifications.

Step 4 – Check Machine Configuration

Confirm the exact NPM or CM machine configuration before ordering.

Machine family alone may not guarantee compatibility because different equipment revisions and head configurations can use different components.

Step 5 – Compare Physical Interfaces

Compare:

• Connector type
• Cable arrangement
• Motor body
• Mounting holes
• Shaft structure
• Label information
• Installation position

This additional verification significantly reduces purchasing errors.

Specifications

Product Identification Comparison

Several SMT motors may look similar but should not automatically be treated as interchangeable.

Important Compatibility Note

A similar motor model should not be selected only because:

• The housing looks identical
• The motor belongs to the same P50BA series
• It has a similar Panasonic part number
• It comes from the same machine family

Always verify the complete model, complete part number, power rating and machine configuration.

Application

1. SMT Pick and Place Machine Maintenance

The P50BA2003BCSPC motor can be used for maintenance of compatible Panasonic NPM and CM placement-machine configurations when the existing motor identification matches.

It is suitable for professional SMT equipment service departments, electronics factories, machine refurbishers, and spare-parts distributors.

2. Production-Line Repair

Unexpected equipment downtime can interrupt the entire SMT line.

Having the correct replacement motor available allows maintenance personnel to respond quickly after the original fault has been diagnosed.

3. Preventive Spare-Parts Inventory

Factories operating several SMT machines often keep critical electrical and mechanical components in stock.

Typical spare components include:

• Motors
• Servo amplifiers
• Motor cables
• Sensors
• Head components
• Vacuum valves
• Nozzles
• Nozzle holders
• Feeder parts
• Conveyor parts
• PCB assemblies
• Belts and bearings

N510042739AA can be included in a spare-parts inventory when it matches the factory's installed machine configuration.

4. SMT Machine Refurbishment

Used equipment may require replacement of worn motion components before being returned to full production.

The motor can be used during refurbishment when the original specification corresponds to MTNM000237AA / N510042739AA / P50BA2003BCSPC.

Typical Industries

This motor may be used in SMT equipment operating in electronics manufacturing facilities such as:

The motor's function relates to the machine motion system rather than to a specific PCB product type.

How It Works

SMT placement machines require several motion systems to operate together with high repeatability.

The machine control system sends commands to the relevant motor and control components. The motor converts electrical energy into controlled mechanical movement, allowing the connected mechanism to move according to programmed production requirements.

Motion Sequence

1. Machine Command

The control system calculates the required movement according to the production program.

2. Motor Activation

The corresponding motor receives the drive command through the machine control system.

3. Mechanical Movement

The motor transfers controlled rotation or motion to the associated machine mechanism.

4. Position Feedback

The motion-control system checks whether the requested position has been reached correctly.

5. Continuous Cycle

The process repeats continuously during SMT production.

Because these movements may occur thousands of times during normal operation, stable motor performance is important for consistent equipment operation.

Why Accurate Motor Selection Matters

Selecting an incorrect SMT motor may result in:

• Installation problems
• Connector mismatch
• Incorrect shaft dimensions
• Electrical incompatibility
• Motion-control alarms
• Machine initialization failure
• Unstable operation
• Unexpected downtime

For international spare-parts orders, providing photographs is one of the easiest ways to improve identification accuracy.

How To Choose

1. Confirm the Full Part Number

Check whether your required Panasonic part number is:

N510042739AA

Also verify:

MTNM000237AA

If your existing motor has a different reference, send the information for confirmation before ordering.

2. Confirm the Complete Motor Model

The complete motor model should be checked as:

P50BA2003BCSPC

Suffix characters are important and should not be ignored.

3. Confirm the 25W Rating

Check the motor label for the required rating.

Do not substitute another motor power level without proper technical confirmation.

4. Confirm Your Machine Model

Provide the complete NPM or CM machine model and, where possible, the machine configuration.

5. Provide Product Photos

Recommended photos include:

1. Motor front view
2. Motor rear view
3. Complete motor label
4. Connector
5. Shaft
6. Original installation position

6. Confirm Quantity

For a faster quotation, include the required quantity with your inquiry.

Buyer Verification Checklist

Maintenance Recommendations

Before motor installation, inspect the surrounding machine mechanism carefully.

Recommended checks include:

• Clean the installation area.
• Inspect the shaft and coupling.
• Check for unusual mechanical resistance.
• Inspect the motor cable.
• Check connector terminals.
• Verify related sensors.
• Confirm machine-drive condition.
• Compare old and replacement motor labels.
• Record the original cable arrangement.
• Test machine movement after installation.

Installation and testing should be carried out by qualified SMT maintenance personnel according to factory safety procedures.

FAQ

Q1: What are the main identification numbers for this motor?

The main identification numbers are Panasonic N510042739AA, alternate reference MTNM000237AA, and SANYO Denki motor model P50BA2003BCSPC. The rated motor output is 25W.

Q2: Is this motor suitable for both Panasonic NPM and CM machines?

It is supplied for compatible NPM and CM configurations, but compatibility should be verified using the original motor label, machine model, part number, connector and installation position before purchase.

Q3: Can I replace another P50BA motor with P50BA2003BCSPC?

Do not assume interchangeability based only on the P50BA series name. Complete model suffixes, power rating, shaft, connector and machine configuration should all match or be technically confirmed before replacement.

Q4: What information should I send for a quotation?

Please provide N510042739AA or MTNM000237AA, motor model P50BA2003BCSPC, machine model, quantity, delivery country, and clear photographs of the motor label and connectors.

Q5: What should be checked before replacing the motor?

Inspect the machine alarm, cables, connectors, mechanical resistance, coupling, shaft, sensors and drive system. This helps confirm whether the motor itself requires replacement or whether another machine component is causing the fault.

Contact Us for Panasonic N510042739AA Motor

Looking for N510042739AA MTNM000237AA P50BA2003BCSPC 25W Motor or other SMT machine spare parts?

Please send us:

• Part number
• Motor model
• Machine model
• Required quantity
• Motor label photo
• Connector photo
• Delivery destination

We can help verify the required specification and prepare a quotation according to your purchasing requirements.

Send your part number and quantity for fast product confirmation and quotation.
