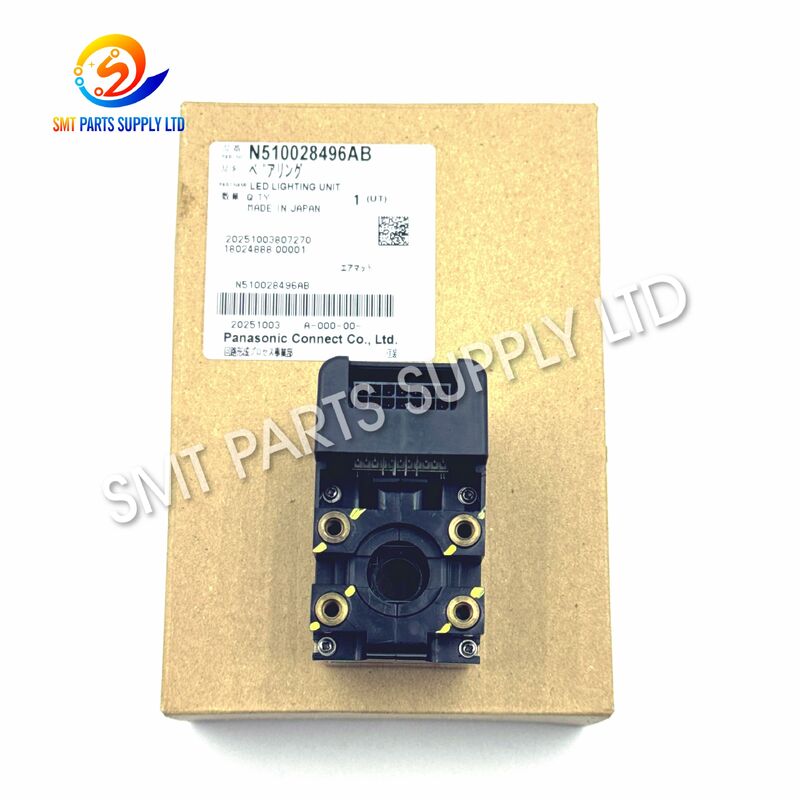

Panasonic N510028496AB KXF0DWVRA00 LED Lighting Unit for CM402 CM602

Panasonic N510028496AB KXF0DWVRA00 LED Lighting Unit for CM402 CM602

The Panasonic N510028496AB KXF0DWVRA00 LED Lighting Unit is a replacement lighting component intended for compatible CM402 and CM602 SMT pick and place machines. It is used within the corresponding machine lighting system to provide stable illumination during equipment operation, inspection, adjustment, and maintenance.

For electronics manufacturers operating older but productive SMT lines, lighting assemblies are often overlooked until illumination becomes weak, intermittent, or completely unavailable. A correctly matched replacement unit can help restore normal machine conditions without unnecessary replacement of unrelated assemblies.

This product is suitable for SMT factories, machine maintenance companies, equipment refurbishers, distributors, and spare-parts purchasing departments. For accurate ordering, customers are encouraged to provide the machine model, existing part number, component label, and clear photos before shipment confirmation.

Cause

Why an SMT LED Lighting Unit May Require Replacement

Lighting components operate repeatedly whenever the SMT machine is running. After extended production use, several conditions may affect performance.

Common causes include long operating hours, connector wear, cable damage, contamination, electrical instability, physical impact, or aging LED elements.

Before replacing the complete unit, maintenance personnel should inspect the related connector and wiring. This avoids replacing a functional component when the actual problem is elsewhere in the machine.

Solution

When troubleshooting confirms that the existing lighting unit is defective, replacing it with a correctly matched N510028496AB KXF0DWVRA00 LED Lighting Unit provides an efficient maintenance solution.

The key to successful replacement is accurate part identification.

We recommend checking:

• Complete machine model.
• Existing component part number.
• Reference code KXF0DWVRA00.
• Part-number suffix.
• Connector configuration.
• Mounting position.
• Original component photos.
• Required quantity.

For machines that have been operating for many years, individual configurations can differ because of maintenance history, component revisions, and previous upgrades.

Providing clear identification information before ordering greatly reduces the risk of purchasing the wrong SMT spare part.

Specifications

Technical Note: Electrical parameters, connectors, and revision details should be checked against the existing machine component before replacement. Do not select only by appearance.

Part Identification Guide

Part-number suffixes should not be ignored. Similar-looking parts may belong to different revisions or machine configurations.

Application

The LED Lighting Unit can be used in several SMT maintenance environments.

1. CM402 Production Line Maintenance

For factories operating CM402 placement equipment, the unit can be stocked as a replacement component for lighting-system maintenance after compatibility verification.

2. CM602 Machine Repair

When a CM602 lighting assembly becomes unstable or damaged, technicians can replace the affected component after confirming the correct part number.

3. SMT Equipment Refurbishment

Used SMT machines often require inspection of lighting units, cables, motors, sensors, cameras, belts, and other aging assemblies before being returned to production.

4. Preventive Spare Parts Inventory

Factories with several compatible machines can maintain critical spare parts in stock to reduce repair waiting time.

5. SMT Service and Repair Companies

Service providers can use the part for customer equipment repairs after identifying the correct machine configuration.

Typical Industries

How It Works

The LED lighting unit converts electrical energy into controlled illumination within the designated machine area.

A simplified operating sequence is:

Machine Power Input → Electrical Connection → LED Lighting Assembly → Stable Illumination → Normal Equipment Operation

The unit works as part of the overall machine system rather than as an independent device.

For this reason, if the LED does not operate correctly, technicians should inspect not only the lamp assembly but also the power supply, wiring, connector, installation condition, and related control circuit.

Recommended Troubleshooting Process

This systematic approach can reduce unnecessary spare-part replacement and improve maintenance efficiency.

How To Choose

Choosing the correct SMT LED lighting unit requires more than checking the general machine model.

Step 1: Confirm the Machine Model

Check whether the machine is CM402 or CM602 and record the complete equipment information if available.

Step 2: Read the Existing Part Label

Confirm the complete number printed on the installed component.

Pay special attention to the suffix because similar part numbers can represent different revisions.

Step 3: Check KXF0DWVRA00

If this reference appears on your component information, include it with your inquiry to improve identification accuracy.

Step 4: Compare the Connector

The electrical connector should match the existing assembly. A photo showing the connector can help prevent incorrect selection.

Step 5: Check the Mounting Position

Confirm the shape, mounting points, and installation location before replacement.

Step 6: Provide Photos

For the fastest verification, send:

• Original product label.
• Complete product photo.
• Connector photo.
• Installation position photo.

Step 7: Confirm Quantity

Tell us whether the part is required for immediate repair or spare-parts inventory.

Why Correct Part Verification Matters

SMT machines can remain in production for many years. During their service life, machines may receive component updates, repairs, upgrades, or replacement assemblies.

Therefore, two machines with the same general model designation may not always use exactly the same revision of every spare part.

For international purchasing, incorrect spare-part selection can create:

• Additional freight costs.
• Extended machine downtime.
• Return procedures.
• Production delays.
• Extra purchasing work.
• Installation difficulties.

Accurate verification before shipment is therefore more efficient than choosing a component only by machine model.

Maintenance Recommendations

Proper maintenance can improve the reliability of the lighting system.

Use appropriate ESD procedures when handling electronic components and follow the machine maintenance instructions during removal and installation.

Ordering Checklist

For faster quotation and compatibility confirmation, please provide:

Complete information helps our sales and technical team identify your requirement more efficiently.

FAQ

Q1. Is N510028496AB suitable for both CM402 and CM602 machines?

It is supplied for compatible CM402 and CM602 applications. Because machine revisions may differ, please confirm the existing component label, part-number suffix, connector, and installation position before placing an order.

Q2. What information should I provide for compatibility checking?

Please provide the machine model, complete part number, KXF0DWVRA00 reference, required quantity, and clear photos of the existing component label, connector, and complete lighting assembly.

Q3. What should I check when the LED lighting unit stops working?

First inspect the lighting unit, connector, cable, power condition, and related circuit. A lighting failure can originate outside the LED assembly, so complete diagnosis is recommended before replacement.

Q4. Can this part be stocked for preventive maintenance?

Yes. Factories operating multiple compatible CM402 or CM602 machines can keep verified lighting units as maintenance inventory to reduce waiting time when an unexpected lighting-system failure occurs.

Q5. Can you provide a quotation for multiple SMT spare parts together?

Yes. Send your complete spare-parts list with part numbers, machine models, quantities, and required conditions. Multiple items can be checked together to simplify purchasing and international shipment arrangements.

Contact Us

Looking for N510028496AB KXF0DWVRA00 LED Lighting Unit for CM402 CM602?

Send us your:

Part Number + Machine Model + Quantity + Product Photo + Delivery Country

We can check your requirement and provide information about price, availability, lead time, product condition, and shipping options.

For multiple SMT spare parts, send your complete BOM or inquiry list for a combined quotation.

Send your inquiry today for a fast and accurate quotation.
