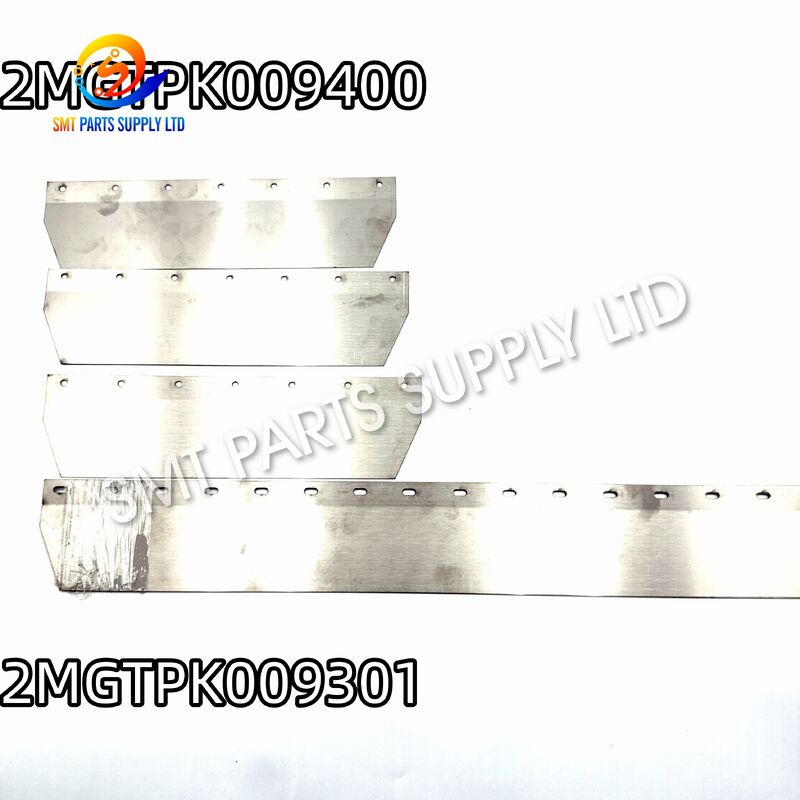

FUJI 2MGTPK009400 2MGTPK009301 M3 BKT Cover for NXT III Mounter

The FUJI 2MGTPK009400 2MGTPK009301 BKT Cover is a mechanical replacement component used in the FUJI NXT III M3 SMT mounter, specifically around the waste tape processing and cutting unit. The component functions as a protective and structural cover bracket within the tape disposal mechanism, helping keep related cutter components properly protected and positioned during machine operation.

In high-volume SMT production, feeder carrier tape is continuously processed after electronic components are picked. The waste tape processing system must operate smoothly to cut, guide, and discharge empty carrier tape without interfering with placement production. A damaged, bent, loose, or incorrectly fitted BKT Cover can affect the surrounding mechanical arrangement and may increase the risk of tape interference.

The 2MGTPK009400 and related 2MGTPK0093 series cover components are therefore practical maintenance parts for restoring the mechanical integrity of the NXT III M3 waste tape processing assembly.

Key Product Information

Cause – Why This Part May Need Replacement

The waste tape processing mechanism of a pick-and-place machine operates repeatedly throughout production. Every feeder cycle produces empty carrier tape that must be guided away from the component supply area.

Because this area performs continuous mechanical movements, surrounding covers and brackets can gradually be affected by vibration, accidental impact, improper installation, maintenance handling, or long-term mechanical stress.

Typical situations requiring inspection or replacement of the BKT Cover include:

Even though the BKT Cover is not an electronic control component, its correct mechanical condition is important because the waste tape processing assembly operates close to moving cutter, guide, pneumatic, and tape handling components.

Regular inspection helps prevent a small mechanical problem from developing into repeated tape disposal interruptions.

Solution – Restore the Waste Tape Processing Assembly

Replacing a damaged FUJI NXT III M3 BKT Cover helps restore the original mechanical arrangement around the waste tape processing mechanism.

The correct replacement part provides proper coverage and maintains suitable clearance between the protective structure and nearby moving components.

For maintenance teams, using the correct part number is especially important. FUJI NXT machines contain many mechanically similar brackets, covers, plates, guides, and retainers. Parts that look similar externally may have different mounting holes, dimensions, orientation, or machine-module applications.

For this reason, buyers should identify the existing machine part number before ordering.

The 2MGTPK009400 and 2MGTPK009301 numbers should be checked against the installed M3 waste tape processing assembly to ensure correct configuration.

Replacement Advantages

• Restores proper cover position around the waste tape processing unit.
• Helps protect cutter-related mechanical components.
• Maintains suitable clearance for waste tape movement.
• Supports stable operation during continuous SMT production.
• Reduces risks caused by damaged or distorted mechanical covers.
• Provides a straightforward replacement for machine maintenance.
• Helps technicians maintain the original mechanical configuration.
• Suitable for preventive maintenance and repair inventories.

Specifications

Application

The FUJI 2MGTPK009400 2MGTPK009301 BKT Cover is primarily intended for maintenance of the FUJI NXT III M3 mounter waste tape processing unit.

It is suitable for electronics manufacturers, EMS factories, SMT maintenance departments, machine refurbishers, and spare parts distributors maintaining FUJI placement equipment.

Typical Application Scenarios

This component can be particularly useful for factories running multiple FUJI NXT III modules because keeping mechanical spare parts available can reduce maintenance delays.

Unlike electronic boards or servo components, mechanical covers are sometimes overlooked in spare parts planning. However, if a cover is seriously bent or damaged, temporary adjustment may not provide the correct clearance required for long-term production.

Keeping the correct BKT Cover available can therefore simplify maintenance response.

How It Works

During SMT production, electronic components are supplied to the NXT III placement machine from tape feeders. Once a component is removed from the carrier pocket, the remaining empty carrier tape continues through the feeder and waste handling system.

The NXT III M3 waste tape processing unit manages this discarded tape so that it does not accumulate around the production area.

The mechanism includes multiple mechanical and pneumatic components such as cutters, guides, brackets, tubes, positioning parts, and covers.

The BKT Cover forms part of this surrounding mechanical structure.

Its role can be understood in three main ways:

1. Mechanical Protection

The cover creates a physical barrier around parts of the processing mechanism. This helps reduce accidental contact with internal components during normal machine operation and maintenance activities.

2. Component Positioning

The bracket structure is installed at a defined position on the waste tape processing assembly. Correct positioning helps preserve the intended layout and clearances of nearby components.

3. Waste Tape Clearance

Waste carrier tape needs a clear path through the processing mechanism. A correctly installed cover helps maintain the intended surrounding space without interfering with tape discharge.

When a cover becomes bent inward or is incorrectly mounted, the available clearance can change. This may cause mechanical interference, abnormal noise, or irregular waste tape movement.

Replacing the damaged component restores the correct physical configuration.

Why Mechanical Accuracy Matters

FUJI NXT III machines are designed for high-speed automated placement. Reliable production depends not only on servo systems, placement heads, cameras, feeders, and sensors but also on smaller mechanical components.

A bracket or cover with incorrect geometry can create problems that are difficult to diagnose because the machine may continue operating while intermittent mechanical interference occurs.

Possible symptoms may include:

• Waste tape not discharging smoothly.
• Unusual mechanical noise near the cutter area.
• Cover vibration during machine operation.
• Tape occasionally catching on surrounding structures.
• Visible bending or deformation.
• Improper clearance after previous maintenance.
• Difficulty reinstalling the waste tape processing assembly.

When these symptoms are present, technicians should inspect the complete mechanical system instead of assuming the cutter itself is defective.

How To Choose the Correct BKT Cover

Because FUJI NXT machines use different modules and mechanical configurations, selecting the replacement part based only on appearance is not recommended.

Use the following process before ordering.

Step 1 – Confirm the Machine Series

Verify that the equipment is a:

FUJI NXT III SMT Mounter

NXT I, NXT II, NXT III, and other FUJI platforms may use different mechanical components.

Step 2 – Confirm the Module

Confirm that the component is required for the:

NXT III M3 Module

M3 and M6 modules can use different waste tape processing components.

Step 3 – Check the Part Number

Compare the number on the existing component, maintenance manual, BOM, or machine spare parts list.

Relevant numbers for this product include:

• 2MGTPK009400
• 2MGTPK009301

Part-number confirmation is the most reliable way to avoid ordering a visually similar but incompatible component.

Step 4 – Confirm the Installation Area

This product is associated with the:

M3 Waste Tape Processing Unit

If the requested component comes from another assembly, send the current part number or clear installation photos for confirmation.

Step 5 – Check Physical Condition

Before replacing the cover, inspect:

Maintenance Recommendations

When replacing the BKT Cover, technicians should also inspect surrounding components in the waste tape processing unit.

A damaged cover may have been caused by another mechanical issue rather than normal wear.

Check for:

• Loose mounting screws.
• Incorrect cutter position.
• Accumulated carrier tape.
• Bent guide components.
• Foreign objects inside the waste tape area.
• Abnormal pneumatic movement.
• Incorrectly installed maintenance parts.

After installation, manually verify the mechanical clearance according to the machine maintenance procedure before returning the equipment to automatic production.

The waste tape system should operate freely without the new cover contacting moving parts.

Purchasing Advantages for SMT Maintenance Teams

The FUJI 2MGTPK009400 / 2MGTPK009301 BKT Cover is a practical spare part for companies operating NXT III production lines.

Purchasing based on the exact machine and part number provides several advantages:

For international SMT factories, distributors, and maintenance service companies, multiple FUJI spare parts can also be consolidated into one purchasing request for easier sourcing.

FAQ

1. What machine is FUJI 2MGTPK009400 used for?

FUJI 2MGTPK009400 is used in the FUJI NXT III M3 mounter, specifically within the waste tape processing assembly. It is identified as a BKT Cover and should be confirmed by part number before replacement.

2. What is the function of the BKT Cover?

The BKT Cover provides mechanical protection and structural positioning around the waste tape processing mechanism. It helps maintain proper clearance around cutter-related parts and supports stable waste carrier tape processing during SMT production.

3. Are 2MGTPK009400 and 2MGTPK009301 used for the same machine area?

Both numbers are associated with the NXT III M3 BKT Cover family. Because FUJI parts may have different revisions or installation positions, buyers should provide the existing part number or component photo before ordering.

4. When should the BKT Cover be replaced?

Replacement is recommended when the cover is bent, damaged, loose, deformed, missing, or causes interference with the waste tape mechanism. The surrounding cutter, guides, mounting screws, and waste tape path should also be inspected.

5. What information should I provide before requesting a quotation?

Please provide the FUJI machine model, module type, required part number, quantity, and preferably a photo of the existing component. This information allows faster compatibility checking and reduces the possibility of ordering the wrong mechanical part.

Contact Us

Need a quotation for FUJI 2MGTPK009400 or 2MGTPK009301 NXT III M3 BKT Cover?

Send us your part number, machine model, required quantity, and product photo. We can help confirm the correct specification before quotation.

We supply SMT machine spare parts for production maintenance, replacement, and repair requirements. Multiple FUJI NXT parts can be combined in one inquiry for easier purchasing.

Send your inquiry today for price, availability, compatible part confirmation, and shipping options.
