Panasonic MADDT1205001 J3152055A SAMSUNG HANWHA SM421 S Axis Mirror Axis Servo Driver

Panasonic MADDT1205001 J3152055A SAMSUNG HANWHA SM421 S Axis Mirror Axis Servo Driver

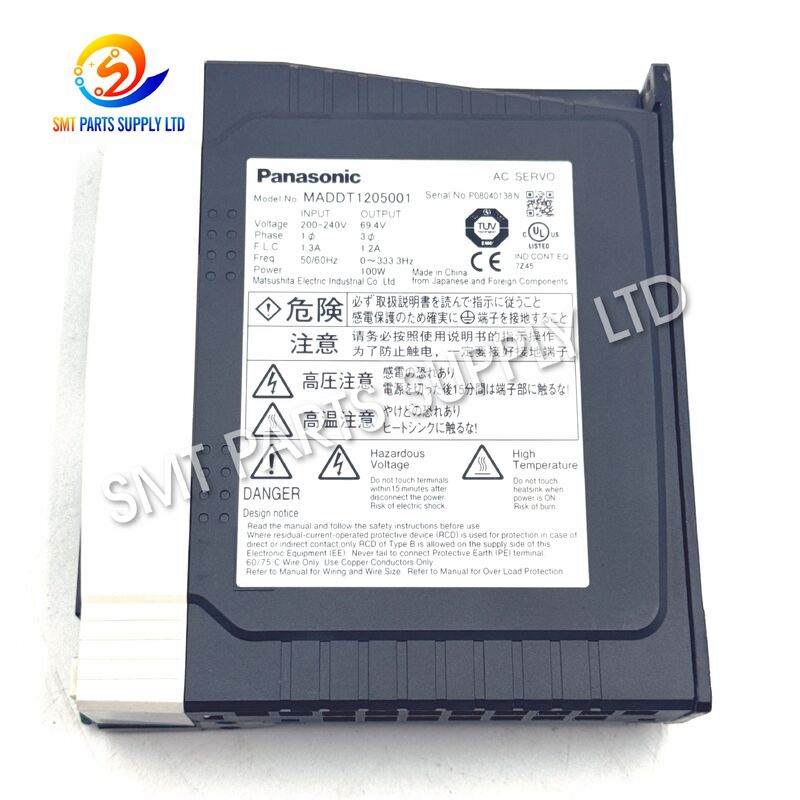

The Panasonic MADDT1205001 J3152055A servo driver is a precision motion-control component applied to the Samsung Hanwha SM421 SMT mounter S-axis, commonly identified as the mirror axis. Built on the Panasonic MINAS A4 servo platform, the MADDT1205 base model is designed for a 100W servo motor and provides controlled motor positioning for automated production equipment.

In the SM421, stable mirror-axis movement is important for consistent machine operation and accurate motion synchronization. When the original servo driver develops alarms, unstable response, failed initialization, or intermittent positioning problems, replacing it with a correctly matched unit can help restore machine availability.

For purchasing accuracy, buyers should confirm the complete model MADDT1205001, machine reference J3152055A, machine type SM421, motor capacity, installed connectors, and S-axis application before ordering.

Cause

Servo drivers work continuously under repeated acceleration, braking, electrical load, and machine vibration. After extended operation, several conditions may cause the SM421 mirror-axis servo system to become unstable.

Common Causes of Servo Driver Problems

A servo alarm does not always mean that the driver itself has failed. Motors, encoders, wiring, connectors, power supplies, and mechanical mechanisms should also be inspected during diagnosis.

Typical Machine Symptoms

• S-axis cannot complete initialization.
• Mirror axis stops during operation.
• Servo alarm appears repeatedly.
• Axis movement becomes unstable.
• Positioning is inconsistent.
• Driver powers on but cannot enable.
• Abnormal vibration occurs during movement.
• Axis returns an error after machine reset.
• Driver temperature becomes unusually high.

A systematic inspection helps determine whether replacement of MADDT1205001 is necessary.

Solution

When testing confirms that the original SM421 S-axis servo driver is defective, a correctly matched MADDT1205001 can be used as the replacement reference.

For reliable selection, compare all available identification information rather than purchasing only by visual appearance.

Recommended Matching Information

Before installation, technicians should record the original parameter configuration and photograph all cable positions. The motor cable, encoder cable, control connector, power wiring, and grounding should also be checked.

Replacing a servo driver without solving a damaged cable or mechanical load problem may cause the same alarm to appear again.

Specifications

Note: Always verify the actual driver nameplate and machine configuration before replacement. Similar MINAS A4 models may have different capacities and applications.

Product Identification Guide

Correct identification is especially important for industrial servo drivers because different models can share similar housings.

Using these references together helps reduce incorrect purchases and unnecessary machine downtime.

Application

The MADDT1205001 J3152055A servo driver is mainly used for repair, servicing, and maintenance of Samsung Hanwha SM421 SMT placement equipment.

Typical Application Environments

SMT Production Factories

Electronics manufacturers can keep this servo driver as a critical spare part for SM421 production lines. Having the correct replacement available can reduce downtime when a mirror-axis control failure occurs.

SMT Repair Centers

Machine service companies can use MADDT1205001 as a reference when diagnosing or repairing SM421 S-axis servo-control systems.

SMT Spare Parts Distributors

Distributors serving international electronics factories can stock this model for customers operating Samsung or Hanwha placement equipment.

Preventive Maintenance Programs

Factories operating several SM421 machines may keep selected servo drivers in maintenance inventory to improve emergency response.

Suitable Industries

• Automotive electronics.
• Consumer electronics.
• Industrial control systems.
• LED manufacturing.
• Telecommunications electronics.
• Medical electronics assembly.
• Power supply production.
• PCB contract manufacturing.
• Home appliance electronics.
• General SMT production.

How It Works

The servo driver controls the connected servo motor according to commands from the machine control system.

1. Motion Command Input

The SM421 controller determines the required S-axis movement according to the production program and machine operating sequence.

2. Servo Signal Processing

MADDT1205001 processes the movement command and calculates the required motor response.

3. Controlled Motor Output

The servo driver regulates electrical output to the motor so that the axis can accelerate, move, decelerate, and stop accurately.

4. Encoder Feedback

The motor encoder continuously reports actual motion information back to the servo system.

5. Closed-Loop Correction

The control system compares commanded movement with actual movement and makes rapid corrections when necessary.

6. Accurate Axis Positioning

Through continuous feedback and correction, the mirror axis can follow the machine command with high repeatability.

This closed-loop operation is especially important in SMT equipment where rapid and repeated machine movements occur throughout each production cycle.

Why Stable Servo Control Matters

The servo system directly influences machine motion quality. An unstable driver can create problems that affect productivity even when the machine can still operate.

Potential consequences include:

• Repeated machine alarms.
• Increased production interruptions.
• Poor axis synchronization.
• Unstable positioning.
• Longer maintenance time.
• Reduced equipment availability.
• Unexpected production-line downtime.

Using the correct servo driver helps maintenance personnel restore the intended machine configuration without unnecessary modification.

How To Choose

Selecting an industrial servo driver should be based on exact technical identification.

Step 1: Check the Full Model

Confirm that the original driver label shows:

MADDT1205001

Using only a partial number can increase the risk of selecting the wrong unit.

Step 2: Check the Machine Reference

Compare the machine part number:

J3152055A

This provides another important confirmation point.

Step 3: Confirm the Machine

The application described here is:

Samsung Hanwha SM421 SMT Mounter

If your machine is another model, confirm compatibility separately.

Step 4: Confirm the Axis

The target application is:

S-Axis / Mirror Axis

Do not assume that other servo drivers installed inside the same machine are interchangeable.

Step 5: Confirm Motor Capacity

The MADDT1205 base model belongs to the 100W servo motor class.

Motor capacity should match the installed servo system.

Step 6: Compare Connectors

Check motor, encoder, communication, power, and control connectors carefully.

A similar external appearance does not guarantee electrical compatibility.

Step 7: Preserve Parameters

Before removing the existing driver, save or record the original servo parameters whenever possible.

Correct parameters are important for stable operation after replacement.

Recommended Ordering Information

Providing clear driver photographs can significantly improve verification accuracy.

Maintenance Suggestions

To improve servo-system reliability and extend machine operating life:

• Keep the control cabinet clean.
• Maintain proper cabinet ventilation.
• Inspect cooling fans regularly.
• Check connector tightness.
• Inspect servo and encoder cables.
• Avoid excessive dust accumulation.
• Maintain stable power supply conditions.
• Back up important machine parameters.
• Investigate repeated servo alarms promptly.
• Check mechanical load before replacing electronics.
• Follow proper electrical safety procedures during maintenance.

A replacement driver should be installed by qualified personnel familiar with industrial servo systems and SMT equipment.

Frequently Asked Questions

Q1. What is MADDT1205001 J3152055A used for?

MADDT1205001 J3152055A is used for Samsung Hanwha SM421 SMT mounter S-axis or mirror-axis servo motion control. It regulates the connected servo motor and supports accurate positioning during machine operation.

Q2. Is MADDT1205001 a 100W servo driver?

Yes. The MADDT1205 base model belongs to the 100W motor capacity class in the Panasonic MINAS A4 servo family. Always verify the full label before installation.

Q3. Can another MINAS A4 driver replace MADDT1205001 directly?

Not automatically. Different MINAS A4 models may have different power ratings, current capacities, connectors, control specifications, and motor requirements. The complete model, machine part number, axis, and parameters should be verified first.

Q4. What should I check if the new driver shows the same alarm?

Inspect the servo motor, encoder, motor cable, encoder cable, connectors, mechanical load, machine parameters, power supply, and grounding. The original fault may exist elsewhere in the servo system.

Q5. What information should I send for a quotation?

Please provide MADDT1205001, J3152055A, Samsung Hanwha SM421, S-axis or mirror-axis application, required quantity, destination country, and clear photos of the existing driver label and connectors.

Contact Us

Need a Panasonic MADDT1205001 J3152055A servo driver for Samsung Hanwha SM421 maintenance?

Please send the complete model, machine part number, required quantity, machine model, axis application, destination country, and clear driver photographs.

We can assist with part-number verification, application matching, quotation preparation, packaging requirements, and international shipment arrangements.

For urgent machine repair requirements, include the servo alarm information and existing driver label when sending your inquiry.

Send your MADDT1205001 J3152055A requirement for availability and quotation.
