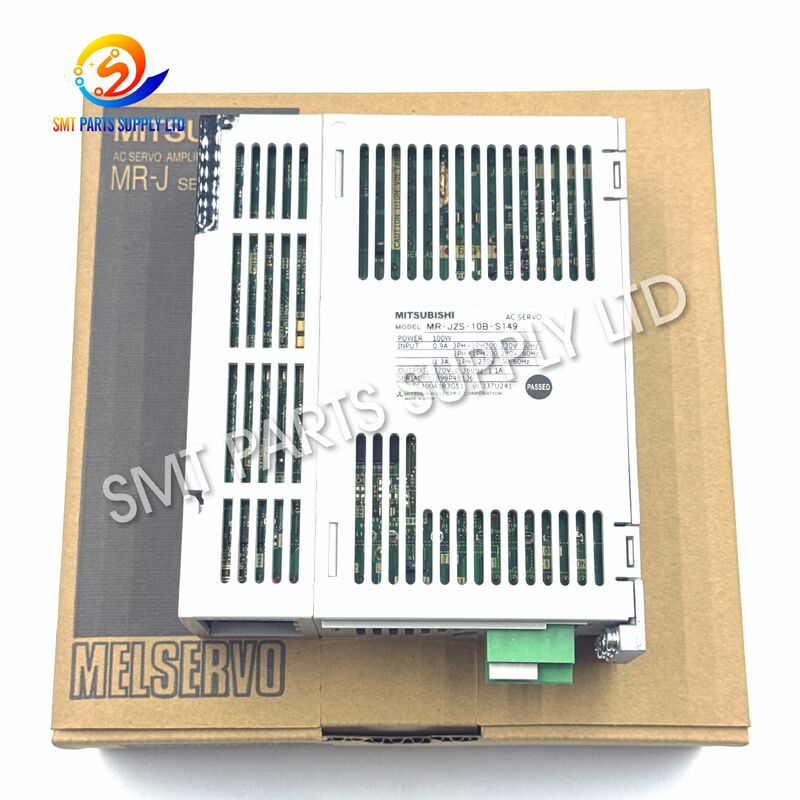

Mitsubishi MR-J2S-10B-S149 100W Servo Amplifier for Hitachi GXH Mounter

Mitsubishi MR-J2S-10B-S149 100W Servo Amplifier for Hitachi GXH Mounter

The Mitsubishi MR-J2S-10B-S149 Servo Amplifier is a specialized AC servo drive used in Hitachi GXH pick-and-place mac

hines and tray mounter applications. It belongs to Mitsubishi's MELSERVO-J2-Super MR-J2S-B series and is designed to control servo motor movement with accurate positioning and repeatable response.

The standard MR-J2S-10B platform is a 100W-class servo amplifier, while the complete MR-J2S-10B-S149 number identifies the specific version required for the equipment. The MR-J2S-B series communicates with the machine's servo system controller through SSCNET serial bus communication, transmitting positioning and motion-control information between the controller and amplifier.

For maintenance of Hitachi GXH equipment, matching the complete model number is especially important. The S149 suffix should be retained when sourcing a replacement rather than selecting only by the MR-J2S-10B base number.

Cause

Servo amplifiers operate continuously during SMT production and are responsible for controlling high-frequency machine movements. Long operating hours, electrical aging, abnormal motor loads, unstable power, cable problems, or internal electronic deterioration can eventually cause servo-related faults.

Common symptoms that may require inspection or replacement include:

A servo alarm does not automatically mean that the amplifier itself has failed. Motor condition, encoder cable, SSCNET cable, mechanical load, power supply, and machine parameters should also be inspected before replacing the unit.

Solution

When the original Hitachi GXH servo amplifier is confirmed faulty, using the same MR-J2S-10B-S149 model provides a practical replacement approach without redesigning the machine's original motion-control system.

For older SMT production lines, stocking critical servo amplifiers can be particularly useful because machine downtime caused by a discontinued or difficult-to-source drive may be significantly longer than the physical replacement procedure.

Specifications

Mitsubishi's MR-J2S-B manual identifies the series as SSCNET-compatible. For MR-J2S-10B through MR-J2S-70B, Mitsubishi specifies 3-phase 200-230VAC or supported 1-phase 230VAC configurations depending on installation. Always follow the original machine wiring and amplifier nameplate rather than changing the existing power arrangement.

Model Identification

The Hitachi GXH application for MR-J2S-10B-S149 is also found in current SMT spare-parts listings specifically describing it as a servo amplifier for the GXH tray mounter.

Application

The MR-J2S-10B-S149 is primarily suitable for replacement and maintenance of servo-controlled mechanisms in the Hitachi GXH SMT pick-and-place machine.

Typical applications include:

Precise servo control is critical in SMT equipment because movement errors can affect component handling, positioning accuracy, cycle stability, and overall equipment availability.

How It Works

The MR-J2S-10B-S149 works between the machine controller and servo motor.

1. Motion Command

The Hitachi machine controller generates the required movement information according to the production program.

2. SSCNET Communication

The MR-J2S-B series receives control information through the SSCNET serial bus. Mitsubishi describes this architecture as allowing the servo amplifier to obtain position data from the servo system controller.

3. Servo Amplification

The amplifier converts the control command into the electrical output required to operate the servo motor.

4. Motor Movement

Power is supplied through the U, V, and W motor terminals, producing controlled servo-axis movement.

5. Feedback Control

Motor feedback allows the system to monitor actual movement and maintain controlled positioning.

6. Protection Monitoring

The servo system monitors abnormal operating conditions and can stop operation when faults are detected to help protect the equipment.

This closed-loop process enables the SMT machine to perform repetitive motion with the response and positioning stability required in automated PCB assembly.

How To Choose

Choosing the correct servo amplifier requires more than matching only the Mitsubishi brand or MR-J2S series.

Important Selection Note

Do not automatically replace MR-J2S-10B-S149 with a standard MR-J2S-10B simply because the base numbers are similar.

The S149 suffix identifies a special version, so the complete number should be matched whenever possible. Machine parameters, OEM configuration, firmware, or application-specific requirements may differ.

For the highest confirmation accuracy, provide:

MR-J2S-10B-S149 label photo + Hitachi GXH machine model + servo motor model + alarm code.

FAQ

Q1: What machine is MR-J2S-10B-S149 used for?

MR-J2S-10B-S149 is used as a Mitsubishi servo amplifier in Hitachi GXH SMT pick-and-place and tray mounter equipment, supporting servo-axis motion and positioning control.

Q2: What is the power class of MR-J2S-10B-S149?

Its base amplifier, MR-J2S-10B, belongs to Mitsubishi's 100W servo amplifier class. The S149 suffix identifies the special version used for the specific equipment application.

Q3: Can MR-J2S-10B replace MR-J2S-10B-S149 directly?

Direct interchange should not be assumed. Although both share the MR-J2S-10B base model, the S149 suffix may represent an OEM-specific configuration. Matching the complete original model is recommended.

Q4: Is this an SSCNET servo amplifier?

Yes. The MR-J2S-B series is SSCNET compatible and communicates with a servo system controller through Mitsubishi's serial servo network.

Q5: What information should I send for a quotation?

Please provide the MR-J2S-10B-S149 model, required quantity, product condition, Hitachi GXH machine information, and preferably a clear photo of the original amplifier label. This allows faster compatibility confirmation and quotation.

Contact Us

Looking for a Mitsubishi MR-J2S-10B-S149 Servo Amplifier for Hitachi GXH?

Send us your part number, quantity, original label photo, and machine model. We can help confirm the correct version, check availability, and provide a competitive quotation for your SMT maintenance or spare-parts requirement.
