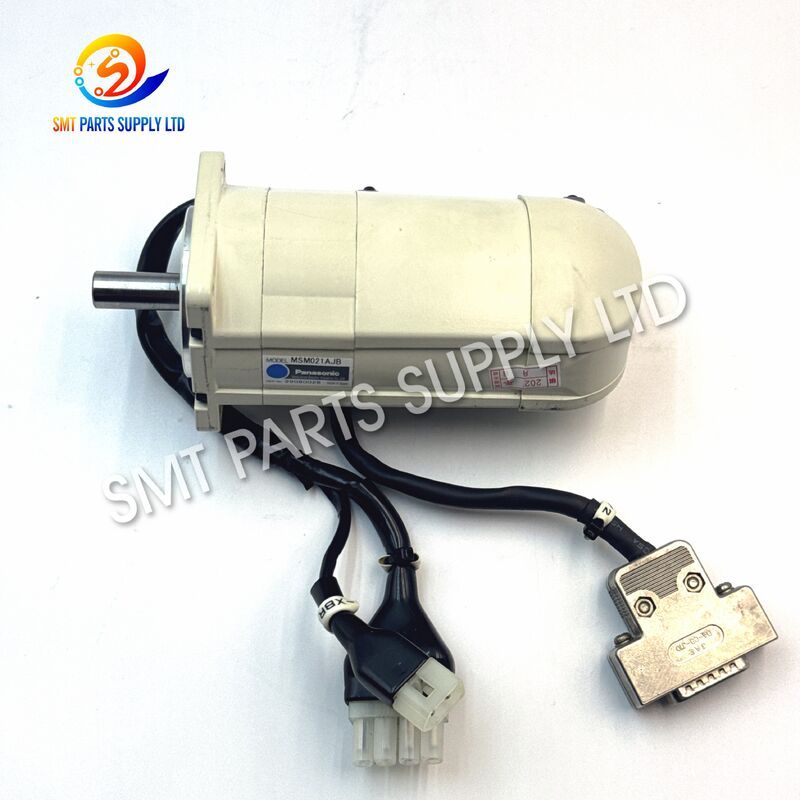

Panasonic MSM021AJB 200W AC Servo Motor for HDF Dispensing System

Panasonic MSM021AJB 200W AC Servo Motor for HDF Dispensing System

The Panasonic MSM021AJB AC Servo Motor is a precision motion-control component used in compatible HDF dispensing systems and other industrial automation equipment. It converts electrical commands from a compatible servo driver into controlled rotary movement, allowing the machine axis to perform accurate positioning, acceleration, deceleration, and repetitive production movements.

The MSM021AJB belongs to Panasonic's MSM021A motor family. Published data for MSM021A variants identifies this family as a 200W, 100V-class AC servo motor platform using a 2500 p/r incremental encoder. Panasonic also lists MSM021-series products among its discontinued legacy servo motor products, making correct model verification especially important when sourcing maintenance replacements.

For an existing HDF dispensing system, selecting the correct servo motor helps maintain the original mechanical interface, feedback arrangement, and motion-control performance. Buyers should always compare the complete MSM021AJB model, shaft, connector configuration, mounting dimensions, and installed servo driver before replacement.

Cause

Servo motors used in dispensing systems operate through repeated acceleration, positioning, stopping, and return cycles. Long-term operation, mechanical stress, contamination, or associated component wear may eventually cause unstable axis performance.

Typical reasons for checking or replacing an MSM021AJB motor include:

A motor-related problem should not automatically be diagnosed from a positioning error alone. Similar symptoms may also originate from the servo driver, encoder cable, motor cable, coupling, ball screw, guide rail, or machine control parameters.

Solution

When a dispensing machine develops abnormal axis movement, technicians should inspect the complete servo system before replacing individual components.

A practical maintenance procedure includes:

1. Record the servo alarm.
Check the machine display or servo amplifier and record the exact alarm code before disconnecting the motor.

2. Inspect mechanical movement.
Make sure the connected axis, ball screw, coupling, bearing, or transmission mechanism moves without abnormal resistance.

3. Check cables and connectors.
Loose, contaminated, broken, or damaged connectors can interrupt power or encoder feedback.

4. Inspect the existing motor.
Check the shaft, housing, connector, bearing noise, rotation resistance, and visible damage.

5. Confirm the full model number.
Use MSM021AJB, not simply "Panasonic 200W motor," when requesting a replacement.

6. Compare the mechanical interface.
Verify shaft dimensions, flange mounting, connector orientation, and cable arrangement.

7. Confirm servo driver compatibility.
Panasonic documentation emphasizes that motors and servo drivers must be used in compatible combinations.

Correct model matching minimizes installation changes and helps restore the original motion system efficiently.

Specifications

Main Product Specifications

Published listings for several MSM021A variants consistently identify the family as 200W, 100V and 2500 p/r incremental encoder specification. Exact suffix-dependent construction of MSM021AJB should be checked against the original motor before installation.

Model Identification Requirements

Related MSM Series Comparison

Different MSM motor families may look similar but should not be treated as directly interchangeable.

Motor wattage alone is therefore not sufficient for replacement selection. Panasonic documentation distinguishes motor families by voltage, output, encoder specifications, and compatible drivers.

Application

The Panasonic MSM021AJB is suitable for compatible HDF dispensing equipment where controlled rotary motion is required.

Dispensing Axis Drive

The motor can provide controlled motion for a machine axis that positions dispensing-related mechanisms during programmed production sequences.

Precision Positioning

Encoder feedback allows the servo control system to monitor motor movement continuously and correct the axis according to the commanded position.

Repetitive Automation

Dispensing equipment often performs thousands of repeated movements. Servo control is suitable for applications requiring consistent starting, acceleration, stopping, and return positioning.

Machine Repair

MSM021AJB can be used when replacing an existing motor of the same specification in compatible equipment.

Preventive Maintenance

Production plants operating older automation systems may keep model-specific servo motors as maintenance inventory to reduce downtime caused by component failure.

Legacy Equipment Support

Panasonic identifies MSM021-series servo products as discontinued legacy products. Correctly identified replacement components can therefore be valuable for maintaining existing production machinery.

How It Works

The MSM021AJB operates as one part of a closed-loop servo system.

Machine Controller → Servo Driver → MSM021AJB Motor → Mechanical Axis → Encoder Feedback

Step 1: Motion Command

The machine controller sends a position or movement command according to the dispensing program.

Step 2: Servo Driver Control

The servo amplifier processes the command and regulates electrical power supplied to the motor.

Step 3: Motor Rotation

The MSM021AJB converts the electrical control signal into controlled rotary motion.

Step 4: Mechanical Transmission

The shaft transfers movement through a coupling, pulley, ball screw, or other mechanical transmission component.

Step 5: Encoder Feedback

The encoder measures motor movement and returns feedback to the servo control system.

Step 6: Automatic Correction

The servo system continuously compares commanded movement with actual feedback and corrects the motor response when required.

This closed-loop principle provides more controlled positioning than a standard motor operating without feedback.

Why Correct Servo Motion Matters

Stable servo motion is especially important in automated dispensing processes because inconsistent axis movement can affect machine repeatability.

A replacement motor therefore needs to match both the electrical control system and the mechanical machine structure.

How To Choose

1. Confirm MSM021AJB

The complete product code should be the first selection reference.

Avoid ordering only by:

• 200W
• Panasonic servo motor
• MSM motor
• HDF motor

The full code MSM021AJB provides a much more accurate sourcing reference.

2. Check the Original Nameplate

Provide a clear photograph of the original motor label. This helps verify the exact model and reduces ordering mistakes.

3. Confirm the Servo Driver

Motor and driver compatibility is essential. Panasonic's servo manuals specifically instruct users to verify the motor series, rated output, voltage specification, encoder specification, and designated driver combination.

4. Compare the Shaft

Check:

• Shaft diameter
• Shaft length
• Keyway
• Coupling interface
• Mechanical condition

5. Compare Mounting Dimensions

Verify:

• Flange size
• Mounting hole positions
• Locating diameter
• Body dimensions
• Installation clearance

6. Compare Connectors

Check both the power and feedback connectors against the existing motor.

7. Confirm the HDF Machine

If possible, provide the HDF dispensing machine model and installation position.

Recommended Information for Quotation

For faster model checking and quotation, please provide:

Providing these details can significantly reduce compatibility errors.

Maintenance and Installation

Before installation, disconnect machine power according to the equipment manufacturer's safety procedures.

Inspect the replacement motor for shipping damage and confirm the model number before mounting.

Do not strike the motor shaft or force the coupling into position. Excessive mechanical impact can damage precision bearings or feedback components.

Check the driven mechanism for abnormal resistance before connecting the replacement motor. Installing a new motor on a seized mechanical axis can overload the servo system.

Inspect the motor and encoder cables carefully. A cable problem can produce symptoms similar to motor failure.

After installation, check machine initialization, servo alarms, axis direction, movement stability, and positioning performance before returning the equipment to normal production.

FAQ

Q1. What is the Panasonic MSM021AJB used for?

The MSM021AJB is an AC servo motor used for precision motion control in compatible industrial automation equipment, including HDF dispensing systems. It drives a mechanical axis while encoder feedback supports controlled positioning and repeatable movement.

Q2. Is MSM021AJB a 200W servo motor?

MSM021AJB belongs to Panasonic's MSM021A motor family. Published specifications for MSM021A variants identify the family as 200W and 100V with a 2500 p/r incremental encoder. Exact suffix details should still be verified.

Q3. Can another 200W Panasonic motor replace MSM021AJB?

Not automatically. Motors with the same power rating may use different voltage classes, encoders, shafts, connectors, or compatible servo drivers. Confirm the complete model and mechanical configuration before replacement.

Q4. What should I provide before ordering?

Please provide the complete MSM021AJB model, required quantity, motor nameplate photo, shaft and connector photos, HDF machine model, and servo driver model whenever available.

Q5. Why should the servo driver also be checked?

The driver supplies and controls the motor while processing encoder feedback. Panasonic documentation requires compatible motor-and-driver combinations, so incorrect pairing can result in alarms, poor operation, or incompatibility.

Contact Us

Looking for a Panasonic MSM021AJB 200W AC Servo Motor for an HDF Dispensing System?

Send us your motor model, required quantity, machine model, servo driver model, and clear photos of the original motor label and connectors. We can help confirm the required configuration before quotation.

We supply servo motors and industrial automation spare parts for equipment maintenance, replacement, and production-line support.

Contact us for current availability, quotation, lead time, technical confirmation, and international shipping options.
