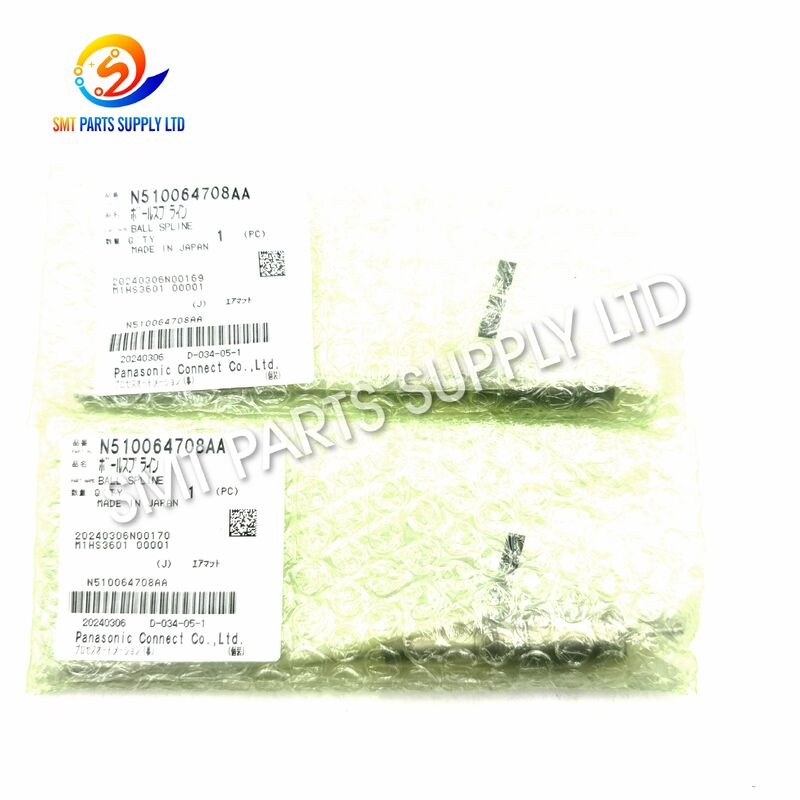

Panasonic N510064708AA H8 White Mark Ball Spline for NPM 8-Head

Panasonic N510064708AA H8 White Mark Ball Spline for NPM 8-Head

The N510064708AA H8 White Mark Ball Spline is a precision mechanical component used in the NPM H8 8-head placement assembly. Its primary role is to guide the nozzle shaft during rapid vertical reciprocating movement while maintaining controlled rotational positioning and stable mechanical alignment.

During SMT production, each nozzle repeatedly moves down to pick components, retracts, rotates to the programmed angle, and moves down again for accurate placement. The ball spline forms an important part of this movement system by combining smooth linear guidance with torque transmission through its precision spline structure.

N510064708AA is suitable for NPM H8 head repair, scheduled maintenance, placement-head rebuilding, and replacement of worn or damaged ball spline components. The white mark identification helps distinguish this H8 spline specification from visually similar spline versions used in other placement-head configurations.

For accurate ordering, customers should confirm the complete part number N510064708AA, H8 head type, and white mark specification before purchase.

The NPM placement head performs continuous high-speed motion throughout production. Every component placement creates additional cycles of vertical shaft travel, acceleration, deceleration, rotation, and mechanical loading.

Over time, the H8 ball spline can experience gradual wear.

The nozzle shaft moves vertically for every pickup and placement operation.

In high-volume production, this can result in extremely high cycle counts.

Long-term operation may cause:

• Increased mechanical clearance.
• Reduced movement smoothness.
• Higher vibration.
• Abnormal shaft play.
• Increased operating resistance.

The ball spline uses rolling elements moving along accurately formed spline grooves.

Repeated mechanical contact may gradually affect the internal running surfaces.

Typical symptoms can include:

These symptoms should be checked together with the nozzle shaft, bearings, holder, and surrounding head mechanism.

SMT production environments can contain fine dust, component debris, grease residue, and other particles.

If contamination enters the moving spline mechanism, it can interfere with smooth rolling contact.

Possible results include:

• Increased friction.
• Irregular movement.
• Premature wear.
• Surface damage.
• Reduced mechanical consistency.

Correct lubrication is important for precision rolling components.

Insufficient, contaminated, or degraded lubricant can increase friction and accelerate wear.

Maintenance technicians should follow the lubrication procedure applicable to the NPM H8 head instead of applying excessive or unsuitable grease.

A severe nozzle collision may transfer impact load from the nozzle into the shaft and spline mechanism.

Possible causes include:

• Incorrect PCB height.
• Feeder interference.
• Nozzle crash.
• Component obstruction.
• Incorrect machine setup.

After an abnormal collision, the ball spline should be inspected together with the nozzle shaft and associated mechanical components.

When inspection confirms wear or abnormal clearance, replacing the existing spline with the correct N510064708AA H8 White Mark Ball Spline can help restore the intended mechanical guidance of the nozzle shaft.

A correctly matched ball spline provides several important maintenance benefits.

The replacement should be performed by trained SMT maintenance personnel.

Before installation, technicians should also check the condition of the nozzle shaft, holder, bearing surfaces, and related head components.

Placement-head ball splines may look very similar externally, but different specifications can be used in different head versions.

The white mark should therefore be treated as an identification characteristic when selecting N510064708AA.

When purchasing a replacement, verify all three key details:

N510064708AA + H8 + White Mark

This is more reliable than selecting a spline only by appearance.

This verification process helps reduce incorrect ordering and unnecessary machine downtime.

The N510064708AA H8 White Mark Ball Spline is mainly used for maintenance of NPM placement heads operating in SMT manufacturing environments.

Suitable for replacement when the existing H8 spline shows:

• Excessive clearance.
• Rough movement.
• Wear.
• Mechanical damage.
• Collision-related problems.
• Abnormal noise.

Factories running NPM machines continuously can inspect H8 head mechanical parts during scheduled maintenance.

The ball spline may be replaced when technicians identify unacceptable wear before it causes more serious production problems.

N510064708AA can be used during H8 head rebuilding together with inspection of:

• Nozzle shafts.
• Nozzle holders.
• Bearings.
• Springs.
• Seals.
• Vacuum components.
• Related guidance parts.

This approach helps technicians evaluate the complete mechanical condition of the placement head.

Typical industries include:

The part is also suitable for:

• SMT maintenance companies.
• Equipment repair centers.
• Placement-head rebuilding workshops.
• Used-machine refurbishers.
• SMT spare-parts distributors.

The H8 ball spline provides a combination of linear movement and rotational constraint.

The placement system commands the nozzle shaft to move vertically.

The shaft travels through the ball spline assembly.

Precision balls move along the spline grooves.

Rolling contact helps reduce unnecessary sliding friction during high-frequency shaft travel.

The spline guides the shaft along the required vertical path.

Stable guidance is important because the nozzle repeatedly approaches components and PCB placement positions.

The groove structure allows the spline assembly to transmit rotational force while limiting uncontrolled relative movement.

This helps the nozzle shaft maintain the required mechanical relationship with the H8 head mechanism.

The nozzle moves downward toward a component supplied by the feeder or tray.

Vacuum is applied to hold the component.

The component is oriented according to the program, transferred to the target PCB position, and placed.

The nozzle then retracts.

This sequence repeats continuously during production.

Therefore, an ordinary bearing or guide should not be selected as a substitute based only on approximate dimensions.

Technicians may inspect N510064708AA when experiencing:

• Increased nozzle shaft play.
• Rough H8 shaft movement.
• Unusual mechanical sound.
• Increased vibration.
• Resistance during manual shaft movement.
• Visible mechanical wear.
• Poor movement after a nozzle collision.

However, these symptoms may also originate from other parts.

A complete head inspection is recommended before replacement.

The primary identification should be:

N510064708AA

Avoid selecting only by product appearance.

The product is intended for an H8 placement head configuration.

Specify the head type clearly when requesting a quotation.

Recommended inquiry information:

Machine: NPM
Head: H8
Part Number: N510064708AA

The white mark is an important identifying characteristic.

If your existing spline uses a different colored mark, do not assume it is interchangeable with N510064708AA.

Send a photo for confirmation if necessary.

Before ordering, inspect:

• Part number.
• Mark color.
• Shaft structure.
• Mounting interface.
• Head configuration.

Clear photos can help avoid specification mistakes.

For individual head repair, one piece may be sufficient.

Factories operating multiple NPM lines may consider maintaining additional H8 ball splines as spare inventory.

For urgent maintenance orders, provide the required quantity and destination when requesting a quotation.

N510064708AA is an H8 ball spline used to guide the nozzle shaft during repeated vertical movement while supporting controlled rotational positioning. It is an important mechanical guidance component within the NPM 8-head placement assembly.

White Mark is an identification characteristic used to distinguish this H8 spline specification from visually similar ball spline versions. Customers should verify the part number, H8 head type, and white mark before ordering.

Yes. N510064708AA is used for the NPM H8 / 8-head application. However, machine and head configurations should still be confirmed before purchase, especially when equipment has previously undergone head repair or component replacement.

Replacement may be required when inspection finds excessive play, rough shaft movement, abnormal noise, mechanical damage, or wear. Related parts such as the nozzle shaft, holder, bearings, and lubrication condition should also be checked.

Please provide N510064708AA, NPM machine information, H8 head type, white mark confirmation, required quantity, and delivery destination. A clear photo of the existing spline is recommended when specification confirmation is needed.

Need N510064708AA H8 White Mark Ball Spline for NPM 8-head maintenance?

Please send us:

• Part number: N510064708AA
• Machine model.
• H8 head confirmation.
• White mark confirmation.
• Required quantity.
• Delivery destination.
• Existing part photos if available.

We can assist with part-number checking, stock confirmation, quotation, packaging, and delivery arrangements.

For urgent SMT machine repair requirements, include your required quantity and expected delivery schedule in the inquiry so the request can be processed efficiently.

Contact us for current availability and quotation for N510064708AA H8 White Mark Ball Spline.
