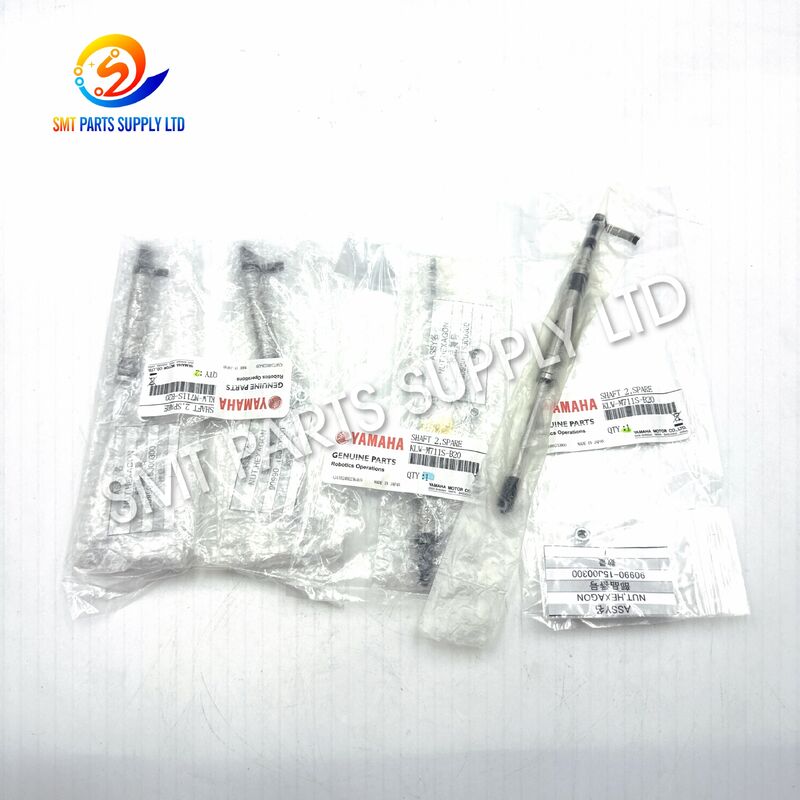

YAMAHA KLW-M711S-B20 Shaft 2 Nozzle Head Rod for YSM10 YSM20R

The YAMAHA KLW-M711S-B20 Shaft 2 is a precision mechanical component used within the nozzle head mechanism of compatible YSM10 and YSM20R SMT pick-and-place machines. The shaft provides controlled guidance and mechanical support for the vertical movement associated with the nozzle head assembly, helping maintain accurate nozzle positioning during component pickup and placement.

In high-speed SMT production, even a small amount of shaft wear, contamination, looseness, or mechanical deformation may influence head movement and placement repeatability. Replacing a worn shaft with the correct part specification can help restore smooth mechanical travel and maintain stable production performance.

KLW-M711S-B20 is suitable for machine maintenance companies, electronics manufacturers, SMT repair workshops, spare-parts distributors, and factories maintaining YAMAHA placement equipment. Before ordering, customers are recommended to confirm the machine model, head configuration, existing part number, and shaft position.

The nozzle head mechanism operates continuously during SMT production. Repeated vertical movement, high operating cycles, dust, grease condition, component debris, incorrect installation, or long-term mechanical loading may gradually affect the condition of the shaft.

Common causes include:

A damaged shaft does not always cause an immediate machine stop. In many cases, performance may gradually deteriorate before a clear alarm appears.

Typical symptoms may include unstable nozzle movement, abnormal mechanical resistance, excessive clearance, inconsistent Z-axis travel, irregular pickup performance, or reduced placement stability.

When inspection confirms that the existing Shaft 2 is worn, bent, damaged, or no longer operating smoothly, replacing it with the correct KLW-M711S-B20 part can help recover proper mechanical guidance within the nozzle head assembly.

The replacement helps support:

• Smooth nozzle head vertical movement.
• Consistent mechanical positioning.
• Stable pickup and placement cycles.
• Reduced unwanted shaft clearance.
• Accurate interaction with related head components.
• Reliable operation during continuous SMT production.
• Easier preventive maintenance of aging equipment.

For best results, related components around the shaft should also be inspected during replacement. Installing a new shaft while other mating components remain heavily worn may not completely eliminate mechanical play.

The main purpose of KLW-M711S-B20 Shaft 2 is mechanical guidance rather than electrical control.

Its operating functions include:

The shaft provides a controlled mechanical path for movement inside the placement head mechanism. Stable guidance is important because SMT placement requires repeated movement at high speed.

Accurate nozzle positioning depends on the mechanical relationship between the shaft, holder, moving structure, and other head components. Excessive shaft wear can introduce unwanted clearance.

During production, the nozzle moves repeatedly to pick components from feeders and place them onto PCB locations. The shaft helps maintain consistent mechanical travel during these cycles.

A mechanically stable head contributes to repeatable nozzle positioning. The shaft therefore plays an indirect but important role in maintaining component handling consistency.

The part works as an internal structural and motion-guidance component within the nozzle head assembly rather than as a consumable nozzle.

Customers should distinguish between different shaft positions before ordering.

Important: Shaft 1 and Shaft 2 should not automatically be treated as interchangeable. Their position, dimensions, and application within the head mechanism may differ. Always verify the original part number before replacement.

The KLW-M711S-B20 Shaft 2 is mainly used for maintenance and repair of compatible YAMAHA SMT placement equipment.

Factories operating YSM10 or YSM20R equipment may keep critical head components in stock to reduce machine downtime when mechanical wear occurs.

The shaft can be replaced during nozzle head repair when inspection identifies abnormal wear, surface damage, mechanical resistance, or unwanted clearance.

High-cycle SMT production lines commonly perform scheduled head inspection. Shaft condition can be checked as part of preventive maintenance before severe mechanical problems develop.

When rebuilding or servicing used placement machines, head shafts and related mechanical parts may require inspection or replacement before returning the machine to production.

SMT repair companies and equipment service providers may stock KLW series mechanical parts to support customer maintenance requirements.

During an SMT placement cycle, the machine retrieves electronic components from feeders and positions them onto the PCB according to the programmed coordinates.

The nozzle head must move smoothly and repeatedly throughout this process.

The typical sequence includes:

1. The placement head moves toward the feeder position.
2. The nozzle approaches the component pickup point.
3. Vertical motion allows the nozzle to contact and pick the component.
4. The head moves toward the PCB placement position.
5. The nozzle descends to the programmed placement height.
6. The component is released onto the PCB.
7. The nozzle returns to the operating position.
8. The cycle repeats continuously.

Within this process, KLW-M711S-B20 Shaft 2 supports the mechanical guidance needed for controlled head movement.

The shaft itself does not generate motion. Instead, it works together with the surrounding head mechanism, drive components, bearings, guides, holders, and related parts to maintain stable movement.

A correctly installed shaft should move according to the mechanical design without abnormal resistance, excessive looseness, or visible deformation.

Maintenance technicians may consider inspecting the shaft when one or more of the following conditions are observed:

These symptoms can also result from other machine components. Therefore, technicians should perform proper diagnosis before replacing the shaft.

Selecting SMT machine spare parts based only on appearance can lead to ordering mistakes. Similar shafts may have different dimensions, installation positions, or compatible head configurations.

Before purchasing KLW-M711S-B20, verify the following information.

The most important reference is the original part number printed on machine records, maintenance documentation, spare-parts lists, or packaging.

Required model:

KLW-M711S-B20

This product is intended for compatible YAMAHA placement equipment including:

• YSM10
• YSM20R

Machine configuration should still be checked before final order confirmation.

Ensure that the required component is Shaft 2, not Shaft 1 or another head shaft.

Customers can provide clear photographs of the existing shaft and surrounding head assembly for additional identification.

If the old shaft is severely worn, inspect the corresponding guide, holder, bearing, spline, seal, and other mechanical components.

Replacing related worn parts together may produce better maintenance results.

Designed according to the required shaft specification for compatible nozzle head applications.

Helps maintain smooth and controlled mechanical movement within the placement head.

Useful for scheduled maintenance, head repair, refurbishment, and replacement of worn machine components.

KLW-M711S-B20 provides a clear purchasing reference, helping buyers reduce confusion between visually similar SMT head parts.

Suitable for professional electronics production environments requiring reliable placement equipment maintenance.

Can be prepared as a critical spare component for factories operating YSM series placement equipment.

Installation should be performed by technicians familiar with SMT placement heads.

Before installation:

• Turn off machine power according to maintenance procedures.
• Confirm the correct shaft position.
• Clean the installation area.
• Inspect surrounding mechanical components.
• Check for abnormal wear or contamination.
• Use suitable maintenance tools.
• Avoid scratching the precision shaft surface.
• Follow the machine maintenance procedure for lubrication.
• Verify smooth movement after assembly.
• Perform calibration or machine checks if required.

Do not force the shaft into position when abnormal resistance is detected. Excessive force may damage the shaft or related head components.

• Store in a clean and dry environment.
• Keep away from corrosive chemicals.
• Protect the shaft surface from scratches.
• Avoid direct contact with moisture.
• Keep the product inside protective packaging before installation.
• Do not place heavy components directly on the shaft.
• Use appropriate anti-rust protection for long-term storage when required.

KLW-M711S-B20 is a Shaft 2 nozzle head mechanical rod used in compatible YSM10 and YSM20R pick-and-place machines. It supports precise mechanical guidance and vertical nozzle head movement during component pickup and placement cycles.

No. It is not the pickup nozzle itself. KLW-M711S-B20 is an internal shaft or rod used within the nozzle head mechanism to guide and support precise mechanical movement.

They should not automatically be considered interchangeable. KLW-M711S-A2 is associated with Shaft 1, while KLW-M711S-B20 is Shaft 2. Always confirm the original part number and installation position before ordering.

Please provide KLW-M711S-B20 as the required part number, machine model, quantity, and if possible clear photos of the existing part or placement head. This helps confirm the correct component before shipment.

Replacement may be required when inspection identifies visible wear, bending, surface damage, excessive clearance, abnormal resistance, or unstable mechanical movement. The complete nozzle head assembly should also be inspected for related wear.

Need YAMAHA KLW-M711S-B20 Shaft 2 for YSM10 or YSM20R maintenance?

Send us your required part number, machine model, quantity, and current part photos for confirmation. We can assist with product identification, stock availability, quotation, compatible SMT spare parts, and consolidated shipment requirements.

Contact us for your latest quotation and availability.
