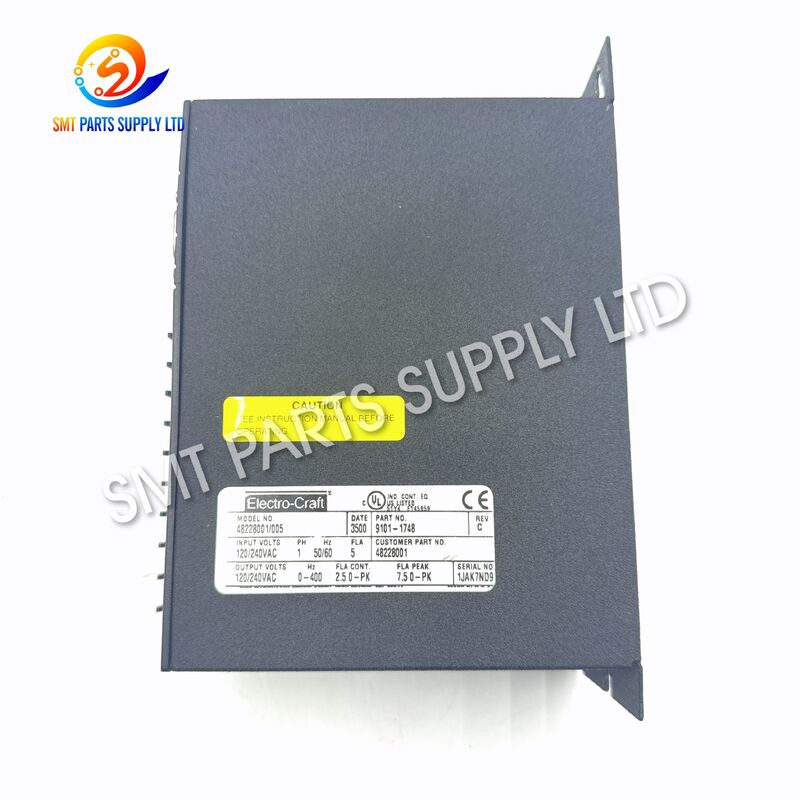

48228001 Y axis motor driver for Universal AI machines

The Electro-Craft 48228001 servo amplifier, also referenced with 9101-1748, is an industrial motion-control component used in Universal AI equipment. Available service and parts references identify 48228001 as an Electro-Craft amplifier for Universal Instruments equipment, while AI-machine parts references describe it as a servo amplifier used for X-Y axis control. The amplifier receives control commands from the machine motion-control system and regulates electrical power supplied to the associated servo motor, allowing controlled axis acceleration, positioning, travel, and stopping.

For aging Universal insertion equipment, servo amplifier condition directly affects axis stability and machine availability. A damaged or unstable amplifier may cause positioning alarms, interrupted travel, abnormal motor response, or failure of the controlled axis to initialize. Replacing the amplifier with the correct part-number and revision-compatible unit can restore reliable motion without unnecessarily replacing other mechanical assemblies.

Servo amplifiers operate continuously under electrical and thermal load. After long production periods, electronic components, connectors, cooling components, and power circuits can gradually deteriorate.

Typical machine problems associated with the axis drive system may include:

A servo alarm does not automatically mean the amplifier is defective. The motor, encoder, wiring, connectors, power supply, motion-control board and mechanical axis should also be inspected before replacement.

The 48228001 servo amplifier provides a practical replacement option when the original drive installed in compatible Universal AI machinery becomes faulty.

The component is designed to work as part of the machine's closed-loop servo control system. It converts the motion controller's command into controlled motor power and responds to feedback from the axis system.

Correct replacement can help restore:

• Stable Y-axis or applicable X-Y axis movement.
• Controlled acceleration and deceleration.
• Accurate machine-axis positioning.
• Repeatable component insertion positioning.
• Reliable machine initialization.
• Stable production-cycle operation.
• Reduced unexpected axis-related downtime.
• Continued use of existing Universal AI production equipment.

Before installation, the original unit should be compared carefully with the replacement for part number, reference model, connector arrangement, electrical specification and revision.

Available industry parts references identify 48228001 as an Electro-Craft servo amplifier associated with Universal Instruments equipment. One AI equipment reference lists it as AMP; SERVO; DC; 7.5A; 2.5A for a 6380B X-Y axis application, while repair-service references associate part number 48228001 with Electro-Craft reference 9101-1748.

*Electrical ratings and machine configuration should always be verified against the original amplifier nameplate and equipment documentation before ordering. The 7.5A/2.5A and 6380B X-Y axis references are documented in available industry parts listings.

The 48228001 is intended for industrial machine motion-control service rather than general-purpose motor operation. It is particularly relevant to maintenance of older Universal AI automatic insertion production equipment.

Typical users include:

• Electronics assembly factories.
• Through-hole component production lines.
• EMS manufacturing facilities.
• Universal AI equipment maintenance departments.
• Industrial electronics repair companies.
• Used equipment refurbishment companies.
• Spare-parts distributors.
• Factory engineering teams maintaining legacy insertion equipment.

The Universal AI machine controller determines where the machine axis must move according to the programmed production sequence.

The controller sends the required movement command to the servo drive system.

The 48228001 servo amplifier regulates the electrical power required by the associated motor.

Instead of simply switching the motor on and off, the drive controls the motor response according to the machine command.

The servo motor converts the controlled electrical output into mechanical rotation, moving the associated machine axis through the mechanical transmission system.

Feedback devices in the servo system report actual motor or axis movement to the controller.

The machine compares actual movement with the commanded movement.

If a difference exists between commanded and actual movement, the servo system adjusts motor operation until the required position is reached.

This closed-loop operation provides the controlled movement required by automated insertion equipment.

Because the amplifier is only one element of this control loop, troubleshooting should evaluate the entire system instead of replacing the drive solely on the basis of an axis alarm.

A defective or aging servo amplifier can produce different symptoms depending on the condition of the machine.

• Y-axis fails to move during initialization.
• Axis movement suddenly stops during production.
• Repeated servo alarms occur.
• Motor response becomes intermittent.
• Axis acceleration becomes irregular.
• Machine cannot complete the homing sequence.
• Positioning becomes unstable.
• Motor receives no effective drive output.
• Machine runs after restart but fails again later.
• Servo amplifier operates abnormally when warm.

These symptoms can also originate from other components. Therefore, technicians should check power supply voltage, motor condition, encoder feedback, connectors, wiring, axis controller and mechanical resistance before confirming the amplifier as the failed component.

For factories still operating Universal AI machines, replacing an individual servo amplifier is often more practical than replacing the complete machine solely because of an axis-control failure.

Keeping a compatible 48228001 spare can allow maintenance teams to respond faster when a drive fails unexpectedly.

Many mature insertion lines remain productive, but availability of older electrical components may become increasingly important for maintenance planning.

A tested replacement unit can also be useful when technicians need to determine whether an existing axis problem originates from the amplifier or another part of the servo system.

Selection should be based on the original installed unit, not only on machine brand.

Check that the original unit shows:

48228001

Part-number matching is the first step in identifying the correct replacement.

Where available, compare the Electro-Craft reference:

9101-1748

Provide the exact Universal AI machine model.

Available parts references associate 48228001 with Universal AI equipment and identify an application in the 6380B X-Y axis system.

Specify whether the amplifier is installed on:

• Y axis,
• X axis,
• X-Y motion system,
• or another machine position.

Do not assume that every machine configuration uses the same amplifier in exactly the same location.

Check:

• Input specification.
• Output/current rating.
• Connector layout.
• Model label.
• Revision information.
• Manufacturer reference.
• Original machine part number.

For legacy servo electronics, photographs of the following are useful:

Depending on availability, buyers may require an unused, serviced, tested or replacement unit. Condition should be clearly confirmed before shipment.

Before requesting quotation, provide as much information as possible:

Providing complete information reduces the risk of selecting an incompatible revision and allows faster technical confirmation.

The 48228001 is a servo amplifier used in the motion-control system of compatible Universal AI equipment. It regulates electrical power supplied to the servo motor so the controlled machine axis can accelerate, travel, position and stop according to the machine controller's commands.

It is commonly listed in AI spare-parts references as a Y-axis servo amplifier, while another detailed Universal AI parts reference identifies 48228001 as a DC servo amplifier used for the X-Y axis of a 6380B configuration. Therefore, the actual installation position should be confirmed from the original machine and amplifier before ordering.

Yes. Industrial repair and spare-parts references identify Universal Instruments part number 48228001 as an Electro-Craft amplifier with reference 9101-1748. The original unit label should still be checked to confirm revision compatibility.

Diagnosis is recommended first. Servo alarms can also result from motor, encoder, cable, connector, controller, power-supply or mechanical-axis problems. Confirming the source of the fault before replacement helps avoid unnecessary component replacement.

Please provide the part number, Universal AI machine model, axis position, quantity and clear photographs of the original amplifier nameplate and connectors. This allows the configuration and compatibility to be checked before quotation and shipment.

Looking for an Electro-Craft 48228001 / 9101-1748 servo amplifier for your Universal AI machine?

Send us your machine model, required quantity, original amplifier photos and nameplate information. We can help confirm the part configuration before quotation and provide availability, condition, lead-time and shipping information.

For urgent machine maintenance requirements, include the current machine fault description and installation position so the requested servo amplifier can be checked more efficiently.
