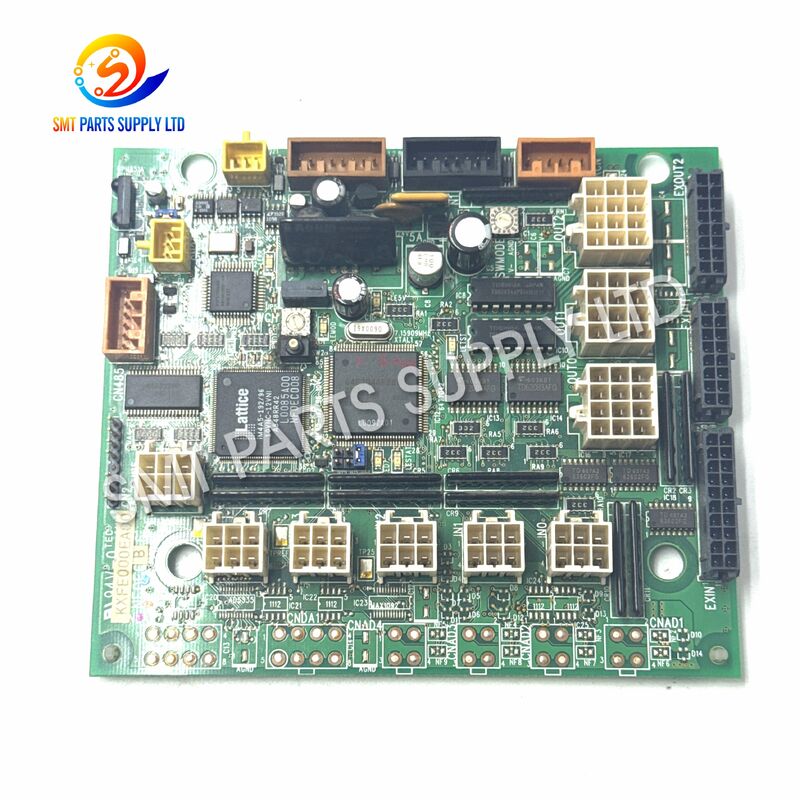

KXFE000EA00 Side IO Board for CM Series Pick and Place Machine

The KXFE000EA00 Side I/O Board is an electronic control board used in compatible CM Series SMT pick-and-place equipment. Its primary role is to provide an interface for input and output signals between the machine control system and connected electrical devices. During machine operation, multiple sensors, switches, solenoids, relays, and related control components depend on reliable I/O communication for coordinated operation.

For SMT factories and equipment maintenance companies, an abnormal I/O board may cause unstable machine signals, missing sensor feedback, output command failures, or repeated equipment alarms. Replacing a defective board with the correct KXFE000EA00 configuration can help restore the machine's electrical signal path without replacing unrelated mechanical assemblies.

The board is mainly supplied for maintenance, repair, refurbishment, and spare-parts inventory. Because CM Series machines may use different PCB revisions and connector configurations, customers should provide the existing board number and board photographs before ordering.

An SMT mounter operates through continuous communication between the central control system and many field devices. The I/O board forms part of this communication structure.

Long-term industrial operation can expose electronic boards to heat, dust, vibration, electrical load, and repeated power cycles.

When such problems occur, maintenance personnel should first confirm whether the fault originates from the board, wiring, connected sensor, actuator, power supply, or another control module.

Replacing the I/O board without fault diagnosis may not solve the original equipment problem.

The KXFE000EA00 Side I/O Board provides a replacement option for compatible CM Series machines when the installed board is confirmed defective or unstable.

Its replacement can be considered when troubleshooting indicates problems related to I/O signal processing or communication.

Typical maintenance objectives include:

• Restoring stable sensor input communication.
• Restoring output commands to connected machine devices.
• Replacing damaged or malfunctioning PCB assemblies.
• Reducing downtime caused by repeated electrical alarms.
• Maintaining spare boards for emergency machine repair.
• Supporting refurbishment of older SMT production equipment.
• Avoiding unnecessary replacement of complete machine assemblies.

For best results, the replacement board should be matched according to the part number, PCB marking, connector arrangement, machine model, and installed hardware configuration.

The part number should always be treated as the primary identification reference.

Before placing an order, we recommend confirming:

Do not select an SMT control board only according to machine appearance or machine series name.

The KXFE000EA00 board is mainly used in SMT production environments requiring maintenance or replacement of CM Series machine electronic components.

Suitable for electronics manufacturing facilities operating automated pick-and-place equipment.

A spare I/O board can help maintenance teams respond more quickly when an electronic control failure interrupts production.

Useful when troubleshooting confirms that the installed I/O PCB has developed an electrical or communication fault.

Replacing the correct board can restore the affected signal interface while retaining the remaining machine assemblies.

Factories operating older SMT equipment often maintain critical electronic boards in stock.

Keeping frequently required control boards available can reduce waiting time when an unexpected failure occurs.

The board can also be used by SMT equipment service companies when repairing or refurbishing compatible machines for continued production use.

For production lines where machine downtime directly affects delivery schedules, having a correctly matched spare PCB available can shorten maintenance response time.

The KXFE000EA00 functions as part of the machine's electrical control and I/O communication system.

During operation, a pick-and-place machine continuously receives information from field devices and sends commands to controlled components.

A simplified operating sequence is:

Step 1 — Input Signal

Sensors, switches, or other field devices detect the current machine condition.

Examples may include position status, presence detection, safety status, or operating-state feedback.

Step 2 — Signal Interface

The I/O board receives or transfers the related electrical signals through its connected circuits.

Step 3 — Control Processing

The machine control system evaluates the incoming information according to the equipment operating program.

Step 4 — Output Command

When a corresponding action is required, the control system sends an output command through the I/O interface.

Step 5 — Equipment Response

The connected actuator, relay, solenoid, or other electrical component performs the commanded action.

This process occurs repeatedly during automatic production.

Therefore, stable I/O communication is important for coordinated machine movement and supporting functions.

An I/O board should not automatically be replaced whenever a machine alarm occurs. However, the following symptoms may justify inspection of the I/O system:

Professional fault diagnosis is recommended before board replacement.

SMT machines often contain multiple control boards that appear visually similar.

Two PCBs may use similar connectors or mounting dimensions while having different internal circuits, firmware, functions, or machine applications.

For this reason, KXFE000EA00 should be matched by exact identification rather than appearance alone.

A correct purchasing inquiry should ideally include:

• Part number: KXFE000EA00
• Machine series
• Complete PCB label
• Front-side board photograph
• Rear-side board photograph
• Connector-area photograph
• Current machine alarm information
• Required quantity
• Required condition

Providing this information before shipment helps reduce compatibility errors.

Locate the identification label on the removed board.

The required part number should match KXFE000EA00.

If another number appears on the board, provide all markings for confirmation.

Provide the exact machine model and, when available, machine serial number or production version.

Machines within the same series may have different electrical configurations.

Check:

• Connector quantity
• Connector position
• PCB shape
• Mounting holes
• Printed board code
• Interface arrangement

Depending on maintenance budget and stock availability, different board conditions may be considered.

Actual availability should be confirmed when requesting a quotation.

Before installation, compare the received board against the removed board again.

Installation and electrical testing should be completed by qualified equipment maintenance personnel.

Orders are handled according to the requested part number rather than only the general machine description.

Single-piece purchasing is suitable for factories requiring replacement boards for machine repair.

Customers can provide board photographs and labels for compatibility comparison before order confirmation.

The board can be quoted together with other compatible SMT machine parts when customers are preparing a maintenance spare-parts package.

Electronic boards can be packed with anti-static protection and cushioning material to reduce transportation risk.

The KXFE000EA00 is used as an I/O interface board in compatible CM Series SMT equipment. It supports communication of input and output signals between the machine control system and connected sensors, switches, relays, actuators, or other electrical devices.

Providing only the machine model is not recommended. Please also send the existing board number, PCB markings, and clear photographs. Board configurations may vary between machine versions, so exact identification helps prevent purchasing an incompatible PCB.

No. Similar alarms can also result from faulty sensors, damaged cables, loose connectors, power issues, actuators, or other control boards. The machine should be diagnosed before replacement to confirm that KXFE000EA00 is the defective component.

Yes, a one-piece requirement can be quoted according to current inventory. Please provide the part number, machine information, required condition, quantity, and destination information so that availability and delivery options can be checked.

Please send KXFE000EA00, the exact machine model, quantity, required condition, and photographs of the existing PCB. If possible, include the complete board label and connector layout. This information allows faster product verification and quotation.

Looking for a KXFE000EA00 Side I/O Board for CM Series SMT equipment?

Send us your:

• Part number
• Machine model
• Existing board photos
• Required quantity
• Preferred condition
• Delivery country

We can check the available board configuration and prepare a quotation according to your maintenance requirement.

For urgent machine repairs, please include photographs of the original PCB label and connector area so the required board can be identified more efficiently.

Brand and machine names mentioned in this listing are used only for product identification and compatibility reference.
