Panasonic 108382500601 Duct for AVK AVKII AVK3 AI Machines

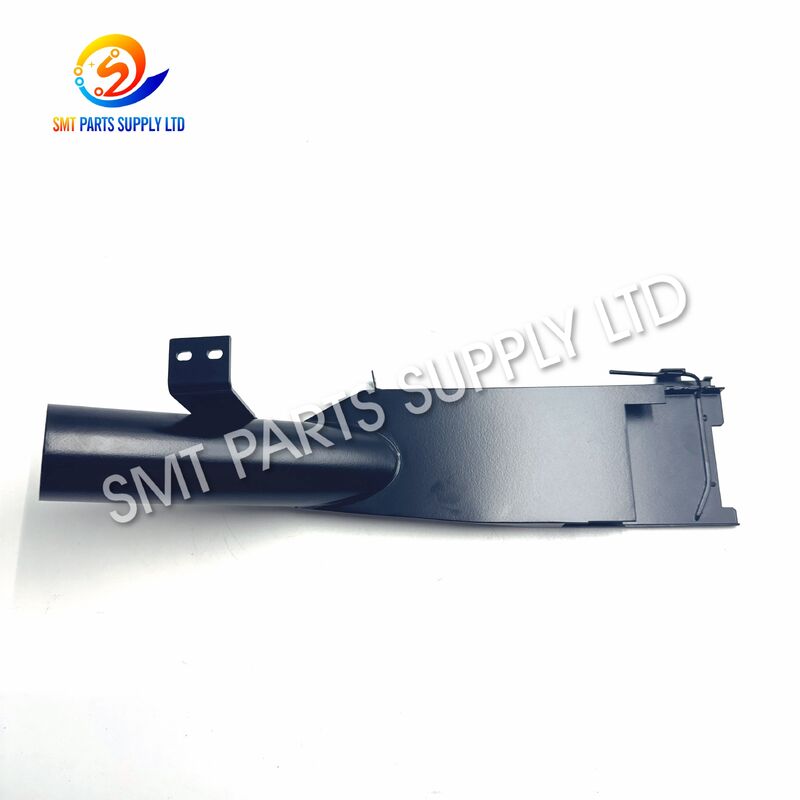

The Panasonic 108382500601 Duct is a dedicated mechanical spare part used in compatible AVK, AVKII and AVK3 AI automatic insertion machines. Installed within the corresponding machine section, the duct provides a defined internal passage and helps maintain the intended mechanical arrangement around nearby components.

During long-term operation, the original duct may become cracked, worn, contaminated, distorted or damaged during machine maintenance. A deformed duct may affect installation clearance or interfere with surrounding mechanical structures. Replacing it with the correctly identified 108382500601 Duct helps restore the original physical arrangement of the machine.

This product is suitable for electronics manufacturing plants, through-hole assembly lines, AI machine maintenance departments, used-equipment refurbishers and spare-parts distributors. To reduce purchasing errors, customers are encouraged to confirm the part number, machine model, installation position and existing component appearance before ordering.

Cause

Why Does the 108382500601 Duct Need Replacement?

Although a duct is not an electronic control device, its physical condition can affect the mechanical environment inside automatic insertion equipment.

Common replacement reasons include:

Long-Term Wear

Automatic insertion machines may run for extended production periods. Machine vibration, repeated maintenance and continuous use can gradually affect the physical condition of mechanical components.

When the duct shows obvious surface wear or structural deterioration, replacement can help maintain the intended installation condition.

Deformation

Incorrect maintenance, accidental pressure or improper disassembly may bend or distort the duct.

Even when the machine continues running, a visibly deformed component should be inspected because its clearance relative to surrounding parts may no longer match the original design.

Broken Mounting Areas

Mounting holes and fixing sections are especially important.

If these areas become cracked or broken, the component may not remain securely installed. Continued operation with a loose duct can create additional maintenance problems.

Solution

Replace the Damaged Component with the Correct 108382500601 Duct

The recommended solution is to identify the existing part accurately and replace it with the matching 108382500601 Duct.

For reliable purchasing, identification should not be based only on appearance.

Use the following information together:

1. Part Number: 108382500601
2. Machine Model: AVK / AVKII / AVK3
3. Installation Position
4. Existing Part Photograph
5. Mounting Structure
6. Required Quantity

Recommended Replacement Process

Using the correct part number helps maintenance teams reduce unnecessary machine downtime and avoid purchasing a similar-looking but incompatible component.

Specifications

Technical Identification

The 108382500601 Duct is a passive mechanical component. It does not function as a motor, sensor, servo driver, controller, valve or circuit board.

Its function depends primarily on:

• Correct physical shape
• Correct mounting position
• Stable fixing
• Suitable surrounding clearance
• Correct machine configuration

Exact dimensional or revision-dependent information should be checked against the existing machine component when required.

Same-Series Different Model Comparison

Important: Compatibility should not be assumed only because two machines belong to the same equipment family. Machine revision, production configuration and previous modifications may affect parts selection.

Application

The 108382500601 Duct can be used for multiple maintenance and spare-parts applications.

Automatic Insertion Machine Repair

When an existing duct is cracked, bent or damaged, the replacement part can be used during machine repair to restore the corresponding mechanical section.

Preventive Maintenance

Production plants operating AI machines can keep mechanical spare parts available before failure occurs.

This is particularly useful for older equipment where sourcing a replacement after an unexpected breakdown may increase downtime.

Used Machine Refurbishment

Used AVK-series machines often require inspection and replacement of aged mechanical components before being returned to production.

The duct can be replaced during equipment refurbishment when its physical condition no longer meets maintenance requirements.

Electronics Manufacturing

Typical users include:

How It Works

The 108382500601 Duct works through its mechanical structure and installation position.

It does not require electrical power or software control.

1. Fixed Installation

The duct is installed at a dedicated location within the machine.

Its mounting points hold it in the intended position relative to surrounding machine structures.

2. Internal Passage Formation

After installation, the component forms or maintains a defined internal passage.

This allows the machine section to retain the designed mechanical arrangement during operation.

3. Maintaining Clearance

Correct shape and positioning help preserve clearance between the duct and nearby moving or fixed components.

If the duct becomes bent or damaged, this clearance may change.

4. Passive Operation

During production, the duct normally remains fixed while other mechanisms perform feeding, positioning and insertion functions.

Because it is passive, routine inspection focuses mainly on physical condition rather than electrical performance.

5. Maintenance Inspection

Technicians should check:

• Cracks
• Distortion
• Mounting security
• Surface damage
• Contamination
• Broken fixing areas
• Abnormal contact with nearby components

How To Choose

1. Confirm Part Number First

The primary identification number is:

108382500601

A similar-looking component with a different part number may have different dimensions or mounting locations.

2. Check the Machine Model

Confirm whether the machine is an applicable:

• AVK
• AVKII
• AVK3

If the machine has been modified or refurbished, additional verification is recommended.

3. Compare the Existing Component

Check:

4. Provide Photographs

For faster confirmation, customers can provide:

• Full component photo
• Front view
• Back view
• Side view
• Mounting area
• Installation position
• Visible part-number marking

5. Confirm Required Condition

Specify the required product condition when requesting a quotation.

Availability can then be checked according to the purchasing requirement.

6. Consider Spare Quantity

Factories operating several automatic insertion machines may consider ordering additional spare units for preventive maintenance.

Keeping important replacement parts in inventory can shorten repair lead time when equipment requires servicing.

Selection Checklist

FAQ

Q1. What machines is the 108382500601 Duct used for?

The 108382500601 Duct is intended for compatible AVK, AVKII and AVK3 automatic insertion machine applications. Because individual machine configurations can differ, the part number and existing component should be checked before ordering.

Q2. What is the main function of this duct?

It is a mechanical component that creates or maintains a defined internal passage within the corresponding machine assembly. Correct installation helps preserve the intended mechanical position and clearance around nearby parts.

Q3. How do I confirm compatibility before purchasing?

Provide part number 108382500601, complete machine model, quantity and clear photographs of the existing component and installation position. Mounting holes and overall component structure can then be compared before shipment.

Q4. When should the existing duct be replaced?

Replacement should be considered when the duct shows cracking, deformation, damaged fixing points, excessive contamination, severe wear or abnormal contact with surrounding machine components.

Q5. Is this an electrical part?

No. The 108382500601 Duct is primarily a mechanical spare part and does not perform servo control, sensing or electronic control functions.

Contact Us

Looking for Panasonic 108382500601 Duct for AVK-series automatic insertion equipment?

Please provide:

• Part Number: 108382500601
• Machine Model
• Required Quantity
• Product Condition Requirement
• Existing Part Photograph
• Destination Country

Contact us for stock availability, quotation, compatibility checking, packing information and delivery details.
