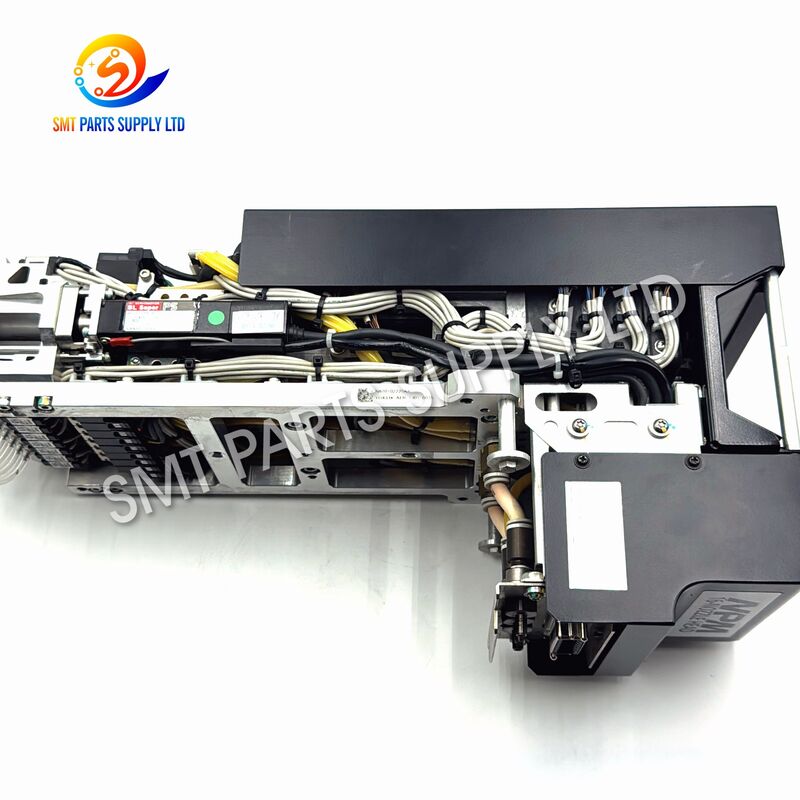

Panasonic N610157776AA N610102220AA N610096433AA 16-Nozzle Head Unit for NPM Machines

Panasonic N610157776AA N610102220AA N610096433AA 16-Nozzle Head Unit for NPM Machines

The Panasonic N610157776AA N610102220AA N610096433AA 16-Nozzle Head Unit is a precision placement-head assembly developed for compatible NPM pick-and-place machines used in automated SMT production. Featuring a sixteen-nozzle configuration, the unit supports repeated component pickup, transfer, positioning and placement during high-volume PCB assembly. It is particularly suitable for maintenance departments, electronics manufacturers, EMS factories, machine service companies and SMT spare-parts distributors requiring a replacement placement head or critical spare assembly. Because placement-head revisions and machine configurations may vary, customers are advised to confirm the original installed part number, machine model and head appearance before ordering. Providing clear label and connector photos can further improve compatibility verification. This product is intended to help maintenance teams shorten repair time, organize critical spare inventory and restore stable machine operation when an existing head unit becomes worn, damaged or unsuitable for continued production.

The placement head is one of the most frequently operating assemblies inside an SMT pick-and-place machine. During normal production, it continuously performs pickup, movement, positioning, rotation and placement cycles.

Long-term use, accidental collision, contamination or mechanical wear may gradually affect the operating condition of the head unit.

High-volume SMT production requires the placement head to operate for extended periods.

Repeated acceleration, deceleration and nozzle movement can gradually increase mechanical wear. As operating hours accumulate, maintenance requirements may become more frequent.

Typical warning signs can include:

• Increasing pickup errors
• Irregular nozzle movement
• Placement instability
• Unusual mechanical noise
• Increased vibration
• Frequent machine alarms
• Repeated production interruptions

These symptoms should first be diagnosed by qualified maintenance personnel because not every placement problem requires complete head replacement.

A stable pickup cycle depends on several systems working together, including the nozzle, vacuum circuit, component feeder and head mechanism.

If the machine frequently experiences:

• Missing components
• Component drops
• Repeated pickup failures
• Vacuum-related abnormalities
• Inconsistent component handling

the placement head should be included in the troubleshooting process.

Replacing a confirmed defective head assembly may be more practical than repeatedly repairing individual internal components.

Placement heads operate close to:

• Feeders
• Components
• PCBs
• Fixtures
• Conveyors
• Machine tooling

Incorrect production settings, damaged components, abnormal board height, incorrect nozzle installation or unexpected interference can potentially cause a collision.

A serious collision may affect the mechanical alignment or operating condition of the head assembly.

SMT production environments may contain:

• Fine dust
• Component debris
• Adhesive residue
• Solder-related contamination
• Oil or grease contamination
• Foreign particles

If contamination reaches sensitive moving areas, operating consistency can be affected.

Regular preventive maintenance and proper cleaning help reduce this risk.

When an older placement head requires frequent service, repeated downtime may become more expensive than installing a replacement assembly.

Factories operating high-volume production lines often evaluate the total cost of:

A verified spare head can therefore become an important part of a factory's maintenance strategy.

The N610157776AA / N610102220AA / N610096433AA 16-Nozzle Head Unit provides a practical solution when a compatible NPM machine requires placement-head maintenance or replacement.

Instead of waiting for lengthy repair work on the removed assembly, maintenance teams may install a verified replacement head and service the removed unit separately.

A pick-and-place machine is normally connected to multiple upstream and downstream processes.

A typical SMT line may contain:

PCB Loader → Solder Paste Printer → SPI → Pick-and-Place Machine → Reflow Oven → AOI → Unloader

When the placement machine stops, the entire line may lose productivity.

Maintaining critical replacement assemblies can help production departments reduce the time required to return a machine to service.

Factories operating several NPM machines can improve spare-part management by recording:

• Machine model
• Machine serial number
• Head type
• Head part number
• Installation date
• Maintenance history
• Replacement history
• Spare stock quantity

This approach can make future procurement faster and reduce the possibility of ordering the wrong head revision.

For faster quotation and compatibility checking, customers are recommended to provide the following information.

The three references below belong to the product information supplied for the 16-nozzle head application. Exact interchangeability should not be assumed without confirming the individual machine configuration.

Machine parts can be updated during different manufacturing periods.

Potential differences may involve:

• Production revision
• Machine generation
• Connector arrangement
• Sensor configuration
• Mechanical interface
• Cable position
• Control configuration
• Factory modification history

For this reason, buyers should use the original installed part number as the primary purchasing reference whenever possible.

The 16-Nozzle Head Unit is designed for placement operations within compatible SMT pick-and-place equipment.

It can support production environments manufacturing:

• Consumer electronics
• Communication equipment
• Industrial electronics
• Control boards
• Computer-related electronics
• Power-management products
• Smart-device assemblies
• General PCB assemblies

Electronics Manufacturing Services factories often operate multiple customer programs on the same production equipment.

Machine availability is important because unexpected downtime can affect:

• Delivery schedules
• Production capacity
• Customer commitments
• Changeover planning
• Equipment utilization

Keeping a verified placement head in spare inventory can provide maintenance departments with greater flexibility when a head-related failure occurs.

Modern automotive electronics manufacturing requires dependable SMT equipment operation.

Typical PCB applications may include:

• Vehicle control electronics
• Lighting control modules
• Sensor-related boards
• Infotainment electronics
• Power-management assemblies
• Charging-related electronic boards

A replacement placement head can support maintenance programs in factories serving these production sectors.

Industrial electronics manufacturers commonly produce:

• PLC control boards
• Motion-control electronics
• Industrial sensor boards
• Power modules
• Automation controllers
• Machine-interface electronics

Stable pick-and-place equipment operation helps support consistent production schedules.

Service organizations can use the head unit for:

• Equipment repair
• Machine refurbishment
• Emergency maintenance
• Replacement projects
• Customer spare-part supply
• Preventive maintenance planning

Distributors serving electronics factories may keep frequently requested placement-machine assemblies in regional inventory.

Providing the exact part number during an inquiry helps simplify cross-border procurement and reduces unnecessary confirmation time.

The machine receives programmed PCB assembly information that defines:

• Component type
• Feeder position
• PCB coordinate
• Placement orientation
• Placement sequence
• Component rotation

The placement head operates according to these programmed instructions.

The machine positions the head above the correct component supply location.

The sixteen-nozzle configuration allows multiple nozzle positions to participate in efficient component handling according to machine programming and setup.

The selected nozzle contacts the electronic component.

Vacuum is used to secure the component during pickup and movement.

Stable pickup performance also depends on other systems, including:

After pickup, the head transports the component from the feeder area toward the PCB.

The movement is coordinated with the machine's programmed placement sequence.

The component is prepared for placement at the specified PCB position and orientation.

Accurate positioning is important for stable SMT production.

The nozzle places the component onto the programmed PCB location and releases it.

The machine then continues to the next programmed placement operation.

High-volume production requires this cycle to repeat continuously.

A placement-head issue can therefore influence:

• Pickup performance
• Placement consistency
• Production throughput
• Machine availability
• Maintenance frequency

This is why placement-head condition is an important part of SMT equipment maintenance.

A complete diagnostic inspection should be performed before replacing the head, because similar symptoms may also originate from other machine components.

The fastest method of selecting a suitable head is to check the identification label on the currently installed unit.

Relevant references supplied for this product include:

N610157776AA

N610102220AA

N610096433AA

Do not purchase only according to appearance when the original identification is available.

“NPM” describes a machine family rather than one universal configuration.

Please provide the complete machine model during inquiry.

This can help reduce compatibility uncertainty.

Recommended photo angles include:

• Product label
• Front side
• Rear side
• Left side
• Right side
• Connector section
• Mounting section

Clear images are especially useful when the original assembly has been replaced previously.

Connector type and location should be checked carefully.

A visually similar head assembly may still use a different connection arrangement.

Before installation, compare:

• Mounting points
• Head shape
• Nozzle positions
• Cable locations
• Mechanical interfaces
• Sensor positions where applicable

Any major difference should be verified before the machine is powered.

Related part numbers may represent different revisions or manufacturing periods.

The existence of several numbers within one head family does not guarantee universal interchangeability.

For the safest purchasing process, use:

Original Part Number + Machine Model + Product Photo + Connector Photo

When requesting a quotation, clearly state the required condition.

Depending on current supply, customers may request information about:

• New units
• Used working units
• Refurbished units
• Other available condition options

Availability should be confirmed at the time of inquiry.

Factories with high machine utilization may consider maintaining at least one verified replacement head where production risk justifies it.

The value of a critical spare is especially noticeable when:

• Production operates multiple shifts
• Downtime is expensive
• Replacement lead time is long
• Several compatible machines are installed
• Customer delivery schedules are strict

Keep the placement-head area free from excessive dust and production debris.

Prevent foreign particles from accumulating around moving mechanisms.

A damaged or contaminated nozzle can cause pickup abnormalities similar to head-related problems.

Always inspect the nozzle before diagnosing the complete head as defective.

Vacuum performance should be checked when component pickup becomes unstable.

Inspect:

• Vacuum hoses
• Connections
• Pneumatic components
• Nozzles
• Related seals

Placement heads are precision machine assemblies.

Avoid:

• Dropping the unit
• Applying unnecessary force
• Pulling cables
• Impacting nozzle areas
• Unprotected transportation

When storing a spare head, protect it from:

• Dust
• Moisture
• Mechanical shock
• Excessive vibration
• Direct impact

Proper storage helps keep spare assemblies ready for future maintenance requirements.

Using all three references in an inquiry makes communication easier:

N610157776AA / N610102220AA / N610096433AA

This product is suitable for buyers looking for:

• Replacement head assemblies
• Emergency repair parts
• Factory spare inventory
• Equipment refurbishment parts
• SMT maintenance components

Providing machine and part-number information allows the requirement to be reviewed before quotation.

This is particularly useful for overseas buyers who want to reduce the risk of purchasing an incorrect machine part.

Customers can inquire according to actual maintenance requirements, including individual replacement units and planned spare inventory.

It is a placement-head assembly for compatible NPM pick-and-place machines. The unit supports automated electronic-component pickup, transfer, positioning and placement during SMT PCB assembly and is commonly required for machine maintenance, head replacement and critical spare inventory.

They are related references supplied for the 16-nozzle head application, but exact interchangeability should be confirmed according to the installed machine model, original head identification, revision, connectors and mechanical configuration. Please provide photos and equipment information before ordering.

Please provide the complete machine model, original head part number, clear label photo, connector photo and overall head photos. These details allow a more accurate comparison before quotation and can significantly reduce the risk of selecting an incorrect revision.

Replacement may be considered after confirmed mechanical damage, repeated pickup or placement problems, collision damage, excessive wear or frequent maintenance that makes continued repair inefficient. The machine should first be professionally diagnosed to exclude nozzle, vacuum, feeder or calibration problems.

Please send the required part number, NPM machine model, quantity, preferred product condition, delivery country and existing head photos when available. If the requirement is urgent, include your target delivery time so the inquiry can be handled more efficiently.

Need a Panasonic N610157776AA N610102220AA N610096433AA 16-Nozzle Head Unit for compatible NPM SMT equipment?

Please send us:

• Required part number
• Machine model
• Quantity
• Required product condition
• Existing head photos
• Connector photos
• Delivery country
• Required delivery schedule

We can assist with part-number checking, product availability, quotation and shipping information according to your maintenance or spare-parts requirement.

Contact us today for price, stock status and compatibility confirmation.
