SMT Machine Parts

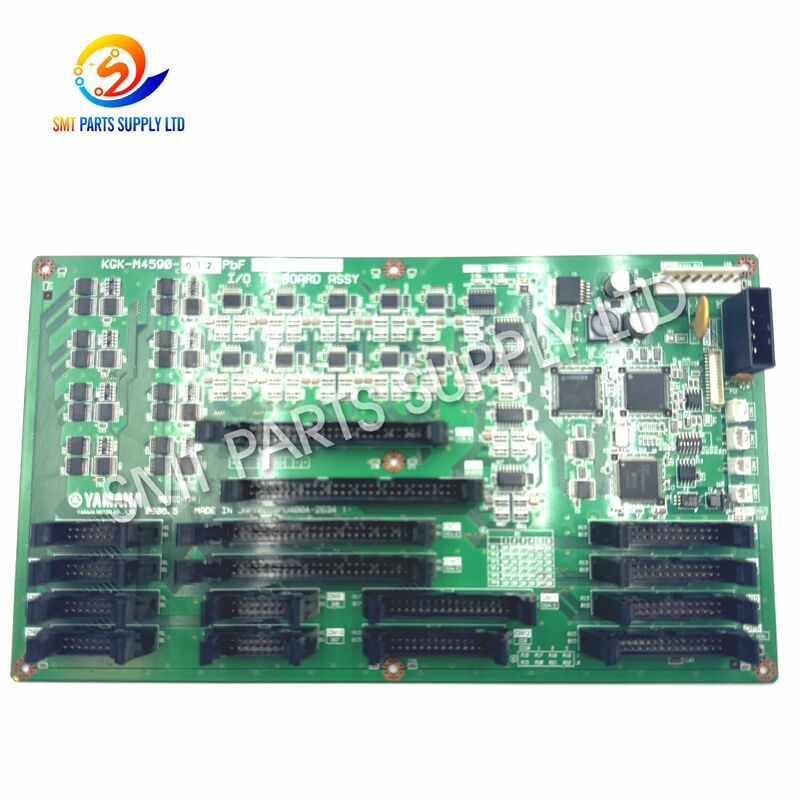

Created with Pixso. Yamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT Machines

Yamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT Machines

Brand Name: Yamaha
Model Number: KGK-M4590-012
Detail Information
Place of Origin:
CHINA&JAPEN
Product Name:
I/O TF SMT Control Board
Brand Reference:
Yamaha
Main Model:
KGK-M4590-012
Reference Number:
1072125
Board Marking:
I/O TF
Product Category:
SMT Machine Parts
Component Category:
Electronic Control Board
Board Type:
Input And Output Control Board
Primary Function:
Tray-system Signal Input And Output Coordination
Application:
IC Tray Feeding And Machine Control Interface
Applicable Machine:
YS12F
Additional Applicable Machine:
YG12F
Machine Type:
SMT Pick-and-Place Machine
Production Process:
Surface-Mount Technology Assembly
Installation Area:
Machine Electrical Or Tray-control Section
Signal Function:
Input Monitoring And Output Control
Highlight:

Yamaha KGK-M4590-012 I/O control board

,

YS12F YG12F SMT control board

,

SMT machine I/O TF board

Product Description
Yamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F
Yamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT MachinesYamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT MachinesYamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT Machines

The Yamaha KGK-M4590-012, also identified by reference number 1072125, is an I/O TF control board intended for compatible Yamaha YS12F and YG12F surface-mount placement equipment. The board is associated with the machine’s tray-feeding control system and provides an electrical interface between the central control system, sensors, switches, relays, solenoid valves, motors, and other tray-related operating devices.

In an automated SMT production environment, the tray-feeding system must accurately detect tray positions, confirm mechanical movement, receive operating commands, and return status signals to the machine controller. The KGK-M4590-012 board helps coordinate these input and output signals so that the tray unit can operate according to the machine program and safety sequence.

The Yamaha YS12F was developed as a compact flexible mounter capable of supporting different component supply formats, including multilevel automatic tray supply. Yamaha’s official product information describes the YS12F as supporting a 15-level automatic pallet-changing tray supply device, making tray-related control components important for maintaining machine flexibility.

This control board is suitable for maintenance, troubleshooting, refurbishment, and replacement projects involving compatible YS12F or YG12F machines. Because control-board versions may vary according to production year, tray configuration, software version, connector arrangement, and machine specification, buyers should verify the complete part number and physical board layout before ordering.


Key Product Identification
Identification Item Product Information
Brand Reference Yamaha
Main Part Number KGK-M4590-012
Reference Number 1072125
Board Designation I/O TF
Product Type SMT Input/Output Control Board
Primary Application IC Tray Feeding System
Compatible Equipment YS12F, YG12F
Installation Position Machine electrical or tray control section
Product Category SMT Machine Parts
Recommended Verification Part number, revision, connectors, board layout and machine serial number

Cause
Why an I/O TF Control Board May Require Replacement

An SMT control board operates continuously while the placement machine is running. It receives low-voltage input signals, processes control instructions, and switches output devices according to the machine sequence. Over time, electrical stress, contamination, vibration, aging components, unstable power, incorrect maintenance, or external device failure may affect board performance.

A damaged or unstable I/O TF board may cause intermittent tray operation, incorrect sensor recognition, failed actuator output, or communication-related alarms. However, similar symptoms can also result from damaged cables, defective sensors, faulty solenoid valves, poor grounding, mechanical obstruction, or incorrect machine parameters. Proper troubleshooting is therefore necessary before replacing the board.

Common Causes of Board Failure
Possible Cause Typical Effect on the System
Aging electronic components Intermittent operation or unstable output
Voltage surge Damaged protection circuits or output channels
Shorted external device Overloaded output circuit
Conductive dust or contamination Signal leakage or short circuit
Moisture exposure Corrosion around components and connectors
Loose connector Intermittent input or output signal
Incorrect board installation Communication or startup error
Mechanical vibration Cracked solder joints or connector movement
Poor grounding Electrical noise and unstable sensor signals
Defective sensor or solenoid Repeated alarms that may appear board-related
Incorrect board revision Incompatible function or connector assignment
Improper repair Unreliable operation after installation
Typical Machine Symptoms

The following symptoms may indicate a problem in the tray-feeder control circuit:

Machine Symptom Possible Inspection Direction
IC tray unit does not initialize Check board power, communication and safety inputs
Tray movement does not start Check output command, relay, motor and interlock
Sensor status remains unchanged Check sensor, wiring, connector and input channel
Tray position alarm appears Inspect position sensors and mechanical alignment
Solenoid valve does not activate Check output voltage and valve coil condition
Machine stops during tray exchange Inspect sequence signals and mechanical resistance
Repeated input/output alarm Check board channel and external connected device
Intermittent failure after warm-up Inspect aging components and solder connections
Board indicator behaves abnormally Compare with machine manual and known working board
Replacement board cannot start Confirm revision, parameter and connector compatibility

A board should not be replaced solely because one tray movement fails. A complete diagnostic process can prevent unnecessary replacement and reduce production downtime.


Solution

The KGK-M4590-012 1072125 I/O TF control board provides a practical replacement option when the original board has been confirmed defective or cannot maintain stable tray-control operation. Installing a correctly matched board can restore the electrical interface required for tray sensor monitoring, command transmission, status feedback, and output-device control.

Recommended Troubleshooting Process
Step Inspection Procedure Purpose
1 Record the machine alarm code Identify the affected function
2 Confirm machine model and serial number Determine equipment configuration
3 Read the original board label Verify KGK-M4590-012 and 1072125
4 Check all power inputs Exclude unstable or missing supply voltage
5 Inspect fuses and protection devices Find overload or short-circuit conditions
6 Check tray sensors Confirm correct input signal switching
7 Inspect solenoids and actuators Exclude external output-device failure
8 Check cables and connectors Find loose, damaged or oxidized contacts
9 Compare board indicators Evaluate input, output and communication status
10 Test with a compatible board Confirm whether the original board is defective
11 Install the replacement board Restore the control circuit
12 Perform initialization and trial operation Confirm stable machine performance
Replacement Benefits

A correctly selected replacement control board may help customers:

  • Restore the tray-feeding control circuit.
  • Reduce unexpected production interruptions.
  • Recover sensor and actuator signal coordination.
  • Support preventive maintenance and equipment refurbishment.
  • Avoid replacing an entire tray-feeding assembly.
  • Extend the working life of existing SMT placement equipment.
  • Maintain spare-board inventory for critical production lines.
  • Reduce troubleshooting time when a verified board failure occurs.
  • Improve maintenance response for older machine platforms.
  • Support emergency repair when the original board is unavailable.
Important Installation Conditions

Before installation, the engineer should confirm that:

  1. The machine has been fully powered off.
  2. Residual electrical energy has been discharged.
  3. Proper ESD protection is being used.
  4. All connectors are identified before removal.
  5. The original board part number matches the replacement.
  6. The board revision and connector positions are compatible.
  7. External sensors and actuators are not short-circuited.
  8. No mechanical obstruction exists in the tray mechanism.
  9. Machine parameters are backed up when applicable.
  10. Installation is performed by trained maintenance personnel.

Replacing a control board without correcting a shorted external load may damage the replacement board. The connected circuit should therefore be inspected before power is restored.


Specifications
Basic Specifications
Parameter Specification
Product Name I/O TF SMT Control Board
Brand Reference Yamaha
Primary Part Number KGK-M4590-012
Additional Reference 1072125
Board Function Input and output signal control
Application Section IC tray feeding system
Compatible Machine Series YS12F, YG12F
Product Form Printed circuit board assembly
Installation Type Internal machine-mounted component
Signal Type Digital input and output control
Connected Devices Sensors, switches, relays, valves and actuators
Communication Function Machine and tray-system signal coordination
Condition Options New, original used, repaired or exchange supply subject to quotation
Testing Functional inspection according to available test conditions
Packaging ESD-protective and shock-resistant packaging
Shipping International express, air shipment or customer-designated method
Warranty Subject to product condition and sales agreement
Country of Application Global SMT maintenance market
Compatibility Specifications
Compatibility Item Verification Requirement
Machine Model Confirm YS12F or YG12F
Main Part Number Must match KGK-M4590-012
Reference Number Confirm 1072125 where shown
Board Marking Confirm I/O TF designation
Connector Quantity Compare with the original board
Connector Position Must match the installed wiring harness
Board Dimensions Compare using clear photographs
PCB Revision Confirm all revision markings
Firmware or Logic Version Check when required by machine configuration
Tray System Confirm the installed IC tray unit type
Machine Serial Number Recommended for final verification
Original Board Photo Strongly recommended before quotation
Electrical and Functional Characteristics

The exact electrical ratings should be confirmed from the original machine documentation and board label. The board should be treated as a machine-specific industrial electronic assembly rather than a universal programmable controller.

Functional Area General Description
Input Monitoring Receives status signals from sensors and switches
Output Control Sends commands to relays, valves or actuators
Tray Position Feedback Supports detection of tray or mechanism position
Sequence Coordination Helps execute tray-system operating steps
Interlock Processing Supports machine safety and condition confirmation
Status Transmission Returns operating status to the machine controller
Error Recognition Helps the system identify abnormal input or output conditions
Electrical Isolation May separate control signals according to board design
Connector Interface Connects the board to machine wiring harnesses
Indicator Support Board LEDs may assist maintenance diagnostics

No electrical voltage, current, channel quantity, or connector assignment should be assumed without checking the applicable machine service documentation.


Application
Primary Equipment Application

The KGK-M4590-012 1072125 board is intended for compatible Yamaha SMT placement equipment, including:

Machine Model Application Description
YS12F Flexible SMT placement machine with tray-feeding capability
YG12F SMT placement platform using compatible tray-control configuration
IC Tray Unit Tray-based electronic component supply system
Tray Feeder Section Sensor, actuator and sequence control interface
SMT Production Line PCB assembly and electronic component placement
Maintenance Department Machine troubleshooting and spare-part replacement
Equipment Refurbishment Restoration of used SMT machines
Spare Parts Inventory Emergency board backup for production lines

Yamaha’s official YS12F release describes the machine as a compact flexible surface mounter designed to handle multiple component supply formats. It also identifies an automatic 15-level tray supply device as part of the machine’s flexible component-handling capability.

Applicable Manufacturing Industries

This board may be used in SMT production facilities manufacturing:

  • Consumer electronic products.
  • Automotive electronic assemblies.
  • Industrial control equipment.
  • Communication devices.
  • LED control products.
  • Power-supply assemblies.
  • Medical electronic equipment.
  • Security and monitoring devices.
  • Smart-home products.
  • Computer peripheral products.
  • Electronic modules.
  • Small-batch and mixed-model PCB assemblies.
  • High-mix electronics manufacturing services.
  • Prototype and engineering production.
  • Replacement electronic control modules.
Typical Usage Scenarios
1. Emergency Machine Repair

When a production machine stops because of a confirmed tray-control board failure, a compatible KGK-M4590-012 board can be installed to reduce downtime and restore production.

2. Preventive Spare-Part Storage

Factories operating multiple YS12F or YG12F machines may keep one tested board in stock. This allows maintenance teams to respond quickly without waiting for international procurement.

3. Used Equipment Refurbishment

A used machine may contain aged, contaminated, repaired, or unstable electronic boards. Replacing the affected I/O TF board can be part of a complete equipment refurbishment program.

4. Tray-System Troubleshooting

Maintenance engineers may use a known working board for comparison testing. This can help distinguish board failure from sensor, wiring, motor, valve, or mechanical problems.

5. Production-Line Relocation

During machine relocation, connectors, boards, or cables may be damaged by incorrect handling. A matched replacement board can support recommissioning after installation at the new factory.

6. Long-Term Equipment Support

Older placement equipment may remain productive for many years when critical electrical and mechanical parts are available. Maintaining spare electronic boards can help extend machine service life.


How It Works

The KGK-M4590-012 functions as an input/output interface within the SMT machine’s tray-control system. It does not independently place components or physically move trays. Instead, it helps transfer commands and status information between the machine controller and the tray-related field devices.

Simplified Operating Sequence
Sequence Board Operation
1. Machine Start Board receives power and control-system initialization
2. Status Check Inputs from sensors and interlocks are monitored
3. Operation Command Machine controller requests tray movement
4. Output Activation Board activates the required relay, valve or actuator circuit
5. Mechanical Movement Tray mechanism moves according to the command
6. Position Detection Sensors confirm the new mechanism position
7. Input Feedback Board transmits status back to the machine controller
8. Sequence Confirmation Controller approves the next operation
9. Component Supply Required tray position becomes available for pickup
10. Error Handling Abnormal or missing feedback generates a stop or alarm
Input Signal Function

Input channels generally receive electrical signals from field devices such as:

  • Tray-presence sensors.
  • Position sensors.
  • Limit switches.
  • Door or cover interlocks.
  • Cylinder-position sensors.
  • Motor-ready signals.
  • Safety-condition contacts.
  • Mechanical home-position sensors.
  • Tray-level confirmation sensors.
  • External control modules.

When a sensor changes state, the corresponding board input communicates the change to the machine control system.

Output Signal Function

Output channels may control or command:

  • Pneumatic solenoid valves.
  • Electromagnetic relays.
  • Indicator lamps.
  • Motor-control circuits.
  • Locking mechanisms.
  • Tray lifting devices.
  • Tray transfer devices.
  • Alarm indicators.
  • Auxiliary control modules.
  • Other machine-specific actuators.

The output signal should be considered a control command. Actual movement depends on the connected device, power circuit, pneumatic supply, cable condition, and mechanical condition.

Interlock Function

Tray systems use interlocks to prevent incorrect movement. For example, a tray-lifting command may only be allowed after a door is closed, a previous movement is complete, and the mechanism is in a safe position.

The board supports this process by receiving the required condition signals and transmitting output commands according to the controller’s sequence. When expected feedback is missing, the machine may stop and display an alarm to protect the equipment and components.

Communication and Feedback

The board forms part of a larger control network. Its performance depends on:

Related System Effect on Board Operation
Main machine controller Provides sequence commands
Power supply Provides stable operating voltage
Sensors Supply input status
Actuators Respond to output commands
Wiring harness Transfers electrical signals
Connectors Maintain electrical contact
Machine software Defines operating sequence
Tray mechanism Performs physical movement
Pneumatic system Powers cylinders and valves
Safety system Controls interlocks and emergency conditions

A failure in any related system may produce symptoms similar to board failure. Complete system inspection is recommended.


Yamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT MachinesYamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT MachinesYamaha KGK-M4590-012 1072125 I/O TF Control Board for YS12F YG12F SMT Machines
Main Product Advantages
Advantage Customer Benefit
Part-specific identification Easier matching with the original board
YS12F and YG12F application Suitable for targeted SMT maintenance
Tray-system control function Supports IC tray feeding operations
Input/output coordination Connects sensors and controlled devices
Replacement availability Helps reduce extended machine downtime
Multiple condition options Supports different maintenance budgets
Pre-shipment inspection Reduces the risk of receiving visibly damaged parts
ESD-safe packaging Protects electronic components during handling
Global shipping support Suitable for international SMT factories
Technical matching assistance Helps confirm board and machine compatibility
Photo verification Allows comparison before shipment
Spare-parts support Useful for long-term machine maintenance

Quality Inspection

Before shipment, available boards may be checked according to product condition and testing capability.

Suggested Inspection Items
Inspection Item Inspection Content
Part Number Confirm KGK-M4590-012
Reference Label Confirm 1072125 where applicable
Board Designation Verify I/O TF marking
PCB Condition Inspect cracks, burns and deformation
Connector Condition Check broken, bent or oxidized terminals
Component Condition Inspect missing or visibly damaged components
Repair History Identify obvious rework where possible
Contamination Check oil, dust and corrosion
Mounting Points Confirm holes and brackets are undamaged
Static Protection Pack using ESD-protective material
Functional Status Test according to available equipment
Photo Record Provide actual product images when requested
Available Product Conditions
Condition Description
New Unused part subject to availability
Original Used Removed from equipment and inspected
Tested Used Used board with available functional testing
Repaired Board repaired by technicians and inspected
Exchange Supplied against return of the defective board
Refurbished Cleaned, inspected and restored where applicable

The exact condition should be confirmed in the quotation. Buyers should not assume that all available units are new.


How To Choose

Correct selection is essential because boards with similar appearance may have different circuits, connector assignments, revisions, or machine applications.

Required Information Before Ordering

Please provide the following:

  1. Machine brand.
  2. Complete machine model.
  3. Machine serial number.
  4. Original board part number.
  5. All revision numbers.
  6. Front-side board photograph.
  7. Back-side board photograph.
  8. Close-up photograph of the label.
  9. Connector-side photograph.
  10. Current machine alarm code.
  11. Description of the fault.
  12. Tray-system configuration.
  13. Required product condition.
  14. Delivery country.
  15. Required quantity.
Compatibility Checklist
Verification Point Buyer Confirmation
Is the machine YS12F or YG12F? Required
Does the original label show KGK-M4590-012? Required
Is reference number 1072125 present? Recommended
Does the board show I/O TF? Required
Are all connectors identical? Required
Are the connector positions identical? Required
Is the PCB outline identical? Required
Are mounting holes identical? Required
Is the board revision identical? Strongly recommended
Is the IC tray configuration the same? Required
Has the external load been checked? Required before installation
Is the replacement condition acceptable? Required
Part Number Matching

The primary identifier should be KGK-M4590-012. The additional number 1072125 should also be compared when it appears on the original board or machine parts records.

Do not select the board only by machine model. A single machine series may use different board revisions according to manufacturing date, regional specification, optional tray equipment, or engineering modification.

Photograph Matching

Clear photographs are particularly useful for checking:

  • Connector quantity.
  • Connector color.
  • Connector keying.
  • Relay arrangement.
  • Fuse position.
  • LED position.
  • Component layout.
  • PCB shape.
  • Mounting holes.
  • Label information.
  • Revision markings.
  • Previous repair traces.

For the most reliable selection, the replacement board should visually match the original board and carry the same main part number.

Choosing Product Condition
Customer Requirement Recommended Condition
New production line New or tested high-quality board
Emergency repair Tested used or available replacement
Limited maintenance budget Inspected original used board
Long-term spare inventory Tested board with protective storage
Existing defective board available Exchange or repair service
Need immediate shipment Available tested stock
Need lowest risk Confirmed matching board with test report
Before Confirming the Order

The customer should request confirmation of:

  • Actual product photographs.
  • Product condition.
  • Testing status.
  • Warranty terms.
  • Delivery time.
  • Packing method.
  • Shipping cost.
  • Return conditions.
  • Technical matching result.
  • Commercial invoice description.

Installation Guidance
Safety Preparation

Only qualified technicians should install the board. The machine must be disconnected from electrical power before the electrical cabinet or tray-control section is opened.

Recommended preparation includes:

  • Switch off the machine normally.
  • Turn off the main electrical disconnect.
  • Wait for stored energy to discharge.
  • Follow factory lockout procedures.
  • Wear an ESD wrist strap.
  • Use an ESD-safe work surface.
  • Photograph all cable positions.
  • Label connectors before removal.
  • Avoid touching component pins.
  • Keep screws and brackets organized.
Replacement Procedure
Step Procedure
1 Back up machine data where applicable
2 Record the alarm and current machine status
3 Shut down and isolate electrical power
4 Open the appropriate electrical section
5 Photograph the installed board and wiring
6 Label every connector
7 Disconnect connectors without pulling the wires
8 Remove mounting screws and supports
9 Inspect connected cables and external devices
10 Compare the old and replacement boards
11 Install the replacement without bending the PCB
12 Reconnect all cables in the original positions
13 Check for loose tools or foreign objects
14 Restore covers and safety devices
15 Power on the machine
16 Check board indicators and alarms
17 Perform tray initialization
18 Test the machine at low speed
19 Run an empty tray-cycle test
20 Confirm stable production operation
Post-Installation Test

After installation, check:

  • Machine startup is normal.
  • No new alarm appears.
  • Tray unit initializes correctly.
  • Sensors change status correctly.
  • Outputs activate correctly.
  • Tray movement is smooth.
  • Home-position detection is stable.
  • Interlocks operate correctly.
  • Component supply sequence is normal.
  • Board temperature is not abnormal.
  • Connectors remain firmly installed.
  • Repeated cycle operation is stable.

Maintenance Recommendations

Industrial control boards require clean, stable operating conditions.

Preventive Maintenance Table
Maintenance Item Recommended Action
Electrical cabinet cleaning Remove dust using approved methods
Cooling inspection Check fans, filters and airflow
Connector inspection Check looseness and oxidation
Cable inspection Look for damage and excessive bending
Grounding inspection Confirm stable machine grounding
Power-supply inspection Check voltage stability
Sensor inspection Confirm clean detection surfaces
Solenoid inspection Check coil resistance and movement
Board visual inspection Look for discoloration or corrosion
Backup-board storage Store in an ESD bag and dry environment
Alarm record Maintain a history of recurring faults
Spare-parts planning Keep critical parts for older machines
Storage Conditions

For long-term storage:

  • Keep the board inside an ESD-protective bag.
  • Use shock-resistant packaging.
  • Store in a clean and dry area.
  • Avoid direct sunlight.
  • Avoid high humidity.
  • Avoid corrosive gases.
  • Prevent heavy objects from pressing the PCB.
  • Do not stack unprotected boards.
  • Label the board with its part number and test status.
  • Inspect stored boards periodically.

Packaging and Delivery

Electronic control boards are vulnerable to static electricity, impact, moisture, and connector damage. Appropriate export packaging is therefore important.

Standard Packaging Process
Packaging Layer Purpose
ESD-protective bag Reduces electrostatic-discharge risk
Protective foam Absorbs vibration and impact
Connector protection Prevents terminal deformation
Inner carton Provides individual product protection
Strong outer carton Supports international transportation
Moisture protection Helps keep the board dry
Product label Identifies part number and quantity
Shipping label Supports accurate logistics handling
Delivery Options
  • DHL.
  • FedEx.
  • UPS.
  • International air shipment.
  • Customer-designated forwarder.
  • Consolidated shipment with other SMT parts.
  • Express delivery for urgent production requirements.

Delivery time depends on product condition, test requirements, quantity, destination, and shipping service.


Ordering Information

To receive an accurate quotation, please send:

Required Information Example
Product Part Number KGK-M4590-012
Reference Number 1072125
Product Description I/O TF Control Board
Machine Model YS12F or YG12F
Required Quantity 1 piece, 2 pieces or more
Product Condition New, used, tested or repaired
Original Board Photos Front, back, label and connectors
Machine Alarm Alarm code and fault description
Shipping Destination Country and postal code
Delivery Requirement Standard or urgent

Providing complete information allows faster compatibility checking and reduces quotation delays.


FAQ
Q1: Is KGK-M4590-012 compatible with every Yamaha YS12F and YG12F machine?

Not necessarily. Compatibility depends on the original board number, PCB revision, connector arrangement, machine serial number, tray-feeding configuration, and software specification. Please provide clear photographs of the original board and its label before ordering. Matching only the machine model is not sufficient for final confirmation.

Q2: What is the function of the 1072125 I/O TF control board?

The board is used as an input and output interface associated with the machine’s tray-feeding control section. It receives signals from sensors and switches, sends commands to relays or actuators, and supports status coordination between the tray unit and the central machine controller.

Q3: Can this board solve an IC tray movement alarm?

It may solve the problem when testing confirms that the original board is defective. However, tray movement alarms can also be caused by damaged sensors, loose connectors, defective solenoid valves, cable failure, unstable power, mechanical obstruction, or incorrect machine settings. Complete diagnosis is recommended before replacement.

Q4: Do you supply new, used, repaired, or tested boards?

Available condition depends on current stock. Supply options may include new, original used, tested used, repaired, refurbished, or exchange units. The quotation should clearly state the condition, test status, warranty terms, photographs, delivery time, and return requirements.

Q5: What information is required to confirm the correct board?

Please provide the machine model, serial number, original board part number, revision markings, tray-system configuration, machine alarm code, and clear photographs of both sides of the original board. Connector and label photographs are especially important for accurate matching.


Contact Us

Looking for a Yamaha KGK-M4590-012 1072125 I/O TF control board for your YS12F or YG12F SMT machine?

Send us your original board photographs, machine model, serial number, alarm information, required quantity, and destination country. Our team will check the visible part number, connector layout, board revision, and application details before preparing a quotation.

We support SMT factories, equipment maintenance companies, electronic manufacturing service providers, machinery dealers, and refurbishment specialists worldwide.

Contact us for:

  • Compatibility confirmation.
  • Actual product photographs.
  • Stock availability.
  • New or tested used condition options.
  • Technical matching assistance.
  • Emergency replacement support.
  • Combined shipment with other SMT spare parts.
  • International express delivery.
  • Bulk purchasing quotations.
  • Long-term spare-parts cooperation.

Please send your inquiry with the part number KGK-M4590-012 and reference number 1072125 for a faster response.
