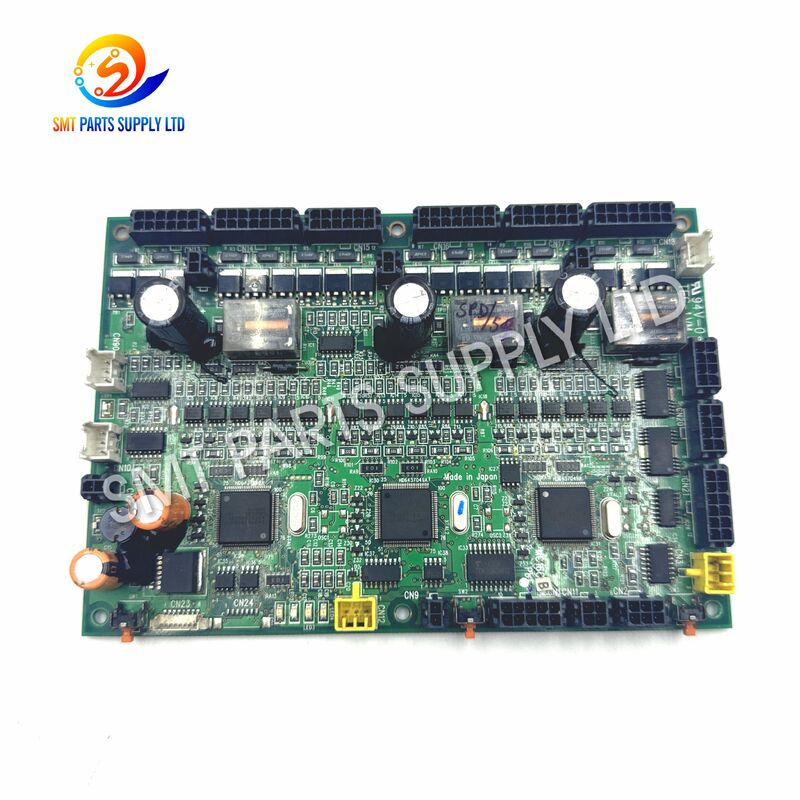

Panasonic KXFE00GXA00 MC16CB-4 SMT Head Control Board for CM402 and CM602 Industrial Populated PCB Assembly

Panasonic KXFE00GXA00 MC16CB-4 SMT Head Control Board CM402 CM602 N610090171AA T1910008

The KXFE00GXA00 N610090171AA MC16CB-4 SMT head control board is a specialized electronic module used in compatible CM402 and CM602 surface-mount placement equipment. It is installed within the machine control architecture to support communication, signal processing, operational coordination, and status feedback related to the placement head assembly.

This board may also carry T1910008 as an additional identification or production marking. Because SMT machines can have different head configurations, electrical revisions, connector arrangements, software versions, and production-year specifications, buyers should verify all visible labels and board details before placing an order.

The product is suitable for SMT factories, equipment maintenance companies, contract electronics manufacturers, machine rebuilders, and spare-parts distributors that need a replacement CM402 head PCB or CM602 head control board. New, tested used, or professionally refurbished supply options may be available according to stock and quotation.

For accurate matching, customers are advised to provide the complete part number, machine model, head type, board photographs, connector layout, and existing fault information. This verification process helps reduce incorrect orders, installation delays, and avoidable production downtime.

A head control board may require inspection or replacement when the placement machine develops intermittent or permanent head-related faults. However, a machine alarm does not always mean that the PCB is the only damaged component. The complete head-control circuit should be checked before replacement.

A defective or unstable board may be associated with one or more of the following operating conditions:

• The placement head does not initialize normally.
• The machine displays a head communication alarm.
• One head function responds intermittently.
• Head-related sensors cannot be read correctly.
• The machine stops during component pickup or placement.
• Head motion becomes unavailable after startup.
• The same alarm returns after cables and sensors are checked.
• The machine operates normally when a known-good board is installed.
• Production becomes unstable after the machine warms up.
• The head module cannot complete its standard initialization sequence.

These symptoms should be used only as maintenance references. Servo drivers, motors, sensors, valves, encoders, cables, connectors, power modules, mechanical assemblies, and machine parameters should also be inspected.

Replacing the suspected board with a correctly matched and properly tested KXFE00GXA00 N610090171AA MC16CB-4 head control board can help restore the affected control circuit after other possible causes have been checked.

• Recovery of head control communication.
• Restoration of normal machine initialization.
• Reduction of repeated head-related production stops.
• Improvement of head operating stability.
• Faster maintenance compared with uncontrolled component-level repair.
• Reduction of extended SMT line downtime.
• Improved spare-parts readiness for older production equipment.
• More predictable maintenance planning.

The board should not be presented as a guaranteed solution for every head alarm. Correct fault diagnosis and part-number matching remain essential.

Electrical values, PCB dimensions, firmware versions, connector definitions, and machine parameters can vary by board revision and equipment configuration. These details should not be assumed from the machine model alone.

Before ordering, compare the replacement board with the existing board using:

• Complete part number.
• Board model.
• Printed revision.
• Barcode or serial label.
• Connector quantity.
• Connector position.
• Component layout.
• Mounting-hole position.
• Machine model.
• Placement-head configuration.
• Equipment production year.
• Existing software and parameter version.

The KXFE00GXA00 N610090171AA MC16CB-4 board is intended for use in compatible SMT placement equipment where a matching head control PCB is required.

• SMT electronics manufacturing factories.
• Electronics manufacturing service providers.
• PCB assembly companies.
• Automotive electronics manufacturers.
• Consumer electronics manufacturers.
• Industrial control equipment producers.
• LED lighting assembly factories.
• Communication equipment manufacturers.
• Medical electronics production companies.
• SMT machine repair companies.
• Used SMT equipment dealers.
• Industrial spare-parts distributors.
• Overseas maintenance contractors.
• Factory engineering departments.

Factories operating several CM402 or CM602 placement machines may keep a confirmed board in their maintenance inventory. A prepared spare board can help reduce downtime when a production machine develops a verified board fault.

For inventory management, record:

The head control board operates as part of the machine’s electronic control system. It supports the transfer and processing of commands, status signals, sensor information, and operating feedback associated with the placement head.

During normal SMT production, the machine must coordinate many operations within a short cycle. The head assembly must receive the correct command, confirm its operating status, interact with related sensors, and provide feedback to the central control system.

A stable head control board helps maintain:

• Reliable communication between control modules.
• Correct processing of head-related signals.
• Consistent initialization after machine startup.
• Coordinated response during pickup and placement.
• Timely detection of abnormal operating conditions.
• Stable production over repeated placement cycles.

Because the board forms only one part of the control chain, its performance also depends on stable power, correct machine parameters, intact wiring, clean connectors, functional sensors, proper grounding, and mechanically sound head components.

Selecting a replacement only by machine name may lead to incompatibility. The safest method is to compare all available identifiers and visual details.

For faster and more accurate quotation, please provide:

1. A clear photograph of the complete front side of the board.
2. A clear photograph of the complete rear side.
3. Close-up photographs of every label and printed code.
4. The machine model and serial number.
5. The installed placement-head configuration.
6. The machine alarm message or error code.
7. A photograph of all connectors.
8. The quantity required.
9. The preferred board condition.
10. The delivery country and postal code.

The quoted condition should be confirmed in writing. Product photographs should also be checked to determine whether they show the actual unit or a reference sample.

Installation should be completed by qualified SMT maintenance personnel. The board contains static-sensitive electronic components and can be damaged by improper handling.

• Back up machine parameters when possible.
• Record the current alarm information.
• Confirm that the replacement board matches the removed board.
• Disconnect machine power according to the maintenance procedure.
• Wait for stored electrical energy to discharge.
• Wear a grounded ESD wrist strap.
• Use an antistatic work surface.
• Label each cable before removal.
• Photograph every connector position.
• Inspect cables and connectors for damage.
• Check the machine for oil, dust, or moisture contamination.
• Do not place the PCB directly on metal surfaces.

• Hold the board by its edges.
• Do not touch IC pins or connector contacts.
• Do not force a connector into position.
• Check cable orientation before insertion.
• Confirm that no connector pin is bent.
• Install all screws and supports correctly.
• Avoid excessive tightening.
• Keep cables away from moving mechanisms.
• Verify that the board cannot contact the machine frame.
• Recheck every connection before applying power.

• Power on the machine under maintenance supervision.
• Observe the initialization sequence.
• Check whether the original alarm has cleared.
• Restore necessary machine parameters.
• Complete any required calibration procedure.
• Test the head at reduced speed.
• Run a controlled pickup-and-placement test.
• Monitor for unusual heat, smell, sound, or repeated alarms.
• Confirm component placement quality before mass production.
• Record the replacement date and board information.

Depending on the supply condition and order agreement, the following inspection procedures may be completed:

The exact testing scope should be stated in the quotation because new, used, refurbished, and repaired boards may have different inspection procedures.

Electronic control boards require suitable protection against static electricity, vibration, impact, dust, and moisture during transportation.

1. The PCB is visually checked before packing.
2. Connectors and exposed areas are protected.
3. The board is placed inside an antistatic bag.
4. Suitable cushioning material is added around the unit.
5. The product is secured inside a strong inner box.
6. The inner box is placed inside an export carton.
7. Empty space is filled to prevent movement.
8. The package is sealed and labeled for shipment.

The actual delivery time depends on product availability, inspection requirements, destination, customs clearance, and selected shipping service.

KXFE00GXA00 and N610090171AA are commonly used together to identify this head control board. However, buyers should also compare MC16CB-4, the printed board revision, connector arrangement, and physical component layout before confirming interchangeability.

The board is associated with compatible CM402 and CM602 head-control applications, but not every machine configuration is necessarily identical. The machine serial number, head type, board revision, software configuration, and connector layout should be checked before installation.

T1910008 may appear as an additional identification, production, inspection, or board-related marking. It should not be used as the only ordering reference. Please provide a clear photograph so that it can be compared with the replacement unit.

No. Head alarms may also be caused by damaged cables, connectors, sensors, motors, valves, power modules, mechanical assemblies, grounding problems, or incorrect machine parameters. The board should be replaced only after appropriate troubleshooting.

New, tested used, refurbished, or repair-service options may be offered depending on current stock. The exact condition, testing method, photographs, lead time, warranty terms, and price should be confirmed in the official quotation.

• Focused supply of SMT machine boards and replacement parts.
• Support for discontinued and mature placement-machine platforms.
• Part-number and photograph comparison before shipment.
• Flexible supply of new, tested used, and refurbished units.
• Small-quantity purchasing for urgent maintenance.
• Protective international export packaging.
• Worldwide express and freight-shipping support.
• Combined shipment with feeders, motors, sensors, cables, valves, belts, and nozzles.
• Technical communication for machine model and board-revision matching.
• Support for factories, distributors, service companies, and equipment resellers.

SMT PARTS SUPPLY LTD

For an accurate quotation for the KXFE00GXA00 N610090171AA T1910008 MC16CB-4 SMT head control board, please send the following information:

• Required quantity.
• Machine model: CM402 or CM602.
• Machine serial number.
• Placement-head type.
• Front and rear board photographs.
• Complete part-number labels.
• Connector-layout photographs.
• Existing alarm information.
• Required product condition.
• Delivery country and postal code.

Our team will compare the submitted information with the available board before preparing the quotation.
