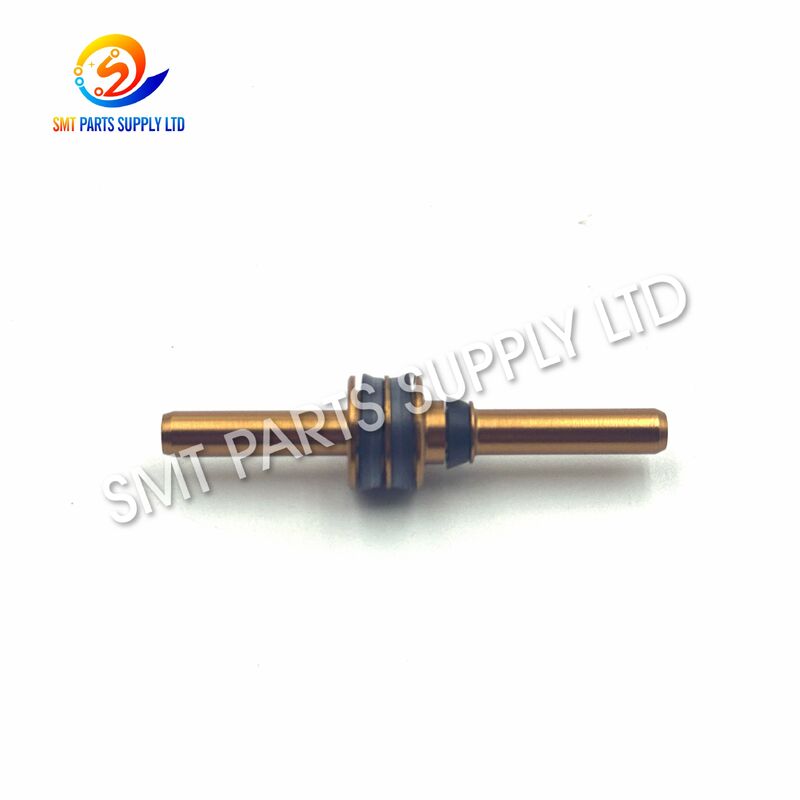

YAMAHA KV8-M7104-A0 Precision-machined Metal Piston Assembly for YV100XG Placement Head

The YAMAHA KV8-M7104-A0 Piston Assembly is a machine-specific replacement component used in the corresponding pneumatic and mechanical mechanism of the YV100XG SMT pick and place machine. It is designed to support controlled reciprocating movement inside the placement head, helping the machine complete stable component pickup, positioning, and placement cycles.

During continuous SMT production, the original piston may gradually develop surface wear, contamination, excessive friction, or dimensional changes. These conditions can lead to slow head response, incomplete return movement, unstable pneumatic operation, or repeated machine alarms. Replacing the worn component with the correctly matched KV8-M7104-A0 piston assembly can help restore normal mechanical response and reduce unnecessary replacement of larger head assemblies.

This product is suitable for electronics manufacturers, EMS factories, SMT maintenance companies, equipment refurbishers, and spare-parts distributors requiring a reliable YV100XG maintenance solution.

The piston assembly works inside a high-frequency movement system. During normal SMT production, it may complete thousands of operating cycles every day. Long-term use, insufficient maintenance, contaminated compressed air, seal deterioration, and incorrect installation can gradually affect its performance.

A piston problem is not always caused by one factor. Maintenance engineers should inspect the complete pneumatic and mechanical system before installing a replacement.

The piston repeatedly moves inside its guide or mating section. Over time, friction may gradually change the contact surface, increase operating clearance, or create uneven movement resistance.

Minor wear may not immediately stop the machine. However, it can develop into unstable movement, slower response, or incomplete return positioning.

SMT equipment operates in controlled production areas, but fine dust, dried lubricant, component debris, adhesive residue, and other contamination may still enter moving mechanisms.

Contamination can cause:

• Increased friction.
• Surface scratching.
• Intermittent sticking.
• Slower movement.
• Abnormal seal wear.
• Inconsistent pneumatic response.

If the piston mechanism requires lubrication, insufficient lubricant can increase direct metal contact and accelerate surface wear.

Incorrect lubricant may also create problems. Some products can attract dust, damage sealing materials, or become sticky after long-term exposure to heat and production contamination.

The piston normally works together with sealing components. A damaged or hardened seal may result in air leakage, reduced movement force, slow response, or unstable positioning.

Replacing only the piston without inspecting related seals may not completely solve the original machine problem.

The placement head depends on clean, dry, and stable compressed air. Moisture, oil, pressure fluctuation, or restricted air tubing may affect piston movement.

Common air-system problems include:

• Low operating pressure.
• Pressure fluctuation.
• Water inside the air line.
• Contaminated filters.
• Blocked air passages.
• Loose tube connections.
• Damaged pneumatic joints.
• Slow solenoid valve response.

A piston may be damaged when it is inserted at an incorrect angle, installed in the wrong direction, or forced into a contaminated bore.

Incorrect tightening or misalignment can cause abnormal side loading, resulting in uneven wear and restricted movement.

A placement head collision, incorrect nozzle installation, PCB interference, or foreign object may generate excessive mechanical force.

Although the piston may not show obvious external damage, its movement may become rough or inconsistent after an abnormal impact.

When inspection confirms that the existing piston is worn, scratched, deformed, contaminated, or difficult to move, replacing it with a correctly matched KV8-M7104-A0 Piston Assembly can help restore the corresponding YV100XG placement-head mechanism.

The replacement should be completed as part of a complete maintenance process. Technicians should inspect the related seals, guide section, pneumatic valve, air tubing, sensor, and mounting position before restarting production.

Replacing the affected piston assembly may be more economical than changing an entire placement head or larger pneumatic module.

A clearly identified spare part allows maintenance teams to shorten troubleshooting and sourcing time.

A properly installed piston helps support smooth and repeatable movement inside the corresponding head mechanism.

Keeping KV8-M7104-A0 in maintenance inventory can improve response time when the original component becomes damaged.

The product can be included in scheduled machine servicing, especially for equipment operating long shifts or handling high production volumes.

A clear model number helps purchasing teams, technicians, and warehouse personnel manage inventory accurately.

The exact product condition must be confirmed in the quotation. Product photographs and inspection information can be supplied according to the order requirement.

The KV8-M7104-A0 piston assembly is mainly used for repair and maintenance of the corresponding pneumatic or mechanical movement section inside the YV100XG placement head.

It can be used in the following production and service environments.

Suitable for SMT production lines assembling printed circuit boards for:

• Household appliances.
• Mobile accessories.
• Communication products.
• Smart devices.
• Consumer control boards.
• Audio and video equipment.

Applicable to factories manufacturing:

• Vehicle control modules.
• Lighting control boards.
• Automotive sensors.
• Dashboard electronics.
• Power-management assemblies.
• Infotainment circuit boards.

The piston assembly can support YV100XG maintenance in production lines manufacturing:

• Industrial controllers.
• Automation modules.
• Power supplies.
• Instrumentation boards.
• Motor-control systems.
• Communication control units.

EMS factories often operate multiple SMT machines and long production shifts. Keeping machine-specific piston components in stock can help reduce waiting time during unexpected maintenance.

Independent service companies can use KV8-M7104-A0 during placement-head inspection, pneumatic-system repair, and machine restoration projects.

Equipment refurbishers may replace worn piston components while rebuilding or servicing YV100XG machines for resale or continued production use.

Distributors can stock the product for factories requiring individual replacement parts, maintenance kits, or consolidated SMT spare-parts shipments.

The KV8-M7104-A0 piston assembly works inside the corresponding YV100XG placement-head mechanism. The machine control system activates the pneumatic circuit according to the required pickup and placement sequence.

Compressed air is directed through the related solenoid valve and air passages. The pressure acts on the piston, creating controlled linear movement. This movement is transferred to the connected head mechanism.

After the required action is completed, reverse air pressure, a return mechanism, or another mechanical element returns the piston to its original position.

1. The machine control system sends an operating command.
2. The corresponding solenoid valve changes its airflow position.
3. Compressed air enters the piston mechanism.
4. Air pressure creates linear piston movement.
5. The piston transfers force to the connected head component.
6. The placement-head action is completed.
7. The return system moves the piston back to its starting position.
8. A sensor or control signal confirms that the movement cycle is complete.
9. The machine continues to the next pickup or placement action.

The piston cannot operate correctly if the surrounding pneumatic, mechanical, or electrical components are faulty. A complete system inspection is therefore recommended.

Selecting an SMT spare part only by appearance can lead to incorrect purchasing. Small dimensional or configuration differences may prevent installation even when two components look similar.

Use the following confirmation process before ordering.

Check the marking on the removed component or consult the machine parts manual. The complete code should be provided without deleting the suffix.

Recommended ordering reference:

KV8-M7104-A0

Provide the complete equipment model:

YV100XG SMT Pick and Place Machine

Do not assume the piston is suitable for every machine using the same brand.

Identify the placement-head position, mechanism location, or drawing reference where the piston is installed.

This information is particularly useful when the machine uses more than one piston type.

Recommended photographs include:

• Complete front view.
• Complete rear view.
• Side view.
• Part-number marking.
• Connection area.
• Installation surface.
• Damaged or worn section.
• Photograph beside a ruler or caliper.

When the original marking is damaged or unreadable, provide:

• Total length.
• Outside diameter.
• Internal diameter.
• Shaft diameter.
• Step dimensions.
• Groove position.
• Connection size.

State whether the order requires:

• New original.
• New compatible.
• Used original.
• Refurbished product.

Provide the expected order quantity so that stock, packaging, price, and delivery time can be checked accurately.

Installation should be performed by qualified SMT equipment maintenance personnel.

• Stop the machine according to the required safety procedure.
• Disconnect electrical power where required.
• Isolate the compressed-air supply.
• Confirm the replacement part number.
• Clean the work area.
• Prepare appropriate maintenance tools.
• Inspect the guide, seals, and mating components.
• Check for contamination inside the mechanism.

• Avoid touching the precision surface with dirty tools.
• Do not drop or impact the piston.
• Confirm the correct installation direction.
• Do not force the piston into the guide.
• Apply only the specified lubricant when required.
• Replace damaged O-rings or packings.
• Check that the piston moves without abnormal resistance.
• Keep dust and foreign material away from the assembly.

• Restore compressed air gradually.
• Check all pneumatic connections.
• Listen for air leakage.
• Perform manual movement verification where permitted.
• Run the machine at low speed.
• Confirm complete piston travel.
• Check sensor response.
• Test component pickup and placement.
• Inspect placement accuracy before normal production.

The inspection process can be completed according to the selected product condition and customer requirements.

The piston assembly is a precision spare part and should be protected from moisture, dust, scratching, and impact.

Standard packaging may include:

1. Individual protective wrapping.
2. Sealed inner packaging.
3. Part-number and quantity label.
4. Anti-impact filling material.
5. Reinforced export carton.
6. Outer shipping label.

No. The KV8-M7104-A0 piston assembly is intended for the corresponding mechanism of the YV100XG machine. Compatibility must be confirmed using the complete model, installation position, existing-part photograph, and machine parts information.

It may help when the instability is caused by a worn, scratched, contaminated, or sticking piston. Technicians should also inspect the seals, air pressure, solenoid valve, guide bore, sensor, and related mechanical parts.

Related sealing components should be carefully inspected during piston replacement. Reusing a hardened, damaged, or deformed seal may result in air leakage, increased resistance, slow movement, or unstable pneumatic performance.

Please provide the part number, machine model, required quantity, existing-product photographs, installation position, requested product condition, and important dimensions when the original component marking is unclear.

Yes. It can be consolidated with valves, sensors, nozzles, feeders, belts, motors, circuit boards, pneumatic fittings, and other SMT machine components to reduce international purchasing and transportation costs.

For an accurate quotation and fast technical confirmation, please provide the following information:

Please send your complete part number, machine model, required quantity, product photographs, and delivery destination. Our sales team will check technical compatibility, stock availability, product condition, packaging method, price, and estimated delivery time.
