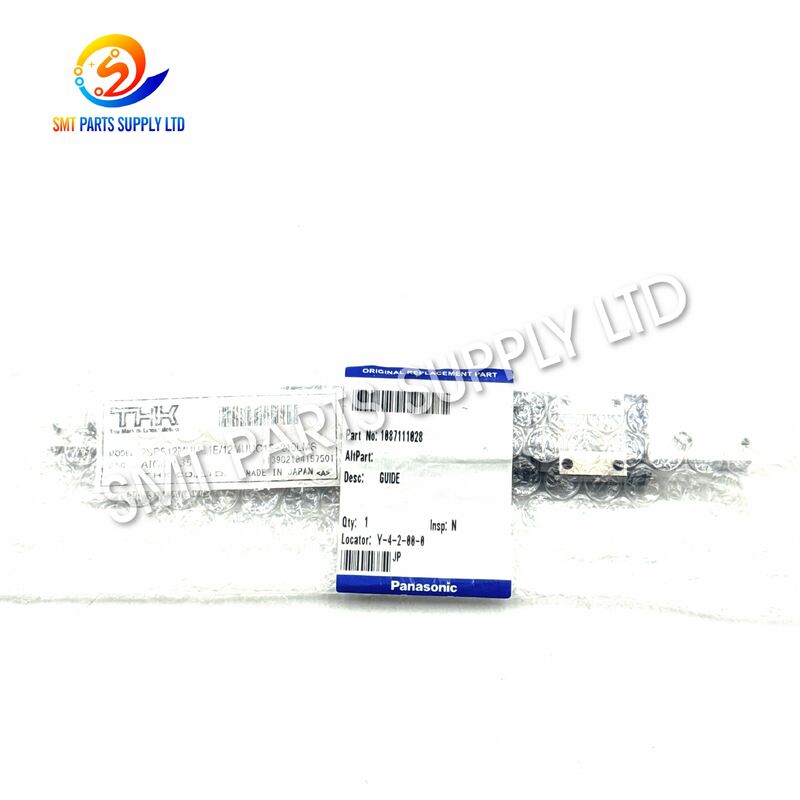

Panasonic 1083811028 High Precision Slider for AI Insertion Machine

The Panasonic 1083811028 High Precision Linear Motion Slider, also referenced as a Linear Motion Unit, is a precision mechanical component used in Panasonic AVK2B and AVK3 automatic insertion equipment. Its primary function is to guide a moving mechanical section along a controlled linear path while maintaining stable alignment and smooth travel.

During continuous AI insertion production, linear motion components operate repeatedly at high cycle rates. Wear, contamination, lubrication deterioration, mechanical impact, or alignment problems can gradually increase running resistance and clearance. These conditions may affect motion consistency and eventually influence the operating stability of the associated insertion mechanism.

Replacing a worn 1083811028 linear motion unit can help restore predictable movement and reduce unwanted lateral play. It is suitable for AI machine maintenance, mechanical overhaul, preventive replacement, and production-line spare-parts inventory.

For correct ordering, buyers should confirm part number 1083811028, machine model, installation position, existing component appearance, and mechanical configuration before purchase.

Automatic insertion machines depend on repeated mechanical movement throughout production. A linear slider or motion unit may perform thousands of cycles during normal operation, making its mechanical condition important to overall machine stability.

Several factors can gradually reduce the performance of the original linear motion unit.

Continuous reciprocating movement can gradually wear the internal sliding or guiding surfaces. As operating hours increase, clearance may become larger and movement may become less stable.

Typical symptoms can include:

• Increased mechanical play
• Uneven linear travel
• Abnormal vibration
• Reduced movement consistency
• Increased running resistance

Production environments can introduce dust, lead fragments, oil residue, grease contamination, and other small particles into moving assemblies.

When contamination reaches a linear guidance area, it can increase friction and accelerate wear.

Linear motion components require appropriate lubrication conditions. Old, contaminated, insufficient, or unsuitable lubricant may cause:

• Increased friction
• Abnormal noise
• Higher mechanical resistance
• Accelerated surface wear
• Inconsistent motion

Incorrect installation, tooling collision, component jamming, or unexpected machine interference may damage the slider or associated guide mechanism.

Even small deformation can affect smooth movement.

A correctly manufactured slider may still operate poorly if its installation surface or associated mechanism is misaligned.

Improper alignment can create uneven loading and shorten the service life of the component.

When inspection confirms that the existing motion unit has excessive wear, abnormal clearance, rough movement, or physical damage, replacement with a correctly matched 1083811028 Linear Motion Slider is usually more reliable than continuing to operate a deteriorated mechanical component.

The replacement process should focus on three areas.

Always compare:

• Part number
• Machine model
• Installation location
• Mounting arrangement
• Existing component structure
• Related guide components

For this product, the primary reference number is:

1083811028

Before installing the replacement unit, inspect the surrounding mechanism for:

• Loose mounting screws
• Contaminated guide surfaces
• Damaged brackets
• Abnormal shafts
• Excessive mechanical clearance
• Uneven mounting surfaces
• Foreign material

Replacing only the slider without correcting an underlying mechanical problem may cause premature wear.

The linear motion unit should be installed without excessive force.

After installation, the movement should be checked manually or according to the machine maintenance procedure before returning the machine to normal production.

Important: Exact dimensions, mounting configuration, and machine revision should be confirmed against the installed component before ordering.

Panasonic AI insertion machines use several similar linear motion and slider components. Similar appearance does not mean the parts are interchangeable.

Customers should not select a replacement only according to appearance.

For accurate identification, provide:

1. Existing part number.
2. Machine model.
3. Photo of the installed component.
4. Photo of the mounting position.
5. Required quantity.

This helps reduce the risk of ordering a similar-looking but incompatible AI spare part.

The 1083811028 Linear Motion Slider is mainly used for mechanical linear guidance in compatible automatic insertion machines.

Suitable for routine servicing where technicians identify increased resistance, looseness, or abnormal mechanical travel.

During a complete mechanical rebuild, worn linear motion components can be inspected and replaced to restore more consistent movement.

When an existing slider is damaged or significantly worn, replacement can help return the affected mechanical system to normal operation.

Factories operating older AI insertion equipment often maintain critical mechanical replacement parts in stock to reduce downtime caused by parts sourcing.

The component is also suitable for refurbishment companies servicing Panasonic-compatible automatic insertion equipment.

These symptoms do not automatically confirm that the slider is defective. The complete mechanical assembly should be inspected before replacement.

The 1083811028 component functions as part of a linear guidance mechanism.

Instead of allowing a moving section to travel freely in multiple directions, the linear motion unit constrains movement along the required mechanical path.

During machine operation, an associated moving mechanism transfers force to the linear motion assembly.

The linear motion unit guides the moving section along its intended travel direction.

This helps prevent unnecessary side movement.

Controlled linear travel helps keep the connected mechanical components correctly positioned relative to surrounding parts.

The AI machine repeats this movement continuously during production.

For this reason, the condition of the linear guide assembly can influence long-term mechanical consistency.

Automatic insertion equipment relies on synchronized mechanical operations.

A worn guide may not immediately stop the machine, but progressive mechanical deterioration can create secondary problems.

These may include:

• Increasing clearance
• Uneven travel
• Extra vibration
• Increased friction
• Mechanical noise
• Accelerated wear of connected components
• Reduced repeatability

Replacing the worn mechanical component before serious failure can help reduce further damage to adjacent parts.

The 1083811028 reference helps maintenance teams identify the required AI machine linear motion component accurately.

Its primary purpose is controlled linear movement rather than electrical control, pneumatic regulation, or component feeding.

The component is intended for repeated mechanical movement inside automatic insertion equipment.

Suitable for planned maintenance, emergency repair, equipment rebuilding, and spare-parts stocking.

A correctly installed linear motion unit helps reduce unwanted movement and maintain consistent mechanical travel.

For factories continuing to operate established AVK-series insertion machines, maintaining critical mechanical spare parts can help reduce extended equipment downtime.

Selecting a linear motion slider should be based primarily on part number and equipment configuration.

Check whether the removed component or machine parts documentation indicates:

1083811028

Avoid purchasing only according to visual similarity.

This part is commonly referenced for:

• AVK2B
• AVK3

Machine revisions and configurations can differ, so confirmation is recommended.

Before ordering, compare:

Before replacement, determine whether the original unit failed because of normal wear or another machine problem.

Possible related issues include:

• Alignment problems
• Damaged mounting base
• Contamination
• Insufficient lubrication
• Mechanical collision

If the machine label or component number is unclear, photos can significantly improve identification accuracy.

Recommended photos include:

• Machine model plate
• Removed component
• Part number marking
• Installation position
• Front and rear views

A linear motion component should be checked before shipment to reduce installation problems.

Typical inspection items can include:

For precision mechanical parts, protective packaging is important because impact during transportation may affect the component before installation.

Installation should be completed by trained machine maintenance personnel.

Recommended procedure:

1. Stop the machine according to maintenance safety procedures.
2. Remove power or isolate the relevant mechanical system.
3. Record the original installation position.
4. Remove the existing motion unit carefully.
5. Clean the surrounding mounting area.
6. Inspect connected mechanical components.
7. Install the replacement 1083811028 unit.
8. Tighten mounting points according to machine requirements.
9. Check mechanical travel manually where permitted.
10. Perform low-speed machine verification.
11. Confirm normal movement before full production.

Do not force the component into position if resistance or misalignment is detected.

Remove production debris, dust, and old contaminated lubricant during scheduled maintenance.

Follow the equipment maintenance requirements for lubrication type and interval.

Unexpected clearance can indicate developing wear.

A new or increasing noise may indicate friction, contamination, or misalignment.

If the insertion mechanism experiences a collision or jam, inspect the related linear movement components before restarting continuous production.

The 1083811028 is a linear motion unit used in compatible Panasonic automatic insertion equipment. It guides a moving mechanical section along a controlled linear path, helping maintain smooth movement, correct alignment, and repeatable mechanical operation during machine production cycles.

The part is commonly referenced for Panasonic AVK2B and AVK3 automatic insertion machines. Because machine configurations and revisions can differ, customers should confirm the existing part number and installation position before ordering a replacement.

No. Both belong to a similar linear motion component family, but they are associated with different machine references. 1083811028 is commonly linked with AVK2B/AVK3, while 1087111028 is associated with other AI configurations. Do not assume interchangeability.

Replacement should be considered when inspection finds abnormal resistance, excessive clearance, rough travel, mechanical damage, unusual noise, or significant wear. The surrounding mechanism should also be inspected to identify alignment, lubrication, or contamination problems.

Please provide the part number, AI machine model, required quantity, and clear photos of the existing component. If possible, include a photo of the installation position so the correct version can be confirmed before quotation.

Need a replacement 1083811028 Linear Motion Slider for your AI insertion machine?

Send us:

• Part number
• Machine model
• Required quantity
• Photos of the existing part
• Delivery destination

We can assist with part identification, compatibility checking, stock confirmation, quotation, lead time, and related AI spare-parts requirements.

For customers maintaining multiple Panasonic AI insertion machines, you may also send a complete spare-parts list for combined checking and quotation.

Panasonic and related machine names are used only for compatibility and product identification purposes.
