Panasonic N610099491AA SP4 Clinch Lever for RL131 RL132 AI Insertion Machine

Panasonic N610099491AA SP4 Clinch Lever for RL131 RL132 AI Insertion Machine

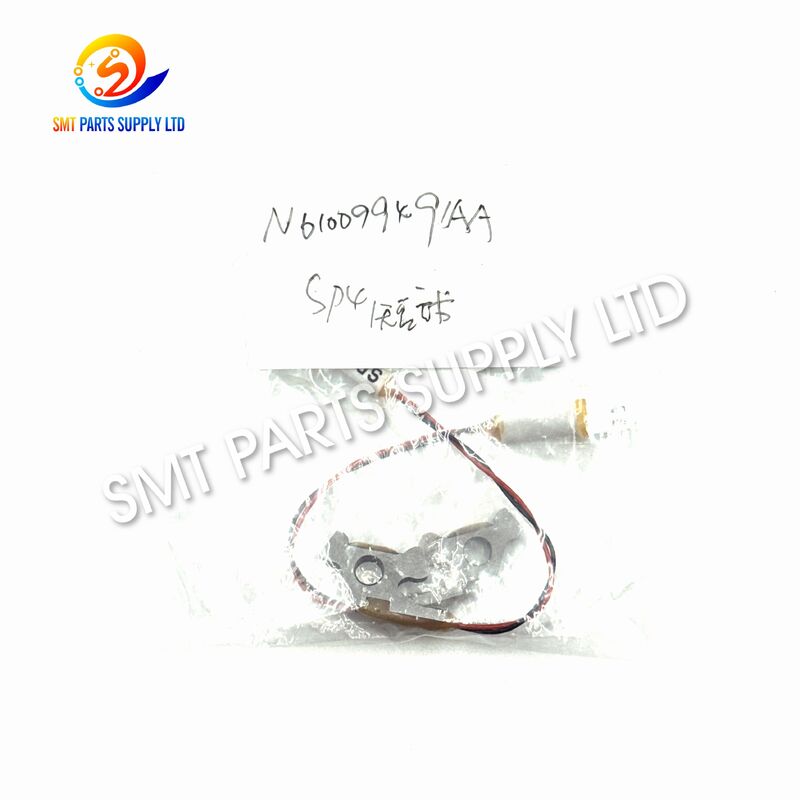

The Panasonic N610099491AA SP4 Clinch Lever is a mechanical spare part used in the clinching section of Panasonic RL131 and RL132 AI insertion equipment. During radial component insertion, the clinching mechanism works beneath the PCB to support the lead-forming process after component leads pass through the board.

As a moving mechanical component, the clinch lever is subject to repeated operating cycles. Wear, deformation, contamination, incorrect mechanical alignment, or damage can affect the movement of the clinching mechanism and may lead to unstable production performance.

N610099491AA is identified as the SP4 Clinch Lever. It is suitable for machine maintenance, scheduled replacement, emergency spare inventory, and repair of the clinching mechanism.

For purchasing accuracy, customers are advised to confirm the part number N610099491AA, SP4 position, machine model, existing component appearance, and installation location before placing an order.

Cause – Why a Clinch Lever May Need Replacement

AI insertion machines operate continuously under repetitive mechanical movement. The clinch mechanism performs frequent cycles during PCB production, making its mechanical components important maintenance items.

Common reasons for replacing an SP4 clinch lever include:

A worn clinching component should not be evaluated independently. During maintenance, technicians should also inspect the related cutter, anvil, guide, pins, springs, covers, and other moving components.

Replacing the correct lever can help restore the mechanical relationship between these parts without unnecessarily replacing the entire clinching assembly.

Solution – Replacement for the SP4 Clinching Position

When inspection confirms that the SP4 lever is worn or damaged, replacing it with the correct N610099491AA Clinch Lever provides a targeted maintenance solution.

The correct replacement can help:

• Restore normal mechanical movement in the SP4 clinching position.
• Maintain consistent operation of the lead-clinching mechanism.
• Reduce problems associated with excessive mechanical wear.
• Support reliable radial component insertion production.
• Reduce unnecessary replacement of complete assemblies.
• Simplify preventive maintenance spare-parts planning.
• Minimize production interruptions caused by unavailable mechanical parts.

For maintenance departments operating several insertion machines, keeping frequently required mechanical parts in local inventory can shorten the response time when a machine requires repair.

Before replacement, always identify the actual failure cause. If the related shaft, pin, blade, guide, spring, or other mechanical component is already worn, changing only the lever may not completely solve the problem.

Specifications

Important Compatibility Information

Although the same machine family may use visually similar levers, cutters, blades, guides, and clinching components, similar appearance does not guarantee interchangeability.

For accurate identification, provide:

This information helps reduce purchasing errors and improves quotation accuracy.

Application

The Panasonic N610099491AA SP4 Clinch Lever is mainly intended for maintenance of RL131 and RL132 radial component insertion equipment.

Typical applications include:

1. PCB Through-Hole Assembly

The part can be used in production environments where radial lead components are automatically inserted into printed circuit boards.

2. AI Insertion Equipment Maintenance

It is suitable for routine inspection and mechanical servicing of the clinching mechanism.

3. Worn-Part Replacement

When the existing SP4 lever shows excessive wear, deformation, or abnormal mechanical movement, N610099491AA can be selected as the corresponding replacement reference.

4. Preventive Maintenance Inventory

Factories operating Panasonic insertion equipment can keep the lever as part of their maintenance spare-parts stock.

5. Emergency Machine Repair

Keeping critical mechanical components available locally can help maintenance personnel respond more efficiently when production equipment stops because of worn clinching parts.

Typical Industries

This type of insertion equipment may be found in manufacturing environments producing:

• Industrial control boards
• Power supply assemblies
• Consumer electronic boards
• Automotive electronic assemblies
• Home appliance control boards
• Communication equipment
• Power electronics
• General through-hole PCB assemblies

How It Works

During radial component insertion, component leads are guided through prepared PCB holes. The lower mechanical system then performs the required lead processing and clinching action.

The SP4 clinch lever forms part of this mechanical operating sequence.

A simplified process is:

Because this sequence occurs repeatedly during production, stable movement of each mechanical part is important.

Excessive wear in a lever can change the relationship between moving parts. This may contribute to inconsistent mechanical action, unusual noise, increased clearance, or abnormal wear of related components.

For this reason, inspection of the clinch lever should normally be combined with inspection of the complete local mechanism.

Maintenance Recommendations

Regular inspection helps identify mechanical deterioration before it causes extended machine downtime.

Recommended Inspection Points

Machine maintenance should follow the appropriate service procedures for the equipment. Do not force a replacement component into position when fitment is abnormal.

How To Choose the Correct Clinch Lever

Selecting by machine name alone is not recommended because several similar mechanical parts may be installed within the same insertion platform.

Step 1 – Check the Part Number

Confirm that the required reference is:

N610099491AA

Avoid selecting only according to visual appearance.

Step 2 – Confirm the Position Code

This product is identified as:

SP4 Clinch Lever

If the machine requires SP1, SP2, SP3, or another position, verify the corresponding part number separately.

Step 3 – Confirm the Machine Model

Check whether your equipment is:

• RL131
• RL132

Also confirm the actual machine configuration and installed clinching assembly.

Step 4 – Compare the Existing Part

Before ordering, compare the replacement with your original component, especially:

• Overall shape
• Mounting points
• Hole positions
• Lever profile
• Contact areas
• Installation direction

Step 5 – Provide Photos When Necessary

If identification is uncertain, send clear photos of the removed component and the machine installation position together with the visible part number.

This is especially useful when maintaining older equipment with previous repairs or component revisions.

SP-Series Clinch Lever Identification Guide

Several clinch lever references may appear in the same equipment family. They should be identified individually rather than treated as universal parts.

The different SP positions should not be assumed to be interchangeable.

The safest purchasing method is to match both the position designation and exact part number with the part installed on the machine.

Why Keep N610099491AA in Spare-Parts Inventory

Mechanical components are often inexpensive compared with the production loss caused by extended equipment downtime.

For factories using RL131 or RL132 equipment, maintaining a practical stock of commonly serviced clinching components can provide several operational advantages:

• Faster response to machine maintenance.
• Reduced waiting time for replacement parts.
• Easier preventive maintenance scheduling.
• Lower risk of prolonged production interruption.
• Convenient replacement during planned servicing.
• Better spare-parts management for older production lines.

Inventory levels should be determined according to machine quantity, operating hours, historical consumption, maintenance strategy, and local lead time.

Ordering Checklist

For a faster and more accurate quotation, please send the following information:

Providing complete information allows compatibility questions to be checked before shipment and reduces the risk of incorrect ordering.

FAQ

Q1: What is Panasonic N610099491AA?

N610099491AA is an SP4 clinch lever used as a mechanical spare part in the clinching mechanism of Panasonic AI insertion equipment. It is associated with RL131 and RL132 machine applications. Exact machine configuration should be confirmed before purchase.

Q2: What is the function of the SP4 Clinch Lever?

The lever operates as part of the mechanical clinching system used during radial component insertion. It helps transfer mechanical movement within the mechanism responsible for processing and retaining component leads after insertion through the PCB.

Q3: Can N610099491AA be used for both RL131 and RL132?

The part is associated with RL131/RL132 insertion-machine spare-parts applications. However, machine configuration and installed assemblies can vary. We recommend confirming the exact part number, SP4 position, machine model, and existing component before ordering.

Q4: Can I replace SP1, SP2, SP3 and SP4 with the same lever?

No assumption should be made that different SP positions are interchangeable. SP1, SP2, SP3, and SP4 can have different part references and mechanical functions. Always order according to the exact position and part number installed on your equipment.

Q5: What information should I provide for a quotation?

Please provide N610099491AA, required quantity, RL131 or RL132 machine model, and preferably photos of the existing lever. If compatibility is uncertain, a machine nameplate photo and installation-position photo will help with identification.

Contact Us for N610099491AA SP4 Clinch Lever

Looking for a replacement Panasonic N610099491AA SP4 Clinch Lever for RL131 or RL132 AI Insertion Machine?

Send us your:

• Part number
• Machine model
• Required quantity
• Existing part photos
• Delivery country or region

We can assist with part identification, compatibility checking, quotation, and related AI insertion machine spare-parts requirements.

For maintenance projects involving multiple items, send your complete spare-parts list together. We can help consolidate the required mechanical parts into one quotation for easier purchasing and shipment planning.

Send your inquiry with part number N610099491AA and required quantity for a quotation.
