Panasonic N610099024AA SP3 Clinch Lever for RL AI Insertion Machine

Panasonic N610099024AA SP3 Clinch Lever for RL AI Insertion Machine

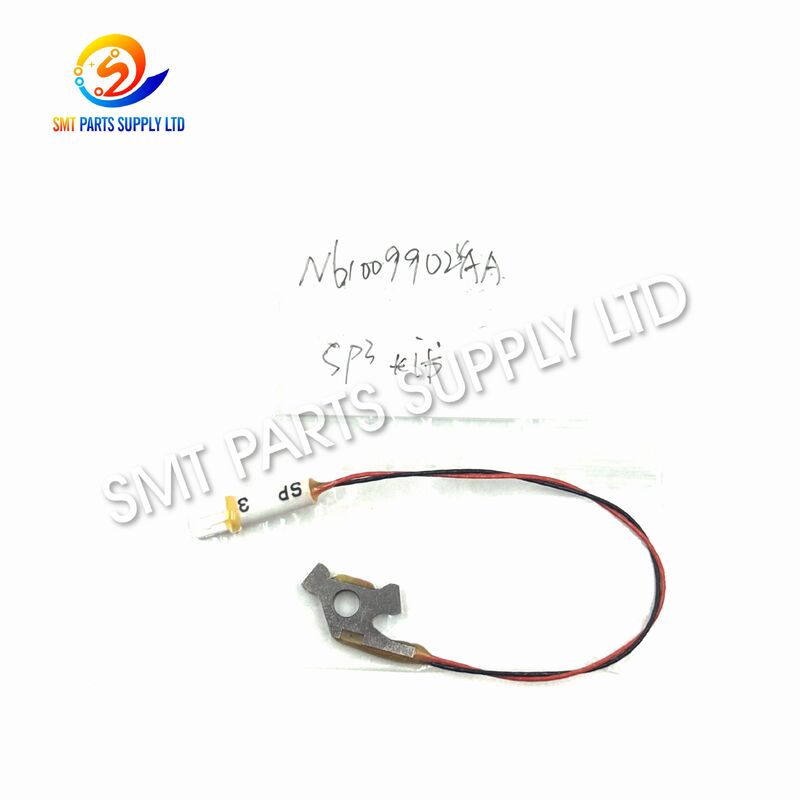

The Panasonic N610099024AA SP3 Clinch Lever is a mechanical spare part used in the clinching mechanism of Panasonic RL131 and RL132 radial component insertion machines. During automated through-hole component assembly, radial component leads are inserted through prepared PCB holes, after which the lower clinching mechanism performs the required lead-processing movement.

The SP3 clinch lever works as part of this mechanical system, transferring movement within the assembly so the clinching mechanism can operate repeatedly during production.

Because the lever operates through a large number of production cycles, long-term mechanical contact can gradually cause wear, increased clearance, surface deterioration, or deformation. A worn lever may affect the smooth movement of associated mechanical parts.

Replacing the affected component with the correct N610099024AA SP3 Clinch Lever can help restore normal movement and maintain stable operation of the clinching mechanism.

For accurate purchasing, always confirm the part number, SP3 position, machine model, original component appearance, and installation location before ordering.

Cause – Why the SP3 Clinch Lever May Need Replacement

Mechanical components inside an insertion machine operate repeatedly during every production cycle. Over time, moving parts may naturally experience wear.

Common causes that can lead to SP3 lever replacement include:

Possible signs requiring inspection can include:

• Visible wear on the lever surface
• Excessive mechanical play
• Abnormal movement
• Unusual mechanical noise
• Deformation
• Wear around pivot areas
• Irregular movement of the clinching mechanism

However, these symptoms do not necessarily mean that only the lever needs replacement.

Technicians should inspect the complete local assembly, including pins, shafts, cutters, guides, springs, mounting points, and related levers before determining the final repair solution.

Solution – Correct SP3 Lever Replacement

When maintenance inspection confirms that the existing SP3 lever is worn or damaged, replacing it with the correct Panasonic N610099024AA Clinch Lever provides a direct maintenance solution.

Correct replacement can help:

• Restore normal mechanical movement.
• Reduce excessive clearance caused by worn components.
• Support stable clinching operation.
• Maintain repeatable lead-processing movement.
• Reduce additional stress on adjacent mechanical parts.
• Avoid unnecessary replacement of the complete assembly.
• Support preventive maintenance schedules.
• Reduce production downtime caused by mechanical failures.

Before installing the new lever, technicians should inspect the corresponding pivot, mounting points, pins, guides, cutters, and other contacting parts.

If surrounding components are already severely worn, replacing only the lever may not completely solve the mechanical issue.

Specifications

Core Identification

For purchasing, use the complete reference:

Panasonic N610099024AA SP3 Clinch Lever

Do not select the part only according to appearance because several clinch levers may look similar but use different part numbers and installation positions.

Application

The N610099024AA SP3 Clinch Lever is primarily used for maintenance and repair of compatible Panasonic RL-series radial insertion equipment.

1. Radial Component Insertion

Suitable for equipment used to automatically insert radial lead electronic components into printed circuit boards.

2. Clinching Mechanism Maintenance

The SP3 lever can be replaced during servicing of the lower mechanical clinching assembly.

3. Worn-Part Replacement

When the existing SP3 lever shows wear, abnormal clearance, deformation, or mechanical damage, N610099024AA can be used as the corresponding replacement reference.

4. Preventive Maintenance

Production facilities can keep the lever in spare-parts inventory and replace it during planned servicing before severe mechanical deterioration occurs.

5. Emergency Machine Repair

Keeping critical mechanical components available can shorten maintenance response time when production equipment stops because of a worn clinching part.

Typical Production Applications

• Industrial control PCB assembly
• Consumer electronic products
• Power supply manufacturing
• Automotive electronics
• Home appliance control boards
• Communication equipment
• Lighting electronics
• Power electronics
• General through-hole PCB production

How It Works

During radial component insertion, the machine positions the electronic component above the programmed PCB location.

The component leads are then inserted through the corresponding PCB holes.

After insertion, the lower clinching mechanism performs mechanical movement beneath the printed circuit board.

A simplified operating sequence is:

The SP3 Clinch Lever forms part of this repeated mechanical sequence.

Stable movement and correct mechanical clearance are important because a worn or deformed lever may affect the interaction between surrounding components.

The exact servicing method should follow the maintenance requirements of the machine, and replacement should be carried out by qualified maintenance personnel.

SP-Series Clinch Lever Comparison

The RL131/RL132 clinching system uses several related lever references. These components should be identified individually.

Important Selection Note

SP1, SP2, SP3, and SP4 should not automatically be considered interchangeable.

The recommended identification method is:

Part Number + SP Position + Machine Model + Original Part Appearance

This approach is more reliable than selecting only according to machine name or physical similarity.

Maintenance Inspection Guide

When replacing N610099024AA, inspecting related mechanical parts at the same time can help identify the actual cause of wear.

If a newly installed lever experiences abnormal wear in a short period, technicians should check the surrounding mechanism for incorrect alignment, worn connecting parts, or other mechanical issues.

How To Choose the Correct Clinch Lever

Step 1 – Verify the Exact Part Number

The required reference for this product is:

N610099024AA

The exact part number should be the primary purchasing reference.

Step 2 – Confirm SP3 Position

This listing is specifically for the:

SP3 Clinch Lever

Do not substitute an SP1, SP2, or SP4 component without confirming compatibility.

Step 3 – Confirm the Machine Model

Check the machine application:

• Panasonic RL131
• Panasonic RL132

Actual machine configuration should still be verified because equipment may have different production revisions or previous mechanical replacements.

Step 4 – Compare the Existing Part

Before purchase, compare:

• Overall profile
• Mounting points
• Pivot location
• Contact surfaces
• Hole positions
• Mechanical connection areas
• Installation direction

Step 5 – Provide Photos When Necessary

If compatibility is uncertain, provide clear photos showing:

• Original SP3 lever
• Front view
• Rear view
• Side profile
• Installation position
• Machine nameplate

This information can help confirm the replacement before shipment.

Why Keep N610099024AA in Spare Inventory

A small mechanical part can cause considerable production delay when the correct replacement is unavailable.

For factories operating RL131 or RL132 equipment, keeping important clinching components in local stock can improve maintenance response.

The ideal stock quantity depends on:

• Number of operating machines
• Daily production hours
• Historical part consumption
• Machine utilization
• Local delivery time
• Production-line importance
• Preventive maintenance schedule

For high-utilization production lines, keeping SP-series levers and related clinching components available can reduce repair delays.

Ordering Checklist

For faster and more accurate quotation, please provide:

For multiple spare-part requirements, customers can provide a complete parts list for consolidated identification and quotation.

FAQ

Q1: What is Panasonic N610099024AA?

N610099024AA is an SP3 Clinch Lever used as a mechanical spare part in compatible Panasonic RL131 and RL132 radial component insertion machines. It is associated with the clinching mechanism and is commonly required for maintenance, repair, or spare-parts inventory.

Q2: What does the SP3 Clinch Lever do?

The SP3 lever works within the mechanical clinching assembly and helps transfer movement during the lead-processing cycle after radial component leads pass through the PCB.

Q3: Is N610099024AA suitable for RL131 and RL132?

The N610099024AA lever is listed for RL131/RL132 spare-parts applications. Machine configuration should still be checked before purchase. Confirm the exact part number, SP3 position, existing component, and machine model.

Q4: Can SP3 and SP4 Clinch Levers replace each other?

They should not be assumed to be interchangeable. SP3 uses N610099024AA, while SP4 is associated with N610099491AA. Always purchase according to the exact part number and installation position.

Q5: What information should I provide for a quotation?

Please provide the N610099024AA part number, required quantity, RL131 or RL132 machine model, and delivery country or region. Photos of the original part and installation position are recommended when compatibility requires confirmation.

Contact Us for N610099024AA SP3 Clinch Lever

Looking for a Panasonic N610099024AA SP3 Clinch Lever for RL131 or RL132 AI Insertion Machine?

Please send us:

• Part number
• Machine model
• Required quantity
• Existing part photos
• Installation-position photos if available
• Delivery country or region
• Additional required spare-parts list

We can assist with part identification, compatibility checking, quotation, and related AI insertion machine spare-parts requirements.

For maintenance projects requiring SP1, SP2, SP3, SP4, cutters, blades, guides, anvils, or other clinching components, send the complete spare-parts list together for consolidated quotation and shipment planning.

Send your inquiry with part number N610099024AA and required quantity for a quotation.
