Panasonic N610082093AA SP2 Clinch Lever for RL131 RL132 AI Insertion Machine

Panasonic N610082093AA SP2 Clinch Lever for RL131 RL132 AI Insertion Machine

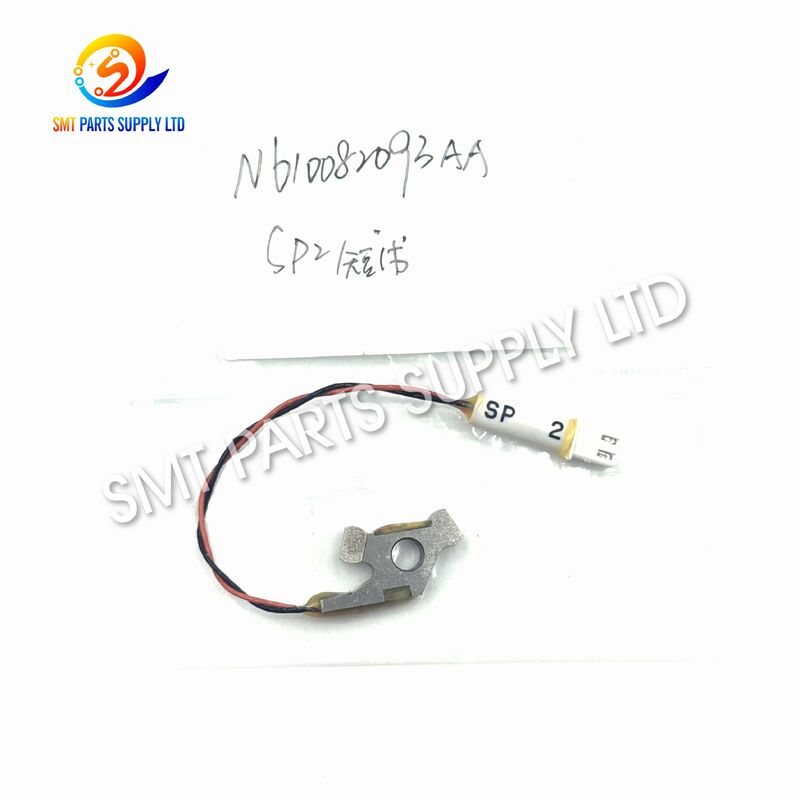

The Panasonic N610082093AA SP2 Clinch Lever is a mechanical spare part used in the clinching mechanism of Panasonic RL131 and RL132 radial component insertion equipment. During automatic insertion, radial component leads pass through the PCB and are subsequently processed by the lower clinching mechanism. The clinch lever participates in transferring mechanical movement within this assembly, helping the machine complete a stable and repeatable lead-clinching cycle.

Because the clinching system operates continuously during production, mechanical components such as levers, pins, guides, cutters, and related moving parts are exposed to repeated motion and contact. Long operating hours may gradually create wear or abnormal clearance.

Replacing a worn N610082093AA SP2 Clinch Lever can be an important part of preventive maintenance and machine repair.

For accurate purchasing, customers should confirm the part number, SP2 position, machine model, installation location, and appearance of the existing component before ordering.

Cause – Why the SP2 Clinch Lever May Require Replacement

Mechanical wear is normal in high-cycle insertion equipment. Even a relatively small part can affect the movement of the surrounding mechanism when its working surface or mounting area becomes worn.

Common reasons for inspecting or replacing the SP2 clinch lever include:

Typical maintenance symptoms may include unusual mechanical noise, excessive play, irregular movement, visible wear, or inconsistent operation of the clinching mechanism.

These symptoms do not always indicate that the lever itself is the only defective component. Maintenance personnel should inspect the complete local mechanism before determining the final replacement requirement.

Solution – Replace the Correct SP2 Clinch Lever

When inspection confirms wear or damage at the SP2 position, replacing the affected component with the correct N610082093AA Clinch Lever provides a targeted maintenance solution.

A correctly selected replacement helps maintenance teams:

• Restore proper mechanical movement.
• Reduce excessive clearance caused by worn components.
• Maintain consistent operation of the clinching mechanism.
• Support reliable radial component insertion.
• Avoid replacing a complete assembly when only one mechanical part requires service.
• Reduce unexpected production interruptions.
• Improve preventive maintenance planning.
• Maintain practical spare-parts inventory for production equipment.

Before installing a new lever, technicians should check the components that interact directly with it. Installing a new lever together with severely worn pins, shafts, guides, cutters, or other mechanical components may not fully correct the original problem.

Specifications

Key Identification Information

When requesting a quotation, use the complete reference:

Panasonic N610082093AA SP2 Clinch Lever

The exact part number is more reliable than ordering only by machine name or visual appearance.

Application

The N610082093AA SP2 Clinch Lever is primarily used for maintenance and repair of Panasonic RL-series radial component insertion equipment.

Typical Applications

PCB Through-Hole Assembly

Suitable for production environments using automated radial component insertion for through-hole PCB assembly.

RL131 Machine Maintenance

The lever can be used when servicing the corresponding SP2 clinching position on compatible RL131 configurations.

RL132 Machine Maintenance

Suitable for the corresponding clinching mechanism application where N610082093AA is specified.

Preventive Maintenance

Production facilities can keep the lever as a maintenance spare to replace worn parts during scheduled servicing.

Emergency Repair

Keeping critical clinching components in stock can reduce waiting time when mechanical wear causes machine downtime.

Typical Production Industries

This type of radial insertion equipment may be used in the manufacture of:

• Industrial control boards
• Consumer electronics
• Power supply assemblies
• Home appliance control boards
• Automotive electronics
• Communication equipment
• Power electronics
• Lighting control products
• General through-hole PCB assemblies

How It Works

During an automated radial component insertion cycle, the component is positioned and inserted through prepared holes in the printed circuit board.

A simplified production sequence is:

The SP2 clinch lever forms part of the mechanical system responsible for this repetitive movement.

Because the mechanism operates repeatedly during production, smooth movement and correct mechanical clearance are important. If the lever becomes excessively worn, bent, damaged, or loose, movement within the assembly may become less consistent.

The exact service procedure should follow the machine's maintenance requirements, and installation should be completed by qualified maintenance personnel.

SP-Series Clinch Lever Comparison

Several clinch lever positions can be used in related Panasonic insertion-machine clinching assemblies. Similar appearance does not mean the parts are interchangeable.

Always match the required SP position and exact part number before purchasing.

Do not replace an SP2 lever with SP1, SP3, or SP4 only because the components appear similar.

Maintenance Inspection Guide

Whenever the SP2 lever is inspected, checking nearby mechanical components can help identify the actual cause of abnormal operation.

Regular inspection can help detect mechanical deterioration before it develops into extended machine downtime.

How To Choose the Correct Clinch Lever

1. Confirm the Exact Part Number

The first identification point should be:

N610082093AA

Do not rely only on the words "clinch lever."

2. Confirm the Position

This listing is specifically for:

SP2

Other positions require their corresponding part numbers.

3. Confirm the Machine

Check whether the equipment is an applicable:

• Panasonic RL131
• Panasonic RL132

Machine configuration should still be verified because production equipment can have different revisions or previously replaced assemblies.

4. Compare the Existing Component

Compare the replacement with the removed part, including:

• Overall profile
• Mounting holes
• Contact surfaces
• Pivot location
• Installation direction
• Mechanical connection points

5. Send Photos for Verification

When compatibility is uncertain, provide clear photos of:

• Existing clinch lever
• Front and back sides
• Installation position
• Machine nameplate
• Any visible identification markings

Providing this information before shipment can significantly reduce the risk of ordering an incorrect part.

Why Keep N610082093AA in Spare Inventory

Small mechanical parts can create significant downtime when they are not immediately available.

For factories operating RL131 or RL132 equipment, maintaining selected clinching components in stock provides several advantages:

Recommended stock quantity depends on machine quantity, operating hours, historical consumption, production importance, and purchasing lead time.

Ordering Information

For faster part verification and quotation, please provide:

For multiple-item maintenance requirements, a complete spare-parts list can also be submitted for consolidated quotation.

FAQ

Q1: What is Panasonic N610082093AA?

N610082093AA is an SP2 Clinch Lever used as a mechanical spare part for compatible Panasonic RL131 and RL132 AI insertion equipment. It is associated with the machine's clinching mechanism and is normally replaced during maintenance when the original component becomes worn or damaged.

Q2: What does the SP2 Clinch Lever do?

The lever participates in transferring mechanical movement within the clinching assembly during radial component insertion. After component leads pass through the PCB, the lower mechanism performs the required lead-processing operation to help retain the inserted component.

Q3: Is N610082093AA suitable for both RL131 and RL132?

N610082093AA is listed for RL131/RL132 machine applications. However, machine configurations and installed assemblies should be checked before ordering. Confirm the exact part number, SP2 position, machine model, and existing component whenever possible.

Q4: Are SP1, SP2, SP3 and SP4 clinch levers interchangeable?

They should not be assumed to be interchangeable. Different SP positions use different part references. For SP2, confirm N610082093AA rather than selecting a replacement only according to appearance.

Q5: What should I send when requesting a quotation?

Please provide the N610082093AA part number, required quantity, RL131 or RL132 machine model, and delivery destination. Clear photos of the original component are recommended when compatibility needs additional verification.

Contact Us for N610082093AA SP2 Clinch Lever

Looking for a Panasonic N610082093AA SP2 Clinch Lever for RL131 or RL132 AI Insertion Machine?

Send us your part requirement with:

• Part number
• Machine model
• Required quantity
• Existing part photos
• Installation-position photos if available
• Delivery country or region

We can assist with part identification, compatibility checking, quotation, and related AI insertion machine spare-parts requirements.

For maintenance projects requiring multiple components, send your complete spare-parts list. Combining related mechanical parts into one inquiry can simplify purchasing, compatibility checking, packing, and shipment planning.

Send your inquiry with part number N610082093AA and required quantity for a quotation.
