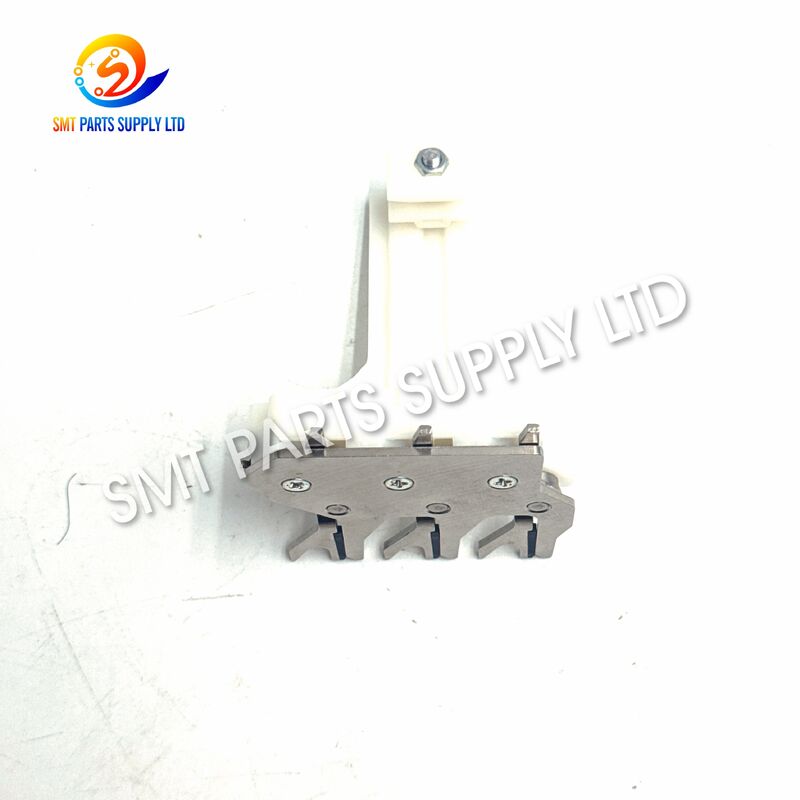

The Panasonic MTKA053944AB X01A3700102 Pallet Unit is a machine-specific mechanical spare part for compatible RHS2B automatic insertion equipment. It is mainly used in the machine’s transfer and positioning mechanism to support stable movement during production.

This pallet unit is suitable for machine maintenance, damaged pallet replacement, equipment refurbishment, and preventive spare-parts inventory. When the original pallet becomes worn, deformed, loose, or damaged after long-term operation, replacing it with the correctly matched component can help restore reliable mechanical movement and reduce unexpected downtime.

For accurate purchasing, customers are recommended to confirm MTKA053944AB, X01A3700102, the machine model, quantity, and existing-part photos before ordering.

Automatic insertion machines operate through repeated mechanical cycles. Over long production periods, pallet components may gradually develop wear or damage.

Typical causes include:

• Long-term mechanical contact and surface wear.
• Continuous operation in high-volume production.
• Misalignment of related transfer components.
• Collision or mechanical interference.
• Dust, grease, and production contamination.
• Loose mounting or damaged neighboring parts.
• Incorrect installation during previous maintenance.

Common symptoms may include unstable transfer movement, abnormal mechanical noise, excessive clearance, poor positioning, visible deformation, or repeated interference.

When inspection confirms that the existing pallet is damaged or no longer suitable for stable operation, the correct replacement should be selected according to the original machine and part number.

For this product, the main references are:

Model: MTKA053944AB
Part Number: X01A3700102
Product Type: Pallet Unit
Reference Machine: RHS2B
Category: AI Automatic Insertion Machine Spare Parts

Before replacement, technicians should also inspect surrounding mechanical components. If the original pallet was damaged by misalignment or collision, replacing only the pallet without correcting the root cause may result in repeated failure.

Components within the same machine assembly may look similar but perform different functions. Always confirm the exact part number before ordering.

The MTKA053944AB X01A3700102 Pallet Unit is suitable for several industrial maintenance applications.

Used during routine maintenance when the existing pallet shows mechanical wear, damage, or positioning problems.

Suitable for restoring machine operation after pallet damage, mechanical interference, or replacement requirements.

Factories operating RHS2B equipment can keep this part in inventory to reduce waiting time during emergency maintenance.

Suitable for servicing or rebuilding used automatic insertion machines before they return to production.

Ideal for electronics manufacturers, EMS factories, service companies, maintenance departments, and industrial spare-parts distributors.

The pallet unit operates as part of the machine’s mechanical transfer system.

During production:

1. The machine begins its programmed operating cycle.
2. The transfer mechanism moves according to the required sequence.
3. The pallet provides a defined mechanical positioning surface.
4. Related blocks, chucks, pins, guides, and other components operate together.
5. The transfer process is completed before the next production cycle begins.

Correct pallet geometry and installation are important because excessive wear or deformation can affect smooth movement and repeatability.

Machine-specific mechanical parts should not be selected only by appearance.

Different versions can vary in:

• Mounting positions.
• Locating surfaces.
• Hole patterns.
• Mechanical clearances.
• Related transfer components.
• Machine revisions.

The recommended purchasing identification is:

MTKA053944AB + X01A3700102 + RHS2B + Existing Product Photos

Providing this information can improve quotation accuracy and reduce the risk of ordering an incorrect component.

Check whether the required component is X01A3700102.

Confirm MTKA053944AB using your machine documentation, maintenance records, or existing component information.

Verify whether the component is required for your RHS2B automatic insertion machine.

Clear photos of the existing pallet are strongly recommended, including:

• Front view.
• Rear view.
• Mounting area.
• Side profile.
• Part number.
• Installation position.

Check nearby blocks, pins, chucks, guides, sensors, and mounting components if mechanical interference has occurred.

Specify your required quantity and preferred product condition when requesting a quotation.

Regular inspection can help identify pallet problems before they cause major machine downtime.

Check for:

• Visible deformation.
• Cracks.
• Excessive wear.
• Damaged mounting areas.
• Abnormal mechanical clearance.
• Foreign material.
• Unusual contact marks.

Keep the transfer section clean and inspect surrounding components after any machine collision or mechanical interference.

Avoid uncontrolled grinding, bending, or drilling of precision machine components because modifications may change the required geometry.

It is a pallet unit used for compatible RHS2B automatic insertion equipment, supporting mechanical transfer and positioning during normal machine operation.

No. It is classified as an AI Automatic Insertion Machine Spare Part, specifically a mechanical pallet component rather than a feeder or nozzle.

Please provide the part number X01A3700102, MTKA053944AB model reference, machine model, required quantity, and clear photographs of your existing component.

Replacement should be considered when the pallet shows serious wear, deformation, damaged locating surfaces, cracks, excessive mechanical clearance, or repeated interference.

Yes. If pallet damage resulted from misalignment or collision, surrounding blocks, chucks, pins, guides, sensors, and mounting components should also be checked.

Looking for MTKA053944AB X01A3700102 Pallet Unit for your RHS2B automatic insertion machine?

Please provide your part number, machine model, required quantity, product condition, and existing-part photos for faster verification.

Contact us for stock availability, quotation, compatibility confirmation, packaging, and delivery information.
