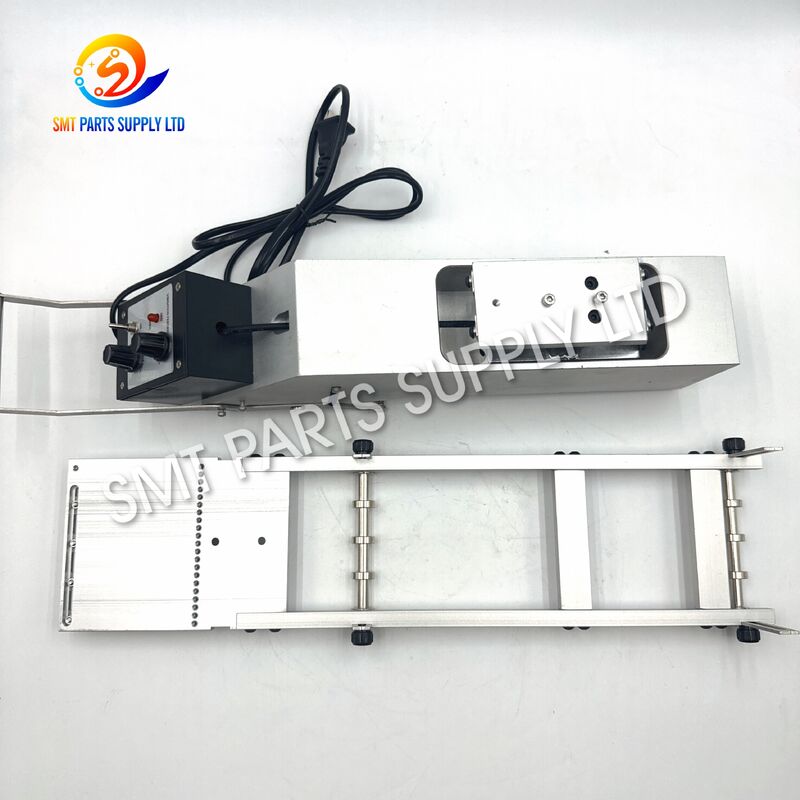

JUKI RS-1 Compatible Four-Line Vibratory Stick Feeder with Adjustable Vibration for SMT Tube Feeding

The JUKI RS-1 Compatible Four-Line Vibratory Stick Feeder is designed to present electronic components supplied in rigid tubes or stick magazines to the pickup position of compatible SMT placement equipment. Through controlled vibration, components move gradually from the storage tube toward a repeatable collection point, allowing the placement head to pick and mount them onto printed circuit boards.

The four-line configuration provides flexible production capacity for one or several component references. It is particularly useful for prototype assembly, engineering trials, high-mix production, short manufacturing runs, repair work, and components that are unavailable or uneconomical in tape-and-reel packaging.

Manufactured with a rigid metal structure and adjustable tube-support components, the feeder is designed for practical installation, convenient operation, and stable component movement. Machine model, mounting interface, connector, voltage, tube dimensions, and component package must be confirmed before ordering to ensure the correct configuration.

Many integrated circuits, connectors, relays, modules, and other electronic components are supplied in rigid plastic tubes. Tube packaging protects components during transportation and storage while maintaining a consistent component orientation. However, it may create difficulties when the parts need to be processed by automated placement equipment.

Without a suitable stick feeder, operators may need to remove components manually and transfer them into trays, temporary carriers, or other feeding devices. This process increases labor requirements and may interrupt normal SMT line operation.

Repacking tube components into carrier tape can require specialized equipment, suitable cover tape, reels, inspection procedures, and additional processing time. For prototype orders or small production quantities, the conversion cost may be higher than the value of the components.

Components do not always slide smoothly through a tube by gravity alone. Movement can be affected by:

• Component body dimensions.
• Component weight.
• Tube surface condition.
• Static electricity.
• Packaging deformation.
• Tube inclination.
• Lead configuration.
• Dust or foreign particles.
• Friction between the component and tube.
• Inconsistent tube manufacturing tolerance.

High-mix electronics manufacturers may process many PCB models during one production shift. When components are supplied in different packaging formats, operators require a feeding solution that can be adjusted and loaded without lengthy preparation.

If a tube is not properly supported, the component may rotate, tilt, overlap, or stop before reaching the pickup position. An unstable presentation point may cause nozzle pickup errors, component loss, machine alarms, and reduced placement efficiency.

Repeated manual transfer may increase the possibility of:

• Incorrect component orientation.
• Bent or damaged leads.
• Contamination on the pickup surface.
• Electrostatic discharge.
• Mixed component batches.
• Missing traceability information.
• Component body scratches.
• Moisture-sensitive device exposure.

The RS-1 compatible vibratory stick feeder provides controlled linear movement for components supplied in suitable tubes or stick magazines. Instead of relying entirely on gravity, the feeder generates adjustable vibration that helps components move toward the machine pickup point.

The vibration mechanism applies repeated low-amplitude movement to the tube-support structure. This movement helps overcome static friction between the component and the internal tube surface.

The vibration intensity can be adjusted according to the component package, tube condition, weight, and feeding behavior. A correct setting allows components to move consistently without excessive bouncing, collision, or rotation.

The four-line structure can be arranged according to the production requirement.

The feeder allows suitable components to remain in their original rigid tubes until they are required for placement. This reduces unnecessary repackaging and supports efficient use of existing component inventory.

The tube guides, support position, vibration level, and component discharge area can be adjusted according to the selected configuration. Proper adjustment helps maintain:

• Stable tube positioning.
• Correct component direction.
• Smooth forward movement.
• Repeatable pickup height.
• Consistent component presentation.
• Reduced operator intervention.
• Faster production changeover.
• Lower risk of package damage.

This feeder is especially suitable for factories producing multiple PCB models, small engineering batches, repair boards, pilot orders, or electronic products requiring components that are commonly supplied in tubes.

Exact electrical and mechanical specifications may vary according to the supplied version. Buyers should confirm the following information before ordering:

The four-line configuration is suitable for buyers who require more flexible production planning. Several tubes can be loaded simultaneously, reducing the frequency of manual replacement. Different component references may also be assigned to separate lines when the equipment setup, pickup program, and tube dimensions are suitable.

The additional lines can be used as backup feeding channels during longer production runs. This helps operators prepare replacement tubes in advance and reduces unnecessary interruption when an active tube becomes empty.

The feeder can support compatible tube-packed components used in household electronics, smart devices, entertainment equipment, display products, chargers, controllers, and communication accessories.

Suitable for the manufacture of programmable controllers, sensor modules, power-control boards, motor-control units, automation products, and industrial communication equipment.

The feeder may be used for compatible components in automotive control boards, lighting modules, monitoring systems, and electronic accessories when the production process meets the manufacturer’s quality and traceability requirements.

Applicable to the placement of suitable integrated circuits and electronic modules used in network devices, communication systems, signal-processing equipment, and wireless products.

The feeder can support controlled PCB manufacturing for medical electronic products when compatibility, process validation, cleanliness, ESD control, and production records meet the factory’s requirements.

Suitable for tube-packed driver ICs, control devices, power-management components, and related parts used in LED drivers, smart lighting products, and industrial lighting equipment.

An effective option for new product introduction, engineering verification, sample production, circuit testing, and low-quantity component placement.

The four feeding lines help contract manufacturers manage several component references without preparing a dedicated tape reel for every short production order.

Repair facilities can use tube-packed replacement components while reducing manual presentation at the placement position.

Suitable for universities, development centers, testing laboratories, automation integrators, and electronic product design companies.

Not every tube or component package can be supported by one standard configuration. The buyer should provide clear dimensional information and, when possible, a sample tube or component drawing for evaluation.

Before loading, verify the component part number, tube dimensions, pin-one direction, package orientation, and required pickup surface.

Place the feeder in the designated mounting position. Secure the mechanical locking structure or mounting hardware according to the approved machine configuration.

Insert the tube into the selected feeding line. The tube must be straight, clean, and oriented toward the pickup point.

Set the guide spacing and tube-support position. The tube should remain secure without being compressed or distorted.

Connect the feeder only to the approved power source. The feeder voltage, connector, and polarity must match the supplied configuration.

Activate the feeder at a low vibration setting. Observe whether the components begin moving smoothly through the tube.

Increase vibration only when required. Excessive vibration may cause component bouncing, rotation, collision, or unstable pickup presentation.

Adjust the feeder output, guide position, and machine pickup coordinates so the leading component arrives at a repeatable location.

Run several low-speed pickup tests. Confirm nozzle alignment, component stability, vacuum pickup, package orientation, and safe clearance.

After the feeding and pickup process has been approved, record the final setup for future production changeovers.

Provide the machine brand, complete model, production version, and serial number whenever available. Similar machine names do not always guarantee identical mounting or electrical interfaces.

Send clear photographs of the feeder bank, mounting bracket, connector, locking mechanism, and surrounding machine structure.

Check the voltage label and connector before ordering. Never connect a feeder to an unverified power source.

Provide the following tube measurements:

• Total tube length.
• Outer tube width.
• Outer tube height.
• Internal component channel.
• Outlet shape.
• Wall thickness.
• Component loading direction.

A package drawing or data sheet helps evaluate:

• Component body dimensions.
• Lead dimensions.
• Component weight.
• Pickup surface.
• Pin-one position.
• Required nozzle.
• Component orientation.
• Handling precautions.

Choose the four-line configuration when you require several active tubes, multiple component references, longer production time, or prepared backup channels.

For extremely high-volume production, tape-and-reel packaging may offer a higher level of automation. For small batches, mixed production, and existing tube inventory, a vibratory stick feeder may provide a more economical solution.

This product is offered as a compatible replacement unless the quotation clearly states original-manufacturer supply. Buyers requiring original parts should request documented original status before ordering.

The correct setting should move components continuously without causing bouncing, rotation, overlapping, or excessive impact.

Do not use tubes that are cracked, bent, heavily scratched, contaminated, or dimensionally deformed.

Remove packaging fragments, dust, and component debris regularly. Foreign material can increase friction and interrupt component travel.

Confirm pin-one direction and component discharge direction before starting production. Incorrect loading may produce placement errors across an entire PCB batch.

Guides should not contact exposed leads with excessive pressure. Stop operation immediately if lead deformation or scratching is observed.

Use approved grounding, antistatic workstations, ESD clothing, and suitable component-handling procedures according to the factory standard.

For every component, record:

• Component part number.
• Tube supplier and dimensions.
• Feeding line.
• Guide position.
• Vibration setting.
• Pickup coordinates.
• Pickup height.
• Nozzle model.
• Component orientation.
• Trial-production result.

• Check feeder mounting.
• Confirm stable vibration.
• Inspect the active tubes.
• Verify component orientation.
• Clean the pickup area.
• Check cable routing.
• Observe feeding stability.

• Clean all feeding lines.
• Check guide alignment.
• Inspect fasteners.
• Test each line separately.
• Check the connector.
• Review pickup-error records.

• Evaluate vibration consistency.
• Inspect wear surfaces.
• Test the controller.
• Check mounting accuracy.
• Replace damaged cables or guides.
• Perform feeding validation after maintenance.

Each feeder should be inspected before shipment according to the agreed product configuration.

1. The feeder is visually inspected and cleaned.
2. Adjustable parts are secured.
3. The cable and connector are protected.
4. The feeder is wrapped with cushioning material.
5. Foam protection is added around critical areas.
6. The product is placed in a strong export carton.
7. Empty space is filled to reduce movement.
8. The carton is sealed and labeled.
9. Reinforced or wooden packing can be arranged when necessary.

This listing describes a new compatible vibratory stick feeder unless original-manufacturer status is specifically confirmed in the quotation. Buyers requiring original parts should request documentation before placing an order.

The feeder is intended for RS-1-compatible applications, but the mounting position, connector, voltage, machine version, and control interface must be checked before shipment. Direct compatibility should not be assumed without verification.

Four different components may be loaded when their tubes, pickup positions, machine programs, and production setup are suitable. Every component must be tested independently before normal production begins.

No standard feeder should be considered suitable for every tube. Tube width, height, outlet profile, component dimensions, lead structure, weight, and pickup orientation must be confirmed before ordering.

Please provide the machine model, existing feeder photographs, mounting position, voltage, connector, tube dimensions, component part number, package drawing, required number of lines, purchase quantity, and delivery destination.

Contact our sales team for price, configuration confirmation, lead time, packaging details, and international shipping arrangements.

To obtain an accurate recommendation, please send:

• Machine brand and complete model.
• Machine serial number.
• Existing feeder model and label.
• Clear photographs of the existing feeder.
• Mounting-position photographs.
• Power connector photograph.
• Required operating voltage.
• Component-tube dimensions.
• Tube and component photographs.
• Component manufacturer and part number.
• Package drawing or technical data sheet.
• Required feeding-line configuration.
• Required purchase quantity.
• Delivery country and postal code.
• Original or compatible product requirement.

Our team supports SMT factories, electronics manufacturers, equipment dealers, maintenance companies, engineering laboratories, and automation integrators in Europe, North America, and Southeast Asia.
