YAMAHA KHJ-MC400-011 SS24mm Electric Feeder for YS24 YSM10 YSM20

YAMAHA KHJ-MC400-011 SS24mm Electric Feeder for YS24 YSM10 YSM20

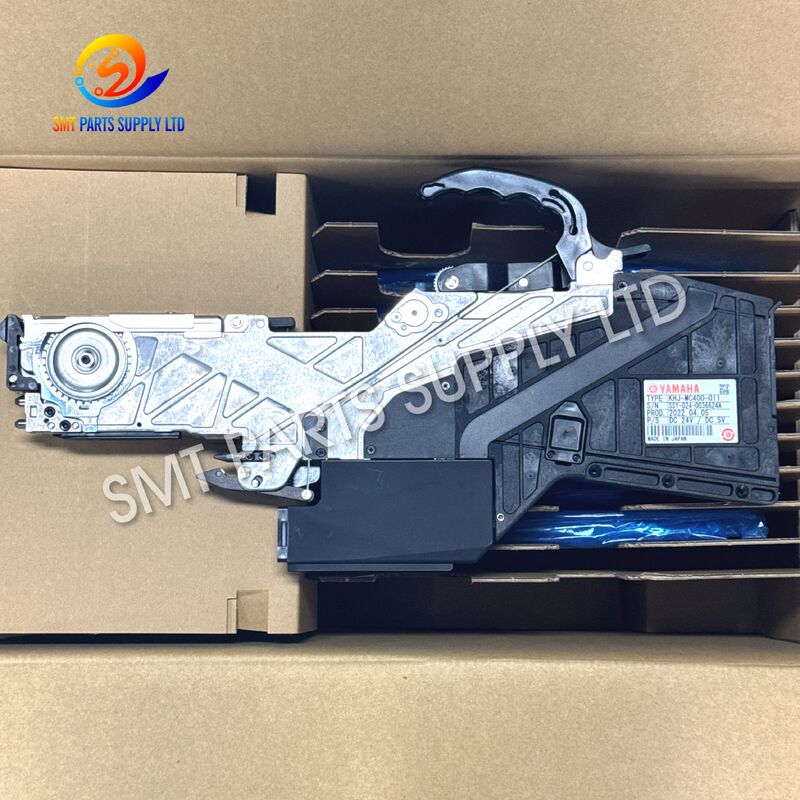

The KHJ-MC400-011 SS 24mm electric feeder supplies tape-packaged electronic components to compatible SMT placement machines. It advances the carrier tape, exposes component pockets through the cover tape handling path, and positions components for collection by the placement nozzle. Its role is component presentation within the assembly process.

This feeder is intended for sourcing requirements involving YAMAHA YS24, YSM10, and YSM20 machines, subject to verification of the installed feeder configuration. The complete part number, tape specification, and machine interface should be checked together before purchase.

For maintenance teams, a correctly matched feeder provides a replacement option when an existing unit develops confirmed feeding faults. For production planners, additional feeders can support reel preparation and spare inventory. The 24mm designation refers to carrier tape width; pocket pitch, component dimensions, and tape depth remain separate selection factors. Accurate identification helps buyers obtain a relevant quotation and prepare for installation with fewer uncertainties.

Cause: Why Tape Feeding Problems Affect Assembly

Reliable component pickup begins with consistent tape presentation. When pockets stop in the wrong position or cover tape does not peel correctly, the machine may experience missed pickups, repeated retries, or interruptions requiring operator attention.

Possible causes include worn indexing components, damaged tape guides, unsuitable settings, and excessive reel resistance. However, similar symptoms can also originate from the nozzle, vacuum system, or component data. Diagnose the source before deciding that feeder replacement is necessary.

Solution: Match the Replacement to the Actual Setup

The KHJ-MC400-011 provides a specific purchasing reference for an SS24mm feeder requirement. Start with the label of the existing unit, then compare the machine configuration and the material used in production.

For a confirmed feeder fault, a suitable replacement can restore the required component supply function. For an additional production setup, check feeder capacity, available mounting positions, and the intended component reel before ordering.

A clear inquiry should connect the requested part number with its practical application. This allows purchasing and engineering teams to evaluate the same specification.

Specifications

Understanding Tape Width and Feed Pitch

The 24mm specification does not describe the distance between components. Carrier tape width and pocket pitch are different measurements, and both affect feeder selection or setup.

Tape depth and cover tape characteristics also influence component presentation. Provide a packaging drawing when introducing a new component, especially when its reel differs from materials already qualified on the line.

Application

This SS24mm feeder is relevant to SMT assembly jobs using compatible 24mm component tape. Potential applications include control boards, communication equipment, power electronics, and consumer products.

Selection depends on the individual packaging specification rather than the industry name. Components such as connectors or integrated circuits may be suitable when their tape geometry and pickup requirements match the complete machine setup.

How It Works

The carrier tape follows the feeder's guided path and engages with the indexing mechanism. Electric drive advances it according to the configured feeding sequence, bringing successive pockets to the pickup area.

The cover tape separates along its intended route so that the component is accessible. The machine nozzle then collects the exposed component and transfers it into the placement sequence.

Correct loading and suitable settings are essential. Excessive reel drag, damaged tape, or incorrect pocket pitch can affect operation even when the feeder is mechanically functional.

How To Choose

Confirm the Complete Identification

Use KHJ-MC400-011 in the inquiry and include a readable label photograph. Do not assume that another KHJ-MC400 suffix is interchangeable solely because it has the same nominal width.

Check the Intended Machine

State whether the feeder will be used on YS24, YSM10, or YSM20 equipment. Include interface photographs when the installed configuration is uncertain or has been modified.

Review the Component Packaging

Confirm 24mm tape width, pocket pitch, and tape depth. For a new application, provide the component packaging drawing and relevant production requirements.

Define Condition and Supply Scope

Specify the required condition and identify any accessories needed. Ask for the offered unit's photographs and confirm what is included in the price.

Agree on Verification

Where required, request machine recognition and a feeding demonstration with representative material. A useful test record identifies the unit and explains the conditions under which it was checked.

Receiving and Production Preparation

On receipt, compare the supplied label and accessories with the order. Inspect the connector, tape guide, mounting surfaces, and locking mechanism for visible damage.

Follow the applicable machine and feeder procedures for installation. Confirm recognition and sample feeding, then complete a controlled trial with the intended component before normal production release. Record the result so the unit's status is clear for future use.

FAQ

Q1: Does 24mm indicate the maximum component width?

No. It identifies the nominal carrier tape width. Component dimensions must fit the tape pocket and remain compatible with the feeder path, nozzle, and placement machine. Use the packaging drawing to evaluate the application.

Q2: Can this feeder be ordered for YS24, YSM10, or YSM20?

These are the target machine references for this product. Provide your machine details and existing feeder identification before purchase so the offered unit can be reviewed against the installed configuration.

Q3: Can a different suffix replace KHJ-MC400-011?

A different suffix requires individual verification. Compare the label, configuration, and relevant technical documentation. Similar appearance and matching tape width do not establish that two feeder versions are interchangeable.

Q4: Will replacing the feeder solve every pickup problem?

Replacement addresses problems caused by a faulty feeder. Pickup failures may also involve the nozzle, vacuum, tape condition, or machine settings. Diagnose the problem and validate the full setup after replacement.

Q5: What should be included in a quotation request?

Send the part number, quantity, machine model, preferred condition, and destination. Add a feeder label photograph, required delivery date, and any inspection requirements to help establish a clear and comparable offer.

Contact Us

Request a Quotation for KHJ-MC400-011

Need an SS24mm feeder for replacement, spare inventory, or another production setup? Share your equipment details and purchasing requirements to request pricing, availability, and supply options.

Send your feeder label and required quantity to begin your quotation request.
