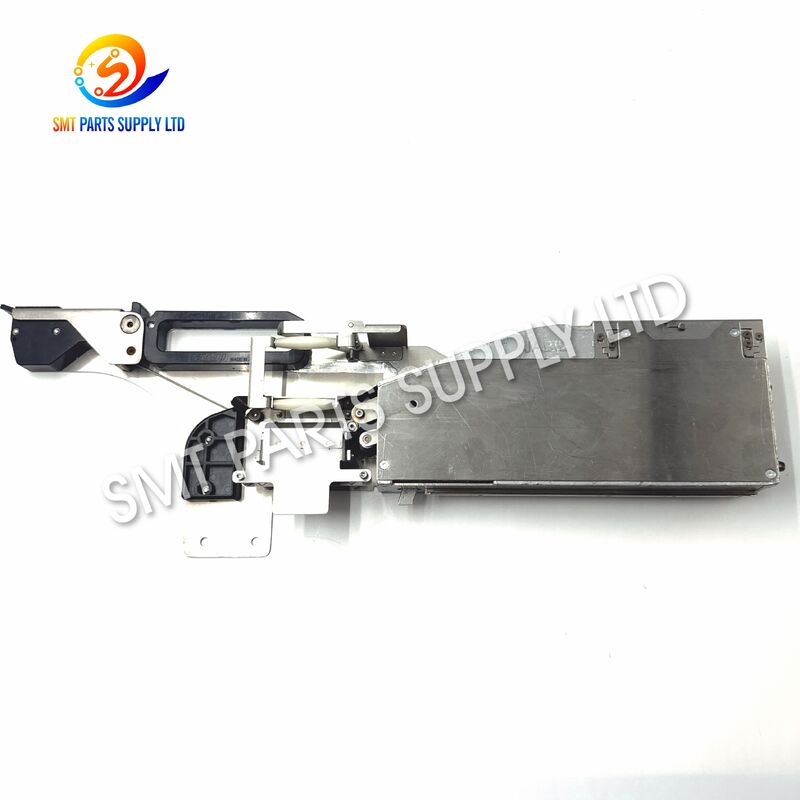

FUJI AA84525 W44 44mm SMT Feeder for NXT I Mounter SMT Machine

FUJI AA84525 W44 44mm SMT Feeder for NXT I Mounter SMT Machine

The FUJI AA84525 W44 44mm SMT Feeder is a dedicated tape-feeding unit designed for compatible NXT I SMT placement machines. Identified by the AA84525 part number and W44 feeder model, it is intended for electronic components supplied in 44mm carrier tape.

During SMT production, the feeder advances carrier tape at controlled intervals and presents each component to the designated pickup position. This allows the placement head to collect components continuously and transfer them onto printed circuit boards according to the programmed production sequence.

Reliable feeding is essential for maintaining stable placement cycles. A correctly selected and properly maintained W44 feeder can help minimize tape movement irregularities, material supply interruptions, and feeder-related production delays.

The AA84525 is suitable for SMT factories, equipment maintenance departments, feeder replacement programs, production expansion, and spare-parts inventory where NXT I equipment is used.

Cause

Why SMT Feeder Performance Can Decline

An SMT tape feeder operates repeatedly during every production cycle. Continuous mechanical movement, carrier-tape friction, cover-tape handling, dust, adhesive residue, and long operating hours can gradually affect feeding performance.

Typical problems may include:

Feeder problems should be evaluated together with carrier-tape quality, machine setup, component packaging, and feeder maintenance condition.

Incorrect Feeder Width Selection

One common source of feeding problems is selecting a feeder based only on component size.

The correct feeder should primarily match the carrier-tape width, not only the physical dimensions of the electronic component.

The AA84525 W44 is designed for 44mm carrier tape.

Before replacing an existing feeder, confirm:

• Feeder model
• Feeder part number
• Carrier-tape width
• Machine series
• Component packaging
• Tape pitch
• Existing feeder label
• Production configuration

Correct identification helps avoid purchasing a feeder that cannot properly handle the required tape.

Solution

AA84525 W44 for Stable 44mm Tape Feeding

The AA84525 W44 feeder provides a dedicated feeding solution for components supplied in 44mm carrier tape on compatible NXT I placement systems.

Its primary function is to move material from the reel toward the pickup position in a controlled and repeatable sequence.

A properly configured feeder supports:

• Stable carrier-tape advancement
• Consistent component presentation
• Smooth production cycles
• Accurate material positioning
• Efficient feeder preparation
• Reduced unnecessary feeder replacement
• Easier production changeover
• Organized feeder inventory management

For factories operating multiple feeder widths, clear identification through AA84525, W44, and 44mm helps maintenance and production teams manage spare feeders efficiently.

Replacement and Spare Feeder Applications

The AA84525 W44 can be used as an operational replacement when an existing compatible feeder requires inspection, maintenance, or repair.

Maintaining spare feeders is especially useful in production environments with:

A ready-to-use compatible feeder can help reduce downtime when the production feeder needs maintenance.

Specifications

Main Technical Information

Key Selection Information

Same-Series Feeder Comparison

Different component tapes require different feeder widths.

The AA84525 W44 should be selected when the actual component packaging requires a compatible 44mm tape feeder.

A narrower or wider feeder should not be substituted only because the component itself appears similar in size.

Application

PCB Assembly Production

The feeder supplies tape-packaged electronic components before automatic placement onto printed circuit boards.

Suitable production fields include:

• Automotive electronics
• Industrial control systems
• Consumer electronics
• Communication equipment
• Power electronics
• Medical electronics
• LED products
• Computer hardware
• Electronic modules
• Contract manufacturing

Production Line Maintenance

Maintenance departments can use the W44 feeder as a replacement for an existing compatible unit requiring service.

This helps factories maintain production continuity while the original feeder is being inspected.

Feeder Spare Inventory

Factories operating multiple NXT I machines may maintain spare feeders according to tape width.

A clearly labeled W44 spare can simplify:

• Production planning
• Emergency replacement
• Feeder allocation
• Maintenance scheduling
• Material changeovers
• Warehouse management

How It Works

Step 1: Component Reel Preparation

The operator selects the required component reel according to the production material list.

The carrier tape should be confirmed as 44mm before installation into the W44 feeder.

Step 2: Carrier Tape Loading

The carrier tape is installed through the feeder's designed tape path.

Correct loading helps maintain stable alignment and prevents unnecessary resistance during feeding.

Step 3: Cover Tape Routing

The cover tape is separated from the carrier tape near the pickup area.

Correct routing is important because improper peeling can affect component exposure.

Step 4: Tape Advancement

During machine operation, the feeder moves the carrier tape forward according to the production sequence.

Each feeding cycle positions the next component pocket for pickup.

Step 5: Component Presentation

The component arrives at the feeder pickup position.

Stable positioning is important because the placement head must collect the component repeatedly from a predictable location.

Step 6: Component Pickup

The placement head removes the component from the exposed tape pocket.

The machine then transfers the component to the programmed PCB mounting position.

Step 7: Continuous Feeding

The feeder repeats the process throughout the production run.

The typical cycle is:

Tape Advance → Cover Tape Separation → Component Presentation → Pickup → Next Feed

Reliable repetition of this sequence supports efficient SMT production.

How To Choose

1. Check the Part Number

Confirm that the required feeder part number is:

AA84525

Part-number verification is more reliable than selecting a feeder only by appearance.

2. Confirm the Feeder Model

The feeder model should be:

W44

The model identifies the feeder-width category.

3. Verify the Tape Width

The feeder is intended for:

44mm carrier tape

Always verify the tape packaging specification used by the actual component.

4. Confirm the Machine Series

This feeder is associated with the NXT I feeder series.

Feeder generations may have similar width descriptions but different structures or part numbers. The exact machine series should therefore be confirmed before ordering.

5. Compare the Existing Feeder Label

For replacement applications, provide a photo of the existing feeder label whenever possible.

Recommended information includes:

This helps reduce ordering errors.

6. Consider Production Requirements

The feeder can be selected for different purchasing purposes:

• Immediate replacement
• Spare feeder inventory
• Production expansion
• Maintenance backup
• Product changeover preparation
• Equipment refurbishment

Knowing the intended application helps determine the required quantity and condition.

Maintenance Recommendations

Proper feeder care helps maintain stable feeding performance.

Routine Cleaning

Remove dust, tape particles, and adhesive residue from the tape path and moving areas.

Mechanical Inspection

Check for abnormal movement, deformation, looseness, or excessive wear.

Tape Path Inspection

Make sure carrier tape moves smoothly without unnecessary resistance.

Correct Storage

Feeders not in use should be stored in a clean environment and protected from impact.

Identification Management

Organize feeder inventory by:

• Model
• Part number
• Tape width
• Machine series
• Maintenance status

This can simplify production preparation and spare-feeder control.

Common Questions During Feeder Inspection

Troubleshooting should consider the feeder, component tape, and machine settings together.

FAQ

Q1: What is the AA84525 W44 feeder used for?

The AA84525 W44 is used to supply components packaged in 44mm carrier tape to compatible NXT I SMT placement equipment. It advances the tape and presents each component for automatic pickup.

Q2: Can a W32 feeder replace the W44?

No direct substitution should be made based only on machine type. W32 and W44 feeders are designed for different carrier-tape widths. The actual component packaging must match the feeder specification.

Q3: What information is needed before ordering?

Please confirm the part number, feeder model, machine series, tape width, required quantity, and condition requirement. A clear photo of the existing feeder label is recommended.

Q4: Is AA84525 suitable for spare inventory?

Yes. A compatible W44 feeder can be maintained as a production spare, allowing faster replacement when an operating feeder requires maintenance or inspection.

Q5: What should be checked before installation?

Inspect the feeder body, tape path, moving mechanism, identification label, carrier tape, and installation condition. The feeder should be verified before full production operation.

Contact Us

Looking for an AA84525 W44 44mm SMT feeder for your NXT I production line?

Please send us the following information for faster confirmation:

• Required part number
• Feeder model
• Tape width
• Machine series
• Required quantity
• Required condition
• Destination country
• Existing feeder label photo, if available

Our team can help confirm the requested feeder specification and provide price, availability, packing, and delivery information.

Send your inquiry today for a quotation and compatibility confirmation.
