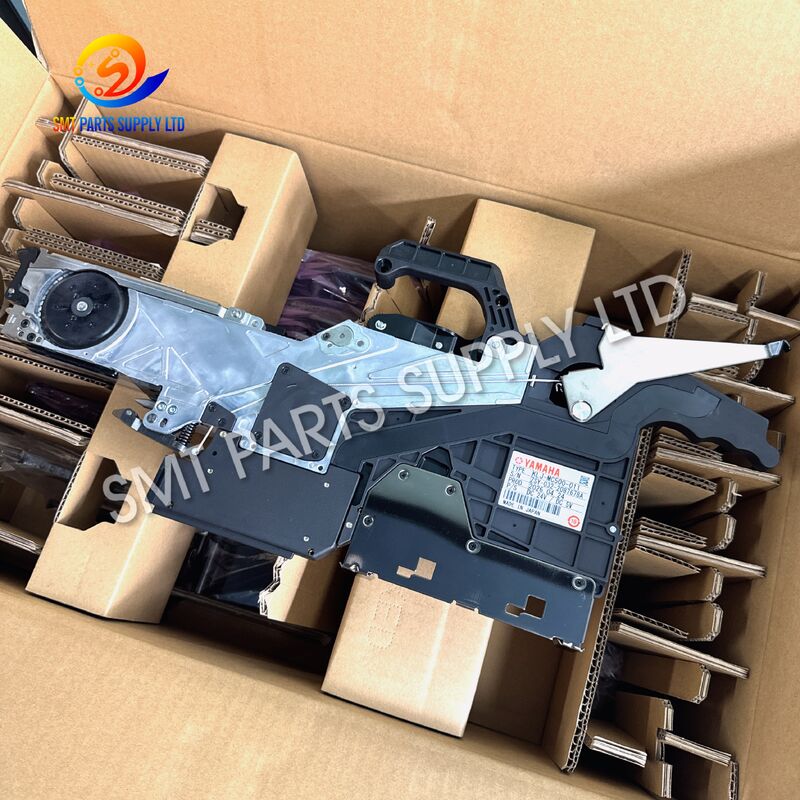

YAMAHA KLJ-MC500-011 ZS 32mm Electric Feeder for YSM SMT Machines

YAMAHA KLJ-MC500-011 ZS 32mm Electric Feeder is a high-precision SMT feeder designed for automatic component feeding applications in PCB assembly production. It is developed for YAMAHA YS and YSM series placement machines, including YS12, YS24, YS100, YSM10, YSM20 and YSM40R models.

As a key component of SMT placement systems, the electric feeder ensures stable and accurate delivery of tape-packaged electronic components to the placement head. The reliable feeding mechanism helps maintain consistent component pickup performance, improve production efficiency and reduce feeding-related machine interruptions.

This ZS 32mm feeder is widely used by electronics manufacturers, SMT factories and equipment maintenance companies requiring dependable replacement solutions for YAMAHA placement machines.

Cause

Why High-Quality SMT Feeders Are Important

In modern electronics manufacturing, SMT placement machines require continuous and accurate component supply. The feeder directly affects placement accuracy, production speed and machine stability.

During long-term operation, original feeders may experience:

A damaged or unstable feeder may cause incorrect component positioning, missed pickups or production interruptions. Therefore, selecting a reliable replacement feeder is important for maintaining stable SMT production.

YAMAHA KLJ-MC500-011 ZS 32mm Electric Feeder provides a practical solution for replacing worn feeders and improving SMT production stability.

Solution

Reliable Feeding Solution for YAMAHA SMT Machines

YAMAHA KLJ-MC500-011 electric feeder is designed to provide smooth and accurate component feeding for automatic placement systems.

Stable Component Feeding

The precision feeding mechanism ensures that electronic components are delivered to the correct pickup position, helping the placement head achieve stable component absorption.

Improved Production Efficiency

Reliable feeding reduces machine stops caused by component supply problems and supports continuous SMT production.

Easy Replacement

The feeder is designed according to YAMAHA SMT equipment requirements, making replacement and maintenance more convenient.

Cost-Effective Maintenance

Using a compatible replacement feeder helps factories reduce downtime and maintain production capacity without replacing complete equipment.

Specifications

Compatible Machine Models

Application

Wide Application in PCB Assembly Industry

YAMAHA KLJ-MC500-011 ZS 32mm Electric Feeder is suitable for various SMT manufacturing environments.

1. Consumer Electronics Production

Used for PCB assembly of:

• Smart electronic products
• Digital devices
• Consumer appliances
• Electronic modules

2. Automotive Electronics

Suitable for:

• Vehicle control boards
• Automotive electronic systems
• Sensor modules

3. Industrial Electronics

Applied in:

• Industrial controllers
• Automation equipment
• Communication devices

4. EMS Manufacturing

Ideal for electronic manufacturing service providers requiring stable SMT production solutions.

How It Works

Working Principle of YAMAHA Electric Feeder

The KLJ-MC500-011 feeder works together with the SMT placement machine to automatically supply electronic components.

The working process includes:

Step 1: Component Tape Loading

The operator installs the component tape into the feeder according to the required specification.

Step 2: Electric Feeding Movement

The internal motor drives the feeding mechanism and moves the tape forward accurately.

Step 3: Component Positioning

The feeder places the component at the correct pickup position.

Step 4: Pick and Place Operation

The SMT placement head picks up the component and places it onto the PCB board.

Step 5: Continuous Production Cycle

The feeder repeats the feeding process automatically to support continuous assembly operations.

This accurate feeding process improves placement stability and helps maintain high-quality PCB production.

How To Choose

Selection Guide for YAMAHA SMT Feeders

Before purchasing a feeder, customers should confirm the following information:

Correct feeder selection helps avoid compatibility problems and ensures stable machine operation.

Product Advantages

Why Choose YAMAHA KLJ-MC500-011

Maintenance Recommendations

Proper maintenance can extend feeder service life.

FAQ

Q1: What is YAMAHA KLJ-MC500-011 used for?

YAMAHA KLJ-MC500-011 is a ZS 32mm electric feeder used for automatic electronic component feeding on YAMAHA SMT placement machines.

Q2: Which machines are compatible with this feeder?

This feeder is compatible with YAMAHA YS12, YS24, YS100, YSM10, YSM20 and YSM40R placement machines.

Q3: What type of components can this feeder handle?

It is designed for tape-packaged electronic components used in automatic PCB assembly production.

Q4: Can this feeder replace an old damaged feeder?

Yes. KLJ-MC500-011 is suitable for SMT machine maintenance and feeder replacement applications.

Q5: How can I confirm the correct feeder before ordering?

Please provide your machine model, feeder part number, feeder width and required quantity for compatibility confirmation.

Contact Us

If you need YAMAHA KLJ-MC500-011 ZS 32mm Electric Feeder or other SMT machine spare parts, please contact us with your equipment model, required part number and quantity.

Our professional SMT spare parts team can help confirm compatibility, provide suitable solutions and support your PCB assembly production requirements.
