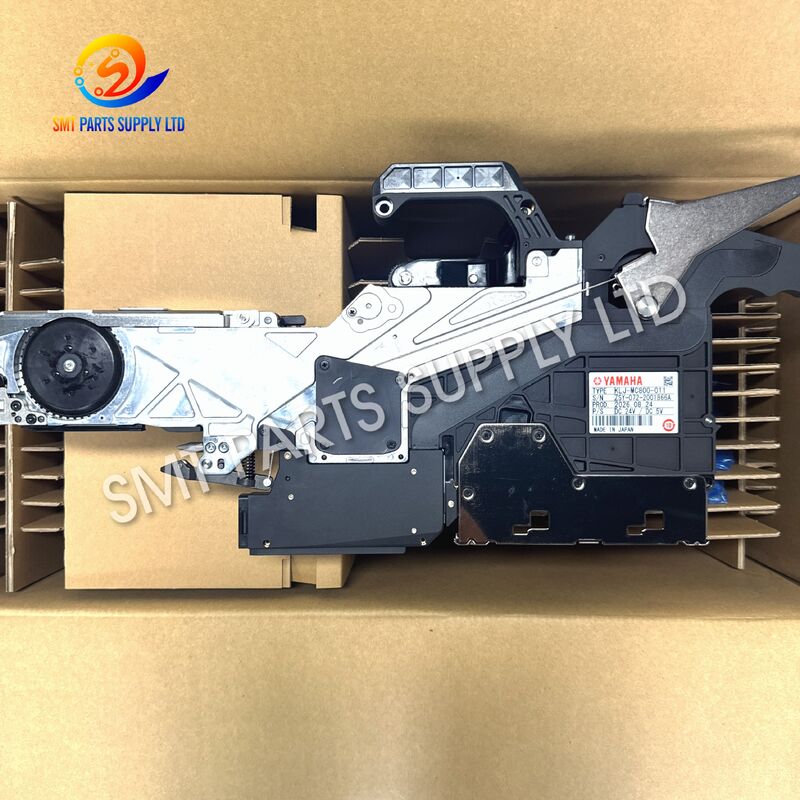

YAMAHA KLJ-MC800-011 ZS72mm Electric Feeder for SMT Mounter

YAMAHA KLJ-MC800-011 ZS72mm Electric Feeder for SMT Mounter

The KLJ-MC800-011 ZS 72mm electric tape feeder is a component supply unit for compatible SMT pick-and-place equipment. It handles components supplied in 72mm carrier tape, advancing the tape so the placement head can collect components at a defined pickup position.

For production teams assembling boards with components packaged in wider tape, correct feeder selection is an essential part of machine preparation. Tape width, pocket geometry, feeding pitch, and machine interface must work together to support consistent component presentation.

This feeder can be considered for replacing a matching unit, preparing an additional production setup, or maintaining a spare for scheduled servicing. Selection should begin with the complete part number and the existing machine configuration. Although feeders may appear similar, differences in revision, interface, or supported tape specifications can affect suitability. Confirming these details before purchase helps purchasing and engineering teams agree on the required assembly and avoid unnecessary installation delays.

Feeding interruptions do not always indicate a defective feeder. Carrier tape condition, incorrect setup, and wear can produce similar symptoms. Identifying the actual cause helps determine whether adjustment, maintenance, or replacement is appropriate.

A replacement decision should follow inspection of the complete feeding path. Changing the feeder alone may not resolve errors caused by unsuitable packaging or incorrect machine settings.

For an application requiring a ZS 72mm feeder, KLJ-MC800-011 provides a specific part-number reference for purchasing and replacement assessment. Matching that reference to the existing equipment helps reduce uncertainty when sourcing a feeder assembly.

The practical goal is controlled delivery of component pockets to the machine pickup location. Correct installation, tape loading, and configuration are essential to achieving that result.

Before release to production, perform a controlled feeding trial with representative material. Verify pocket position, cover-tape movement, and pickup performance according to the machine's operating procedure.

The 72mm designation refers to nominal carrier tape width. It does not describe the maximum component body width, feeder body dimensions, or placement machine component capacity.

Electrical ratings, dimensions, weight, and supported pitch values should be taken from documentation applicable to the exact unit.

This feeder is relevant to production jobs using components packaged in suitable 72mm carrier tape. The component manufacturer's packaging specification should be checked before assigning the feeder to a board program.

These are potential production scenarios, rather than guarantees that every component in those industries requires this feeder.

Yamaha identifies the YSM20 as supporting ZS-series electric feeders. Exact suitability of KLJ-MC800-011 still requires checking against the machine configuration and applicable feeder documentation. Yamaha Motor Co., Ltd.

An electric tape feeder advances carrier tape in controlled increments so component pockets reach the pickup location. The following sequence describes the general feeding process; operators should follow the instructions for their specific equipment.

The feeder supplies components; the placement machine controls their pickup and placement onto the PCB.

Correct pocket alignment and smooth tape movement are important throughout operation. Excessive reel resistance, damaged tape, or incorrect cover-tape routing can interfere with feeding even when the feeder mechanism operates normally.

Confirm the Complete Part Number

Use KLJ-MC800-011 as the identification reference. Compare the full label on the existing feeder, including the suffix. Similar numbering should not be treated as proof that two revisions are interchangeable.

Check the Machine Configuration

Provide the machine model and details of the installed feeder arrangement. Where available, include the applicable parts-list reference or a photograph of the feeder connection area.

Review the Component Packaging

Confirm 72mm carrier tape width, pocket pitch, pocket depth, and component dimensions. Tape width alone is insufficient to establish whether the complete feeding and pickup process will work.

Define the Purchase Scope

State the quantity, required condition, and expected accessories. Clarify whether the quotation covers a complete feeder assembly and identify any items that must accompany it.

Agree on Inspection Evidence

For a replacement unit, request clear identification photographs and relevant condition information. If functional testing is included, agree on what the test covers and whether representative tape will be used.

Plan Installation Checks

Allow time for machine recognition, tape loading, pitch configuration, and trial pickup. A matching part number supports identification but does not eliminate normal commissioning checks.

Keep the tape path and pickup area free of loose packaging fragments. Inspect accessible tape guides and cover-tape routing points for contamination or damage, following the equipment maintenance instructions.

Handle the feeder using its designated support points and protect exposed connections during storage or transport. Avoid forcing tape through a restricted mechanism.

When investigating a feeding problem, record the machine alarm, tape specification, and operating condition. This information makes it easier to distinguish a feeder fault from a material or setup issue.

Q1: What is the main function of KLJ-MC800-011?

It advances components packaged in suitable 72mm carrier tape to the pickup position of a compatible SMT machine. The placement head then picks up each component for placement onto the PCB.

Q2: Does 72mm mean the feeder can handle a 72mm-wide component?

No. It refers to carrier tape width. Component dimensions, pocket geometry, nozzle selection, and machine handling limits must be checked separately before confirming that a particular component can be processed.

Q3: Can this feeder replace every other 72mm feeder?

No. Tape width does not establish interchangeability. Compare the feeder series, complete part number, revision, mechanical interface, and machine requirements before selecting a replacement for an existing installation.

Q4: Is setup required before production?

Installation should include the checks specified for the machine and feeder. These may involve feeder recognition, tape loading, pitch settings, pickup position, and a controlled trial using the intended production material.

Q5: What information should accompany an inquiry?

Send the complete part number, machine model, required quantity, preferred condition, and photographs of the existing unit. Include carrier tape specifications when requesting help with a new component feeding application.

Request a Quotation for KLJ-MC800-011

Need a ZS 72mm electric feeder for an existing setup or an upcoming production job? Send your requirements for a quotation and compatibility review.

Include a clear photograph of your current feeder label to help confirm the requested assembly. Request pricing, availability, inspection details, and delivery options for your required quantity.
