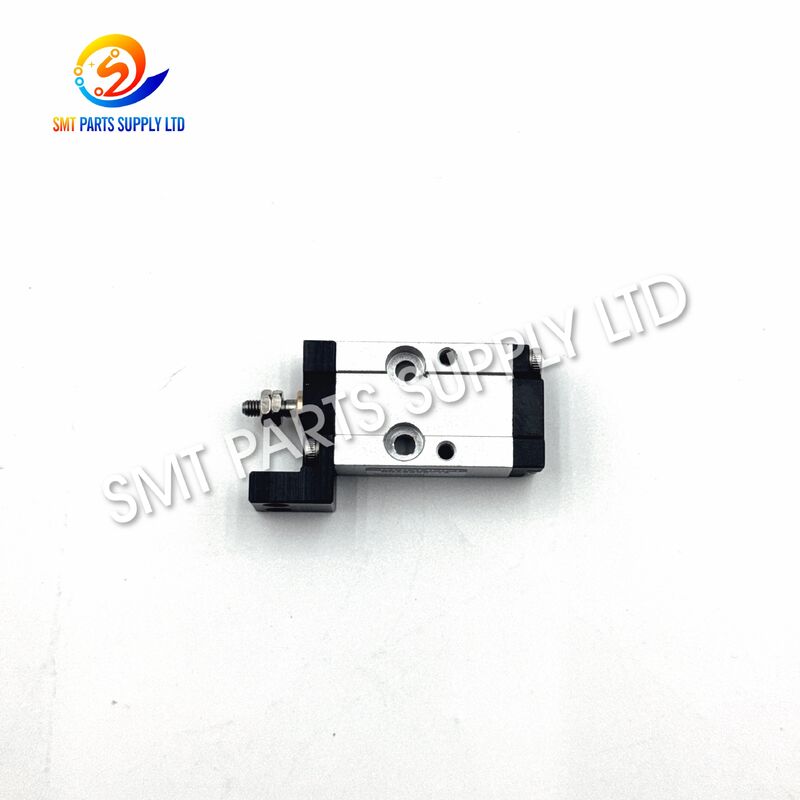

KOGANEI BDAS6X5-1A ANC Cylinder J6701029A for SAMSUNG HANWHA SM471

KOGANEI BDAS6X5-1A ANC Cylinder J6701029A for SAMSUNG HANWHA SM471

The KOGANEI BDAS6X5-1A ANC Cylinder J6701029A is a compact pneumatic actuator used in the automatic nozzle changing mechanism of compatible Samsung HANWHA SM471 SMT placement machines. It provides controlled linear movement for mechanical actions associated with the ANC, or Automatic Nozzle Changer, system.

Stable movement of the nozzle-changing mechanism is important because the placement machine must repeatedly select, release, and exchange nozzles during production. A worn, leaking, sticking, or damaged cylinder may affect the movement of the ANC mechanism and can contribute to nozzle-changing alarms, incomplete mechanical strokes, or unstable operation.

The BDAS6X5-1A is suitable for replacement, maintenance, equipment refurbishment, and spare-parts inventory. The cylinder can be identified by its KOGANEI model BDAS6X5-1A and machine part number J6701029A. Before ordering, buyers should verify the cylinder model, machine series, mounting position, pneumatic connections, and original part number.

Cause

The ANC cylinder works repeatedly during nozzle-changing operations. Continuous production, compressed-air contamination, mechanical wear, seal aging, or incorrect alignment can gradually reduce cylinder performance.

Common situations that may indicate inspection or replacement include:

When the ANC cylinder cannot complete its expected movement, the nozzle-change mechanism may fail to reach the correct operating position. This can interrupt production and increase machine recovery time.

Replacing the affected cylinder can help restore the mechanical movement of the ANC assembly when the cylinder itself is confirmed as the source of the problem.

Solution

The KOGANEI BDAS6X5-1A J6701029A provides a practical replacement solution for compatible SM471 ANC assemblies.

Its compact pneumatic design allows the machine to convert compressed air into controlled linear mechanical movement. Proper cylinder movement helps the nozzle changer complete its required sequence consistently.

For maintenance teams, using the correct cylinder model can provide several advantages:

• Restores normal pneumatic actuation of the ANC mechanism.
• Helps reduce incomplete nozzle-changing movements.
• Supports stable automatic nozzle exchange.
• Simplifies maintenance by matching the original cylinder identification.
• Suitable for preventive maintenance stock.
• Useful for repairing machines with worn pneumatic actuators.
• Helps reduce unnecessary replacement of complete ANC assemblies.

Before replacing the cylinder, technicians should also inspect air tubes, fittings, sensors, mechanical guides, mounting hardware, and the surrounding ANC structure. A complete inspection helps determine whether the failure is caused by the cylinder or another component.

Specifications

Important: Machine configurations can vary by production date and equipment version. Always verify the original component label and mounting configuration before ordering.

Application

The BDAS6X5-1A cylinder is mainly used in the automatic nozzle-changing section of compatible SM471 placement equipment.

Typical Application Areas

The component is particularly useful for SMT factories operating multiple placement machines where minimizing downtime is important. Keeping frequently used pneumatic parts in local spare-parts inventory can shorten maintenance response time.

It can also be used by SMT equipment service companies, machine refurbishment companies, contract electronics manufacturers, and spare-parts distributors.

How It Works

The BDAS6X5-1A operates using compressed air supplied by the machine pneumatic system.

During the ANC sequence, the machine control system activates the pneumatic circuit. Compressed air enters the cylinder and moves the internal piston. The piston movement is transferred into linear mechanical motion, allowing the connected ANC mechanism to move between required positions.

A typical operating sequence can be summarized as follows:

Machine Command → Pneumatic Valve Activation → Air Supply → Cylinder Movement → ANC Mechanical Action → Position Confirmation

When the machine requests a nozzle change, the ANC mechanism must perform each movement in the correct sequence. The cylinder therefore needs to move smoothly and repeatedly.

If the cylinder develops internal leakage or excessive friction, the piston may move too slowly or fail to complete its travel. This can prevent the ANC mechanism from reaching the expected position.

A properly functioning cylinder helps maintain:

• Smooth linear movement.
• Stable mechanical response.
• Consistent actuation timing.
• Reliable ANC positioning.
• Repeatable nozzle-changing operation.

How To Choose

Correct identification is essential when ordering an SMT cylinder because similar-looking pneumatic components may have different strokes, mounting dimensions, fittings, or machine applications.

1. Check the Cylinder Model

Confirm the marking:

BDAS6X5-1A

The complete model code should be checked rather than relying only on appearance.

2. Verify the Part Number

Confirm:

J6701029A

Providing both the cylinder model and machine part number significantly reduces the risk of ordering the wrong component.

3. Confirm the Machine Model

The application should be verified against:

Samsung HANWHA SM471

If the machine is another model, provide the exact equipment model and original cylinder information before purchasing.

4. Compare the Original Component

Check:

5. Send Photos When Necessary

If the original label is unclear, provide clear photographs of:

• Cylinder label.
• Complete cylinder.
• Air connection.
• Mounting position.
• Machine nameplate.
• Existing ANC assembly.

This allows faster cross-checking before shipment.

Why Choose This ANC Cylinder

The correct replacement cylinder can reduce maintenance complexity and avoid replacing a complete nozzle-changing assembly when only the pneumatic actuator requires service.

Key Benefits

For buyers managing multiple SMT production lines, maintaining several critical pneumatic components in inventory can help avoid extended production interruptions when a cylinder fails unexpectedly.

Installation and Maintenance Recommendations

Before installation, shut down the equipment according to the machine manufacturer's maintenance procedure and release pneumatic pressure safely.

Inspect the surrounding mechanism before fitting the new cylinder.

Recommended checks include:

• Confirm that the mounting surface is clean.
• Inspect pneumatic tubing for cracks or leakage.
• Check fittings for damage.
• Ensure the cylinder is installed without mechanical stress.
• Verify free movement of the connected mechanism.
• Confirm that the pneumatic system is clean and stable.
• Check nearby sensors after installation.
• Perform manual or maintenance-mode testing before full production.
• Observe the first nozzle-changing cycles for abnormal movement.

Correct installation helps protect the cylinder from premature wear.

FAQ

Q1: What machine is the BDAS6X5-1A cylinder used for?

The KOGANEI BDAS6X5-1A with part number J6701029A is used in the ANC automatic nozzle-changing mechanism of compatible Samsung HANWHA SM471 SMT placement machines. Machine configuration should be confirmed before ordering.

Q2: What is the function of J6701029A?

J6701029A functions as a pneumatic actuator within the automatic nozzle changer. It converts compressed-air pressure into linear movement that operates part of the ANC mechanical sequence.

Q3: How can I confirm whether this cylinder matches my machine?

Check the original cylinder model BDAS6X5-1A, part number J6701029A, machine model, mounting dimensions, air connections, and installation position. Photos of the original component can also be used for verification.

Q4: What symptoms may indicate that the ANC cylinder needs replacement?

Possible symptoms include air leakage, slow movement, incomplete cylinder travel, sticking, unstable ANC operation, or nozzle-changing alarms. The complete pneumatic and mechanical system should be inspected before confirming replacement.

Q5: Can I order this cylinder as a maintenance spare part?

Yes. It is suitable for SMT maintenance inventory, machine repair, and equipment refurbishment. Please provide the machine model, required quantity, and cylinder part number when requesting availability.

Contact Us

Need KOGANEI BDAS6X5-1A ANC Cylinder J6701029A for your SM471 maintenance project?

Send us your required quantity, machine model, original part number, and component photos for compatibility checking. We can assist with product confirmation, stock availability, quotation, packing options, and international shipment arrangements.

Send your inquiry today for price and availability.
