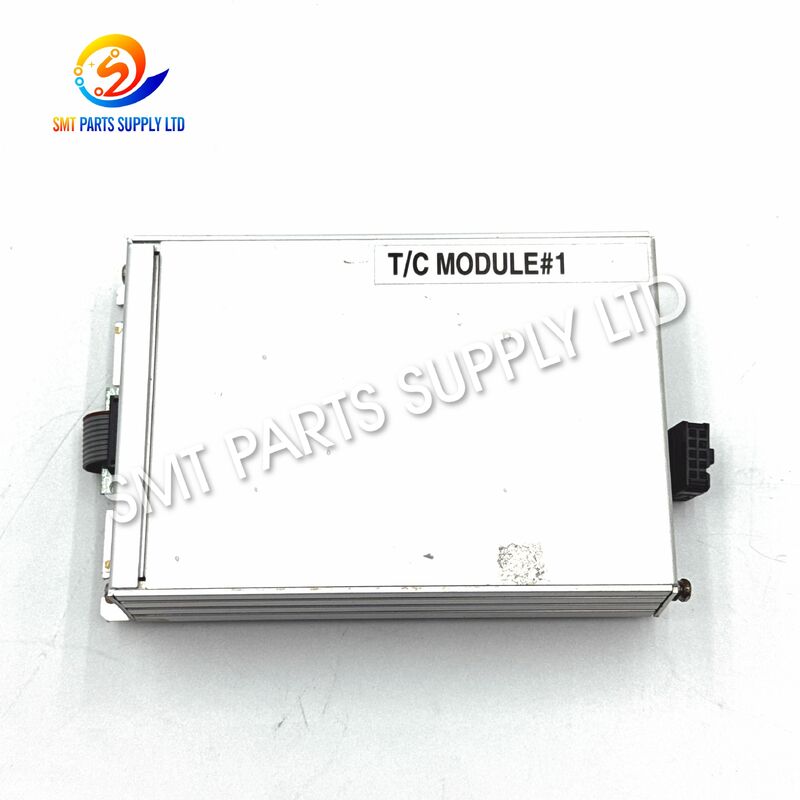

HELLER K1404262 TC Temperature Control Module for Reflow Oven

The HELLER K1404262 TC Temperature Control Module is an electronic control component used in compatible SMT reflow oven temperature-control systems. Its primary role is to support accurate temperature monitoring and stable thermal regulation by processing feedback from the oven's thermocouple-based sensing system.

During SMT reflow soldering, every heating zone must operate within the programmed temperature profile. Accurate thermal control directly affects preheating, soaking, reflow, peak temperature, and cooling performance. When the temperature-control system is unstable, the oven may show abnormal zone readings, temperature deviation, repeated alarms, or inconsistent soldering results.

The K1404262 is mainly used as a maintenance, repair, or replacement spare part when the installed oven uses the same module identification and control configuration. Before ordering, buyers should compare the existing part number, PCB revision, connectors, and machine information to ensure correct matching.

Key Product Information

Cause

Why Reflow Oven Temperature Control Problems Occur

A reflow oven works continuously under elevated temperatures, making its temperature-control system an important part of machine reliability. After long-term operation, electrical components, thermocouples, wiring, connectors, heaters, and control modules may gradually develop faults.

Temperature-control abnormalities may result from several causes rather than the control module alone.

A technician should inspect the entire temperature-control loop before deciding that the K1404262 requires replacement.

Typical Symptoms

The temperature-control system should be inspected when any of the following conditions appear:

• Heating-zone temperature fluctuates unusually.
• Actual temperature does not follow the set value.
• One heating zone cannot reach the required temperature.
• Temperature readings disappear or become intermittent.
• Temperature alarms occur repeatedly.
• Thermal profiles become inconsistent between production runs.
• The oven requires excessive time to stabilize.
• One temperature channel reports an abnormal value.
• Production quality changes together with oven temperature instability.
• Troubleshooting indicates a faulty temperature-control module.

These symptoms can be caused by different components, so systematic diagnosis is recommended.

Solution

Recommended Troubleshooting Process

When a reflow oven shows a temperature-control problem, technicians can follow a structured inspection procedure.

1. Check the Machine Alarm

Review the machine alarm message and determine which zone or temperature channel is affected.

2. Compare Setpoint and Actual Temperature

Observe whether the actual zone temperature follows the programmed value. Large or continuous deviation may indicate a problem within the control loop.

3. Inspect the Thermocouple

Check the relevant thermocouple for broken wires, incorrect connection, loose terminals, contamination, or physical damage.

4. Inspect Wiring and Connectors

Loose connectors or damaged signal cables may cause intermittent temperature readings that can be mistaken for module failure.

5. Inspect the Heating Circuit

Confirm that the heater, switching devices, power components, and related electrical circuits are functioning correctly.

6. Inspect the K1404262 Module

Check the module for visible damage such as:

• Burn marks.
• Damaged connectors.
• Corrosion.
• Loose terminals.
• Cracked components.
• Overheating marks.
• Contamination.

7. Replace When Confirmed Necessary

If the existing K1404262 is confirmed defective, replace it with a matching unit and perform an operational temperature test before returning the machine to production.

Specifications

Replacement Version Comparison

Different reflow oven generations may use different temperature-control hardware. Similar appearance does not always mean direct interchangeability.

Important Selection Note

Before replacing a control module, compare:

• Part number.
• PCB revision.
• Connector quantity.
• Connector position.
• Electrical interface.
• Communication interface.
• Oven model.
• Existing board photographs.

Ordering only according to appearance is not recommended.

Application

The K1404262 temperature control module is suitable for maintenance applications involving compatible SMT reflow ovens used in electronics manufacturing.

Typical applications include:

The module can also be kept as a critical spare part by factories operating continuous SMT production lines.

How It Works

The temperature-control process operates as a closed-loop system.

Step 1: Temperature Detection

Thermocouples installed in the reflow oven detect the temperature of the relevant heating zones.

Step 2: Signal Transmission

The thermocouple generates a temperature-related electrical signal, which is transmitted to the oven control system.

Step 3: Signal Processing

The temperature-control system processes the feedback signal and determines the actual temperature of the zone.

Step 4: Setpoint Comparison

The actual temperature is compared with the programmed target temperature.

Step 5: Heating Adjustment

The control system adjusts the related heating output according to the temperature difference.

Step 6: Continuous Regulation

This process repeats continuously to maintain stable thermal conditions during production.

A properly operating control system helps provide repeatable thermal performance across multiple PCB production cycles.

How To Choose

Correct module selection is essential because reflow oven control systems may vary according to production year, equipment version, and electrical configuration.

1. Confirm K1404262

Check that the installed module clearly shows the K1404262 identification.

2. Check the PCB Revision

If additional revision information is printed on the board, provide it when requesting a quotation.

3. Compare Connector Layout

Check connector quantity, type, and position. Similar PCBs may still have different electrical configurations.

4. Provide the Oven Model

The reflow oven model can provide additional information for compatibility checking.

5. Send Clear Photos

For more accurate confirmation, provide clear photographs of:

• Complete module.
• Product label.
• Front side.
• Rear side.
• Connector area.

Recommended Ordering Information

Providing complete information helps reduce the risk of ordering an incorrect module.

Maintenance Recommendations

To improve the reliability of the temperature-control system:

• Keep the electrical cabinet clean.
• Maintain adequate cabinet ventilation.
• Inspect electrical connectors regularly.
• Check thermocouple cables for damage.
• Investigate repeated temperature alarms promptly.
• Avoid installing electronic modules while power is connected.
• Use appropriate electrostatic-discharge protection.
• Record module replacement and repair history.
• Maintain important spare modules for critical equipment.

Preventive maintenance can reduce unexpected production interruptions and help maintain consistent thermal performance.

FAQ

Q1: What does the K1404262 TC Temperature Control Module do?

The K1404262 is used in compatible reflow oven temperature-control systems. It supports processing of thermocouple feedback and helps the control system maintain stable heating-zone temperatures during PCB reflow soldering.

Q2: Can K1404262 be used in every HELLER reflow oven?

Not necessarily. Different oven generations and configurations may use different temperature-control modules. Always confirm the existing part number, PCB revision, connector arrangement, and equipment information before ordering.

Q3: Should I replace K1404262 if one heating zone does not work?

Not immediately. A no-heat condition can also be caused by the thermocouple, heater, relay, wiring, power circuit, connector, or other control components. Proper troubleshooting should be completed first.

Q4: What information is required for compatibility confirmation?

Please provide the K1404262 part number, clear photos of the existing module, oven model, PCB revision if available, connector information, and the required quantity.

Q5: Is professional installation recommended?

Yes. The module is part of the oven's temperature-control system. Installation and troubleshooting should be performed by trained personnel familiar with industrial reflow oven electrical and thermal-control systems.

Contact Us

Need a HELLER K1404262 TC Temperature Control Module for reflow oven maintenance, replacement, or spare-parts inventory?

Send us the following information for a faster quotation:

• Part Number: K1404262.
• Existing Module Photos.
• Reflow Oven Model.
• PCB Revision, if available.
• Required Quantity.
• Fault Description, if technical confirmation is needed.

We can assist with part identification, compatibility checking, availability, lead time, and quotation.

Send your inquiry today for pricing and product confirmation.
