HELLER 590059 MK3 Reflow Oven Heating Element Wire

HELLER 590059 MK3 Reflow Oven Heating Element Wire

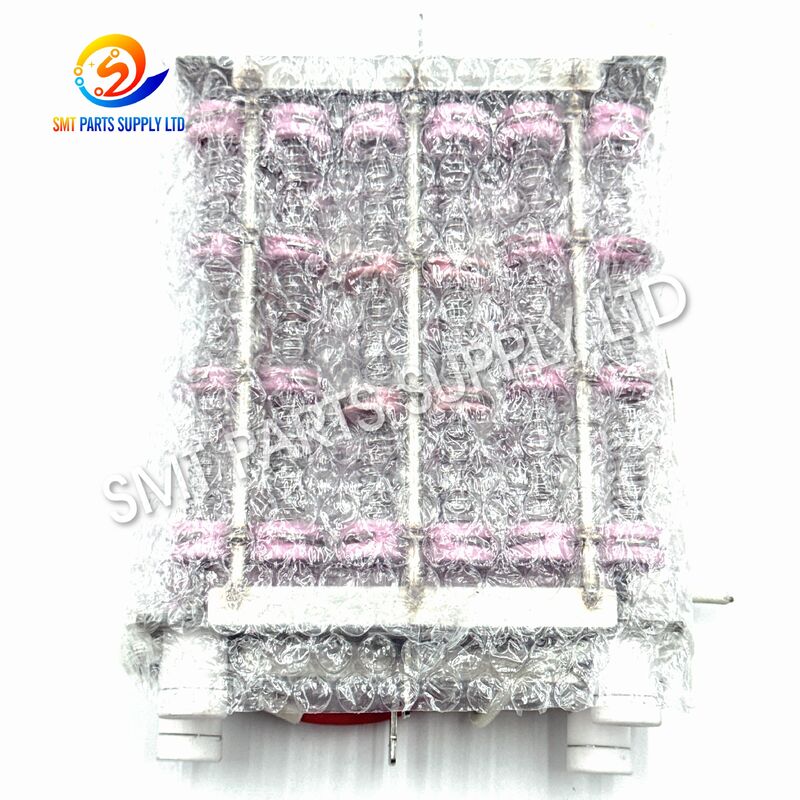

The HELLER 590059 4800W MK3 Reflow Oven Heater Element is a replacement heating component designed for compatible HELLER reflow soldering ovens. Installed within the oven heating system, this element converts electrical energy into thermal energy and works together with the blower, temperature sensor, relay, and control system to maintain the programmed reflow temperature.

Stable heater performance is important for PCB assembly because insufficient heating can cause slow warm-up, poor temperature recovery, or unstable zone temperatures. The 590059 heater element is suitable for equipment maintenance, heating-zone repair, and preventive spare-parts inventory.

For accurate purchasing, customers should provide the complete oven model, machine serial number, original heater label, installation position, and photos. The 594533 reference may also be used when confirming the corresponding replacement configuration.

Reflow ovens normally operate at elevated temperatures for long production periods. Continuous thermal cycling and electrical loading can gradually affect heater performance.

Common reasons for replacement include:

A low-temperature alarm does not always mean that the heater itself is defective. The thermocouple, solid-state relay, blower motor, wiring, power supply, and control system should also be inspected before replacement.

When a heating zone cannot reach or maintain the required temperature, systematic troubleshooting is recommended before purchasing replacement parts.

1. Check the affected heating zone

Identify which zone shows slow warm-up, insufficient temperature, or abnormal temperature fluctuation.

2. Inspect the heater electrically

After the equipment is safely disconnected from power, qualified technicians can check continuity and resistance according to standard maintenance procedures.

3. Check electrical terminals

Loose, burnt, oxidized, or damaged terminals may prevent the heater from operating normally.

4. Inspect the temperature sensor

An inaccurate thermocouple can cause incorrect temperature readings and may appear similar to a heater failure.

5. Check the heater control circuit

Solid-state relays and control components should be tested to confirm whether power is correctly supplied to the heating element.

6. Inspect blower performance

The heater and hot-air circulation system work together. Poor airflow may cause abnormal zone temperature even when the heater remains functional.

7. Confirm the replacement part

Compare the original part number, power rating, physical configuration, connector, and machine information before ordering.

Correct diagnosis helps reduce unnecessary component replacement and shortens equipment downtime.

The HELLER 590059 heater element is mainly used in compatible reflow oven thermal systems for SMT and PCBA manufacturing.

SMT Production Lines

Used in reflow ovens positioned after solder paste printing and component placement.

EMS Manufacturing Plants

Suitable for contract manufacturers operating continuous PCB assembly production.

PCB Assembly Factories

Used for maintenance of reflow equipment processing populated printed circuit boards.

Automotive Electronics

Supports production environments requiring consistent and repeatable thermal profiles.

Industrial Electronics

Suitable for PCB assemblies used in controllers, power electronics, sensors, automation equipment, and communication products.

Consumer Electronics

Can be used in high-volume electronics production where reflow oven uptime is important.

Reflow Oven Maintenance

Suitable for replacement stock maintained by production engineering and maintenance teams.

A typical SMT production line includes:

Solder Paste Printing → SPI → Pick and Place → Reflow Soldering → AOI

The HELLER 590059 operates in the reflow soldering stage.

Its function is not to control the PCB directly. Instead, it provides the thermal energy required by the oven heating system so that solder paste can pass through the programmed temperature profile.

The reflow oven controller determines when additional heating is required in a specific zone.

Electrical power is then supplied to the heater through the corresponding control circuit.

The heating element converts electrical energy into thermal energy through resistance heating.

The oven blower moves air through the heated area and distributes thermal energy throughout the processing chamber.

A thermocouple or temperature sensor continuously measures the actual zone temperature.

The controller compares the measured temperature with the programmed setpoint and adjusts heater operation accordingly.

As boards travel through different heating zones, the combined heater and airflow system creates the required reflow temperature profile.

Stable heater operation therefore contributes to consistent soldering conditions and repeatable production.

Replacing the heater should normally be based on proper electrical testing rather than temperature symptoms alone.

Correct heater selection is important because reflow ovens may have different configurations depending on production year, machine revision, and zone design.

Check whether the existing heater is marked with 590059.

Send the complete HELLER reflow oven model.

Avoid providing only the brand name because different oven models may use different heating components.

The machine serial number can help identify production revisions and improve compatibility checking.

A clear label photo helps verify the original part number and electrical information.

Photos of the complete heater, terminals, mounting area, and surrounding components can help identify configuration differences.

Where available, confirm:

• Rated power.
• Voltage.
• Terminal type.
• Connector design.
• Dimensions.
• Installation position.

For applications using 590059, the 594533 reference should also be considered during compatibility verification.

Provide the exact quantity required before quotation.

This is especially important when maintenance involves multiple heating zones or matched heater assemblies.

For faster quotation and compatibility confirmation, please provide:

Providing complete information helps reduce purchasing errors and speeds up the quotation process.

Loose or oxidized terminals may generate excessive local heat and shorten component life.

If a zone takes noticeably longer to reach the set temperature, inspect the heater, airflow system, and controller.

Heating performance depends on both heat generation and hot-air circulation.

Comparing similar heating zones can help identify abnormal temperature response.

Factories operating continuously can reduce downtime by keeping essential reflow oven heating parts in maintenance stock.

Keep records of:

• Part number.
• Installation date.
• Heating zone.
• Failure reason.
• Machine serial number.

This information helps improve preventive maintenance planning.

HELLER 590059 is a 4800W heater element used in compatible MK3 reflow oven heating systems. It generates thermal energy required for controlled SMT reflow soldering and is commonly purchased for maintenance or heating-zone replacement.

No. Compatibility depends on oven model, machine revision, heating-zone configuration, electrical specification, and installation design. Please provide the original heater label, oven model, serial number, and photos before ordering.

594533 is used as a replacement reference associated with 590059. Machine configuration should still be verified before purchase because older reflow ovens may have different revisions or previously replaced heating components.

Typical symptoms include an open circuit, abnormal resistance, slow heating, inability to reach the set temperature, or insufficient temperature recovery. The relay, thermocouple, wiring, blower, and controller should also be checked.

Please send part number 590059, required quantity, complete oven model, machine serial number, heater label photo, installation photo, and destination country. More complete information allows faster and more accurate compatibility confirmation.

Need a replacement HELLER 590059 4800W MK3 Reflow Oven Heater Element?

Send us your:

• Part number.
• HELLER oven model.
• Machine serial number.
• Required quantity.
• Heater label photo.
• Installation photo.
• Destination country.

Send your inquiry today for compatibility confirmation, availability, price, lead time, and shipping quotation.

For urgent reflow oven repairs, please include clear heater photos and machine information so we can check your request more efficiently.
