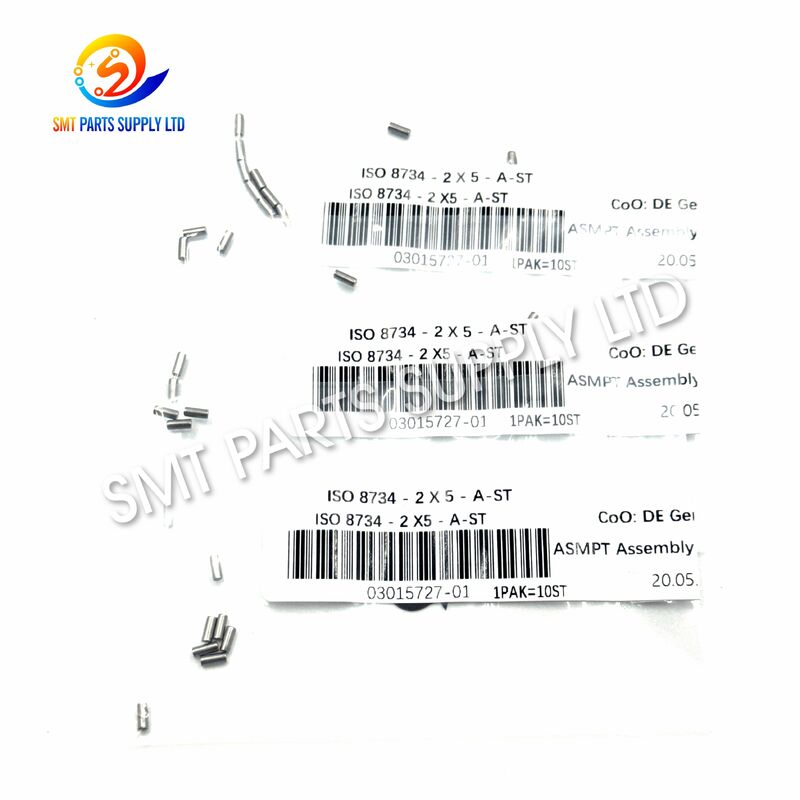

ASMPT Siemens 03015727-01 ISO 8734 2x5mm Precision Dowel Pin

ASMPT Siemens 03015727-01 ISO 8734 2x5mm Precision Dowel Pin

The ASMPT Siemens 03015727-01 ISO 8734 2x5mm Precision Dowel Pin is a compact mechanical locating component designed for accurate alignment and repeatable positioning inside compatible SMT equipment assemblies. Manufactured according to the dimensional principles of ISO 8734, this precision pin provides a controlled cylindrical locating surface for mating parts, brackets, guides, housings, feeder mechanisms, and other machine assemblies requiring stable mechanical registration.

Although small in size, a dowel pin can have a significant influence on assembly accuracy. When machine components are removed for inspection, cleaning, servicing, or replacement, their original relative positions must often be restored precisely. The 03015727-01 pin helps locate connected parts before or during fastening, reducing unwanted lateral movement and supporting consistent reassembly.

For SMT maintenance departments, contract electronics manufacturers, and machine spare-parts distributors, keeping the correct precision pin available can shorten maintenance time and reduce the risk of using an unsuitable generic fastener.

Cause – Why Precision Locating Pins Need Replacement

Precision dowel pins normally work together with accurately machined locating holes. During long-term machine operation and repeated maintenance, several conditions may affect their performance.

A conventional screw should not automatically be treated as a substitute for a precision dowel pin. Screws are primarily used for clamping, while dowel pins are commonly used for location and alignment.

When a locating pin is damaged or missing, connected mechanical components may no longer return to their designed reference position. This can affect assembly consistency and make maintenance adjustment more difficult.

Solution – Restore Accurate Mechanical Positioning

The 03015727-01 2x5mm dowel pin provides a practical replacement solution when servicing compatible ASMPT Siemens equipment.

Its precision cylindrical construction helps establish repeatable positioning between mating mechanical parts before the final fastening force is applied.

Key Maintenance Benefits

For maintenance technicians, selecting the correct pin by part number, nominal diameter, length, and standard is especially important because even a small dimensional difference may influence the fit.

Specifications

Important: Buyers should verify the machine assembly, original part number, required fit, and installation position before ordering.

Application

The ASMPT Siemens 03015727-01 dowel pin is intended for precision locating functions within compatible SMT machine mechanical assemblies.

Typical applications may include:

This type of pin is particularly useful in assemblies where two connected components must maintain a fixed positional relationship after repeated removal and installation.

Because the exact installation position may vary according to machine configuration and assembly version, the 03015727-01 part number should be used as the primary reference when confirming compatibility.

How It Works

A precision dowel pin works differently from an ordinary threaded fastener.

During assembly, the cylindrical pin engages with accurately machined holes in two mating components. The pin defines their relative position while screws, bolts, or other fasteners provide clamping force.

The positioning process can be summarized as follows:

Step 1 – Locating

The dowel pin enters the corresponding locating hole and establishes the mechanical reference position.

Step 2 – Alignment

The mating component is guided into its intended position relative to the fixed component.

Step 3 – Fastening

Screws or other fasteners secure the assembly after the locating position has been established.

Step 4 – Repeatability

During future maintenance, the dowel location helps the assembly return to approximately the same designed reference position.

This division between location and fastening is one reason precision dowel pins are widely used in industrial machinery.

Why ISO 8734 Matters

ISO 8734 is associated with hardened precision cylindrical pins used for accurate mechanical positioning.

For replacement parts, specifying the standard helps buyers distinguish a precision locating pin from an ordinary general-purpose metal rod.

The combination of:

• 2 mm nominal diameter
• 5 mm nominal length
• ISO 8734 specification
• ASMPT Siemens part number 03015727-01

provides a much clearer purchasing reference than ordering by appearance alone.

This is particularly important because different pins can look nearly identical while having different dimensions, tolerances, materials, or fit characteristics.

How To Choose the Correct Dowel Pin

Before placing an order, buyers should confirm several points.

1. Check the Original Part Number

The safest method is to confirm that the original maintenance documentation or removed component corresponds to 03015727-01.

2. Confirm the Size

Do not select only by visual appearance. Verify both 2 mm diameter and 5 mm length.

3. Confirm the Standard

If the machine specification requires ISO 8734, avoid replacing it with an unspecified general-purpose pin.

4. Check the Locating Hole

Inspect the locating hole for excessive wear, burrs, contamination, or deformation. Replacing the pin alone may not solve an alignment problem if the mating hole is damaged.

5. Send Machine Information When Unsure

For faster quotation confirmation, provide the ASMPT/Siemens part number, machine model, installation position, required quantity, and clear photos of the original component.

Maintenance and Installation Recommendations

For reliable installation, the locating surfaces and holes should be kept clean.

Avoid forcing a damaged or incorrectly sized pin into the locating hole, as this can damage the mating component. During removal, use appropriate maintenance tools and avoid excessive side loading that could bend the pin or enlarge the locating hole.

Before machine reassembly:

• Clean the locating holes.
• Remove dirt and foreign particles.
• Inspect the pin for deformation.
• Confirm the correct diameter and length.
• Check the mating component for abnormal wear.
• Install according to the machine maintenance procedure.

Precision components should be stored in a clean, dry environment to reduce contamination before installation.

FAQ

1. What is ASMPT Siemens 03015727-01 used for?

The 03015727-01 is a precision dowel pin used primarily for mechanical locating and alignment between compatible components in ASMPT Siemens SMT equipment assemblies. It helps maintain repeatable positioning during assembly and maintenance.

2. What is the size of 03015727-01?

The nominal size is 2 x 5 mm, meaning approximately 2 mm in diameter and 5 mm in length. The product specification references ISO 8734 for precision cylindrical locating pins.

3. Can an ordinary 2x5mm metal pin replace this part?

It is not recommended to select a replacement based only on nominal dimensions. Precision locating applications may depend on dimensional tolerance, material properties, fit, and applicable standards. Confirm ISO 8734 and part number 03015727-01 before replacement.

4. How can I confirm compatibility before ordering?

Please provide the original 03015727-01 part number, SMT machine model, installation position, required quantity, and a photo of the existing pin or assembly. This information helps reduce identification errors.

5. Why is a dowel pin important if the assembly already uses screws?

Screws mainly generate clamping force, while precision dowel pins establish mechanical location. Using both allows connected components to maintain a more consistent position during installation and repeated maintenance.

Contact Us

Need ASMPT Siemens 03015727-01 ISO 8734 2x5mm precision dowel pins for machine maintenance or spare-parts stock?

Send us your part number, machine model, required quantity, and delivery destination for a fast quotation and availability check. For bulk SMT spare-parts requirements, you can also send your complete parts list for consolidated sourcing.
