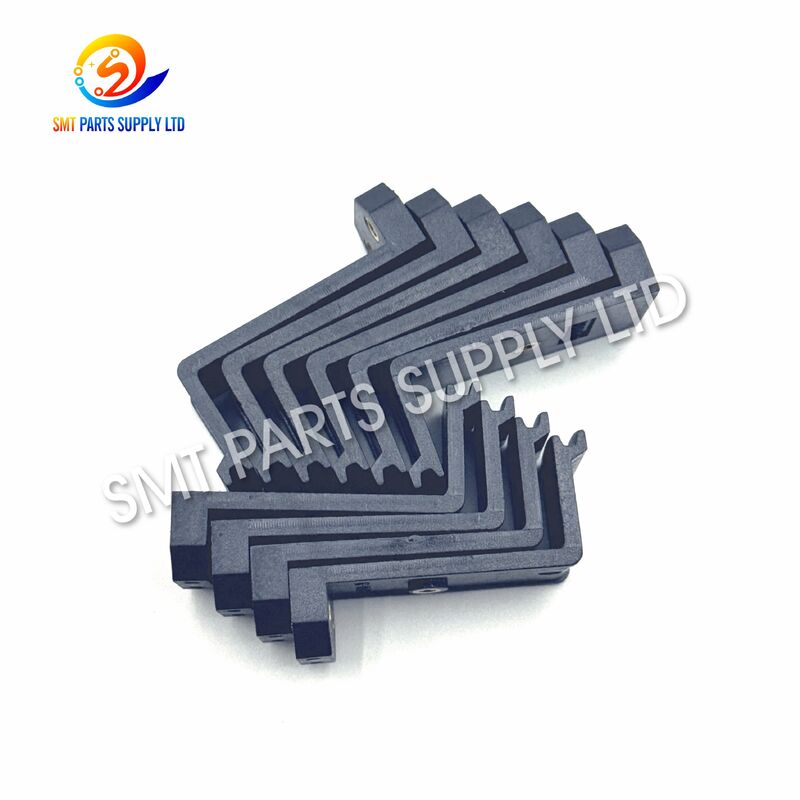

SMIC PF08-20 Wave Solder PCB Conveyor Resin Finger

The SMIC PF08-20 Wave Solder PCB Conveyor Resin Finger is a mechanical conveyor spare part developed for PCB transportation in compatible wave soldering equipment. Mounted on the conveyor chain or transport rail assembly, the finger makes controlled contact with the PCB edge and helps keep the board properly supported while it travels through the complete soldering process.

Wave soldering machines rely on stable and continuous PCB movement. From flux application and preheating to solder wave contact and final cooling, the board must remain securely positioned while moving at the required conveyor speed. The PF08-20 finger works together with multiple adjacent fingers to create a stable PCB holding and guiding system.

Because conveyor fingers are exposed to repeated board contact, heat, flux residue, vibration, and long operating cycles, they are normal maintenance components. Replacing damaged, worn, cracked, distorted, or contaminated PF08-20 fingers helps restore reliable conveyor performance and reduces the risk of PCB transport problems.

Key Product Information

Cause – Why PF08-20 Conveyor Fingers Wear

A wave solder conveyor operates continuously during production. Depending on factory workload, thousands of PCBs may pass through the machine during repeated production cycles.

Each board contacts multiple conveyor fingers. This creates continuous mechanical interaction between the PCB edge and finger surface.

At the same time, the conveyor operates close to fluxing, preheating, and soldering processes.

Common Causes of Finger Deterioration

A damaged finger does not always stop the machine immediately.

However, when one or several fingers become worn or uneven, the PCB may no longer travel through the conveyor in the intended position.

This can create intermittent production issues that are difficult to identify if the conveyor fingers are not inspected.

Solution – Restore Reliable PCB Edge Support

Replacing worn components with the correct SMIC PF08-20 Resin Conveyor Finger helps restore stable mechanical support along the conveyor.

The finger acts as an interface between the conveyor mechanism and PCB edge.

When correctly installed, multiple PF08-20 fingers work together to maintain board position and provide smooth movement through each process section.

Benefits of Timely Replacement

• Helps stabilize PCB transportation.
• Maintains consistent board edge support.
• Reduces movement caused by worn conveyor fingers.
• Helps prevent PCB tilting during transport.
• Supports smooth movement through the solder wave.
• Reduces risks associated with broken conveyor parts.
• Simplifies preventive maintenance.
• Helps maintain production continuity.

Replacing a damaged conveyor finger is generally more efficient than continuing production until the finger causes a more serious transport problem.

For this reason, many maintenance teams keep replacement fingers as routine wave solder spare parts.

Specifications

Application

The SMIC PF08-20 Resin Conveyor Finger is intended for PCB handling applications in compatible wave soldering machine conveyor systems.

Wave soldering remains widely used for electronic assemblies containing through-hole components and mixed SMT/THT designs.

The conveyor finger is therefore applicable to many electronics manufacturing environments.

Typical Industries

• Automotive electronics.
• Industrial control systems.
• Power supply manufacturing.
• Consumer electronics.
• Home appliance electronics.
• Communication equipment.
• LED lighting products.
• Instrumentation electronics.
• EMS contract manufacturing.

Typical Maintenance Applications

PF08-20 fingers can be included in routine inspection programs together with chains, sprockets, conveyor rails, guide assemblies, and width adjustment mechanisms.

How It Works

The PCB conveyor is responsible for moving a circuit board through the wave soldering machine at a controlled speed and orientation.

The PF08-20 Resin Finger provides one of the physical contact points used to support the board.

1. PCB Loading

The board enters the conveyor from upstream equipment or a loading section.

Conveyor fingers on both sides engage the PCB edges.

2. Board Positioning

The fingers support the PCB at the required conveyor position.

Multiple fingers distribute support along the PCB edges and help prevent excessive movement.

3. Flux Application

The board moves through the fluxing section.

Because the conveyor fingers contact the PCB edges, the process area underneath the PCB remains accessible for flux application.

4. Preheating

The PCB continues into the preheating section.

Stable conveyor support is important during this stage because the board must travel through the thermal zone in a controlled manner.

5. Wave Soldering

The conveyor transports the PCB over the solder wave.

Proper board position contributes to consistent movement through this critical process area.

6. Cooling and Unloading

After soldering, the PCB passes through the final machine section and leaves the conveyor.

Throughout these stages, properly aligned PF08-20 fingers help maintain controlled PCB movement.

Problems Caused by Worn Conveyor Fingers

A conveyor finger is relatively small compared with the complete wave solder machine, but it directly affects PCB transportation.

If the finger becomes damaged or incorrectly positioned, the problem may be visible as abnormal board movement.

Typical Warning Signs

• PCB shakes while moving.
• Board support is uneven.
• PCB edge slips from the normal transport position.
• Finger position differs from adjacent fingers.
• Conveyor creates unusual mechanical noise.
• Visible cracking appears on the finger.
• Excessive flux contamination is present.
• PCB catches during loading or unloading.
• Board height becomes inconsistent.

When these symptoms occur, technicians should inspect the PF08-20 fingers together with the conveyor chain and rail system.

The cause should be identified before production continues.

PF08-20 Resin Finger Maintenance Benefits

The use of replaceable conveyor fingers makes maintenance more practical because damaged contact components can be changed individually.

Maintenance Characteristics

Service life depends on actual machine conditions and should not be estimated only by calendar time.

Production volume, PCB edge condition, flux type, cleaning frequency, conveyor alignment, temperature, and maintenance practices can all influence wear.

PF08-20 Compared with Other Finger Models

Different wave solder conveyor fingers may look similar but should not automatically be considered interchangeable.

The PF08-20, PF08-06, and PFW-20L models should be identified individually.

The safest purchasing method is to match the exact model already installed on the machine.

If the original model cannot be confirmed, photos or physical samples should be compared before replacement.

How To Choose the Correct PF08-20

Step 1 – Check the Model

Confirm that the required model is:

PF08-20

Do not order another PF series finger simply because the overall appearance is similar.

Step 2 – Inspect the Existing Component

Compare:

• Overall finger shape.
• PCB gripping section.
• Mounting profile.
• Installation direction.
• Conveyor attachment structure.
• Contact position.

Step 3 – Confirm the Material Requirement

Make sure the required product is the resin type for the corresponding conveyor system.

Wave solder equipment can use different conveyor finger materials and structures.

Step 4 – Confirm the Conveyor Configuration

Check the installed wave solder conveyor rather than identifying the finger only by the machine exterior.

Different conveyor configurations may require different finger designs.

Step 5 – Provide Reference Photos

When compatibility is uncertain, send clear photos showing:

• Existing PF08-20 finger.
• Front view.
• Side view.
• Mounting point.
• Conveyor installation.
• Any visible model markings.

This helps reduce replacement errors.

Installation Recommendations

Before replacement, stop the wave solder machine and follow the equipment maintenance and safety procedure.

Allow relevant sections to reach a suitable maintenance condition.

Remove the damaged conveyor finger and inspect the surrounding installation area.

Inspection Checklist

After installing the new PF08-20 finger, compare it with neighboring fingers.

The PCB should travel smoothly without abnormal contact or excessive movement.

A controlled conveyor test should be completed before full production resumes.

Preventive Maintenance

Preventive maintenance can extend conveyor reliability and identify finger problems before they affect production.

Recommended actions include:

• Inspect PF08-20 fingers regularly.
• Clean excessive flux residue.
• Check fingers for cracks and deformation.
• Compare the height of adjacent fingers.
• Check conveyor chain tension and movement.
• Inspect the rail alignment.
• Monitor PCB movement during operation.
• Replace heavily worn fingers promptly.

When one finger has failed because of long-term wear, inspect neighboring fingers at the same time.

They may have operated for a similar number of production cycles and could require replacement soon.

Why Keep PF08-20 in Spare Inventory

Conveyor fingers are relatively simple components, but a missing replacement can still delay production.

Keeping PF08-20 fingers in stock allows maintenance staff to respond quickly when wear or accidental damage is discovered.

Inventory Advantages

• Faster maintenance response.
• Reduced emergency sourcing.
• Convenient preventive replacement.
• Suitable for planned machine shutdown maintenance.
• Helps support continuous wave solder production.
• Easy to combine with other conveyor spare parts.

Factories operating several wave soldering machines may maintain different finger models in separate labeled inventory to prevent mixing PF08-20 with similar products.

FAQ

1. What is the SMIC PF08-20 used for?

The SMIC PF08-20 is a resin conveyor finger used in compatible wave soldering machine PCB transport systems. It supports and guides PCB edges while boards move through fluxing, preheating, soldering, cooling, and unloading sections.

2. Is PF08-20 a resin conveyor finger?

Yes. This product is supplied as a PF08-20 Resin Conveyor Finger for the corresponding wave solder conveyor application. The exact model and installation configuration should still be confirmed before ordering.

3. Is PF08-20 interchangeable with PF08-06 or PFW-20L?

They should not be assumed to be interchangeable. PF08-20, PF08-06, and PFW-20L are different model designations. Confirm the existing finger, conveyor configuration, and model before selecting a replacement.

4. When should PF08-20 fingers be replaced?

Replacement is recommended when the finger shows cracks, deformation, excessive wear, loose installation, heavy contamination, or unstable PCB support. Inspect nearby conveyor fingers and chains during the same maintenance procedure.

5. What information should I send for quotation?

Please provide the PF08-20 model, required quantity, machine or conveyor information, and clear product photos when available. These details help confirm the required conveyor finger and provide a more accurate quotation.

Contact Us

Need SMIC PF08-20 Wave Solder PCB Conveyor Resin Fingers for replacement or maintenance?

Send us your model, required quantity, machine information, and existing finger photos for product confirmation and quotation.

We supply wave solder machine spare parts for electronics manufacturers, EMS factories, equipment maintenance companies, and machine refurbishment projects.

PF08-20, PF08-06, PFW-20L, and other conveyor spare parts can be included in one purchasing inquiry.

Send your inquiry today for price, availability, bulk quantity options, and shipping information.
