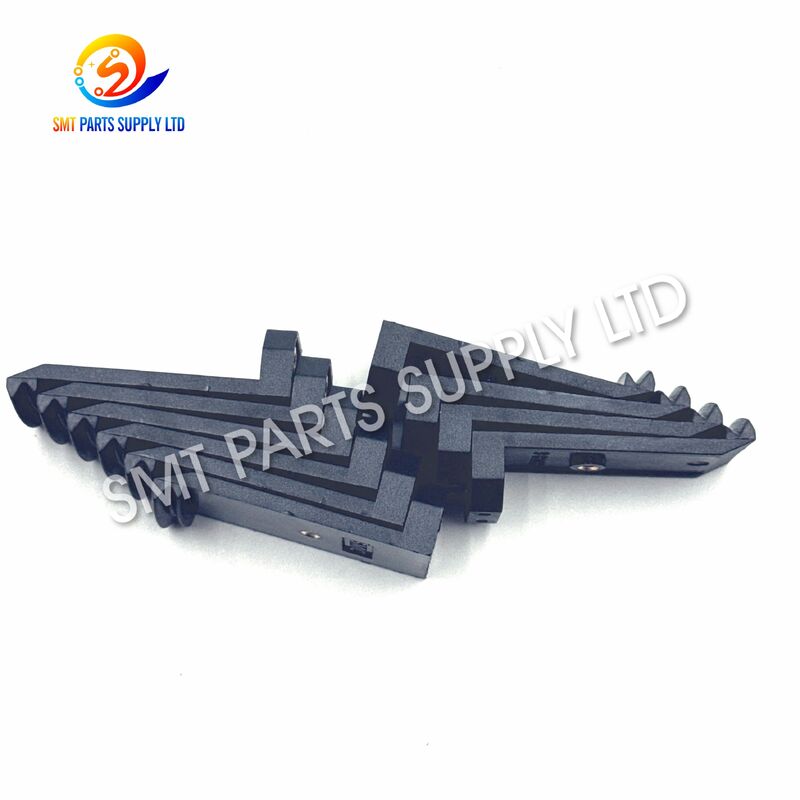

SMIC PF08-06 Wave Solder PCB Conveyor Resin Finger

The SMIC PF08-06 Wave Solder PCB Conveyor Resin Finger is a mechanical replacement part used in compatible wave soldering machine conveyor systems. Installed along the PCB transport chain or conveyor rail, the finger provides a stable contact point for the edge of the printed circuit board as it moves through the complete wave soldering process.

During production, the PCB must travel smoothly through flux application, preheating, solder wave, and cooling areas while maintaining a consistent transport position. Conveyor fingers play an important role in this movement because they directly support and guide the PCB edges.

The PF08-06 Resin Finger is suitable for replacement of worn, broken, deformed, contaminated, or missing conveyor fingers. Maintaining the conveyor finger system in good condition helps reduce PCB tilting, unstable transportation, excessive vibration, and mechanical interference.

For electronics manufacturers operating wave solder production lines, PF08-06 is a practical maintenance and spare component for reliable PCB handling.

Key Product Information

Cause – Why PF08-06 Fingers Require Replacement

Wave soldering machines operate continuously in demanding production environments.

The PCB conveyor moves through areas exposed to elevated temperature, flux residue, process contamination, repeated mechanical movement, and continuous contact with PCB edges.

Because the PF08-06 finger is a direct-contact mechanical component, its condition can gradually change during long-term production.

Typical Causes of Conveyor Finger Failure

A damaged finger may initially appear to be a minor issue. However, several worn or uneven fingers working together can affect PCB transportation throughout the machine.

Regular inspection therefore helps detect these problems before they cause production interruption.

Solution – Maintain Stable PCB Conveyor Performance

Replacing worn conveyor fingers with the correct SMIC PF08-06 Resin Finger helps restore the mechanical condition of the PCB conveyor system.

A properly installed conveyor finger supports the PCB edge at the intended contact position and works together with adjacent fingers to maintain stable transportation.

Replacing damaged fingers can help address problems such as:

• Unstable PCB transportation.
• Uneven PCB support.
• PCB edge slipping.
• Excessive conveyor vibration.
• Abnormal movement through the soldering zone.
• Poor alignment between neighboring fingers.
• Mechanical interference around the conveyor rail.

Key Replacement Benefits

For factories using wave solder machines continuously, keeping frequently used conveyor fingers in maintenance stock can simplify repair work and minimize unnecessary line stoppages.

Specifications

Application

The SMIC PF08-06 Wave Solder Conveyor Resin Finger is designed for PCB transport applications in compatible wave soldering equipment.

It is suitable for electronics production environments where through-hole components and mixed-technology circuit boards are processed by wave soldering.

Typical Industries

• Consumer electronics manufacturing.
• Automotive electronics production.
• Industrial control PCB assembly.
• Power supply manufacturing.
• Communication equipment production.
• Home appliance control board manufacturing.
• LED and lighting electronics.
• EMS contract manufacturing.
• Electronic equipment assembly.

Typical Use Scenarios

PF08-06 fingers can be inspected as part of regular wave solder conveyor maintenance along with conveyor chains, rails, sprockets, guide systems, and width adjustment components.

How It Works

The wave solder conveyor is responsible for transporting PCBs at a controlled speed and angle through the soldering process.

The PF08-06 Resin Finger functions as one of the PCB contact components within this transportation system.

1. PCB Enters the Conveyor

The circuit board enters the wave soldering machine from an upstream conveyor or loading station.

PF08-06 fingers positioned along the conveyor contact the PCB edges.

2. Fingers Support the PCB

Multiple conveyor fingers work together to maintain the board in a stable transport position.

Correct finger alignment is important because the PCB should not move excessively while passing through the process.

3. PCB Passes Through Fluxing

The conveyor transports the board through the flux application section.

The fingers continue to hold the board edges while allowing the underside of the PCB to remain accessible to the process.

4. PCB Moves Through Preheating

During preheating, stable transportation helps maintain predictable board movement through the thermal process.

The conveyor finger system continues to support the PCB throughout this section.

5. PCB Passes Over the Solder Wave

The PCB is transported through the wave soldering area.

At this stage, reliable mechanical positioning is particularly important because the underside of the PCB interacts directly with the solder wave.

6. PCB Exits the Machine

After soldering and cooling, the board continues toward the unloading area and downstream production equipment.

The PF08-06 finger therefore participates in the entire PCB transportation process.

Why PF08-06 Finger Condition Is Important

Conveyor fingers may be relatively small mechanical components, but they directly contact the PCB.

When their height, shape, installation position, or contact surface becomes inconsistent, board transportation may also become inconsistent.

Possible Symptoms of Worn Fingers

• PCB movement is not smooth.
• Boards shake while traveling.
• PCB edges are not held evenly.
• One side of the PCB appears lower.
• Conveyor movement produces abnormal noise.
• Fingers show visible cracks or deformation.
• Flux residue accumulates around the contact area.
• PCB occasionally catches during transportation.
• Adjacent fingers have different operating positions.

These symptoms should be investigated together with the conveyor chain and rail system.

Replacing a defective PF08-06 finger can be a simple maintenance action compared with troubleshooting repeated board transportation problems during production.

PF08-06 Resin Finger Maintenance Advantages

The resin finger acts as a replaceable interface between the conveyor mechanism and the PCB edge.

This design allows individual worn components to be replaced without changing the complete PCB conveyor system.

Maintenance Features

The actual service life depends on machine operating hours, process temperatures, flux conditions, cleaning frequency, PCB characteristics, and conveyor maintenance practices.

PF08-06 vs. Other Wave Solder Fingers

Wave solder conveyor fingers should not be selected only by general product type.

Models such as PF08-06, PF08-20, and PFW-20L may belong to the same broad conveyor finger category, but they should be treated as different models when sourcing replacement parts.

The model number should always be confirmed before ordering.

Do not substitute one finger model for another based only on similar appearance.

How To Choose the Correct PF08-06 Finger

Step 1 – Confirm the Model

Verify that the existing component or spare parts requirement specifies:

PF08-06

This should be the primary identification information.

Step 2 – Compare the Existing Finger

Before ordering, compare the existing product with the replacement requirement.

Check:

• Finger profile.
• Mounting structure.
• PCB contact section.
• Installation orientation.
• Overall appearance.
• Conveyor mounting position.

Step 3 – Confirm Resin Type

Confirm that the required component is a:

Resin Conveyor Finger

This is important because wave solder conveyor systems can also use other finger constructions.

Step 4 – Check the Conveyor System

Verify the machine conveyor configuration and make sure the PF08-06 model corresponds to the installed system.

Step 5 – Send Photos for Confirmation

If identification is uncertain, provide clear photos of:

• Complete finger.
• Front and side view.
• Mounting section.
• Conveyor chain.
• Existing finger installed on the machine.
• Model marking where available.

This provides additional information for product confirmation before quotation.

Installation Recommendations

Before replacing conveyor fingers, stop the equipment according to the machine manufacturer's maintenance procedures.

Make sure the conveyor area is safe for service.

After removing the existing finger, inspect the mounting point and neighboring conveyor components.

Recommended Inspection Checklist

After installing the replacement finger, check its height and position relative to adjacent fingers.

Run the conveyor under appropriate test conditions before returning the machine to normal production.

Preventive Maintenance Recommendations

Wave solder conveyor maintenance should not focus only on replacing parts after failure.

Routine inspection can identify abnormal finger wear before PCB transportation is affected.

Recommended maintenance includes:

• Inspect PF08-06 fingers for visible wear.
• Remove excessive flux residue.
• Check neighboring fingers for consistent alignment.
• Inspect conveyor chain movement.
• Check conveyor rail condition.
• Inspect mounting points for looseness.
• Observe PCB movement during production.
• Replace cracked or seriously deformed fingers promptly.

When one finger shows severe deterioration, technicians should inspect the surrounding fingers as well because they may have experienced similar production conditions.

Why Keep PF08-06 in Spare Parts Inventory

Wave solder production lines are often required to operate continuously for extended periods.

A relatively inexpensive mechanical part can still cause production delays if no replacement is available when required.

Keeping PF08-06 resin fingers in stock provides maintenance teams with several practical advantages:

• Faster replacement of damaged components.
• Less dependence on emergency purchasing.
• Easier preventive maintenance scheduling.
• Reduced risk of extended conveyor downtime.
• Convenient replacement during scheduled service.
• Suitable for factories operating multiple soldering lines.

For distributors and maintenance companies, PF08-06 can also be purchased together with other wave solder conveyor spare parts.

FAQ

1. What is the SMIC PF08-06 Resin Finger used for?

The SMIC PF08-06 is used as a PCB conveyor finger in compatible wave soldering machines. It contacts, supports, and guides PCB edges while the board moves through fluxing, preheating, soldering, cooling, and unloading processes.

2. Is PF08-06 a resin or titanium conveyor finger?

PF08-06 is offered as a resin conveyor finger for the corresponding wave solder conveyor application. Confirm the exact model before ordering because different conveyor systems may use different finger materials and mounting configurations.

3. Is PF08-06 the same as PF08-20 or PFW-20L?

No. PF08-06, PF08-20, and PFW-20L should be treated as different conveyor finger models. Always order according to the existing model number, machine configuration, or confirmed sample rather than replacing them based only on appearance.

4. When should PF08-06 conveyor fingers be replaced?

Replace the finger when it is cracked, deformed, excessively worn, loose, heavily contaminated, or no longer provides stable PCB edge support. Inspect neighboring fingers and the conveyor chain at the same time.

5. What should I provide when requesting a quotation?

Please send the PF08-06 model, required quantity, wave solder machine information, and clear photos of the existing finger when available. This helps verify the replacement requirement and improves quotation accuracy.

Contact Us

Looking for SMIC PF08-06 Wave Solder PCB Conveyor Resin Fingers?

Send us your model, quantity, machine information, and product photos for confirmation and quotation.

We supply wave solder machine spare parts for electronics factories, EMS manufacturers, machine maintenance companies, and equipment refurbishing requirements.

PF08-06 can also be supplied together with other conveyor fingers and wave solder spare parts for consolidated purchasing.

Send your inquiry today for price, availability, quantity options, and shipping information.
