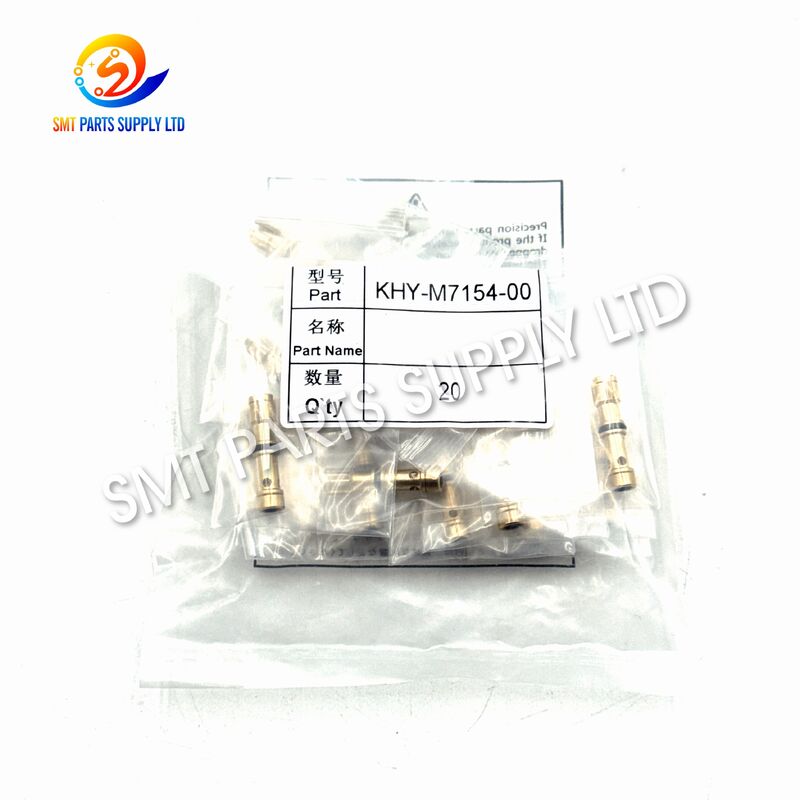

YAMAHA KHY-M7154-00 YS12 YS24 YG12 Vacuum Generator Valve BIT

YAMAHA KHY-M7154-00 YS12 YS24 YG12 Vacuum Generator Valve BIT

The YAMAHA KHY-M7154-00 Vacuum Valve BIT is a precision internal component used in the vacuum ejector and pneumatic control system of compatible YS12, YS24 and YG12 SMT placement equipment. The BIT works as part of the vacuum valve structure rather than as a complete standalone ejector assembly. Its condition directly influences the response and sealing performance of the pneumatic vacuum circuit.

During SMT production, the placement head must generate and release vacuum quickly as components are picked from feeders, transported and mounted onto the PCB. Wear, contamination or sealing deterioration inside the vacuum valve can lead to unstable suction, delayed vacuum response or intermittent pickup problems.

Replacing the KHY-M7154-00 BIT can be a practical maintenance solution when the surrounding valve assembly remains serviceable. It is suitable for preventive maintenance, pneumatic system repair and restoration of placement-machine vacuum performance.

Cause

The vacuum system of an SMT placement machine operates repeatedly throughout production. Every pickup and placement cycle requires rapid switching between vacuum generation and release. After extended operating periods, internal pneumatic parts may gradually become contaminated or worn.

Common causes of vacuum-related problems include:

A deteriorated BIT does not always cause a complete machine stop immediately. In many cases, the first signs are intermittent pickup errors, repeated component recognition failures or reduced vacuum stability.

Because these symptoms may also be caused by nozzles, filters, air hoses, ejectors or vacuum sensors, proper diagnosis should be performed before replacing the component.

Solution

When inspection confirms that the vacuum valve internal component is worn or damaged, replacing the KHY-M7154-00 BIT can help restore the mechanical and pneumatic condition of the valve assembly.

The replacement approach is particularly useful when the main ejector body and other associated parts are still in usable condition.

Maintenance Benefits

Before installation, the valve housing and surrounding pneumatic passages should be checked for dirt, foreign material and damaged sealing surfaces.

Correct installation is important because the BIT operates together with other components inside the vacuum ejector system.

Specifications

Important: KHY-M7154-00 is normally identified as a BIT within the valve/ejector structure, rather than the complete vacuum ejector assembly. Buyers are recommended to confirm the required assembly level before ordering.

Application

The KHY-M7154-00 is mainly used in SMT placement equipment where pneumatic vacuum is required for component pickup.

Compatible Machine Applications

Typical Maintenance Scenarios

The component is suitable for:

• Vacuum ejector repair.
• Placement head pneumatic maintenance.
• Scheduled SMT machine servicing.
• Vacuum valve rebuilding.
• Replacement of worn internal valve components.
• Spare-parts inventory for production lines.
• Troubleshooting unstable component pickup.
• Restoring aging pneumatic assemblies.

It is particularly useful for factories operating several compatible placement machines because keeping small pneumatic replacement components in stock can reduce the need to replace a complete assembly for every internal failure.

How It Works

An SMT placement head relies on controlled vacuum to hold electronic components securely on the nozzle.

The basic operating sequence is:

The KHY-M7154-00 BIT operates inside the valve mechanism and contributes to controlled airflow switching.

Because modern SMT placement machines perform thousands of pickup and placement cycles, the response of small pneumatic components is important. Even minor wear can influence vacuum timing and pickup consistency.

A properly functioning valve BIT helps the vacuum system switch repeatedly with stable mechanical action.

How To Choose

Correct part identification is important when purchasing SMT pneumatic components because similar-looking valve parts may have different dimensions, sealing structures or machine applications.

1. Check the Part Number

Confirm that the removed component or machine parts list specifies:

KHY-M7154-00

Do not select only by appearance.

2. Confirm the Machine Model

Typical compatible applications include:

• YS12
• YS24
• YG12

Provide the exact machine model when requesting a quotation.

3. Confirm Whether You Need the BIT or Complete Assembly

This is one of the most important points.

KHY-M7154-00 should not automatically be treated as a complete vacuum valve assembly.

4. Compare the Existing Part

For faster identification, provide:

• Machine model.
• Part number.
• Photos of the existing component.
• Quantity required.
• Photos of the valve assembly if available.

5. Check the Pneumatic System Before Replacement

Vacuum instability may also result from:

• Clogged nozzle.
• Dirty vacuum filter.
• Damaged pneumatic tubing.
• Air leakage.
• Low compressed-air pressure.
• Vacuum sensor problems.
• Ejector contamination.

Checking these points helps avoid unnecessary replacement and improves maintenance efficiency.

Why Choose This Replacement Part

For SMT factories, replacement of a small pneumatic component can be more economical than replacing a complete vacuum assembly when only the internal BIT has deteriorated.

The product is suitable for electronics manufacturers, SMT maintenance departments, equipment service companies and spare-parts distributors requiring replacement components for established production equipment.

Maintenance Recommendations

For stable operation after replacement, the surrounding vacuum system should also be inspected.

Recommended maintenance points include:

Do not force the BIT into the valve body during installation. Installation should be performed by technicians familiar with SMT placement-machine pneumatic systems.

After replacement, run a machine vacuum test and monitor pickup performance before returning the equipment to full production.

FAQ

Q1. What is the YAMAHA KHY-M7154-00 used for?

KHY-M7154-00 is a BIT used within the vacuum valve or ejector pneumatic system of compatible SMT placement machines. It supports the switching action required for stable vacuum generation and release during electronic component pickup and placement.

Q2. Which machines are compatible with KHY-M7154-00?

The part is commonly associated with YS12, YS24 and YG12 SMT placement equipment. Because machine configurations can vary, buyers should confirm the machine model and existing part number before ordering.

Q3. Is KHY-M7154-00 a complete vacuum generator valve?

No. KHY-M7154-00 is generally identified as the internal BIT associated with the vacuum valve/ejector assembly, rather than the complete ejector or complete solenoid valve. Confirm the required component level before purchasing.

Q4. When should this BIT be replaced?

Replacement may be considered when technicians find wear, contamination or damage inside the valve and the machine shows unstable vacuum response, intermittent pickup failure or abnormal pneumatic switching. The complete vacuum system should be inspected first.

Q5. What information should I provide for quotation confirmation?

Please provide the required part number, machine model, quantity and clear photos of the existing component. If the part number is unclear, photos of the vacuum valve or ejector assembly can help confirm the correct replacement.

Contact Us

For price, stock availability, delivery time or compatibility confirmation, please send us your inquiry with the following information:

Part Number: KHY-M7154-00
Machine Model: YS12 / YS24 / YG12
Required Quantity: Please specify
Existing Part Photo: Recommended for confirmation

We support single-piece maintenance requirements as well as quantity orders for SMT factories, equipment service companies and spare-parts distributors. Send your required quantity and machine information for a fast quotation and compatibility check.
