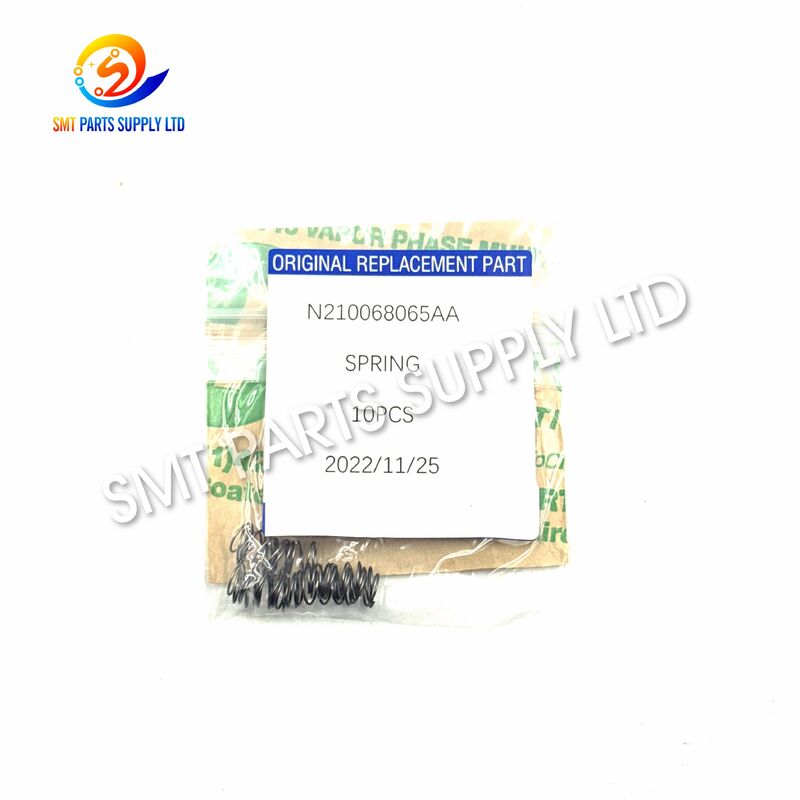

Panasonic N210068065AA Nozzle Holder Spring for CM402 CM602 NPM Mounter

The Panasonic N210068065AA Nozzle Holder Spring is a small but important mechanical component used within compatible nozzle holder assemblies of CM402, CM602, and applicable NPM placement machines. During high-speed SMT production, the nozzle holder repeatedly moves, compresses, and returns while components are picked and placed. The spring provides the controlled restoring force required for this repetitive mechanical action.

When an existing holder spring becomes fatigued, permanently compressed, bent, contaminated, or mechanically damaged, the nozzle holder may no longer return smoothly or consistently. Replacing the worn spring with the correctly matched N210068065AA component helps restore the intended mechanical movement of the holder assembly.

This part is suitable for SMT factories, EMS manufacturers, machine maintenance departments, equipment service companies, and spare-parts distributors requiring reliable replacement components for placement head maintenance.

The nozzle holder mechanism experiences continuous repetitive motion during SMT production. In high-volume applications, a placement head can perform thousands of operating cycles within a short production period.

Over time, several conditions may affect the spring.

A spring that has lost its designed mechanical characteristics can affect the return action of the nozzle holder. However, pickup or placement problems should not automatically be attributed to the spring alone.

The nozzle, holder, shaft, vacuum system, valve, sensor, guide mechanism, and machine adjustment should also be inspected when troubleshooting placement-head problems.

When inspection confirms that the existing spring is damaged, deformed, fatigued, or no longer providing stable restoring force, replacement with the correct N210068065AA Nozzle Holder Spring is a practical maintenance solution.

The replacement process should include more than simply changing the spring.

Recommended maintenance steps include:

1. Confirm the installed machine model.
2. Check the placement head configuration.
3. Verify the existing part number.
4. Inspect the nozzle holder for wear or contamination.
5. Remove the old spring carefully.
6. Compare the replacement part with the removed component.
7. Install the spring in the correct position.
8. Confirm free holder movement after installation.
9. Perform machine initialization and functional testing.
10. Observe pickup and placement stability before full production.

Correct part verification is especially important because different head configurations can use springs with similar appearance but different dimensions or mechanical characteristics.

Compatibility Notice: Machine series can contain different placement-head configurations. Buyers should confirm the original part number and actual head configuration before ordering.

The main purpose of N210068065AA is to provide controlled spring tension and restoring force inside the nozzle holder assembly.

During operation, the holder mechanism can move under mechanical force. The spring compresses as the mechanism travels and then releases stored mechanical energy when the external force is removed.

This action assists the holder in returning toward its required operating position.

Although it is a simple mechanical part, correct spring behavior is important because the nozzle holder performs repeated movements throughout production.

Similar holder springs may be used in different placement head assemblies. Selection should always be based on the correct part number and machine configuration.

These models should not be considered automatically interchangeable. Differences in spring length, diameter, wire size, compression characteristics, and installation position can affect compatibility.

The N210068065AA spring is mainly used for servicing nozzle holder mechanisms in compatible SMT placement equipment.

• CM402 placement machine maintenance.
• CM602 mounter head servicing.
• Applicable NPM placement machine maintenance.
• Nozzle holder assembly repair.
• Placement head rebuilding.
• Preventive maintenance.
• Worn spring replacement.
• Mechanical head inspection.

For maintenance departments operating multiple machines, small mechanical components such as holder springs are useful items to keep in spare-parts inventory.

The following conditions may indicate that inspection of the nozzle holder spring is necessary:

• Holder return movement becomes slow.
• Holder movement becomes inconsistent.
• Spring appears permanently compressed.
• Spring is bent or mechanically damaged.
• Spring tension feels noticeably weaker.
• Holder mechanism occasionally sticks.
• Spring shows corrosion or surface damage.
• Mechanical performance changes after long production hours.
• Existing spring has been damaged during maintenance.

These symptoms can also be caused by other head components. Complete mechanical inspection is recommended before determining the final cause.

The N210068065AA spring works through a simple mechanical compression-and-recovery process.

The spring is installed inside the nozzle holder mechanism in its specified position.

During machine operation, movement of the holder causes the spring to compress.

The spring stores mechanical energy while compressed.

When the external force decreases, the spring begins returning toward its original shape.

The released spring force assists the nozzle holder mechanism in returning to its normal mechanical position.

The process repeats continuously during component pickup and placement cycles.

Correct identification is essential when selecting a replacement nozzle holder spring.

The safest method is confirming that the installed component or equipment spare-parts documentation specifies N210068065AA.

Provide the exact equipment model, such as:

• CM402
• CM602
• NPM series

Machine model alone may not always be sufficient because different head configurations can be installed.

The placement head specification is important when several holder assemblies are used within the same machine family.

When the original part number cannot be confirmed, provide clear photographs of:

• Existing spring.
• Nozzle holder.
• Placement head.
• Installation position.
• Machine identification information.

Important spring measurements can include:

Two springs may look nearly identical while having different mechanical characteristics. Selection based only on appearance can cause incorrect installation or unsuitable holder movement.

Routine inspection can help identify spring-related problems before they affect production stability.

Maintenance frequency should be determined according to machine operating hours, production environment, component types, and internal maintenance procedures.

Installation should be performed by personnel familiar with SMT machine maintenance.

Before installation:

• Stop the machine according to maintenance procedures.
• Prepare clean tools and a clean work area.
• Confirm the replacement part number.
• Record the original spring position.

During installation:

• Do not overstretch the spring.
• Avoid sideways bending.
• Keep the component clean.
• Confirm both spring ends are correctly seated.
• Do not force the holder mechanism.

After installation:

• Verify free holder movement.
• Reassemble the placement head correctly.
• Initialize the machine according to maintenance procedures.
• Test component pickup and placement.
• Observe the repaired head before returning to full production.

Small precision components require suitable handling because deformation during storage or transportation can affect installation.

Typical inspection and packing considerations include:

• Visual check before shipment.
• Part number verification.
• Surface condition inspection.
• Protection against crushing.
• Separate packaging for small components.
• Clear part identification.
• Suitable outer carton for international transportation.

For customers purchasing multiple SMT spare parts, the spring can be included in a consolidated shipment with other head maintenance components.

N210068065AA provides mechanical restoring force inside the nozzle holder mechanism. It helps the holder recover after compression during repeated pickup and placement movements, supporting stable mechanical operation of compatible placement heads.

Not every machine configuration necessarily uses the same spring. Confirm the installed part number, placement head model, and holder assembly before ordering to ensure correct compatibility.

A fatigued or damaged spring may contribute to abnormal holder return movement, but pickup problems can also be caused by the nozzle, vacuum system, valve, shaft, contamination, sensor, or mechanical wear.

Provide the machine model, placement head type, detailed spring dimensions, and clear photos of both the spring and holder assembly. This information makes component verification more accurate.

Yes. It can be included with nozzle holders, shafts, filters, valves, nozzles, springs, and other placement-head maintenance parts for combined quotation and consolidated shipment.
