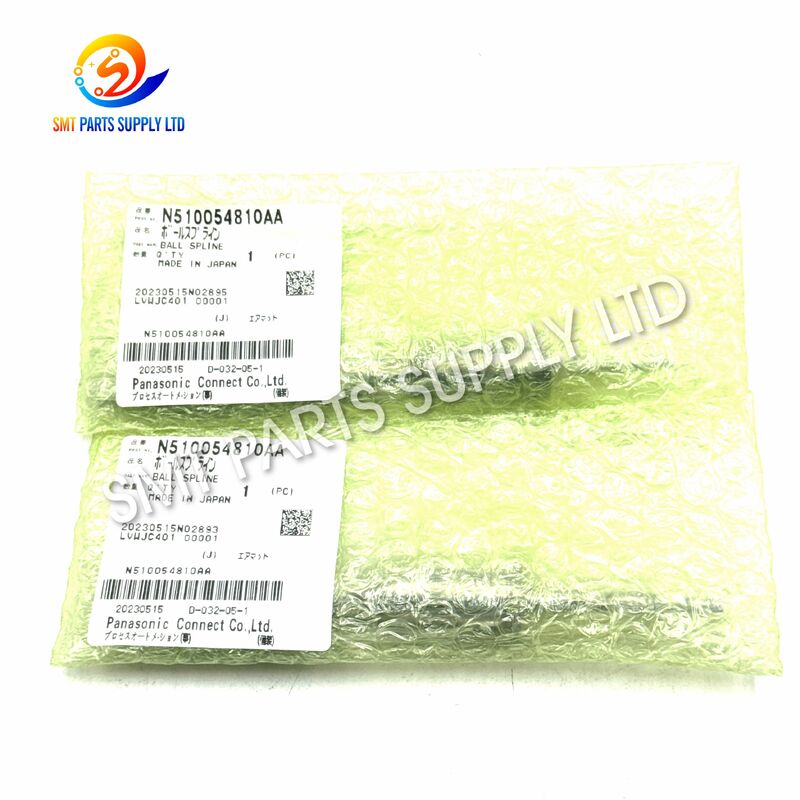

Panasonic N510054810AA H8 Ball Spline for CM402 CM602

The Panasonic N510054810AA N510002505AA H8 Head Ball Spline is a precision mechanical guidance component designed for compatible CM402 and CM602 SMT pick-and-place machine H8 head assemblies. Its primary function is to guide smooth and accurately controlled linear movement inside the placement head while helping limit unwanted radial or rotational play.

During high-speed SMT production, the placement head performs continuous pickup, transfer, positioning, and mounting cycles. Stable mechanical guidance is therefore essential for maintaining consistent head movement. A worn, contaminated, damaged, or loose ball spline can contribute to abnormal movement resistance, mechanical vibration, head clearance, or positioning instability.

This H8 Head Ball Spline is suitable for machine maintenance, placement-head rebuilding, preventive servicing, and replacement of worn mechanical motion components. For accurate selection, buyers should confirm the existing part number, H8 head configuration, and machine model before ordering.

The H8 placement head operates continuously under repeated acceleration, deceleration, vertical motion, and mechanical loading. Over extended production periods, the ball spline can gradually experience wear.

1. Long-Term Mechanical Wear

Repeated movement between the spline shaft and internal rolling elements can gradually change the original mechanical clearance.

As wear increases, the head mechanism may develop abnormal looseness or inconsistent movement.

2. Insufficient Lubrication

Precision linear-motion parts require an appropriate lubrication condition.

Insufficient lubrication can increase friction, create additional resistance, and accelerate wear on the spline contact surfaces.

3. Dust and Contamination

SMT production environments may contain fine dust, grease residue, component debris, or other contaminants.

Foreign material entering the moving area can interfere with smooth ball circulation and head travel.

4. Placement Head Collision

Nozzle collision, PCB contact, feeder interference, or accidental mechanical impact can transmit shock through the head assembly.

A strong impact can affect ball spline alignment or damage related mechanical components.

5. Incorrect Maintenance

Improper disassembly, installation force, misalignment, or unsuitable lubrication during head servicing can reduce ball spline life.

6. High Operating Hours

Machines operating continuously in high-volume production naturally accumulate a large number of placement cycles.

For older CM402 and CM602 machines, mechanical head components should be inspected periodically as part of preventive maintenance.

These symptoms can also originate from bearings, shafts, motors, sensors, nozzle holders, calibration, or other head components. Complete mechanical diagnosis is recommended before replacement.

Replacing a worn H8 Head Ball Spline with the correctly matched component can help restore controlled mechanical movement inside the placement head.

A recommended maintenance process includes:

Step 1 – Inspect Head Movement

Check whether the H8 head moving section travels smoothly through its normal stroke.

Step 2 – Check Mechanical Clearance

Inspect for abnormal side play, rotational looseness, vibration, or inconsistent resistance.

Step 3 – Inspect Lubrication Condition

Verify that the spline and associated precision components have been maintained with suitable lubrication.

Step 4 – Check Related Components

The ball spline works together with other head mechanisms. Bearings, shafts, holders, mounting components, springs, and drive parts should also be inspected.

Step 5 – Confirm the Original Part Number

Compare the removed component with N510054810AA and N510002505AA references before ordering.

Step 6 – Install Correctly

Installation should be performed by technicians familiar with SMT placement-head maintenance and precision mechanical assemblies.

Step 7 – Test and Calibrate

After replacement, verify movement smoothness, machine calibration, nozzle operation, and trial-placement performance before returning the machine to normal production.

Selection Note: N510054810AA and N510002505AA should be confirmed against the original installed component. Do not assume interchangeability solely from machine model because machine revisions and head configurations may differ.

The N510054810AA / N510002505AA H8 Head Ball Spline is primarily used for maintenance of high-speed SMT placement equipment.

CM402 Head Maintenance

Suitable for servicing compatible CM402 H8 placement heads where excessive play, rough travel, contamination, or wear has been identified.

CM602 Head Maintenance

Used in compatible CM602 head configurations after confirming the original part number and H8 head specification.

Placement Head Rebuilding

Professional SMT service companies can use the ball spline when rebuilding placement heads that require restoration of precision mechanical movement.

Preventive Maintenance

For machines with high operating hours, ball spline inspection can be incorporated into scheduled head-maintenance programs.

Typical Industries

A ball spline is a precision linear-motion component designed to allow smooth axial movement while controlling unwanted relative rotation and side movement.

Inside the H8 placement-head mechanism, the ball spline guides the moving section along a defined linear path.

Operating Sequence

1. The machine sends a movement command.

The control system determines the position required for the next pickup or placement operation.

2. The head drive mechanism generates motion.

The motor and related transmission components move the head mechanism.

3. The ball spline guides the moving section.

The spline maintains controlled axial movement and helps keep the mechanism aligned.

4. Rolling elements reduce friction.

The internal ball structure allows repeated motion with lower resistance than a simple sliding guide.

5. The nozzle reaches the required position.

Stable mechanical guidance supports repeatable pickup and placement movement.

A simplified SMT operating process is:

Component Pickup → Head Movement → Recognition → PCB Positioning → Component Placement → Head Return

During continuous production, this cycle is repeated thousands of times. Maintaining good spline condition therefore contributes to consistent mechanical performance.

Correct matching is important because precision SMT head components may appear similar while having different mechanical specifications.

1. Confirm the Part Number

Check whether the existing component is identified as:

• N510054810AA
• N510002505AA

Ordering only by appearance is not recommended.

2. Confirm the Machine

Verify whether the machine is:

• CM402
• CM602

3. Confirm H8 Head Configuration

The product is intended for compatible H8 head applications. Other placement-head types may use different spline assemblies.

4. Compare the Original Component

If identification is uncertain, provide photos showing:

• Complete ball spline
• Both shaft ends
• Installation position
• Existing markings
• Related head assembly

5. Diagnose Before Replacing

6. Inspect Related Head Parts

When rebuilding an older H8 head, it is advisable to inspect other wear components at the same time.

This can reduce repeated machine downtime caused by replacing only one part while other mechanical components remain worn.

Correct installation and maintenance are important because the ball spline operates within a precision mechanical assembly.

Q1: What is the main purpose of N510054810AA H8 Head Ball Spline?

Its primary purpose is to guide controlled linear movement within the compatible H8 placement-head assembly. It helps maintain mechanical alignment, reduce unwanted play, and support smooth repetitive movement during SMT component pickup and placement.

Q2: Is this ball spline suitable for both CM402 and CM602?

It is referenced for compatible H8 head applications associated with CM402 and CM602 machines. However, machine and head revisions may differ, so the existing part number and head configuration should be confirmed before ordering.

Q3: When should an H8 Head Ball Spline be replaced?

Replacement may be required when inspection reveals excessive mechanical clearance, rough movement, vibration, abnormal noise, contamination damage, inconsistent head travel, or visible wear on the spline and associated mechanical components.

Q4: Are N510054810AA and N510002505AA exactly the same part?

They may be used as related references for this application, but direct interchangeability should be verified against the installed component, machine configuration, and available maintenance documentation before replacement.

Q5: What information should I provide for a quotation?

Please provide the required part number, machine model, H8 head type, quantity, preferred condition, delivery country, and photos of the existing component when available. These details help improve matching accuracy and quotation efficiency.

Need N510054810AA / N510002505AA H8 Head Ball Spline for CM402 or CM602?

Please send us:

• Required part number
• Machine model
• H8 head information
• Required quantity
• Preferred condition
• Delivery destination
• Existing component photos if available

We can assist with part identification, stock confirmation, quotation, lead time, related H8 head spare parts, and international shipping arrangements.

Send your inquiry for current availability, price, and matching confirmation.
