SMC AF30P-060S AFM40P-060AS 5 μm 0.3 μm Filter Element Set for Compressed-Air Particle and Oil-Mist Filtration

Name: SMC AF30P-060S AFM40P-060AS 5 μm 0.3 μm Filter Element Set for Compressed-Air Particle and Oil-Mist Filtration
Brand: SMT PARTS SUPPLY LTD
SKU: AF30P-060S AFM40P-060AS
Price: 251.00 USD
Availability: InStock

Brand Name:	SMC
Model Number:	AF30P-060S AFM40P-060AS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA&JAPAN

Brand:

SMC

Product Type:

Pneumatic Filter Element And Mist-separator Element Set

Part Number 1:

AF30P-060S

Part Number 2:

AFM40P-060AS

Nominal Filtration Rating 1:

5 μm

Nominal Filtration Rating 2:

0.3 μm

Applicable Series 1:

AF30 Air Filter

Applicable Series 2:

AFM40 / AFM40-06 Mist Separator

Main Function:

Compressed-air Particle And Oil-mist Filtration

Typical Industry:

SMT, Electronics Manufacturing, Automation And Pneumatic Equipment

Installation Position:

Inside The Corresponding Filter Or Mist-separator Housing

Supply Form:

Two Replacement Elements As One Maintenance Set

Highlight:

SMC compressed-air filter element

5 μm particle filtration filter

0.3 μm oil-mist filter

Product Description

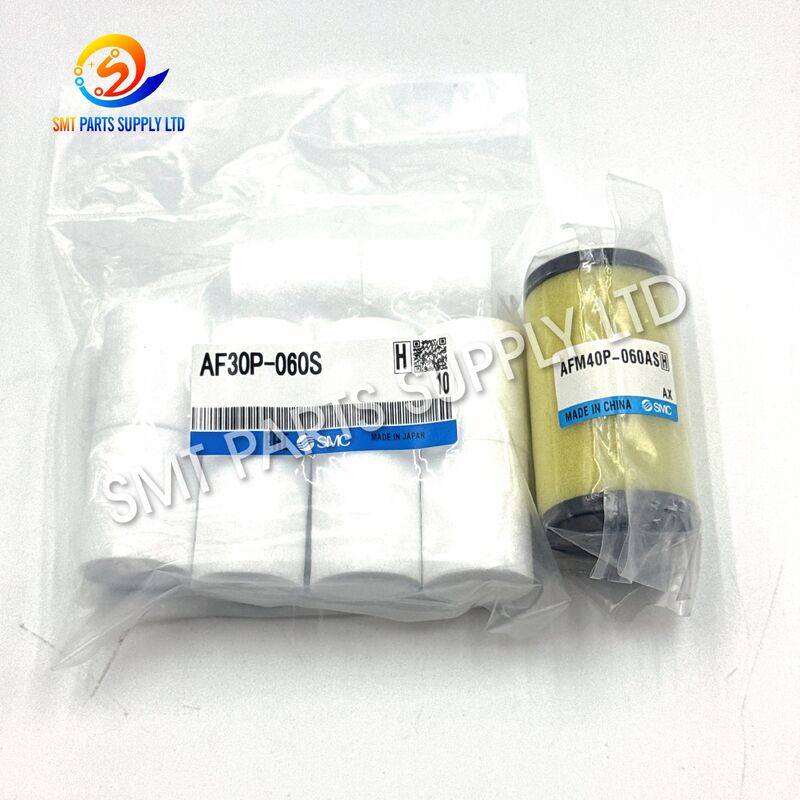

SMC AF30P-060S AFM40P-060AS 5μm 0.3μm AF30 AFM40 Filter Element Set

The SMC AF30P-060S and AFM40P-060AS filter element set is designed for preventive maintenance of compressed-air preparation systems used in SMT production equipment, automated assembly lines, inspection machines, pneumatic tooling, and industrial control systems. The AF30P-060S serves as a nominal 5 μm filter element for AF30-series air filters, while the AFM40P-060AS is an element assembly used with AFM40-series mist separators. Official SMC reference information identifies AF30P-060S as a replacement filter element for AF30 equipment and lists AFM40P-060AS for AFM40 and AFM40-06 mist separator models.

Used together in a properly configured air-treatment line, these elements support staged filtration. The first stage removes larger solid contaminants and condensed impurities, while the second stage provides finer mist separation. SMC technical information specifies a nominal 5 μm rating for standard AF filtration and a nominal 0.3 μm rating for AFM mist separators.

This product is supplied as a replacement element set rather than a complete air filter, regulator, bowl, housing, drain valve, or pneumatic treatment assembly.

Product Identification

Item	Product Information
Brand	SMC
Product Type	Pneumatic filter element and mist-separator element set
Part Number 1	AF30P-060S
Part Number 2	AFM40P-060AS
Nominal Filtration Rating 1	5 μm
Nominal Filtration Rating 2	0.3 μm
Applicable Series 1	AF30 air filter
Applicable Series 2	AFM40 / AFM40-06 mist separator
Main Function	Compressed-air particle and oil-mist filtration
Typical Industry	SMT, electronics manufacturing, automation and pneumatic equipment
Installation Position	Inside the corresponding filter or mist-separator housing
Supply Form	Two replacement elements as one maintenance set
Complete Housing Included	No
Regulator Included	No
Filter Bowl Included	No
Recommended Category	SMT Spare Parts

The official SMC web catalog describes AFM40P-060AS as an “Element Assembly,” while AF30P-060S is identified as a filter element for AF30-series equipment.

Key Product Advantages

Advantage	Customer Benefit
Two-stage filtration combination	Supports both general particle removal and finer mist separation
Clearly identified part numbers	Simplifies maintenance purchasing and spare-parts management
5 μm primary filtration	Helps capture larger airborne particles and compressed-air impurities
0.3 μm mist separation	Helps reduce fine oil mist and smaller contaminants downstream
Replaceable maintenance design	Allows servicing without replacing the complete air-treatment body
Suitable for SMT pneumatic systems	Supports stable air supply for cylinders, valves, nozzles and actuators
Compact spare-parts format	Easy to stock in maintenance rooms and service toolkits
Preventive-maintenance value	Helps reduce failures caused by contaminated compressed air
Reduced troubleshooting time	Replacing saturated elements can restore air-system performance
Broad industrial application	Suitable for electronics, automation, assembly and packaging equipment

Cause: Why Compressed-Air Contamination Creates Production Problems

Compressed air may contain dust, rust particles, condensed moisture, compressor oil, pipe debris and other contaminants. These impurities can travel through the factory air network and enter precision pneumatic components.

In SMT production environments, pneumatic devices frequently control component handling, feeder operation, vacuum generation, nozzle movement, board transfer, clamping, lifting and positioning. Even small amounts of contamination can affect the response and reliability of these systems.

Common Causes of Filter-Related Problems

Cause	Possible Result
Long operating time without element replacement	Progressive blockage and increased pressure loss
Poor compressor maintenance	Higher oil, water or particle concentration
Contaminated factory air piping	Rust, scale and debris entering the filter
High humidity	Increased condensate inside the pneumatic system
Incorrect element installed	Insufficient filtration or poor housing fit
Damaged filter media	Contaminants passing downstream
Excessive airflow demand	Reduced separation efficiency or unstable air pressure
Oil-saturated mist-separator element	Higher downstream oil carryover
Incorrect installation direction	Poor performance and possible air leakage
Bowl not cleaned during maintenance	New element contaminated immediately after installation

Typical Symptoms of a Saturated or Contaminated Element

A filter element should be inspected when one or more of the following conditions appear:

Symptom	Possible Interpretation
Lower downstream air pressure	Element may be blocked or air demand may be excessive
Slower cylinder movement	Restricted airflow or unstable pressure
Weak vacuum generation	Insufficient air supply to the vacuum ejector
Irregular solenoid-valve response	Contamination or pressure instability
Increased oil residue downstream	Mist-separator element may require inspection
Frequent pneumatic alarms	Air pressure or flow may be outside the machine requirement
Visible dirt on the element	Element has accumulated solid contamination
Element surface appears oily	Oil mist loading may be high
Unusual pressure drop	Filter restriction may have increased
Maintenance interval exceeded	Preventive replacement should be considered

These symptoms may also be caused by leakage, regulator malfunction, damaged seals, blocked tubing, compressor problems or incorrect machine settings. The entire pneumatic system should be checked before confirming the cause.

Solution: Two-Stage Compressed-Air Filtration

The AF30P-060S and AFM40P-060AS set provides a practical maintenance solution for air-treatment systems requiring both general filtration and mist separation.

The AF30P-060S is normally installed in the corresponding AF30 air-filter body as the primary filtration stage. Its nominal 5 μm filtration level is intended for the removal of common compressed-air contaminants before air reaches finer treatment components. SMC documentation lists 5 μm as the standard nominal filtration rating for general-purpose air filtration.

The AFM40P-060AS is installed in the corresponding AFM40 mist-separator body. SMC specifies a nominal filtration rating of 0.3 μm for AFM-series mist separators and lists AFM40P-060AS as the applicable element assembly for AFM40 models.

When correctly selected and installed, the combination can help:

Improvement Area	Expected Maintenance Benefit
Air cleanliness	Reduces solid particles and fine mist entering downstream components
Pneumatic stability	Supports consistent airflow and pressure delivery
Valve protection	Reduces contamination reaching valve spools and seals
Cylinder operation	Helps maintain smooth pneumatic movement
Vacuum performance	Supports cleaner air supplied to vacuum generators
Equipment maintenance	Reduces contamination-related inspection and cleaning
Production reliability	Helps lower the possibility of pneumatic interruptions
Spare-parts planning	Allows scheduled replacement of identified consumable elements

Specifications

Main Technical Specifications

Parameter	AF30P-060S	AFM40P-060AS
Product Type	Filter element	Mist-separator element assembly
Nominal Rating	5 μm	0.3 μm
Applicable Product Series	AF30	AFM40 / AFM40-06
Primary Function	General compressed-air particle filtration	Fine oil-mist and particle separation
Recommended Position	Upstream filtration stage	Downstream fine-filtration stage
Maintenance Type	Replaceable consumable part	Replaceable consumable assembly
Complete Filter Body	Not included	Not included
Filter Bowl	Not included	Not included
Drain Component	Not included	Not included
Regulator	Not included	Not included
Quantity per Set	1 piece	1 piece
Total Set Quantity	2 pieces	2 pieces combined
Application Medium	Compressed air in a compatible air-treatment system	Compressed air in a compatible mist-separator system
Installation Method	Installed inside matching AF30 housing	Installed inside matching AFM40 housing
Selection Method	Confirm housing model and current element code	Confirm housing model and current element code

Important Specification Notice

Pressure, temperature, airflow capacity, port size and drain configuration are determined by the complete filter or mist-separator assembly, not by the replacement element alone.

Before purchasing, check the full model printed on the installed filter body. Different generations, suffixes, regional specifications and special-order configurations may use different bowls, seals or maintenance parts.

Set Contents

Package Item	Part Number	Quantity	Description
Primary filter element	AF30P-060S	1	Nominal 5 μm replacement element
Mist-separator element assembly	AFM40P-060AS	1	Nominal 0.3 μm replacement element assembly
Standard protective packaging	—	1 set	Protects elements during storage and transportation
Complete pneumatic housing	—	Not included	Must already be installed on the equipment
Bowl seal or O-ring	—	Confirm before ordering	Inclusion depends on the exact supplied configuration
Installation tools	—	Not included	Use suitable maintenance tools and procedures

Always confirm whether separate seals, bowl O-rings or other maintenance parts are required during replacement.

Application

The filter set can be used in compressed-air treatment systems serving a wide range of pneumatic machinery.

SMT and Electronics Manufacturing

Equipment or System	Filtration Purpose
SMT pick-and-place machine	Supplies cleaner air to pneumatic actuators and vacuum systems
Tape feeder system	Helps protect pneumatic feeder mechanisms where fitted
Nozzle cleaning unit	Reduces contamination in air-blowing circuits
PCB conveyor	Supports stable operation of stoppers, lifters and clamps
Screen printer	Protects pneumatic squeegee, clamping and cleaning mechanisms
SPI inspection equipment	Supports air-driven positioning or cleaning devices
AOI equipment	Supplies filtered air to pneumatic control components
Reflow oven auxiliary system	Supports actuators, dampers and pneumatic mechanisms
Component handling equipment	Protects cylinders, valves and vacuum ejectors
Automated loading system	Helps maintain reliable pneumatic movement

Other Industrial Applications

Industry	Typical Use
Industrial automation	Air preparation for cylinders and directional valves
Electronics assembly	Pneumatic fixtures, clamps and tooling
Packaging machinery	Actuators, pushers, cutters and sealing mechanisms
Automotive parts production	Assembly stations and testing fixtures
Semiconductor support equipment	General pneumatic circuits where compatible
Inspection systems	Air jets, actuators and positioning devices
Robotics	Pneumatic grippers and end-of-arm tooling
Machine tools	Air cleaning and auxiliary pneumatic circuits
Laboratory automation	Small pneumatic control systems
General manufacturing	Central or local compressed-air treatment

Suitability depends on the installed SMC filter model and the air-quality requirement of the downstream equipment.

How It Works

Stage 1: Primary Particle Filtration

Compressed air first enters the AF30 air-filter housing containing the AF30P-060S element.

The element helps separate larger airborne impurities from the air stream. Contaminants may include pipe scale, rust, dust and condensed material. Removed liquid and debris are collected in the filter bowl according to the design of the complete assembly.

The nominal 5 μm filtration stage is suitable for general compressed-air preparation and provides upstream protection for the finer mist-separation stage.

Stage 2: Fine Mist Separation

After primary filtration, compressed air enters the AFM40 mist-separator housing containing the AFM40P-060AS element assembly.

The finer filter structure captures smaller particles and oil mist that may pass through a standard primary air filter. The AFM series has a nominal 0.3 μm filtration rating according to SMC product information.

Recommended Airflow Sequence

Sequence	Component	Main Function
1	Compressor and air receiver	Generates and stores compressed air
2	Main-line water separator or dryer	Reduces bulk water and moisture
3	AF30 air filter	Primary particle filtration
4	AFM40 mist separator	Fine mist and particle separation
5	Pressure regulator	Controls downstream pressure
6	Distribution tubing	Delivers treated air to the equipment
7	Machine pneumatic components	Uses filtered air for production operations

The actual order may vary depending on the machine design, air-quality specification and complete SMC modular configuration.

How to Choose the Correct Filter Element

Correct part-number confirmation is essential. A filter element that appears similar may have a different length, diameter, mounting structure, filtration rating or sealing design.

Step 1: Read the Complete Housing Model

Check the nameplate or printed code on the filter body.

Examples of useful information include:

Information Required	Example
Filter series	AF30 or AFM40
Full assembly model	Complete code with port and option suffixes
Existing element code	AF30P-060S or AFM40P-060AS
Pipe size	Printed as part of the complete housing code
Drain type	Manual drain or automatic drain
Flow direction	Standard or reverse direction
Series generation	Older series, A series or D series
Quantity required	Number of machines and filters

Step 2: Confirm the Function

Do not confuse the two elements.

Part Number	Function
AF30P-060S	Primary air-filter element
AFM40P-060AS	Finer mist-separator element assembly

The AF30P-060S does not replace AFM40P-060AS, and the AFM40P-060AS does not replace AF30P-060S.

Step 3: Check Whether a Set Is Required

Order the complete set when the machine uses both an AF30 air filter and an AFM40 mist separator.

Order an individual element when only one filter body requires maintenance.

Step 4: Inspect Additional Maintenance Parts

During element replacement, inspect:

Inspection Point	Action
Bowl	Check for cracks, discoloration and chemical damage
Bowl seal	Replace if hardened, damaged or deformed
Drain valve	Check for blockage and leakage
Internal surface	Remove dirt with an approved cleaning method
Housing threads	Check for damage
Locking mechanism	Confirm correct engagement
Pressure gauge	Verify normal indication
Tubing and fittings	Inspect for leakage
Existing element	Check contamination level and failure pattern
Downstream piping	Inspect for oil or water accumulation

Step 5: Send Confirmation Information

For faster quotation and compatibility checking, provide:

Clear photograph of the complete filter assembly.
Photograph of the housing model label.
Photograph of the removed element.
Required quantity for each part number.
Machine brand and model.
Delivery country and postal code.
Required delivery date.
Preference for individual pieces or matched sets.

Installation and Replacement Guide

Safety Preparation

Filter maintenance should be performed by trained personnel familiar with pneumatic systems.

Step	Requirement
1	Stop the machine according to the approved shutdown procedure
2	Close the upstream compressed-air supply
3	Release residual pressure completely
4	Confirm the pressure gauge reads zero
5	Prevent accidental air reconnection
6	Clean the surrounding area before opening the housing
7	Prepare the correct replacement element
8	Wear suitable personal protective equipment

Never open a pressurized filter bowl.

Replacement Procedure

Verify that the air supply is isolated and all residual pressure has been released.
Remove the bowl according to the filter manufacturer’s procedure.
Observe the installation direction of the existing element.
Remove the used element carefully to prevent debris from entering the housing.
Inspect the bowl, seal, baffle and internal surfaces.
Clean reusable components using an approved method.
Do not use cleaning chemicals that may damage plastic bowls or seals.
Install the new element in the same orientation as the correct original component.
Reinstall the bowl and engage the locking mechanism completely.
Restore air pressure gradually.
Check for leakage around the bowl and seals.
Confirm normal downstream pressure and airflow.
Record the replacement date and machine operating hours.

Refer to the official operating manual for the complete filter model before installation.

Maintenance Recommendations

Filter life depends on compressed-air quality, operating hours, airflow, oil concentration, humidity, compressor condition and factory piping cleanliness. A single replacement interval cannot be applied to every production line.

Suggested Maintenance Practice

Maintenance Action	Recommended Method
Visual inspection	Check element and bowl condition during scheduled maintenance
Drain inspection	Confirm collected liquid is discharged correctly
Pressure-drop check	Compare upstream and downstream pressure
Leakage inspection	Check bowl, seals, tubing and fittings
Element replacement	Replace when contaminated, damaged or restricted
Record keeping	Record installation date and replacement history
Spare inventory	Keep critical elements available for production equipment
Compressor inspection	Maintain compressor and dryer according to their manuals
Air-quality review	Investigate repeated oil or water contamination
System cleaning	Clean downstream circuits if severe contamination is found

Factors That May Shorten Element Life

Condition	Effect
High dust concentration	Faster particle loading
Excess compressor oil	Faster mist-element saturation
Poor air-dryer performance	Higher moisture loading
Corroded piping	Repeated rust and scale contamination
Excessive air demand	Increased filtration load
Incorrect drain operation	Liquid accumulation in the bowl
High operating hours	More total contaminant exposure
Improper installation	Leakage or reduced filtration performance

Quality Inspection

Each filter element order can be checked according to the confirmed purchase specification.

Inspection Item	Checking Point
Part number	Confirm AF30P-060S and AFM40P-060AS
Product type	Confirm filter element and element assembly
External condition	Check for crushing, deformation or visible damage
Element surface	Check for contamination before shipment
Dimensions	Compare with the confirmed part specification when required
Quantity	Verify pieces against the purchase order
Packaging	Protect from moisture, dust and mechanical impact
Identification	Apply clear part-number labeling
Customer information	Match invoice, packing list and delivery requirements

Product condition, brand origin, manufacturing batch, packaging type and available documentation should be confirmed in the formal quotation.

Packaging and Shipping

Packaging Feature	Description
Individual protection	Elements are protected from direct contamination
Inner packaging	Sealed or wrapped according to supply condition
Outer carton	Suitable carton selected according to order quantity
Part-number label	Clear model identification for warehouse receiving
Moisture protection	Added when required for long-distance transportation
Quantity check	Verified before carton sealing
Export documents	Commercial invoice and packing list available
Shipping method	Express, air freight or consolidated shipment
Special request	Customer label, neutral packaging or combined shipment subject to confirmation

Do not remove the element from its protective packaging until installation. Store it in a clean, dry area away from oil, solvents, direct sunlight and heavy objects.

Why Choose This Filter Element Set

Purchasing Concern	Our Supply Solution
Unsure about compatibility	Model verification using housing and element photographs
Need both filtration stages	AF30P-060S and AFM40P-060AS supplied as one set
Concerned about wrong quantities	Itemized quotation and packing-list verification
Need urgent maintenance stock	Availability and lead time confirmed before order
Multiple machines require service	Batch quantity quotation available
International delivery required	Export packaging and shipping support
Need repeat purchasing	Part-number records can be maintained for future orders
Unsure whether seals are required	Additional maintenance parts can be checked separately
Mixed SMT spare-parts requirement	Filters can be consolidated with other machine parts
Technical information incomplete	Photos and complete model codes can be reviewed before supply

Buyer Confirmation Checklist

Please confirm the following information before placing an order:

No.	Confirmation Item
1	Required part number is AF30P-060S
2	Required part number is AFM40P-060AS
3	Required filtration ratings are 5 μm and 0.3 μm
4	Installed filter series are AF30 and AFM40
5	Quantity required for each part number
6	Whether separate seals or O-rings are needed
7	Whether the order requires individual or set packaging
8	Machine brand and machine model
9	Destination country and postal code
10	Required delivery time

Frequently Asked Questions

Q1: Are AF30P-060S and AFM40P-060AS the same type of element?

No. AF30P-060S is a nominal 5 μm primary filter element used with an AF30 air-filter body. AFM40P-060AS is a nominal 0.3 μm element assembly used with an AFM40 mist separator. They perform different filtration functions and are not interchangeable.

Q2: Does this set include the complete AF30 and AFM40 filter assemblies?

No. The standard set contains one AF30P-060S replacement element and one AFM40P-060AS replacement element assembly. Filter housings, bowls, regulators, drains, mounting brackets, pressure gauges and connecting hardware are not included unless separately listed in the quotation.

Q3: Can this set be used for SMT pick-and-place machines?

It can be used when the SMT machine or its factory air-treatment line is equipped with compatible AF30 and AFM40 filter bodies. Confirm the complete housing model, installed element code and machine pneumatic configuration before ordering.

Q4: How often should these filter elements be replaced?

Replacement frequency depends on air quality, compressor condition, operating time, humidity, airflow and contamination level. Inspect the elements during preventive maintenance and replace them when damaged, saturated, heavily contaminated or causing unacceptable pressure loss.

Q5: What information is needed for compatibility confirmation?

Please provide the complete filter housing model, photographs of the nameplate and existing elements, machine brand, machine model, required quantity and destination. Photographs of the bowl and internal mounting structure are also useful when the original label is unclear.

Technical Verification Note

Official SMC references identify AF30P-060S as a replacement element for AF30-series filtration and AFM40P-060AS as the applicable element assembly for AFM40 and AFM40-06 mist separators. SMC technical documentation identifies 5 μm as the standard AF filtration level and 0.3 μm as the AFM mist-separator filtration level.

Because complete filter model codes may include different generations and optional suffixes, compatibility should be confirmed against the full housing code rather than appearance alone.

Contact Us

Contact Us for Price, Availability and Model Confirmation

Looking for reliable replacement filter elements for an SMT machine or industrial pneumatic system?

Send us your required part numbers, quantities and equipment information. Our sales team will check the specification and prepare a clear quotation for your purchasing review.

Information to Include in Your Inquiry

Required Information	Details
Part numbers	AF30P-060S and/or AFM40P-060AS
Required quantity	Number of individual elements or complete sets
Filter housing model	Full model printed on the installed unit
Machine information	Machine brand and model
Product photographs	Housing label, installed element and complete assembly
Additional parts	Bowl seal, O-ring, drain, bowl or other maintenance parts
Delivery destination	Country, city and postal code
Shipping preference	Express, air freight or consolidated shipment
Required delivery date	Planned maintenance or production deadline

Why Send Photographs Before Ordering?

Clear photographs help us check the part number, housing series, element structure and machine application. This reduces the risk of receiving an incorrect replacement item and makes quotation processing faster.

Inquiry Message Template

Subject: Inquiry for SMC AF30P-060S and AFM40P-060AS Filter Elements

Dear Sales Team,

Please quote the following pneumatic filter elements:

AF30P-060S: _____ pieces
AFM40P-060AS: _____ pieces
Machine brand and model: _____
Installed filter model: _____
Delivery destination: _____
Required delivery date: _____

Please confirm product condition, compatibility, lead time, packaging, shipping cost and available documentation.

Best regards,

Tags:

SMT Machine Parts

SMT Spare Parts

SMT Feeder

SMT Nozzle

Servo Motor Driver

SMT Feeder Parts

AI Spare Parts

SMT Conveyor Belt

Screen Printing Machine Parts

Feeder Calibration Jig

Anti Static Products

SMT embly Equipment
