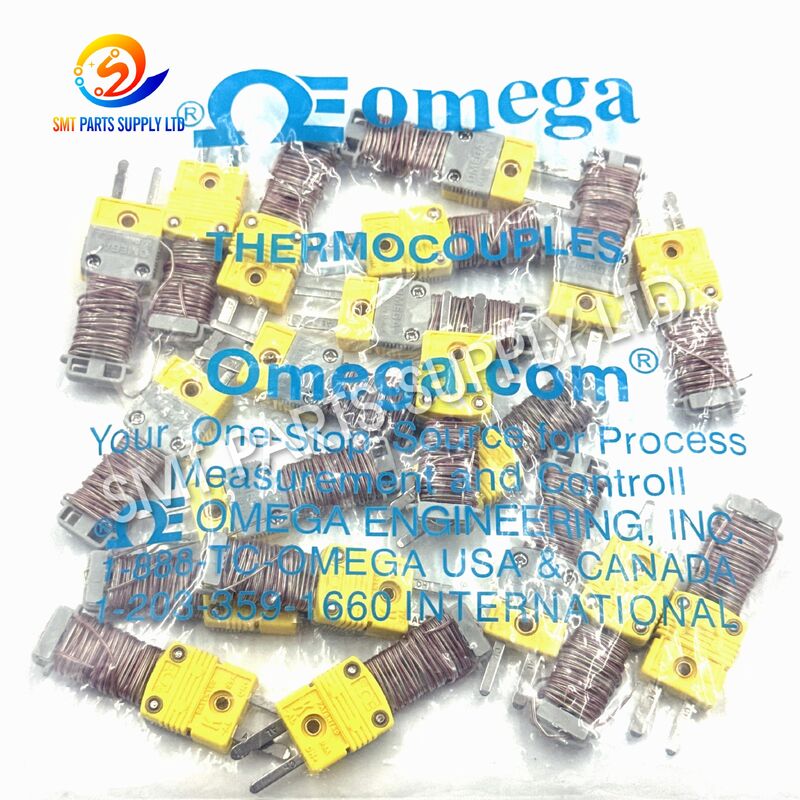

OMEGA TEC-REC-GEC Type K Retractable Thermocouple Cable with Spring-Coiled Retractable Design and Miniature Male Connectors

The OMEGA TEC-REC-GEC Type K retractable thermocouple extension cable is designed to extend the connection distance between compatible Type K thermocouples and temperature measurement instruments. Its spring-coiled structure provides additional working reach when extended while returning to a compact form after use, helping reduce cable clutter around production equipment, laboratory benches, thermal profiling stations, and maintenance areas.

Equipped with miniature male thermocouple connectors at both ends, the cable supports fast connection to compatible miniature female sockets without repeated wire termination. It is suitable for thermal profilers, handheld thermometers, temperature data loggers, test instruments, control panels, and industrial monitoring equipment.

The Type K models are commonly available in short and extended-length configurations, allowing users to select a suitable cable according to the required working distance. The cable is intended for signal extension and should be used together with a compatible Type K sensing probe or thermocouple assembly.

Product Positioning

This product is not a standalone temperature sensor. It is a thermocouple extension accessory used to transmit the thermoelectric signal from a Type K sensor connection to a compatible measuring instrument.

Cause

Insufficient Thermocouple Lead Length

In many production and laboratory applications, the original thermocouple lead is not long enough to reach the measuring instrument. The sensor may be installed inside a machine, test fixture, environmental chamber, reflow oven access area, heating platform, or process monitoring station.

Placing the instrument too close to the process can create operational inconvenience or expose the instrument to unnecessary heat, vibration, contamination, or mechanical risk.

Disorganized Straight Cables

Long straight cables can create unnecessary clutter around workstations and manufacturing equipment. Loose cables may become tangled, trapped under equipment, damaged by operators, or pulled accidentally during testing.

A retractable cable helps maintain a cleaner working area because only the required cable length is extended.

Incorrect Extension Wire Selection

Thermocouple circuits require compatible conductor materials. Using ordinary copper wire or an extension cable intended for another thermocouple type may introduce additional electrical junctions and affect measurement accuracy.

A Type K thermocouple system should use a compatible Type K probe, Type K extension cable, Type K connector, and Type K instrument input.

Frequent Rewiring

Repeatedly connecting bare thermocouple wires takes time and may result in loose terminals, reversed polarity, damaged conductors, or inconsistent installation.

Miniature plug connectors provide a faster and more convenient connection method for routine temperature measurement and maintenance operations.

Connector Compatibility Problems

Thermocouple connectors are available in different sizes, genders, and calibration types. A connector may appear similar but still be incompatible with the installed socket.

Before ordering, users should confirm:

• Thermocouple calibration type.
• Connector body size.
• Connector gender.
• Positive and negative polarity.
• Required cable length.
• Equipment input configuration.
• Operating temperature around the cable.

Common Problems and Results

Solution

The OMEGA TEC-REC-GEC retractable thermocouple cable provides a practical solution for applications requiring flexible Type K signal extension and improved cable organization.

Its spring-coiled structure can extend according to the working distance and retract when the instrument is moved closer to the measurement point. This reduces unnecessary cable length on the table, floor, or production equipment.

Miniature male connectors at both ends allow direct plug-in installation when the connected devices have compatible miniature female Type K sockets. This design eliminates repeated termination of loose thermocouple wires and simplifies equipment setup.

Main Solution Benefits

Why Choose a Retractable Thermocouple Cable

A retractable cable is especially useful for applications in which the measuring instrument is moved frequently. It combines the reach of a longer extension cable with the storage convenience of a compact cable assembly.

Compared with a fixed straight cable, the coiled design can help:

• Reduce loose cable around workstations.
• Improve storage convenience.
• Minimize manual cable bundling.
• Support temporary testing at different positions.
• Reduce accidental contact with nearby equipment.
• Keep the temperature measurement station organized.
• Improve handling during machine maintenance.
• Simplify transportation between test locations.

Specifications

Important Temperature Notice

The retractable cable insulation is rated to approximately 105 degrees Celsius, so it should remain outside areas exceeding this temperature. Use a suitable high-temperature thermocouple probe or lead inside the heated process area.

Model Comparison

Selection Comparison

Thermocouple Type Comparison

The thermocouple extension cable type must match the sensor and instrument calibration. Physical connector compatibility alone does not guarantee correct measurement performance.

Key Product Features

Retractable Spring-Coiled Design

The flexible coiled structure extends only when additional working distance is required. After use, the cable returns toward its original compact form, helping improve cable management and storage.

Type K Thermocouple Compatibility

The cable is designed for use in Type K thermocouple measurement circuits. Matching the cable calibration with the sensor and instrument helps maintain reliable signal transmission.

Miniature Male Connectors

Both ends are equipped with miniature male thermocouple connectors. This configuration is suitable for compatible miniature female sockets installed on instruments, adapters, panels, or other extension assemblies.

Two Length Options

The shorter model is suitable for desktop instruments, compact machines, and laboratory testing. The longer model provides additional reach for production lines, large machinery, remote data loggers, and maintenance applications.

Flexible Instrument Positioning

The cable allows temperature meters and thermal profiling instruments to be positioned away from the measurement point, improving access and helping protect sensitive equipment from heat or mechanical interference.

Reusable Connection Accessory

The plug-in design supports repeated installation and removal without frequent conductor termination. This is useful for maintenance teams, process engineers, laboratory technicians, and quality control personnel.

Application

Reflow Oven Thermal Profiling

The cable can be used in a compatible thermal profiling system when the profiler, connection panel, or adapter has Type K miniature female thermocouple sockets.

It may assist with:

• Reflow process verification.
• Temperature curve evaluation.
• Oven zone comparison.
• Process setup inspection.
• Profile repeatability testing.
• Production changeover verification.
• Preventive maintenance.
• Thermal troubleshooting.

The retractable cable should remain outside areas exceeding its specified temperature rating. A suitable high-temperature thermocouple probe or lead should be used inside the heated chamber.

SMT Electronics Manufacturing

Temperature control is essential during printed circuit board assembly. The cable can support temporary or removable temperature measurement during:

• Reflow soldering process setup.
• PCB heating evaluation.
• Component temperature testing.
• Fixture temperature verification.
• Preheating process checks.
• Machine maintenance.
• Production-line validation.
• Engineering sample inspection.

Laboratory Temperature Testing

The compact coiled design is suitable for laboratories where one instrument is used at several testing positions. Operators can extend the cable during measurement and allow it to retract after the test.

Typical laboratory uses include:

• Temperature meter connection.
• Data logger testing.
• Sensor comparison.
• Calibration support.
• Environmental testing.
• Heating plate measurement.
• Product development testing.
• Research equipment monitoring.

Industrial Equipment Maintenance

Maintenance technicians may use the cable to connect a portable meter to a thermocouple panel or sensor connection point installed on machinery.

Suitable equipment may include:

• Industrial ovens.
• Drying equipment.
• Packaging machinery.
• Heating systems.
• Temperature chambers.
• Production fixtures.
• Process control equipment.
• Testing machines.

Quality Control and Inspection

The cable is useful for temporary temperature verification during incoming inspection, process validation, first-article testing, equipment repair, and quality audits.

Application Table

How It Works

A thermocouple produces a small electrical voltage when the measuring junction is exposed to a temperature difference. The measuring instrument converts this voltage into a temperature value according to the selected thermocouple calibration.

The retractable extension cable does not generate the temperature signal. Instead, it carries the signal between the Type K sensor circuit and the measuring instrument.

Operating Process

1. A Type K thermocouple probe senses the temperature at the measurement point.
2. The thermocouple generates a small voltage related to the temperature difference.
3. The extension cable carries the thermocouple signal to the connected instrument.
4. The miniature connectors provide detachable electrical connections.
5. The temperature meter or profiler processes the Type K signal.
6. The measured value is displayed, recorded, or analyzed.
7. After testing, the cable retracts toward its compact coiled form.

Signal Flow Table

Importance of Correct Polarity

Thermocouple connectors have positive and negative terminals. Reversed polarity can cause the displayed temperature to decrease when the actual temperature increases.

Before operation:

• Identify the positive terminal.
• Identify the negative terminal.
• Align the connector correctly.
• Insert the connector without excessive force.
• Check the instrument response.
• Verify the reading with a known reference when necessary.

Importance of Matching Thermocouple Types

The following components should all be compatible:

Using mixed thermocouple types may introduce additional junctions and measurement errors.

How To Choose

Step 1: Confirm the Thermocouple Type

Select this cable only when the sensor and measuring instrument are designed for Type K thermocouples.

Do not select the product only according to connector color or appearance. Confirm the exact calibration printed on the existing cable, connector, probe, or equipment label.

Step 2: Confirm Connector Size

The product uses miniature thermocouple connectors. Miniature and standard-size connectors are not directly interchangeable.

Check:

• Connector body dimensions.
• Pin dimensions.
• Socket dimensions.
• Connector type marking.
• Equipment input specification.
• Existing cable connector size.

Step 3: Confirm Connector Gender

The described configuration has male connectors at both ends. Both connected devices should have compatible female sockets.

Step 4: Select the Cable Length

Choose the shorter model when:

• The equipment is close to the measurement point.
• The cable is mainly used on a test bench.
• Compact storage is important.
• The required extension is within approximately 5 feet.
• The instrument is frequently transported.

Choose the longer model when:

• The instrument must remain farther from the machine.
• The cable is used around large production equipment.
• The operator needs additional movement range.
• The required extension is within approximately 20 feet.
• A remote panel or logger must be connected.

Step 5: Confirm the Working Temperature

The retractable cable is normally used outside the highest-temperature process area.

For high-temperature applications:

• Keep the retractable section away from direct heat.
• Use a high-temperature probe inside the chamber.
• Avoid contact with heating elements.
• Avoid contact with molten solder.
• Prevent exposure to hot exhaust.
• Confirm the ambient temperature around the cable.
• Do not exceed the cable insulation rating.

Step 6: Confirm the Equipment Model

Provide the exact model of the thermal profiler, temperature meter, data logger, or test instrument. Equipment information helps confirm the connector interface and thermocouple input type.

Step 7: Confirm the Application

Different applications may require different cable lengths, connector arrangements, insulation materials, or temperature ratings.

Please provide:

• Measurement equipment model.
• Thermocouple sensor type.
• Existing connector photographs.
• Required retracted length.
• Required extended length.
• Maximum ambient temperature.
• Application environment.
• Required quantity.
• Delivery destination.
• Special packaging requirements.

Selection Checklist

Installation Instructions

1. Confirm that the thermocouple probe, cable, and instrument are all Type K.
2. Switch the instrument to the Type K measurement mode.
3. Inspect the cable and connectors before installation.
4. Confirm that the connected sockets are miniature female thermocouple sockets.
5. Align the positive and negative terminals correctly.
6. Insert the connectors straight into the sockets.
7. Do not force the connector into an incompatible socket.
8. Position the coiled cable away from moving machine parts.
9. Keep the cable away from sharp edges and hot surfaces.
10. Extend the cable slowly and evenly.
11. Avoid pulling the cable continuously at its maximum length.
12. Confirm that the displayed temperature changes normally.
13. Compare the reading with a known reference when accuracy is critical.
14. Allow the cable to retract before storage.
15. Store the cable in a clean and dry environment.

Maintenance Recommendations

Troubleshooting

FAQ

1. Can this cable measure temperature independently?

No. This product is a thermocouple extension cable and does not contain the primary measuring junction. It must be connected to a compatible Type K thermocouple probe and a Type K temperature measuring instrument.

2. Can this cable be used with a reflow oven thermal profiler?

Yes, when the thermal profiler, adapter, or connection panel has compatible Type K miniature female inputs. Confirm the profiler model, connector gender, connector size, cable length, and operating temperature before ordering.

3. Can the retractable cable be placed inside a reflow oven?

The retractable cable insulation is rated to approximately 105 degrees Celsius, so it should remain outside areas exceeding this temperature. Use a suitable high-temperature thermocouple probe or lead inside the heated process area.

4. What is the difference between RECK1-10 and RECK4-10?

RECK1-10 is a shorter model for compact test benches and nearby instruments. RECK4-10 provides a longer extended distance for large machines, remote measuring instruments, and production-line maintenance applications.

5. Can a Type K extension cable be used with Type J or Type T sensors?

No. The extension cable calibration should match the thermocouple sensor and instrument input. Mixing different thermocouple types can introduce measurement errors even when the connectors appear physically compatible.

Contact Us

Please send the following information when requesting a quotation:

• Required model.
• Required quantity.
• Thermocouple type.
• Connector size.
• Connector gender.
• Required cable length.
• Thermal profiler or instrument model.
• Existing product photographs.
• Maximum operating temperature.
• Application details.
• Delivery country.
• Postal code.
• Required delivery date.
• Packaging requirements.

Our sales team can assist with model confirmation, connector compatibility, length selection, application review, quantity quotation, inspection photographs, packaging arrangements, and international delivery.

For faster processing, please provide clear photographs of the existing cable label, connector ends, equipment nameplate, and instrument input socket.
