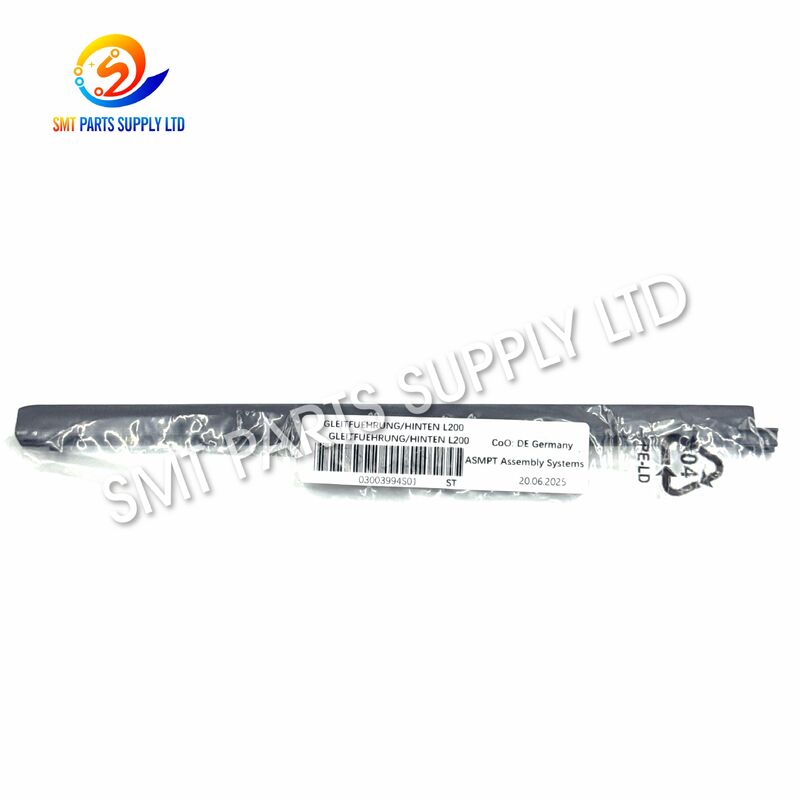

ASMPT 03003994S01 L200 Rear Slide Guide for SIPLACE X Feeder

ASMPT 03003994S01 L200 Rear Slide Guide for SIPLACE X Feeder

The ASMPT 03003994S01 L200 Rear Slide Guide is a mechanical feeder replacement component used in compatible SIPLACE X-Series SMT feeder systems. It is designed for the rear guide position of the feeder mechanism and supports controlled sliding movement and stable mechanical alignment during feeder operation.

SMT feeders operate continuously in high-speed electronics manufacturing environments. Their guide and sliding components are repeatedly subjected to mechanical movement, vibration, loading, and long production cycles. When a rear slide guide becomes worn, damaged, loose, contaminated, or mechanically distorted, feeder movement may become less smooth and positioning consistency can be affected.

Replacing the affected part with the correct 03003994S01 L200 Rear Slide Guide helps restore normal mechanical guidance within the feeder assembly. It is suitable for SMT factories, feeder maintenance departments, refurbishment workshops, electronics manufacturers, and spare-parts distributors supporting ASMPT and SIPLACE equipment.

Cause – Why Rear Slide Guide Replacement May Be Required

Feeder guide components play an important role in maintaining stable and repeatable mechanical movement. Because feeders operate for long periods and may be frequently loaded, removed, serviced, and transported, mechanical guide parts can gradually develop wear.

Typical conditions that may require inspection or replacement include:

A worn guide component does not necessarily mean the entire feeder must be replaced. In many cases, replacing the affected mechanical part can restore feeder functionality and reduce unnecessary maintenance costs.

However, technicians should also inspect adjacent rails, slides, fasteners, covers, drive parts, springs, and other related mechanical assemblies before confirming the source of a feeder problem.

Solution – Restore Smooth and Controlled Feeder Movement

The ASMPT 03003994S01 L200 Rear Slide Guide provides a practical replacement solution when the original rear guide component is worn or damaged.

Its purpose is to support stable guided motion within the compatible feeder assembly. Correct mechanical guidance helps maintain consistent movement and reduces unwanted play or irregular travel in the sliding structure.

Maintenance Benefits

For factories operating a large number of SIPLACE feeders, maintaining commonly required mechanical guide parts in spare stock can help shorten repair cycles and improve feeder availability.

Specifications

Note: Exact feeder compatibility should be confirmed using the original part number, feeder model, feeder identification label, or clear photos before ordering.

Application

The 03003994S01 Rear Slide Guide is primarily used for maintenance and refurbishment of compatible SIPLACE X-Series feeder assemblies.

Typical Applications

• SIPLACE X feeder repair
• SMT feeder mechanical maintenance
• Rear guide replacement
• Feeder sliding mechanism servicing
• Feeder refurbishment projects
• Preventive maintenance programs
• SMT production line spare-parts stocking
• Replacement of worn guide components
• Repair of feeders with abnormal sliding movement
• Production line maintenance support

Applicable Production Environments

Reliable feeder movement is important because the feeder must operate repeatedly and consistently throughout the component placement process.

How It Works

The rear slide guide functions as part of the feeder's mechanical guidance structure.

During feeder operation, certain internal mechanical assemblies must move along a controlled path. The guide helps support this movement by maintaining alignment and restricting unnecessary lateral movement.

A simplified working sequence can be described as:

Mechanical Actuation → Guided Sliding Movement → Stable Positioning → Feeder Operation

The 03003994S01 L200 Rear Slide Guide supports the sliding section so that associated feeder components can move in a controlled and repeatable manner.

When the guide is in good condition, sliding movement remains stable and mechanical positioning can be maintained more consistently.

If the guide becomes excessively worn, damaged, contaminated, or distorted, the sliding mechanism may experience:

• Increased resistance
• Excessive movement clearance
• Irregular travel
• Mechanical vibration
• Positioning instability
• Abnormal wear on adjacent parts

Replacing the damaged guide can therefore be an important step in restoring normal feeder mechanical performance.

How To Choose the Correct Rear Slide Guide

Correct identification is important because SIPLACE feeder assemblies may contain multiple guide, rail, and sliding components that appear similar.

Before ordering, buyers should confirm the following information:

Recommended Inquiry Information

For faster quotation and compatibility checking, please provide:

1. Part number: 03003994S01
2. Feeder model or series
3. Required quantity
4. Photo of the original guide
5. Photo of the feeder identification label
6. Description of the feeder problem if assistance is required

This information helps reduce the risk of ordering an incorrect guide component for a similar feeder version.

Why Guide Condition Matters

Mechanical guide components are easy to overlook because they are smaller than motors, controllers, or complete feeder assemblies. However, they directly influence the quality of mechanical movement.

A guide with excessive wear may create repeated mechanical instability even when the feeder's electronic and drive systems are operating correctly.

Maintenance Comparison

Replacing an individual guide component can often be more cost-effective than replacing a complete feeder assembly when the main feeder structure remains serviceable.

Purchasing Advantages

The ASMPT 03003994S01 L200 Rear Slide Guide is suitable for buyers requiring a clearly identified maintenance component for compatible SIPLACE X feeders.

Suitable for Professional Buyers

• SMT factories
• EMS manufacturers
• Feeder repair centers
• Electronics production plants
• Maintenance departments
• SMT equipment service companies
• Spare-parts distributors
• Feeder refurbishment businesses

Ordering Support

Customers can submit multiple ASMPT feeder part numbers together for quotation. This can simplify purchasing when maintaining several feeders or preparing preventive maintenance inventory.

For efficient order processing, always provide the exact part number and feeder information whenever available.

FAQ

1. What is ASMPT 03003994S01 used for?

The 03003994S01 L200 Rear Slide Guide is a mechanical guide component used in compatible SIPLACE X-Series feeder assemblies. It supports controlled sliding movement and stable positioning within the feeder's mechanical structure.

2. Is 03003994S01 suitable for every SIPLACE X feeder?

Compatibility can vary depending on feeder model and configuration. Buyers should confirm the original part number, feeder label, installation position, and component appearance before ordering.

3. What symptoms may indicate a worn rear slide guide?

Possible symptoms include increased sliding resistance, excessive movement clearance, abnormal feeder movement, mechanical vibration, irregular travel, or visible wear on the guide surface. Related mechanical components should also be inspected.

4. Can the rear slide guide be replaced without replacing the complete feeder?

In many maintenance situations, an individual guide component can be replaced if the remaining feeder assembly is serviceable. Final repair decisions should be based on inspection of the complete mechanical mechanism.

5. What information should I send for a quotation?

Please provide 03003994S01, feeder model or series, required quantity, and clear photos of the original component. A feeder label photo is also recommended for compatibility checking.

Contact Us

Looking for ASMPT 03003994S01 L200 Rear Slide Guide or other SIPLACE X feeder spare parts?

Send us your part number, feeder model, required quantity, and original component photos for checking.

We support SMT feeder maintenance, repair, refurbishment, and spare-parts purchasing requirements.

Contact us for current price, availability, lead time, and combined quotation for ASMPT feeder parts.
