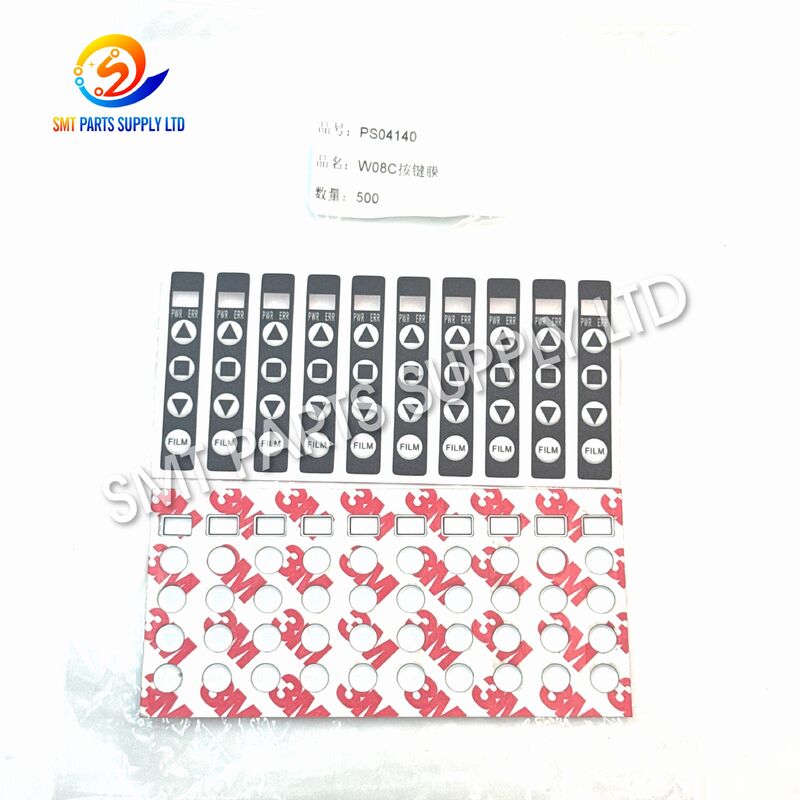

FUJI PS04140 W08C Feeder Button Sheet for NXT SMT Machine

The FUJI PS04140 W08C Feeder Button Sheet is a replacement surface sheet used on FUJI NXT W08C SMT feeders. It is designed for the feeder control area where operator buttons and related markings are located, helping maintain clear identification, neat appearance, and convenient operation during feeder setup and maintenance.

During long-term SMT production, feeder button sheets may become worn, scratched, faded, contaminated, peeled, or damaged through repeated operator use and cleaning. Replacing the old sheet with the correct PS04140 component helps restore the feeder control surface and keeps button positions easy to identify.

This part is suitable for SMT factories, EMS manufacturers, feeder repair centers, equipment maintenance departments, and spare-parts distributors supporting FUJI NXT feeder systems.

Basic Product Information

Cause – Why the Feeder Button Sheet Needs Replacement

The W08C feeder is frequently handled during production, setup, replenishment, maintenance, and feeder changeover.

The button sheet is located in an area regularly touched by operators, so its surface can gradually deteriorate over time.

Common causes include:

A damaged button sheet may not stop the feeder mechanically, but unclear or worn markings can make feeder operation and maintenance less convenient.

For feeder refurbishment, replacing the button sheet also helps improve the overall appearance of the feeder.

Common Replacement Conditions

The PS04140 button sheet may need inspection or replacement when:

• Printed markings are faded
• Button positions are difficult to identify
• Surface film is scratched
• Corners begin to peel
• Sheet is cracked or torn
• Adhesive performance has deteriorated
• Oil or contamination cannot be cleaned properly
• Feeder is undergoing complete refurbishment
• Existing sheet was damaged during maintenance

Replacing the worn sheet helps return the feeder control area to a cleaner and more readable condition.

Solution – Replace the Worn PS04140 Button Sheet

When the original W08C button sheet is damaged or heavily worn, replacing it with the correct FUJI PS04140 feeder button sheet is an efficient maintenance solution.

A new button sheet helps improve:

• Button-position visibility
• Operator identification
• Feeder appearance
• Maintenance quality
• Refurbishment results
• Control-area cleanliness

Maintenance Benefits

For companies refurbishing large quantities of feeders, button sheets are useful cosmetic and operating-interface replacement parts.

Specifications

Compatibility Reference

Recommended identification:

FUJI + PS04140 + W08C Feeder + NXT

Feeder versions may vary, so buyers should confirm the original part number and feeder model before ordering.

Application

The FUJI PS04140 W08C feeder button sheet is mainly used during maintenance and refurbishment of W08C feeders installed on FUJI NXT SMT placement equipment.

Typical applications include:

• SMT feeder routine maintenance
• W08C feeder repair
• Refurbished feeder preparation
• Damaged button-sheet replacement
• Used feeder appearance restoration
• Spare-parts inventory
• Production-line maintenance
• Feeder overhaul projects

It is especially useful for factories operating a large number of feeders where control-surface wear gradually becomes visible after long-term use.

Typical User Groups

Application Industries

The PS04140 may be used in SMT production environments serving:

• Consumer electronics
• Automotive electronics
• Communication equipment
• Industrial control systems
• Power supply manufacturing
• LED products
• Computer electronics
• Smart home products
• Medical electronics
• General PCB assembly

The product does not participate directly in component placement. It serves as part of the feeder operating interface and maintenance system.

Why Feeder Interface Condition Matters

A feeder contains not only mechanical drive components but also operator-accessible areas used during setup and maintenance.

Keeping these areas clear and readable helps operators identify controls quickly.

Typical feeder maintenance may include:

The PS04140 is therefore often replaced as part of a broader feeder maintenance or refurbishment process.

How It Works

The PS04140 W08C Feeder Button Sheet is installed over or around the feeder operating-button area.

Its role is mainly related to identification and surface protection rather than mechanical tape movement.

The general feeder operating process includes:

1. Feeder Preparation

The operator prepares the W08C feeder before installation on the placement machine.

2. Tape Loading

Component tape is loaded through the feeder according to the correct operating procedure.

3. Feeder Operation

The feeder advances the carrier tape and positions components for pickup.

4. Operator Interaction

The operator may use feeder controls during loading, adjustment, maintenance, or troubleshooting.

5. Button Identification

The PS04140 sheet provides a clear surface around the relevant feeder controls and helps maintain recognizable button positions.

6. Continuous Use

During long-term production, the sheet is repeatedly exposed to handling and cleaning, making it a replaceable maintenance item.

How To Choose

Correct part identification is essential when ordering feeder panels, labels, button sheets, and similar small components.

1. Confirm the Part Number

The required part number should be:

PS04140

Do not select the component only by visual appearance because similar feeder sheets may have different layouts.

2. Confirm the Feeder Model

This product is associated with:

W08C Feeder

Different FUJI feeder models may use different button sheets.

3. Confirm the Machine Series

Main application:

FUJI NXT SMT equipment

If the feeder is installed on another platform or is a different generation, check compatibility before purchase.

4. Compare the Original Sheet

Before ordering, compare:

• Button layout
• Overall outline
• Printed markings
• Part number
• Feeder model
• Installation position

A photo of the original feeder can help confirm the correct part.

5. Provide Complete Inquiry Details

For faster quotation, send:

This reduces the chance of incorrect part selection.

Difference Between PS04140 and Other W08C Feeder Parts

FUJI W08C feeders contain many small maintenance parts, and their functions should not be confused.

These parts belong to the same general SMT Feeder Parts category but serve different functions.

When sending an inquiry, always provide the exact part number.

Maintenance Recommendations

Surface Cleaning

Use suitable cleaning procedures and avoid aggressive chemicals that may damage printed surfaces or adhesive layers.

Inspection

Check the button sheet regularly for:

• Fading
• Peeling
• Cracks
• Scratches
• Oil contamination
• Loose edges
• Unclear markings

Replacement

Replace the sheet when markings are difficult to read or the sheet no longer adheres properly to the feeder surface.

Installation Preparation

Before fitting a replacement sheet:

• Remove the old sheet carefully
• Clean the installation surface
• Remove oil and dust
• Confirm correct orientation
• Align button positions
• Apply evenly

Correct surface preparation helps achieve a cleaner installation.

Feeder Refurbishment Application

The PS04140 is particularly useful for feeder refurbishment.

A typical refurbishment process may include:

Replacing worn visual components can make a serviced feeder easier to identify and maintain while improving overall presentation.

Spare-Part Inventory Planning

Factories operating many W08C feeders may benefit from keeping PS04140 in maintenance inventory.

Small feeder components are inexpensive to store compared with the production time potentially lost waiting for replacement parts.

Product Checking Before Shipment

Typical checking procedures may include:

• Part number verification
• Printed surface inspection
• Appearance inspection
• Quantity confirmation
• Packaging inspection
• Comparison with reference images when required

For orders containing several feeder parts, individual part-number labeling helps simplify receiving and warehouse management.

FAQ

Q1: What is FUJI PS04140 used for?

FUJI PS04140 is a button sheet for W08C feeders used with FUJI NXT SMT equipment. It is installed around the feeder operating-control area and is mainly used for identification, surface maintenance, and feeder refurbishment.

Q2: Is PS04140 a mechanical feeder drive part?

No. PS04140 is a button/control-area sheet, not a feeder motor, gear, or tape-drive component. It is mainly associated with the feeder's operator interface and external maintenance.

Q3: Is PS04140 the same as PX10660?

No. PS04140 is a feeder button sheet, while PX10660 is a feeder seal. They are different W08C feeder replacement parts and should be ordered according to their individual part numbers.

Q4: How do I confirm whether PS04140 fits my feeder?

Confirm the part number PS04140, feeder type W08C, machine series, and button layout. Sending a photo of the original feeder control area can help with identification.

Q5: Can I purchase PS04140 together with other W08C feeder parts?

Yes. PS04140 can be supplied together with seals, plates, springs, gears, levers, and other feeder maintenance components. Provide your complete part-number list and quantities for combined checking and quotation.

Contact Us

Need FUJI PS04140 W08C Feeder Button Sheet or other FUJI NXT feeder replacement parts?

Send us the part number, feeder model, machine series, required quantity, and reference photo. We can assist with product identification for routine maintenance, feeder repair, refurbishment, and spare-parts purchasing.

Contact us for price, availability, lead time, and quotation for PS04140 and related W08C feeder parts.
