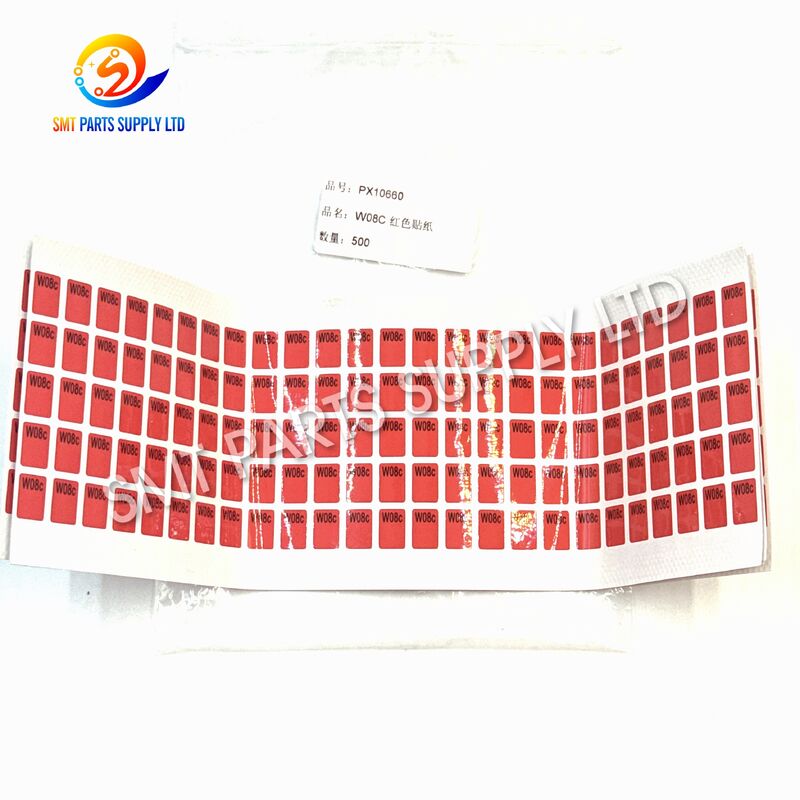

FUJI PX10660 W08C Feeder Seal for NXT SMT Machine

FUJI PX10660 W08C Feeder Seal for NXT SMT Machine

The FUJI PX10660 W08C Feeder Seal is a replacement feeder component designed for maintenance and repair of FUJI NXT W08C SMT feeders. It is installed as part of the feeder assembly and helps maintain the correct condition of the feeder mechanism during continuous component feeding operations.

SMT feeders operate through repeated mechanical cycles, advancing carrier tape and presenting components accurately to the pickup position. During long production periods, small feeder components may gradually suffer from wear, contamination, deformation, or installation damage. When a feeder seal becomes worn or damaged, preventive replacement can help restore the feeder assembly and reduce the risk of unstable operation.

The PX10660 is suitable for electronics manufacturing factories, EMS companies, SMT maintenance departments, feeder repair centers, and spare-parts distributors supporting FUJI NXT production equipment.

Product Information

Cause – Why the PX10660 Feeder Seal May Need Replacement

SMT feeder components are exposed to continuous movement, tape residue, dust, handling, repeated loading, and frequent maintenance.

Although a feeder seal is a relatively small component, its condition can affect the overall integrity of the feeder assembly.

Common causes of replacement include:

A feeder should always be inspected as a complete mechanism. A damaged seal may appear together with wear on other components such as gears, springs, levers, covers, guides, or tape-feeding parts.

Typical Signs for Inspection

Maintenance personnel may consider checking the PX10660 when they observe:

• Visible wear on the original seal
• Cracking or deformation
• Contamination around the installation position
• Loose or irregular feeder assembly
• Damage after feeder disassembly
• Poor seating of the existing seal
• Increased maintenance frequency
• Unstable feeder behavior

These symptoms do not automatically mean that PX10660 is the only part requiring replacement. The complete feeder should be inspected before repair.

Solution – Replace the Worn W08C Feeder Seal

If the original seal is damaged, worn, contaminated, or no longer suitable for continued use, replacing it with the correct PX10660 W08C Feeder Seal can help restore proper feeder assembly condition.

Correct replacement helps maintenance teams keep feeder components in their intended positions and supports reliable operation of the complete feeder system.

Maintenance Advantages

For factories operating many W08C feeders, keeping frequently required small feeder components in inventory can shorten repair response time.

Specifications

Compatibility Reference

Recommended identification combination:

FUJI + PX10660 + W08C Feeder + NXT

Since feeder versions and configurations may vary, buyers should confirm the feeder model and existing part number before ordering.

Application

The FUJI PX10660 feeder seal is primarily used in W08C feeder maintenance for FUJI NXT SMT placement systems.

It is suitable for SMT lines producing:

• Consumer electronics
• Automotive electronic assemblies
• Communication devices
• Industrial control boards
• Power supply products
• LED assemblies
• Medical electronic products
• Computer hardware
• Smart home devices
• General PCB assemblies

The PX10660 is not a placement nozzle or electronic control component. It belongs to the feeder mechanical spare-parts category.

Typical Users

Why Feeder Condition Is Important

The feeder is one of the key systems responsible for supplying electronic components to the placement machine.

A well-maintained feeder helps ensure that carrier tape is advanced consistently and components are presented correctly for pickup.

Typical feeder maintenance involves checking several areas:

The PX10660 should therefore be inspected as part of the complete W08C feeder assembly.

How It Works

The PX10660 W08C Feeder Seal functions as a mechanical sealing and protective component within the feeder assembly.

During production, the feeder advances carrier tape repeatedly while the placement machine picks components from the designated pickup position.

The general feeding process includes:

1. Feeder Installation

The W08C feeder is installed onto the SMT placement machine.

2. Component Tape Loading

Carrier tape containing electronic components is loaded into the feeder.

3. Tape Advancement

The feeder mechanism advances the tape according to the required pitch.

4. Component Presentation

Each component is positioned at the pickup area.

5. Placement Head Pickup

The placement head picks the component and transfers it to the PCB.

6. Continuous Production

The process repeats at high speed.

The PX10660 works as part of this larger feeder assembly. Its purpose is not to drive the tape directly, but to help maintain the proper condition and protection of the related feeder structure.

How To Choose

Selecting the correct feeder spare part is important because FUJI feeders contain many small components with similar appearances.

Before ordering PX10660, use the following verification method.

1. Check the Part Number

Confirm that the required number is:

PX10660

Do not purchase only according to product appearance.

2. Confirm the Feeder Model

This component is associated with:

W08C Feeder

Different feeder models may use different seals, plates, buttons, springs, or mechanical components.

3. Confirm the Machine Platform

Recommended application:

FUJI NXT SMT Machine

If your feeder is used on another equipment platform, verify compatibility first.

4. Compare the Existing Part

Where possible, compare:

• Overall shape
• Installation position
• Dimensions
• Mounting features
• Existing part number
• Feeder model

A clear photo of the removed component can help with identification.

5. Send Complete Inquiry Information

For faster confirmation, provide:

Providing this information helps reduce incorrect orders and improves quotation efficiency.

Maintenance Recommendations

Regular feeder inspection can help prevent unexpected production interruptions.

Routine Inspection

Check:

• Dust accumulation
• Tape residue
• Loose parts
• Surface wear
• Physical damage
• Abnormal mechanical movement

Periodic Maintenance

Inspect:

• Feeder seals
• Plates
• gears
• springs
• levers
• tape guides
• covers
• drive areas

Replacement Maintenance

Replace parts when they show obvious wear, deformation, breakage, or other conditions that may affect feeder assembly.

Preventive replacement is often more economical than waiting for a feeder failure during production.

Spare-Part Inventory Planning

For factories operating many FUJI feeders, maintaining a small inventory of frequently used feeder parts can help reduce repair delays.

The PX10660 can be included in a W08C feeder maintenance spare-parts inventory together with other related feeder wear components.

Product Verification Before Shipment

To support reliable international purchasing, feeder parts can be checked before shipment according to:

• Part number
• Product appearance
• Quantity
• Packaging
• Visible surface condition
• Customer-provided reference photos

When multiple feeder parts are ordered together, individual part-number labeling can simplify receiving, storage, and maintenance use.

FAQ

Q1: What is FUJI PX10660 used for?

FUJI PX10660 is a W08C feeder seal used as a replacement component in the feeder assembly for FUJI NXT SMT equipment. It is mainly supplied for feeder maintenance, repair, and spare-parts replacement.

Q2: Is PX10660 suitable for FUJI W08C feeders?

Yes, PX10660 is identified for the W08C feeder application. However, feeder configurations can vary, so confirm the original part number and feeder model before purchasing.

Q3: Is PX10660 a feeder button sheet?

No. PX10660 is a feeder seal. The feeder button sheet is a different component and uses a different part number. Always purchase according to the exact feeder part number.

Q4: How can I confirm compatibility before ordering?

Send the part number PX10660, feeder model W08C, machine model, required quantity, and a clear photo of the original part. These details help confirm the required replacement component.

Q5: Can PX10660 be supplied together with other FUJI NXT feeder parts?

Yes. It can be ordered together with other W08C feeder spare parts for scheduled maintenance or feeder overhaul. Send your complete part-number list and quantities for combined checking and quotation.

Contact Us

Need FUJI PX10660 W08C Feeder Seal or other FUJI NXT feeder replacement parts?

Send us your part number, feeder model, machine model, required quantity, and reference photo for product checking.

We can support individual replacement requirements, maintenance stock, feeder repair projects, and bulk SMT spare-parts purchasing.

Contact us for current price, availability, lead time, and quotation for PX10660 and related W08C feeder parts.
