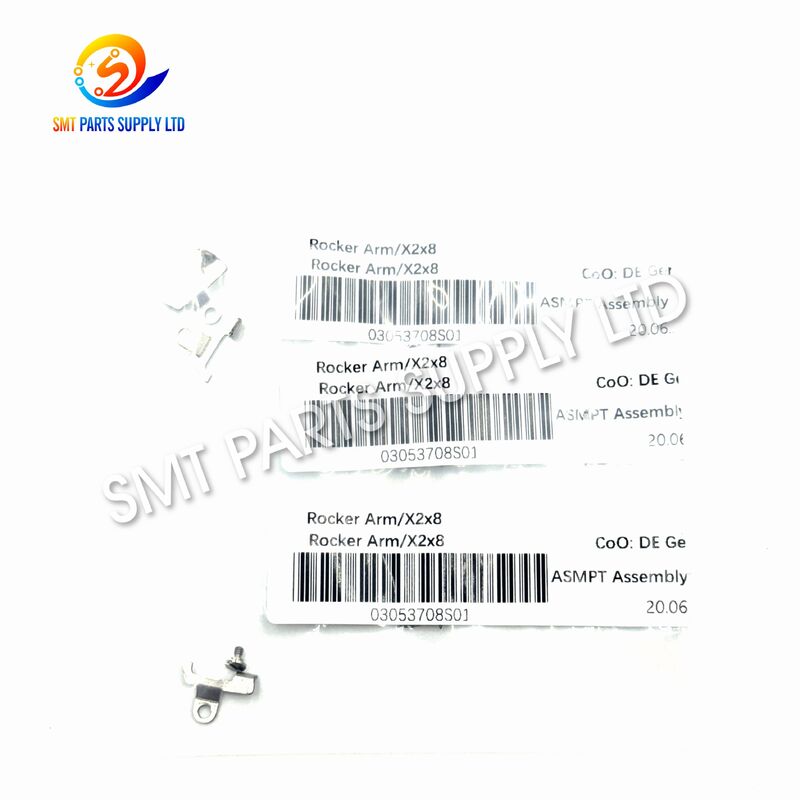

ASMPT Siemens 03053708S01 X2x8 Rocker Arm for SIPLACE SMT Feeder

ASMPT Siemens 03053708S01 X2x8 Rocker Arm for SIPLACE SMT Feeder

The ASMPT Siemens 03053708S01 X2x8 Rocker Arm is a precision mechanical replacement component used in compatible SIPLACE X-Series SMT feeder systems. The rocker arm forms part of the feeder's mechanical actuation structure, helping transfer controlled movement within the tape feeding mechanism during component indexing.

In high-speed SMT production, feeder accuracy has a direct influence on component presentation, pickup stability, machine efficiency, and production continuity. A worn, loose, damaged, or incorrectly operating rocker arm may result in unstable feeding behavior, irregular tape advancement, or increased feeder maintenance frequency.

Replacing the affected component with the correct 03053708S01 rocker arm can help restore normal feeder mechanical operation. It is suitable for SMT factories, feeder repair workshops, electronics manufacturers, and spare-parts distributors maintaining SIPLACE production equipment.

Cause – Why Rocker Arm Replacement May Be Required

SMT feeders operate continuously during electronics assembly and are exposed to frequent mechanical movement. Over long production cycles, feeder mechanical parts may gradually develop wear.

Common conditions that may indicate rocker arm inspection or replacement include:

The rocker arm should not automatically be considered the cause of every feeder fault. Feed pitch parts, tape guides, gears, springs, rollers, sensors, and other feeder components should also be inspected during troubleshooting.

For this reason, identifying the feeder model, original part number, and damaged component position before ordering is strongly recommended.

Solution – Restore Stable Feeder Mechanical Operation

Using the correct ASMPT Siemens 03053708S01 X2x8 Rocker Arm provides a practical solution when the original rocker arm is worn or damaged.

The component is intended to restore the mechanical movement required within the compatible X2x8 feeder structure. Proper replacement can help improve feeder consistency and reduce problems caused by worn mechanical parts.

Key Maintenance Benefits

For factories operating multiple SIPLACE feeders, keeping frequently used mechanical components in maintenance stock can help reduce delays when unexpected feeder problems occur.

Specifications

Important: Exact compatibility should be confirmed using the feeder model, feeder configuration, original component number, or clear feeder photos before purchasing.

Application

The 03053708S01 rocker arm is mainly used for maintenance and repair of compatible ASMPT / Siemens SIPLACE feeder systems.

Typical Applications

• SMT production line feeder maintenance
• SIPLACE feeder repair
• X2x8 feeder mechanical servicing
• Electronics assembly factories
• EMS production facilities
• SMT machine maintenance departments
• Feeder refurbishment workshops
• Preventive spare-parts inventory
• Replacement of damaged feeder mechanical components
• Production line downtime recovery

Suitable Industry Segments

Because feeder performance directly affects component delivery to the placement machine, maintaining the mechanical feeder system is important for stable SMT production.

How It Works

The rocker arm operates as part of the feeder's internal mechanical movement system.

During feeder operation, the tape feeding mechanism must advance the component carrier tape by a controlled distance. Multiple feeder parts work together to convert machine or feeder actuation into precise indexing movement.

The rocker arm participates in this mechanical sequence by transferring or controlling movement between related feeder components.

A simplified operating sequence can be described as:

Feeder Actuation → Rocker Arm Movement → Mechanical Transmission → Tape Indexing → Component Presentation

When this movement remains stable, the feeder can present components to the placement machine at the required pickup position.

If the rocker arm becomes worn, loose, damaged, or deformed, the mechanical movement may no longer remain consistent. This can contribute to incorrect tape indexing or unstable component presentation.

Replacing the defective rocker arm can therefore form an important part of feeder mechanical restoration.

How To Choose the Correct Rocker Arm

Correct part identification is especially important for ASMPT / Siemens feeder spare parts because visually similar components may belong to different feeder versions.

Before placing an order, check the following information:

Recommended Ordering Information

For faster quotation and compatibility confirmation, provide:

1. Part number: 03053708S01
2. Feeder model or series
3. Required quantity
4. Photo of the original rocker arm
5. Photo of the feeder identification label if available

Providing complete information helps reduce the risk of ordering a similar-looking but incompatible feeder component.

Why This Part Matters in Feeder Maintenance

Feeder problems can cause more than a single missed component pickup. Repeated feeding instability may affect production efficiency, operator workload, feeder availability, and placement machine utilization.

Replacing small mechanical parts before complete feeder failure may be more economical than continuously adjusting an unstable feeder.

Maintenance Comparison

A systematic maintenance approach should inspect the complete feeder mechanism instead of replacing unrelated parts without diagnosis.

Purchasing Advantages

The 03053708S01 X2x8 Rocker Arm is suitable for customers who need a clearly identified feeder spare part for repair or inventory planning.

What Buyers Can Expect

• Clear part number identification
• Professional SMT spare-parts support
• Compatibility checking assistance
• Support for small or bulk quantities
• Suitable for maintenance stock
• Export packing for international orders
• Fast quotation based on confirmed requirements
• Additional feeder spare parts available for combined purchasing

For customers managing multiple SMT lines, consolidating feeder spare-part requirements into one inquiry may also simplify purchasing and shipping arrangements.

FAQ

1. What is ASMPT Siemens 03053708S01 used for?

03053708S01 is an X2x8 feeder rocker arm used within compatible SIPLACE SMT feeder mechanical assemblies. It participates in the feeder movement mechanism that supports controlled carrier-tape advancement and stable component presentation during SMT production.

2. Is 03053708S01 suitable for all SIPLACE feeders?

No. SIPLACE feeders are available in different models, generations, and configurations. Compatibility should be confirmed using the exact feeder model, original part number, installation position, or clear photos before ordering.

3. When should the X2x8 rocker arm be replaced?

Replacement may be required when the original rocker arm shows visible wear, deformation, damage, excessive clearance, or contributes to abnormal mechanical movement. Related feeder gears, springs, guides, and drive parts should also be inspected.

4. Can I send photos for compatibility confirmation?

Yes. Providing clear photos of the original rocker arm, feeder label, installation position, and existing part number is recommended. This information helps identify the correct feeder component before quotation and shipment.

5. Can this part be ordered together with other SIPLACE feeder parts?

Yes. Buyers can submit multiple ASMPT / Siemens feeder part numbers in one inquiry. This is useful for feeder repair workshops, maintenance departments, and factories building a preventive spare-parts inventory.

Contact Us

Need ASMPT Siemens 03053708S01 X2x8 Rocker Arm or other SIPLACE feeder spare parts?

Send us your part number, feeder model, required quantity, and product photos. We can help check the requested item and prepare a quotation for your maintenance or production requirements.

Contact us today for price, availability, lead time, and combined SMT spare-parts quotation.
