Siemens ASMPT 03003143S01 X8 Tape Roller Axis for X-Series Mounter

Siemens ASMPT 03003143S01 X8 Tape Roller Axis for X-Series Mounter

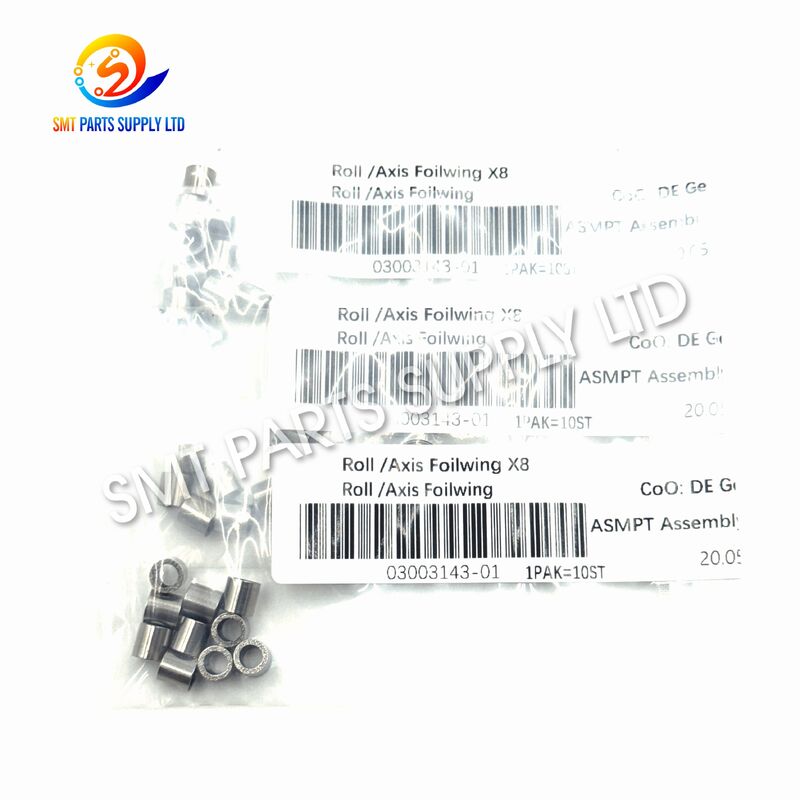

The ASM Siemens 03003143S01 X8 Tape Roller Axis is a mechanical replacement component used in compatible SIPLACE X8 feeder assemblies. It works within the feeder's roller and foil-handling mechanism, providing the required axis support for controlled mechanical movement during normal tape-feeding operation.

In high-volume SMT production, feeder components operate continuously through repeated indexing and tape-handling cycles. Small mechanical parts such as roller axes can gradually develop wear, contamination, deformation, or increased clearance. These conditions may affect roller movement and the stability of the related foil-handling mechanism.

Replacing a confirmed worn or damaged axis with the correct 03003143S01 component can help restore the intended mechanical condition of the feeder. The part is suitable for SMT factories, feeder repair centers, maintenance departments, refurbishment workshops, and spare-parts distributors supporting ASM Siemens SIPLACE X-Series feeder equipment.

Key Product Information

Cause – Why the Roller Axis May Require Replacement

The roller axis works inside a frequently moving feeder mechanism. Continuous production cycles combined with handling and environmental contamination may gradually affect its condition.

Typical reasons for inspection include:

A feeder problem should not automatically be attributed to the axis alone. The roller, foil wing, mounting points, tape path, gears, and related moving components should be inspected together before determining the final repair requirement.

Solution – Restore Stable Roller Mechanism Operation

When inspection confirms that the original roller axis is worn, bent, damaged, or mechanically unsuitable for continued service, replacement with the correct 03003143S01 X8 Tape Roller Axis provides a practical repair solution.

Correct replacement may help:

• Restore proper support of the related roller.
• Maintain controlled mechanical movement.
• Reduce abnormal clearance caused by axis wear.
• Improve alignment within the roller mechanism.
• Support stable foil-handling operation.
• Improve feeder condition during refurbishment.
• Reduce repeated adjustment of damaged parts.
• Extend the usable service life of the feeder.

For factories using large numbers of SIPLACE X-Series feeders, keeping small mechanical spare parts available can also shorten repair turnaround and reduce feeder downtime.

Specifications

Main Product Advantages

1. Dedicated X8 Feeder Application

The 03003143S01 axis is identified for the X8 feeder mechanism, allowing maintenance personnel to source the correct spare according to part number and application.

2. Supports Controlled Roller Movement

The axis provides mechanical support for the corresponding roller mechanism, helping the assembly maintain stable and repeatable movement during feeder operation.

3. Suitable for Component-Level Repair

When wear is limited to the axis or its related mechanical section, individual replacement allows technicians to repair the feeder without replacing a larger complete assembly unnecessarily.

4. Useful for Feeder Refurbishment

The component is suitable for professional refurbishment of used SIPLACE feeders where worn mechanical parts are systematically inspected and renewed.

5. Easy Spare-Part Identification

The exact 03003143S01 reference helps purchasing teams distinguish this axis from similar mechanical shafts used elsewhere in X-Series feeder assemblies.

6. Suitable for Maintenance Inventory

Its small size and maintenance function make it practical for feeder repair departments to keep as part of a dedicated X-Series spare-parts inventory.

Application

The ASM Siemens 03003143S01 X8 Tape Roller Axis is designed for professional SMT feeder servicing environments.

Typical production industries include:

• Consumer electronics.
• Automotive electronics.
• Industrial control equipment.
• Communication products.
• Power electronics.
• LED manufacturing.
• Medical electronics.
• Contract PCB assembly.

How It Works

The 03003143S01 roller axis functions as a mechanical support and positioning element within the X8 feeder's roller and foil-related assembly.

1. Feeder Begins Operation

The feeder performs its normal tape-indexing and handling sequence.

2. Roller Mechanism Moves

The corresponding roller or foil-handling component moves as part of the feeder's mechanical cycle.

3. Axis Supports the Roller

The roller axis provides a defined support point and allows the associated mechanism to move around its intended position.

4. Foil Handling Continues

The related feeder components manage the cover foil or tape-handling sequence as the carrier tape advances.

5. Component Tape Advances

The feeder continues positioning component pockets for the placement machine pickup cycle.

6. Process Repeats

The mechanical mechanism repeats continuously during production.

Because the axis supports repeated movement, excessive wear or deformation can affect the stability of the associated roller assembly.

Common Signs That Inspection May Be Required

Maintenance personnel should inspect the roller and axis area if the feeder shows:

• Roller movement becoming irregular.
• Increased mechanical play.
• Unusual movement resistance.
• Visible axis wear.
• Bent or damaged axis condition.
• Abnormal noise around the roller mechanism.
• Cover foil handling becoming unstable.
• Repeated feeder interruptions.
• Mechanical problems after dropping the feeder.
• Poor movement after previous repair.

These symptoms can also originate from other related feeder parts. Diagnosis should therefore include the complete roller and tape-handling mechanism.

How To Choose the Correct Roller Axis

Different feeder mechanisms may contain several shafts and axes that appear similar. Part selection should therefore be based on exact identification rather than dimensions estimated from photographs.

Step 1 – Confirm the Part Number

The required replacement should correspond to:

03003143S01

Use the complete part number when requesting a quotation.

Step 2 – Confirm X8 Application

Check that the existing component comes from the corresponding X8 feeder mechanism.

Step 3 – Compare the Original Component

Verify:

• Overall axis configuration.
• Installation position.
• Roller interface.
• Mounting points.
• Related foil mechanism.
• Existing part markings, if available.

Step 4 – Inspect Related Components

If the original axis shows significant wear, inspect the corresponding roller, mounting area, and moving assembly. A new axis installed with a badly worn mating component may not completely solve the mechanical problem.

Step 5 – Provide Photos When Necessary

For uncertain applications, provide clear photos showing:

• Complete feeder.
• Feeder identification label.
• Existing axis.
• Roller assembly.
• Installation position.

This helps reduce incorrect spare-part selection.

Selection Checklist

Maintenance Recommendations

For stable feeder operation:

• Keep the feeder interior clean.
• Remove tape scraps and adhesive contamination regularly.
• Inspect roller mechanisms during scheduled maintenance.
• Avoid forcing rollers that do not move freely.
• Check the axis for visible wear or deformation.
• Inspect the feeder after accidental impact or dropping.
• Replace damaged mechanical parts instead of repeatedly adjusting them.
• Confirm smooth roller movement after installation.
• Perform a feeder function test before returning it to production.
• Store replacement axes in clean protective packaging.

Regular preventive maintenance can help identify wear before it develops into repeated feeder interruptions.

Why Keep 03003143S01 in Spare-Parts Inventory?

Small feeder mechanical parts can cause a complete feeder to remain unavailable when replacement components are not immediately accessible.

For factories operating multiple ASM Siemens SIPLACE feeders, stocking selected mechanical components can improve feeder maintenance efficiency.

FAQ

Q1: What is ASM Siemens 03003143S01?

The 03003143S01 is a roller-axis mechanical component associated with the compatible SIPLACE X8 feeder mechanism. It is used for feeder repair, maintenance, and refurbishment.

Q2: What is the function of the 03003143S01 roller axis?

It provides mechanical support and positioning for the related roller and foil-handling mechanism, helping maintain controlled movement during repeated feeder operation.

Q3: When should the roller axis be replaced?

Replacement should be considered when inspection confirms visible wear, bending, deformation, excessive clearance, damaged surfaces, or irregular movement affecting the associated roller mechanism.

Q4: How can I confirm whether 03003143S01 is correct for my feeder?

Confirm the original part number and X8 feeder configuration first. If identification is uncertain, provide clear photos of the feeder label, existing part, roller mechanism, and installation position.

Q5: What information should I provide for a quotation?

Please provide part number 03003143S01, required quantity, feeder information, required condition, and destination country. Photos of the original component are recommended when compatibility verification is required.

Contact Us

Looking for ASM Siemens 03003143S01 X8 Tape Roller Axes for SIPLACE feeder maintenance or refurbishment?

Send us your:

• Part number: 03003143S01
• Required quantity
• Feeder model or configuration
• Required condition
• Destination country

For uncertain applications, send clear photos of the original component and feeder identification label for checking before ordering.

We support individual replacement requirements, feeder repair projects, maintenance inventories, and batch SMT spare-parts purchasing.

Send your inquiry today for price, availability, and delivery information.
